SIST EN ISO 16139:2006
(Main)Industrial valves - Gate valves of thermoplastics materials (ISO 16139:2006)
Industrial valves - Gate valves of thermoplastics materials (ISO 16139:2006)
This EN specifies requirements for gate valves of thermoplastic material for isolating service. This standard applies to hand or power operated gate valves to be installed in industrial pipe systems, irrespective of the field of application and the fluids to be conveyed. For other and/or special applications special requirements may apply. The range of DN is: DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300 and DN 350. The range of PN and Class is: PN 2,5, PN 4, PN 6, PN 10, PN 16 and Class 150.
Industriearmaturen - Schieber aus Thermoplasten (ISO 16139:2006)
Diese Internationale Norm legt die Anforderungen an die Konstruktion, Funktionsmerkmale und die Herstellung von Schiebern aus Thermoplasten zum Absperren fest sowie deren Anschluss an das Rohrleitungssystem, Gehäusewerkstoffe und Druck/Temperatur-Zuordnungen zwischen 40 °C und + 120 °C, für eine Lebensdauer von 25 Jahren. Sie legt auch die entsprechenden Prüfungen fest.
Diese Internationale Norm gilt für hand- und kraftbetätigte Armaturen, die in industrielle Rohrleitungssysteme eingebaut werden, unabhängig vom Einsatzbereich und dem zu befördernden Medium.
ANMERKUNG 1 Industrielle Rohrleitungssysteme umfassen auch Rohrleitungen für Wasserversorgung für allgemeine Zwecke, Entwässerung und Entsorgung.
ANMERKUNG 2 Rohrleitungssysteme für Wasser für den menschlichen Gebrauch können besonderen Anforderungen unterliegen.
Diese Internationale Norm erstreckt sich auf die folgenden DN-Bereiche:
DN 10, DN 15, DN 20, DN 25, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300 und DN 350
sowie auf die folgenden PN- und Class-Bereiche:
PN 6, PN 10, PN 16 und Class 150.
Robinetterie industrielle - Robinets-vannes en matériaux thermoplastiques (ISO 16139:2006)
La présente EN prescrit les caractéristiques des robinets-vannes en matériaux thermoplastiques destinés a la fonction d'isolement. La présente norme s'applique aux robinets-vannes manoeuvrés manuellement ou motorisés destinés a etre installés dans des systemes de tuyauteries industrielles, indépendamment du domaine d'application et des fluides véhiculés. Pour des applications autres ou spéciales, d'autres spécifications peuvent s'appliquer. La gamme de DN est: DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300 et DN 350. La gamme de PN et de Class est: PN 2,5, PN 4, PN 6, PN 10, PN 16, etc.
Industrijski ventili - Zasuni iz plastomernih materialov (ISO 16139:2006)
Ta standard EN določa zahteve za zasune iz plastomernega materiala, ki se uporabljajo za izolacijo. Ta standard se uporablja za ročno ali električno krmiljene zasune, ki so namenjeni za namestitev v industrijskih cevnih sistemih, ne glede na področje uporabe in tekočine, ki se bodo prenašale. Za druge in/ali posebne uporabe lahko veljajo posebne zahteve. Obseg vrednosti DN: DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300 in DN 350. Obseg vrednosti PN in razred: PN 2,5; PN 4; PN 6; PN 10; PN 16 in razred 150.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN ISO 16139:2006
01-julij-2006
Industrijski ventili - Zasuni iz plastomernih materialov (ISO 16139:2006)
Industrial valves - Gate valves of thermoplastics materials (ISO 16139:2006)
Industriearmaturen - Schieber aus Thermoplasten (ISO 16139:2006)
Robinetterie industrielle - Robinets-vannes en matériaux thermoplastiques (ISO
16139:2006)
Ta slovenski standard je istoveten z: EN ISO 16139:2006
ICS:
23.060.30
SIST EN ISO 16139:2006 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
EUROPEAN STANDARD
EN ISO 16139
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2006
ICS 23.060.30
English Version
Industrial valves - Gate valves of thermoplastics materials (ISO
16139:2006)
Robinetterie industrielle - Robinets-vannes en matériaux Industriearmaturen - Schieber aus Thermoplasten (ISO
thermoplastiques (ISO 16139:2006) 16139:2006)
This European Standard was approved by CEN on 3 March 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 16139:2006: E
worldwide for CEN national Members.
---------------------- Page: 2 ----------------------
EN ISO 16139:2006 (E)

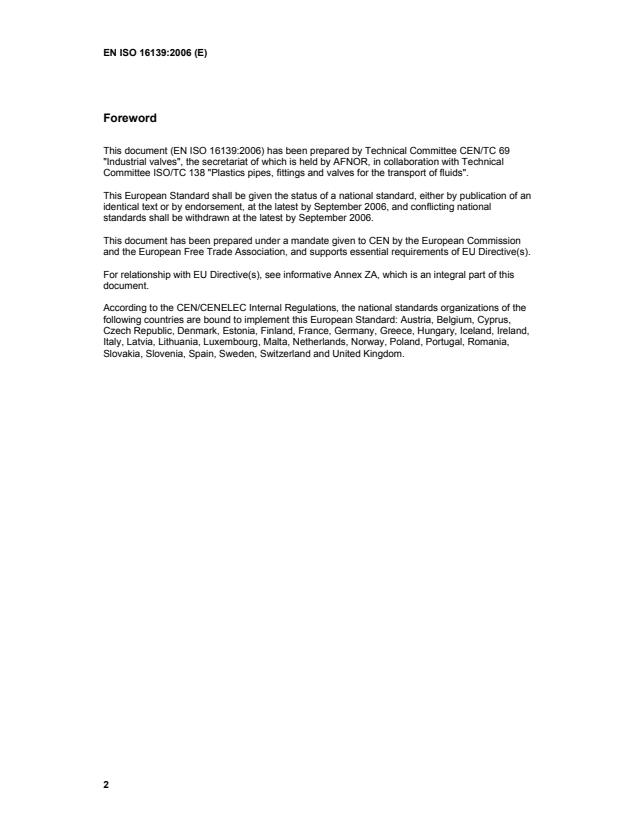

Foreword
This document (EN ISO 16139:2006) has been prepared by Technical Committee CEN/TC 69
"Industrial valves", the secretariat of which is held by AFNOR, in collaboration with Technical
Committee ISO/TC 138 "Plastics pipes, fittings and valves for the transport of fluids".
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2006, and conflicting national
standards shall be withdrawn at the latest by September 2006.
This document has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
2
---------------------- Page: 3 ----------------------
EN ISO 16139:2006 (E)
ANNEX ZA
(informative)
Relationship between this International Standard and the Essential
Requirements of EU Directive 97/23 EC (PED)
This International Standard has been prepared under a mandate given to CEN by the European
Commission and the European Free Trade Association to provide one means of conforming to
Essential Requirements of the New Approach Directive 97/23/EC (PED).
Once this standard is cited in the Official Journal of the European Communities under that Directive
and has been implemented as a national standard in at least one Member State, compliance with
the clauses of this standard given in Table ZA.1 confers, within the limits of the scope of this
standard, a presumption of conformity with the corresponding Essential Requirements of that
Directive and associated EFTA regulations.
Table ZA.1 — Correspondence between this Standard and Directive 97/23/EC (PED)
Sub-clause(s) of this Essential Requirements (ERs) of EU Directive 97/23/EC
International Standard
4.1; 4.3; 5.2 Design for adequate strength 2.2.1
5.2.3 Type test 2.2.2
4.8.1 Wear 2.7
4.7.1 Traceability 3.1.5
8.1 Marking 3.3
4.8.3 Operating instruction 3.4
4.2; 4.3 Materials for pressurized parts 4.1, 4.2 a)
WARNING: Other requirements and other EU Directives may be applicable to the product(s) falling
within the scope of this standard.
3
---------------------- Page: 4 ----------------------
INTERNATIONAL ISO
STANDARD 16139
First edition
2006-03-15
Industrial valves — Gate valves
of thermoplastics materials
Robinetterie industrielle — Robinets-vannes en matériaux
thermoplastiques
Reference number
ISO 16139:2006(E)
©
ISO 2006
---------------------- Page: 5 ----------------------
ISO 16139:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 16139:2006(E)
Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Requirements . 4
4.1 Design . 4
4.2 Materials . 5
4.3 Pressure/temperature rating. 5
4.4 Dimensions. 6
4.5 Operation . 7
4.6 Functional characteristics . 7
4.7 Manufacture. 8
4.8 Other requirements. 8
5 Test procedures . 9
5.1 Documentation of test results . 9
5.2 Initial type tests. 9
6 Declaration of compliance . 10
7 Designation . 10
8 Marking and preparation for storage and transportation. 11
8.1 Marking and documentation. 11
8.2 Preparation for storage and transportation . 12
Annex A (informative) Procurement information . 13
Bibliography . 14
© ISO 2006 – All rights reserved iii
---------------------- Page: 7 ----------------------
ISO 16139:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16139 was prepared by the European Committee for Standardization (CEN) Technical Committee
CEN/TC 69, Industrial valves, in collaboration with ISO/TC 138, Plastics pipes, fittings and valves for the
transport of fluids, Subcommittee SC 7, Valves and auxiliary equipment of plastics materials, in accordance
with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
iv © ISO 2006 – All rights reserved
---------------------- Page: 8 ----------------------
INTERNATIONAL STANDARD ISO 16139:2006(E)
Industrial valves — Gate valves of thermoplastics materials
1 Scope
This International Standard specifies requirements for the design, functional characteristics and manufacture
of gate valves made of thermoplastics materials intended for isolating service, their connection to the pipe
system, the body materials and their pressure/temperature rating between − 40 °C and + 120 °C, for a lifetime
of 25 years, and also specifies their tests.
This International Standard is applicable to hand- or power-operated valves to be installed in industrial pipe
systems, irrespective of the field of application and the fluids to be conveyed.
NOTE 1 Industrial pipe systems also include systems for water supply for general purposes, drainage and sewerage.
NOTE 2 Special requirements can apply to pipe systems for water for human consumption.
This International Standard is concerned with the range of DN
DN 10, DN 15, DN 20, DN 25, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250,
DN 300 and DN 350.
and the range of PN and Class
PN 6, PN 10, PN 16, and Class 150.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 7-1:1994, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions,
tolerances and designation
ISO 228-1:2000, Pipe threads where pressure-tight joints are not made on the threads — Part 1: Dimensions,
tolerances and designation
ISO 898-1:1999, Mechanical properties of fasteners made of carbon steel and alloy steel — Part 1: Bolts,
screws and studs
ISO 5210:1991, Industrial valves — Multi-turn valve actuator attachments
ISO 8233:1988, Thermoplastics valves — Torque — Test method
ISO 8659:1989, Thermoplastic valves — Fatigue strength — Test method
ISO 9393-2:2005, Thermoplastics valves for industrial applications — Pressure test methods and
requirements — Part 2: Test conditions and basic requirements
ISO/TR 10358:1993, Plastics pipes and fittings — Combined chemical-resistance classification table
© ISO 2006 – All rights reserved 1
---------------------- Page: 9 ----------------------
ISO 16139:2006(E)
ISO 10931:2005, Plastics piping systems for industrial applications — Poly(vinylidene fluoride) (PVDF) —
Specifications for components and the system
ISO 12092:2000, Fittings, valves and other piping system components, made of unplasticized poly(vinyl
chloride) (PVC-U), chlorinated poly(vinyl chloride) (PVC-C) acrylonitrile-butadiene-styrene (ABS) and
acrylonitrile-styrene-acrylester (ASA) for pipes under pressure — Resistance to internal pressure — Test
method
ISO 12162:1995, Thermoplastics materials for pipes and fittings for pressure applications — Classification and
designation — Overall service (design) coefficient
ISO 15493:2003, Plastics piping systems for industrial applications — Acrylonitrile-butadiene-styrene (ABS),
unplasticized poly(vinyl chloride) (PVC-U) and chlorinated poly(vinyl chloride) (PVC-C) — Specifications for
components and the system — Metric series
ISO 15494:2003, Plastics piping systems for industrial applications — Polybutene (PB), polyethylene (PE) and
polypropylene (PP) — Specifications for components and the system — Metric series
EN 558-1:1995, Industrial valves — Face-to-face and centre-to-face dimensions of metal valves for use in
flanged pipe systems — Part 1: PN-designated valves
EN 558-2:1995, Industrial valves — Face-to-face and centre-to-face dimensions of metal valves for use in
flanged pipe systems — Part 2: Class-designated valves
EN 736-1:1995, Valves — Terminology — Part 1: Definition of types of valves
EN 736-2:1997, Valves — Terminology — Part 2: Definition of components of valves
EN 736-3:1999, Valves — Terminology — Part 3: Definition of terms
EN 1092-1:2001, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, PN
designated — Part 1: Steel flanges
EN 1267:1999, Valves — Test of flow resistance using water as test fluid
EN 1759-1:2004, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, Class
designated — Part 1: Steel flanges, NPS ½ to 24
EN 12107:1997, Plastics piping systems — Injection-moulded thermoplastics fittings, valves and ancillary
equipment — Determination of the long-term hydrostatic strength of thermoplastics materials for injection
moulding of piping components
EN 12266-1:2003, Industrial valves — Testing of valves — Part 1: Pressure tests, test procedures and
acceptance criteria – Mandatory requirements
EN 12570:2000, Industrial valves — Method for sizing the operating element
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 736-1, EN 736-2 and EN 736-3 and
the following apply.
NOTE Other terms and definitions relative to thermoplastics materials are given in ISO 15493, ISO 15494 and
ISO 10931.
2 © ISO 2006 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 16139:2006(E)
3.1
nominal size
DN
alphanumeric designation of size for components of a pipework system, which is used for reference purposes,
comprising the letters DN followed by a dimensionless whole number which is indirectly related to the physical
size, in millimetres, of the bore or outside diameter of the end connections
[ISO 6708:1995, definition 2.1]
3.2
nominal pressure
PN
numerical designation relating to pressure that is a convenient round number for reference purposes
NOTE 1 It is intended that all equipment of the same nominal size (DN) designated by the same PN number have the
same mating dimensions appropriate to the type of end connections.
NOTE 2 The permissible working pressure depends upon materials, design and working temperature and is to be
selected from the pressure/temperature rating tables in corresponding standards.
[ISO 7268:1983, Clause 2]
3.3
Class
alphanumeric designation used for reference purposes related to a combination of mechanical and
dimensional characteristics of a component of a pipework system, which comprises the word “Class” followed
by a dimensionless whole number
NOTE The number following the word “Class” does not represent a measurable value and is not intended to be used
for calculation purposes except where
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
