SIST EN 1366-1:2014/kFprA1:2020

Fire resistance tests for service installations - Part 1: Ventilation ducts

This Part of EN 1366 specifies a method for determining the fire resistance of vertical and horizontal ventilation ducts including those access panels, which are integral part of the tested ducts. The test examines the behaviour of ducts exposed to fire from the outside (duct A) and fire inside the duct (duct B). This Standard is used in conjunction with EN1363-1.
Annex A provides general guidance and gives background information.
This European Standard is not applicable to:
a)   ducts whose fire resistance depends on the fire resistance performance of a ceiling or wall(where ducts are located in cavities enclosed by fire-resistant shafts or ceilings);
b)   ducts containing fire dampers at points where they pass through fire separations;
c)   one, two or three sided ducts;
d)   fixing of suspension devices (e.g. anchors) to floors or walls.

Feuerwiderstandsprüfungen für Installationen - Teil 1: Lüftungsleitungen

Essais de résistance au feu des installations techniques - Partie 1: Conduits de ventilation

Le présent document a été élaboré dans le cadre d’un mandat donné au CEN par la Commission Européenne et l’Association Européenne de Libre Échange et vient à l’appui des exigences essentielles de la Directive Produits de construction.

Preskusi požarne odpornosti servisnih inštalacij - 1. del: Ventilacijski kanali

General Information

• Status: Not Published
• Public Enquiry End Date: 29-May-2019
• ICS: 13.220.50 - Fire-resistance of building materials and elements
• ICS: 91.060.40 - Chimneys, shafts, ducts
• Technical Committee: POZ - Požarna varnost
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 08-Sep-2020
• Due Date: 13-Sep-2020
• Completion Date: 08-Sep-2020
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Mandate: M/117 - Horizontal complement to the mandates to CEN/CENELEC concerning the execution of standardization work for the valuation of construction products and elements in respect of their resistance to fire
• Ref Project: EN 1366-1:2014/FprA1 - Fire resistance tests for service installations - Part 1: Ventilation ducts

Relations

• Consolidated By: SIST EN 1366-1:2014+A1:2020 - Fire resistance tests for service installations - Part 1: Ventilation ducts
• Effective Date: 01-Oct-2020
• Amends: SIST EN 1366-1:2014 - Fire resistance tests for service installations - Part 1: Ventilation ducts
• Effective Date: 01-May-2019

Overview

SIST EN 1366-1:2014/kFprA1:2020 is a European Standard developed by the European Committee for Standardization (CEN) that specifies the fire resistance testing methods for ventilation ducts used in building service installations. This standard focuses on assessing the ability of both vertical and horizontal ventilation ducts to withstand fire exposure, crucial for maintaining building safety and preventing fire spread.

The testing includes evaluating ducts exposed to fire from both outside (duct A) and inside (duct B) the duct itself. It is intended to be used alongside EN 1363-1, the general fire resistance test method. This standard excludes ducts where fire resistance depends on the surrounding fire-resistant structures, ducts with fire dampers, one- to three-sided ducts, and the fixing of suspension devices to walls or floors.

Key Topics

• Scope of Fire Resistance Tests
  EN 1366-1 outlines methods to measure fire resistance of ventilation ducts including integral access panels. The evaluation considers:

  • External fire exposure (duct A)
  • Internal fire exposure (duct B)

• Types of Ducts Covered
  Suitable for standard vertical and horizontal ducts without fire dampers or enclosing fire-resistant shafts.

• Modifications and Supplementary Requirements
  The amendment FprA1 adds critical updates, particularly for ducts with combustible internal linings such as kitchen extract ducts:

  • Additional thermocouples installed inside ducts for temperature monitoring
  • Specific insulation performance criteria to minimize ignition risks inside ducts
  • Detailed guidance on suspension devices and flexible supporting walls for horizontal ducts

• Performance Criteria
  The standard measures integrity, insulation, and leakage to ascertain overall fire resistance. For ducts with combustible linings, additional emphasis is placed on controlling internal temperatures to prevent internal fuel ignition.

• Exclusions
  Not applicable to ducts where fire resistance comes from walls or ceilings enclosing the ducts, ducts with fire dampers, and ducts fixed by anchors.

• Annex A Guidance
  Provides background information on test procedures and performance criteria, especially differentiating between standard ventilation ducts and kitchen extract or combustible-lined ducts.

Applications

• Fire Safety in Building Design
  EN 1366-1 is essential for architects, engineers, and safety consultants during the design and specification of HVAC systems to ensure compliance with fire safety regulations.

• Building Services Installation Testing
  Manufacturers and testing laboratories use this standard to certify that ventilation ducts meet minimum fire resistance requirements, supporting safe building evacuation and fire compartmentation.

• Kitchen Ventilation Systems
  Particularly important for kitchen extract duct testing, where internal combustible linings increase fire risk, ensuring these ducts are tested with additional rigor to prevent fire spread.

• Fire Protection Products Development
  Enables developers of ventilation duct materials and fire-resistant coatings or linings to validate performance characteristics under fire exposure conditions.

Related Standards

• EN 1363-1: Fire Resistance Tests - General Requirements
  General framework for conducting fire resistance tests applicable to all test methods including ventilation ducts.

• EN 1366 Series - Fire Resistance Tests for Service Installations
  Covers different service installations such as cable trays, electrical ducts, and fire dampers, complementing Part 1 for ventilation ducts.

• EN 14303 - Thermal Insulation Products for Building Applications
  Related to thermal insulation materials used in ducts that might influence fire resistance performance.

• EN 13501-2: Fire Classification of Construction Products
  Classification standard which may include fire resistance ratings derived from tests conducted under EN 1366-1.

---

Keywords: SIST EN 1366-1:2014/kFprA1:2020, fire resistance tests, ventilation ducts, service installations, building fire safety, kitchen extract ducts, combustible linings, fire protection standards, European fire safety, EN 1363-1, fire resistant HVAC ducts.

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 1366-1:2014/oprA1:2019
01-maj-2019
Preskusi požarne odpornosti servisnih inštalacij - 1. del: Ventilacijski kanali
Fire resistance tests for service installations - Part 1: Ventilation ducts
Feuerwiderstandsprüfungen für Installationen - Teil 1: Lüftungsleitungen
Essais de résistance au feu des installations techniques - Partie 1: Conduits de
ventilation
Ta slovenski standard je istoveten z: EN 1366-1:2014/prA1
ICS:
13.220.50 Požarna odpornost Fire-resistance of building
gradbenih materialov in materials and elements
elementov
91.060.40 Dimniki, jaški, kanali Chimneys, shafts, ducts
SIST EN 1366-1:2014/oprA1:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

SIST EN 1366-1:2014/oprA1:2019

SIST EN 1366-1:2014/oprA1:2019

DRAFT
EUROPEAN STANDARD
EN 1366-1:2014
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
March 2019
ICS 13.220.50; 91.140.30
English Version
Fire resistance tests for service installations - Part 1:
Ventilation ducts
Essais de résistance au feu des installations techniques Feuerwiderstandsprüfungen für Installationen - Teil 1:
- Partie 1: Conduits de ventilation Lüftungsleitungen
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 127.

This draft amendment A1, if approved, will modify the European Standard EN 1366-1:2014. If this draft becomes an amendment,
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1366-1:2014/prA1:2019 E
worldwide for CEN national Members.

SIST EN 1366-1:2014/oprA1:2019
EN 1366-1:2014/prA1:2019 (E)

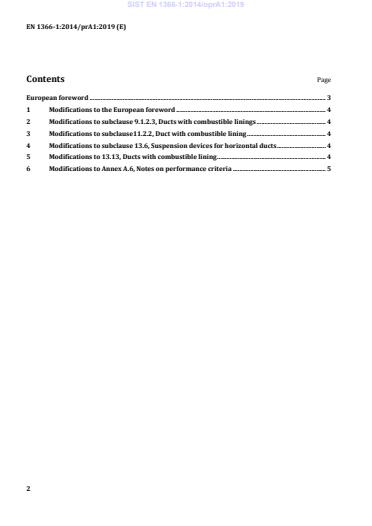

Contents Page
European foreword . 3
1 Modifications to the European foreword . 4
2 Modifications to subclause 9.1.2.3, Ducts with combustible linings . 4
3 Modifications to subclause11.2.2, Duct with combustible lining . 4
4 Modifications to subclause 13.6, Suspension de
...
