SIST EN IEC 60317-93:2024

Specifications for particular types of winding wires - Part 93: Polyester or polyesterimide overcoated with polyamide-imide enamelled rectangular copper wire, class 220 (IEC 60317-93:2023)

IEC 60317-93: 2023 specifies the requirements of enamelled rectangular copper winding wire of class 220 with a dual coating. The underlying coating is based on polyester or polyesterimide resin, which be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. The superimposed coating is based on polyamide-imide resin. NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to enhance certain performance or application characteristics. The range of nominal conductor dimensions covered by this standard is:
width: min. 2,0 mm max. 25,0 mm;
thickness: min. 0,80 mm max. 10,0 mm.
Wires of grade 1 and grade 2 are included in this specification and apply to the complete range of conductors. The specified combinations of width and thickness as well as the specified width/thickness ratio are given in IEC 60317-0-2. This International Standard is to be used in conjunction with IEC 60317-0-2:2020.

Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 84: Flachdrähte aus Kupfer, lackisoliert mit Polyester oder Polyesterimid und darüber mit Polyamidimid, Klasse 220 (IEC 60317-93:2023)

Spécifications pour types particuliers de fils de bobinage - Partie 93: Fil de section rectangulaire en cuivre émaillé au polyamide-imide, avec émail sous-jacent en polyester ou polyestérimide, classe 220 (IEC 60317-93:2023)

IEC 60317-93: 2023 spécifie les exigences relatives aux fils de bobinage de section rectangulaire en cuivre émaillé de classe 220, avec un double revêtement. L’émail sous-jacent est à base de résine polyester ou polyestérimide, qui peut être modifiée sous réserve qu'elle conserve l'identité chimique de la résine initiale et respecte l'ensemble des exigences spécifiées du fil. La surcouche de revêtement est à base de résine polyamide-imide. NOTE Une résine modifiée est une résine dont les propriétés chimiques ont été modifiées, ou qui contient un ou plusieurs additifs visant à améliorer certaines performances ou caractéristiques d’application. La gamme des dimensions nominales des conducteurs couverte par la présente norme est:
largeur: min. 2,0 mm max. 25,0 mm;
épaisseur: min. 0,80 mm max. 10,0 mm.
Les fils de grade 1 et de grade 2 sont compris dans la présente spécification et s'appliquent à la gamme complète des conducteurs. Les combinaisons spécifiées de largeur et d'épaisseur, ainsi que le rapport largeur/épaisseur spécifié, sont donnés dans l’IEC 60317-0-2.
La présente Norme internationale doit être utilisée conjointement avec l'IEC 60317-0-2:2020.

Specifikacije za posebne vrste navijalnih žic - 93. del: S poliestrom ali poliesterimidom prevlečena bakrena žica s pravokotnim prerezom, emajlirana s poliamidimidom, razred 220 (IEC 60317-93:2023)

Standard IEC 60317-93: 2023 določa zahteve za bakreno pravokotno navijalno žico razreda 220 z dvojno prevleko. Spodnja prevleka je osnovana na poliestrski ali poliestramidni smoli, ki se lahko spremeni, če ohrani kemijsko identiteto izvirne smole in izpolnjuje vse določene zahteve za žice. Vrhnja prevleka je osnovana na poliamid-imidni smoli. OPOMBA: Spremenjena smola je smola, ki je bila kemijsko spremenjena ali vsebuje enega ali več aditivov za izboljšanje določene lastnosti učinkovitosti ali uporabe. Razpon nazivnih mer prevodnika, ki ga zajema ta standard, je:
širina: najm. 2,0 mm, najv. 25,0 mm;
debelina: najm. 0,80 mm, najv. 10,0 mm.
V to specifikacijo so vključene žice razreda 1 in 2 ter se uporabljajo za celoten nabor prevodnikov. Navedene kombinacije širine in debeline ter določena razmerja med širino in debelino so podana v standardu IEC 60317-0-2. Ta mednarodni standard je treba uporabljati v povezavi s standardom IEC 60317-0-2:2020.

General Information

• Status: Published
• Public Enquiry End Date: 31-Mar-2023
• Publication Date: 17-Mar-2024
• ICS: 29.060.10 - Wires
• ICS: 77.150.30 - Copper products
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 20-Sep-2023
• Due Date: 25-Nov-2023
• Completion Date: 18-Mar-2024
• Ref Project: EN IEC 60317-93:2023 - Specifications for particular types of winding wires - Part 93: Polyester or polyesterimide overcoated with polyamide-imide enamelled rectangular copper wire, class 220

Overview

SIST EN IEC 60317-93:2024 is an international standard published by the European Committee for Electrotechnical Standardization (CLC). It specifies the requirements for polyester or polyesterimide enamelled rectangular copper winding wire with an additional overcoat of polyamide-imide enamel, classified as class 220. This dual-coated winding wire is designed to meet stringent electrical, mechanical, and thermal performance criteria, suitable for high-performance electrical applications. The standard covers winding wires with nominal conductor dimensions ranging from 2.0 mm to 25.0 mm in width and 0.80 mm to 10.0 mm in thickness.

This standard complements IEC 60317-0-2:2020, which sets general requirements for enamelled rectangular copper wire and defines specific dimensional and performance parameters.

Key Topics

• Dual Coating System: The wire uses a two-layer insulation system:

  • An underlying coat of polyester or polyesterimide resin, which may be chemically modified but retains its fundamental chemical identity.
  • A top coat of polyamide-imide enamel providing enhanced thermal resistance.

• Thermal Class 220: This classification implies the wire can withstand a minimum temperature index of 220°C and heat shock resistance up to at least 240°C, making it ideal for high-temperature environments.

• Dimension Range and Grades:

  • Width: 2.0–25.0 mm
  • Thickness: 0.80–10.0 mm
  • Includes grade 1 and grade 2 wires, applicable over the entire dimension range.

• Testing and Compliance:

  • Electrical resistance, elongation, flexibility, adhesion, heat shock, abrasion resistance, solvent resistance, breakdown voltage, and solderability are among the specified test requirements.
  • Compliance with these performance tests ensures the wire meets the rigorous safety and durability standards expected for electrical equipment windings.

• Related Normative Reference: IEC 60317-0-2:2020 is referenced to maintain alignment on general wire requirements, dimensions, and test methods.

Applications

SIST EN IEC 60317-93:2024 winding wire is primarily used in the manufacture of electrical winding components requiring exceptional insulation, mechanical strength, and thermal endurance, including:

• Electric motors and generators operating at elevated temperatures.
• Transformers and inductors where rectangular copper wire geometry optimizes space and performance.
• High-performance electromagnetic coils in industrial and automotive equipment.
• Winding applications demanding wires resistant to chemical solvents, abrasion, and hydrolysis.
• Situations requiring enhanced environmental protection through dual insulation layers for prolonged operational life.

Its specification suits industries that require compliance with international electrical safety and reliability standards, including manufacturing, engineering, electronics, and energy sectors.

Related Standards

• IEC 60317-0-2:2020 - General requirements for enamelled rectangular copper wires including dimensions, testing methods, and wire characteristics.
• IEC 60851 series - Test methods for winding wires, providing comprehensive testing procedures to verify wire performance according to IEC 60317-93.
• IEC 60264 series - Packaging of winding wires standard, covering how wires are prepared and shipped to maintain quality.

Together, these standards provide a complete framework ensuring high-quality insulated winding wires that meet international electrotechnical requirements.

---

By adhering to EN IEC 60317-93, manufacturers and users benefit from a robust, internationally recognized standard focused on polyester/polyesterimide enamelled copper wires with polyamide-imide overcoating, designed to deliver superior thermal performance, insulation integrity, and mechanical durability for critical electrical winding applications.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2024
Specifikacije za posebne vrste navijalnih žic - 93. del: S poliestrom ali
poliesterimidom prevlečena bakrena žica s pravokotnim prerezom, emajlirana s
poliamidimidom, razred 220 (IEC 60317-93:2023)
Specifications for particular types of winding wires - Part 93: Polyester or polyesterimide
overcoated with polyamide-imide enamelled rectangular copper wire, class 220 (IEC
60317-93:2023)
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 84:
Flachdrähte aus Kupfer, lackisoliert mit Polyester oder Polyesterimid und darüber mit
Polyamidimid, Klasse 220 (IEC 60317-93:2023)
Spécifications pour types particuliers de fils de bobinage - Partie 93: Fil de section
rectangulaire en cuivre émaillé au polyamide-imide, avec émail sous-jacent en polyester
ou polyestérimide, classe 220 (IEC 60317-93:2023)
Ta slovenski standard je istoveten z: EN IEC 60317-93:2023
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60317-93

NORME EUROPÉENNE
EUROPÄISCHE NORM September 2023
ICS 29.060.10
English Version
Specifications for particular types of winding wires - Part 93:
Polyester or polyesterimide overcoated with polyamide-imide
enamelled rectangular copper wire, class 220
(IEC 60317-93:2023)
Spécifications pour types particuliers de fils de bobinage - Technische Lieferbedingungen für bestimmte Typen von
Partie 93: Fil de section rectangulaire en cuivre émaillé au Wickeldrähten - Teil 84: Flachdrähte aus Kupfer, lackisoliert
polyamide-imide, avec émail sous-jacent en polyester ou mit Polyester oder Polyesterimid und darüber mit
polyestérimide, classe 220 Polyamidimid, Klasse 220
(IEC 60317-93:2023) (IEC 60317-93:2023)
This European Standard was approved by CENELEC on 2023-09-04. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60317-93:2023 E

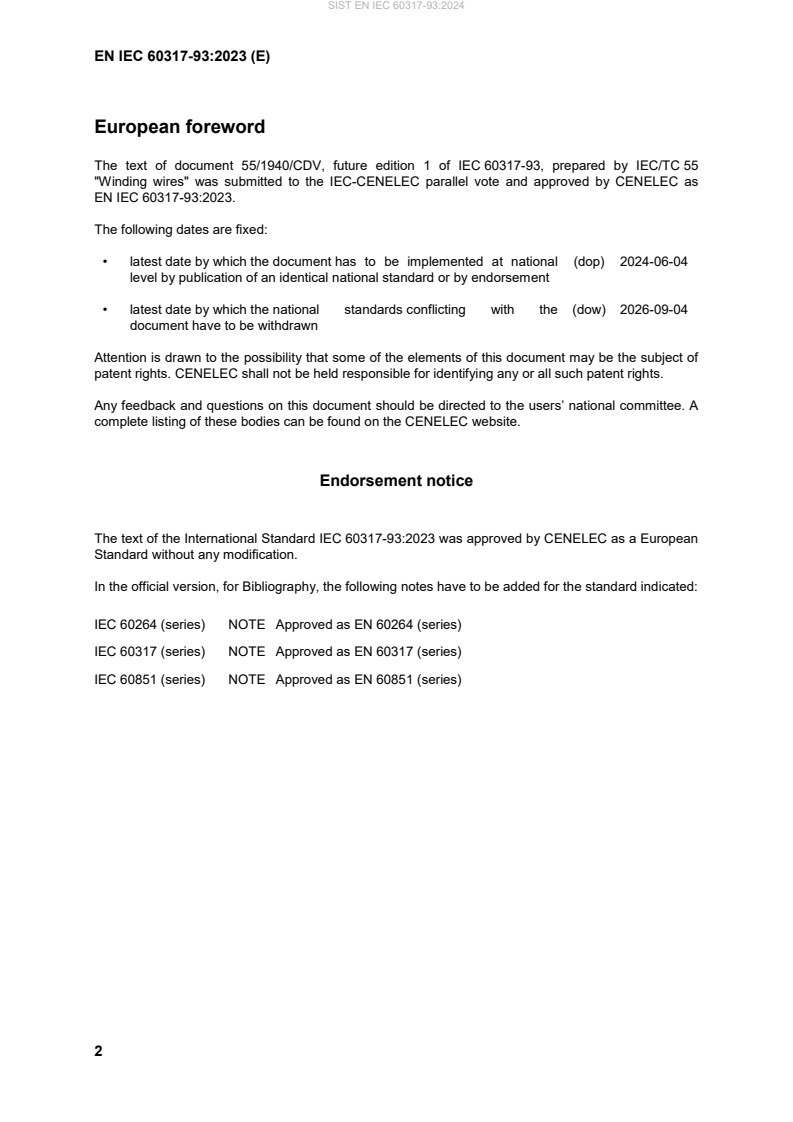

European foreword
The text of document 55/1940/CDV, future edition 1 of IEC 60317-93, prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-06-04
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-09-04
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60317-93:2023 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60264 (series) NOTE Approved as EN 60264 (series)
IEC 60317 (series) NOTE Approved as EN 60317 (series)
IEC 60851 (series) NOTE Approved as EN 60851 (series)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60317-0-2 2020 Specifications for particular types of winding EN IEC 60317-0-2 2020
wires - Part 0-2: General requirements -
Enamelled rectangular copper wire

IEC 60317-93 ®
Edition 1.0 2023-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 93: Polyester or polyesterimide overcoated with polyamide-imide enamelled

rectangular copper wire, class 220

Spécifications pour types particuliers de fils de bobinage –

Partie 93: Fil de section rectangulaire en cuivre émaillé au polyamide-imide, avec

émail sous-jacent en polyester ou polyestérimide, classe 220

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10 ISBN 978-2-8322-7304-3

– 2 – IEC 60317-93:2023 © IEC 2023
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 7
3.2.1 Methods of test . 7
3.2.2 Winding wire . 7
3.3 Appearance . 7
4 Dimensions. 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 8
18 Heat or solvent bonding . 8
19 Dielectric dissipation factor . 8
20 Resistance to hydrolysis and to transformer oil .
...
