EUROPEAN STANDARD EN 62386-304:2017/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM May 2024
ICS 29.140.50; 29.140.99
English Version
Digital addressable lighting interface - Part 304: Particular
requirements - Input devices - Light sensor
(IEC 62386-304:2017/AMD1:2024)
Interface d'éclairage adressable numérique - Partie 304: Digital adressierbare Schnittstelle für die Beleuchtung - Teil
Exigences particulières - Dispositifs d'entrée - Capteur de 304: Besondere Anforderungen - Eingabegeräte -
luminosité Lichtsensor
(IEC 62386-304:2017/AMD1:2024) (IEC 62386-304:2017/AMD1:2024)
This amendment A1 modifies the European Standard EN 62386-304:2017; it was approved by CENELEC on 2024-05-15. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62386-304:2017/A1:2024 E

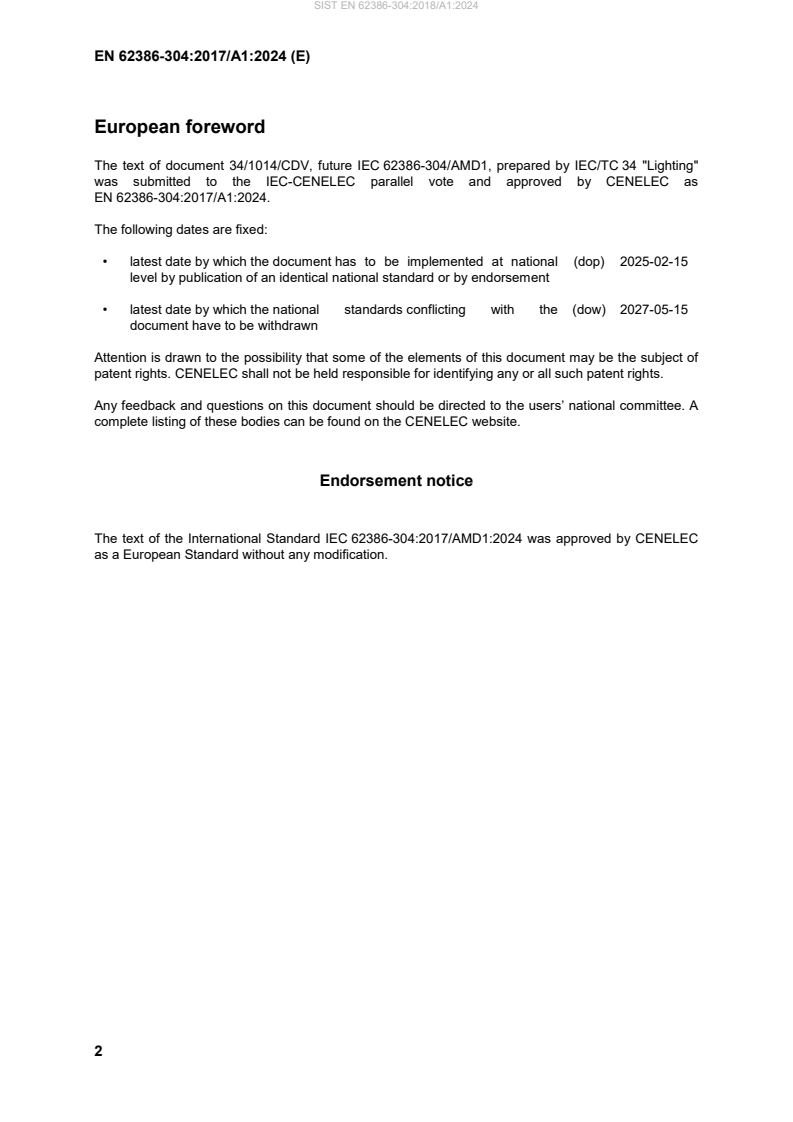

European foreword
The text of document 34/1014/CDV, future IEC 62386-304/AMD1, prepared by IEC/TC 34 "Lighting"
was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-02-15
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-05-15
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62386-304:2017/AMD1:2024 was approved by CENELEC
as a European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Replace the following reference:
Publication Year Title EN/HD Year
IEC 62386-333 2018 Digital addressable lighting interface - EN IEC 62386-333 2018
Part 333: Particular requirements for control
devices - Manual configuration (feature
type 33)
IEC 62386-304 ®
Edition 1.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Digital addressable lighting interface –
Part 304: Particular requirements – Input devices – Light sensor
Interface d'éclairage adressable numérique –
Partie 304: Exigences particulières – Dispositifs d'entrée – Capteur de
luminosité
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.50, 29.140.99 ISBN 978-2-8322-8616-6
– 2 – IEC 62386-304:2017/AMD1:2024
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIGITAL ADDRESSABLE LIGHTING INTERFACE –
Part 304: Particular requirements – Input devices –
Light sensor
AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 62386-304:2017 has been prepared by IEC technical committee 34:
Lighting.
The text of this Amendment is based on the following documents:
Draft Report on voting
34/1014/CDV 34/1079A/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
IEC 62386-304:2017/AMD1:2024 – 3 –
© IEC 2024
The language used for the development of this Amendment is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.
___________
Throughout the document:
Delete all references to IEC 62386-101:2014/AMD1:—, including the footnote where applicable.
Delete all references to IEC 62386-103:2014/AMD1:—, including the footnote where applicable.
Replace all dated references to IEC 62386-101:2014 with IEC 62386-101:2022.
Replace all dated references to IEC 62386-103:2014 with IEC 62386-103:2022.
– 4 – IEC 62386-304:2017/AMD1:2024
© IEC 2024
INTRODUCTION
Replace the existing Figure 1 with the following new Figure 1.
Figure 1 – IEC 62386 graphical overview
1 Scope
Replace the existing text, including the Note, with the following new text:
This part of IEC 62386 is applicable to input devices that provide illuminance level information
to the lighting control system through light level sensing.
This document is only applicable to input devices complying with IEC 62386-103:2022.
2 Normative references
Replace the existing reference to IEC 62386-333:—, including the footnote, with the following
reference:
IEC 62386-333:2018, Digital addressable lighting interface – Part 333: Particular requirements
for control devices – Manual configuration (feature type 33)
3 Terms and definitions
3.2
strictly monotonic
Delete the Note 1 to entry.
IEC 62386-304:2017/AMD1:2024 – 5 –
© IEC 2024
4.3 Insulation
Replace the first paragraph, excluding the Note, with the following new paragraph:
According to applicable safety standards, it can be required that the input device has at least
supplementary insulation to accessible parts. This depends on the connected components. In
this case special attention should be paid with respect to the sensor(s) being used.
9.3 Input signal and value
Replace the existing paragraph and Note with the following new text:
The measured value shall contain the measured illuminance with a precision of "resolution" bits
and shall be encoded in "inputValue" as described in IEC 62386-103:2022, 9.8.2. The measured
value shall be a strictly monotonic function of the illuminance level.
NOTE The illuminance value is a relative value, not representing absolute lux values.
After receiver start-up, it can take the sensor some time before valid illuminance level
measurements are obtained. During this time, "inputValue" shall be MASK. After the first valid
illuminance level measurement is obtained, "inputValue" shall not be MASK, except in the case
of physical sensor failure (see 9.6.1).
Examples of "inputValue" MASK values and highest valid values, for several values of
"resolution":
– "resolution" = 4: "inputValue" is a 1-byte value
• MASK
...
