SIST EN 14850:2006

Aerosol containers - Metal containers with 25,4 mm aperture - Measurement of contact height

This European Standard describes a method of measuring the contact height of the compression closure between the valve cup and the aperture of an aerosol container.
This standard applies to aerosol containers with 25,4 mm apertures as specified in EN 14847 and prEN 15006 fitted with aerosol valve cups as specified in EN 14848.

Aerosolverpackungen - Metallbehälter mit einer Öffnung von 25,4 mm - Messung der Kontakthöhe

Diese Europäische Norm legt ein Verfahren zur Messung der Kontakthöhe des Druckverschlusses zwischen
dem Ventilträger und der Öffnung eines Aerosolbehälters fest.
Diese Norm gilt für die in EN 14847 und prEN 15006 festgelegten Aerosolbehälter mit einer Öffnung von
25,4 mm, die mit Aerosol-Ventilträgern nach EN 14848 versehen sind.

Récipients pour aérosols - Récipients métalliques avec ouverture de 25,4mm - Mesurage de la hauteur de contact

La présente Norme européenne décrit une méthode permettant de mesurer la hauteur de contact du dudgeonnage entre la coupelle de la valve et l’ouverture d’un récipient pour aérosol.
La présente Norme européenne s’applique aux récipients pour aérosols avec ouvertures de 25,4 mm, spécifiés dans l’EN 14847 et le prEN 15006, munis de coupelles de valves, spécifiées dans l’EN 14848.

Embalaža za aerosole – Kovinske posode s 25,4-milimetrsko odprtino – Merjenje kontaktne višine

General Information

• Status: Published
• Publication Date: 31-Jan-2006
• ICS: 55.130 - Aerosol containers
• Technical Committee: EPO - Packaging - sales and grouped
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Feb-2006
• Due Date: 01-Feb-2006
• Completion Date: 01-Feb-2006
• Directive: 80/232/EEC - Ranges of nominal quantities and nominal capacities permitted for certain pre-packaged products
• Directive: 87/356/EEC - Ranges of nominal quantities and nominal capacities permitted for certain pre-packged products (Dir. 80/232/EEC amendment)
• Ref Project: EN 14850:2005 - Aerosol containers - Metal containers with 25,4 mm aperture - Measurement of contact height

Overview

EN 14850:2005 (CEN) specifies a standardized method for measuring the contact height of the compression closure between an aerosol valve cup and a metal aerosol container with a 25,4 mm aperture (one inch). The contact height measurement is used to adjust clinching (crimping) tooling and to monitor production uniformity and safety of the valve-to-aperture seal. While essential for tooling adjustment and quality control, the standard notes that contact height alone is not sufficient to guarantee a safe seal.

Key topics and technical requirements

• Scope: Applies to metal aerosol containers with 25,4 mm apertures as defined in EN 14847 and prEN 15006, fitted with valve cups per EN 14848.
• Definition: Contact height is the distance between the plane of the top lip of the aperture and the centre of the radius of curvature of the clinching jaws when fixing the valve cup.
• Measuring apparatus: A dedicated instrument that reproduces clinching conditions (jaw diameter 27,1 mm; internal aperture D = 25,4 mm). The measuring tip radius r is defined by the formula r = R + t, where R = 1,2 mm (jaw radius) and t = 0,3 mm (cup wall thickness), giving an effective tip radius of 1,5 mm. The instrument has a constant offset of 0,35 mm.
• Procedure:
  • Replace clinching tool tips with the measuring instrument and position the tip at the point of direct internal contact.
  • Adjust the instrument to zero using a setting piece before testing.
  • Measure contact height at three equidistant points around the aperture; report the arithmetic mean and record maximum and minimum readings.
  • The contact element is spring‑loaded to maintain consistent contact.
• Test report must include: number and type of containers tested, equipment used, counts of satisfactory/unsatisfactory containers (per EN 14847 and prEN 15006), and date of testing.

Applications and who uses it

• Packaging engineers and tooling technicians - set and verify clinching jaw adjustments during production setup and maintenance.
• Quality assurance / QC laboratories - perform routine checks to monitor process stability and product uniformity.
• Aerosol container manufacturers and converters - verify compatibility between valve cups and container apertures.
• Compliance officers and test labs - document measurement results for regulatory or customer specifications.

Practical benefits include improved assembly consistency, reduced leak or sealing failures, and standardized reporting for production control.

Related standards

• EN 14847 - Tinplate containers: dimensions of the 25,4 mm aperture
• EN 14848 - Valve cup dimensions for metal containers with 25,4 mm aperture
• prEN 15006 - Aluminium containers: dimensions of the 25,4 mm aperture
• (EN 14849, EN 14851 and other aerosol-related EN standards referenced within the series)

Keywords: EN 14850, aerosol containers, contact height measurement, 25.4 mm aperture, clinching, valve cup, aerosol container standards, CEN.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2006
Embalaža za aerosole – Kovinske posode s 25,4-milimetrsko odprtino – Merjenje
kontaktne višine
Aerosol containers - Metal containers with 25,4 mm aperture - Measurement of contact
height
Aerosolverpackungen - Metallbehälter mit einer Öffnung von 25,4 mm - Messung der
Kontakthöhe
Récipients pour aérosols - Récipients métalliques avec ouverture de 25,4mm - Mesurage
de la hauteur de contact
Ta slovenski standard je istoveten z: EN 14850:2005
ICS:
55.130 3ORþHYLQNH]DDHURVROH Aerosol containers
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 14850
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2005
ICS 55.130
English Version
Aerosol containers - Metal containers with 25,4 mm aperture -
Measurement of contact height
Récipients pour aérosols - Récipients métalliques avec Aerosolverpackungen - Metallbehälter mit einer Öffnung
ouverture de 25,4mm - Mesurage de la hauteur de contact von 25,4 mm - Messung der Kontakthöhe
This European Standard was approved by CEN on 14 October 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14850:2005: E
worldwide for CEN national Members.

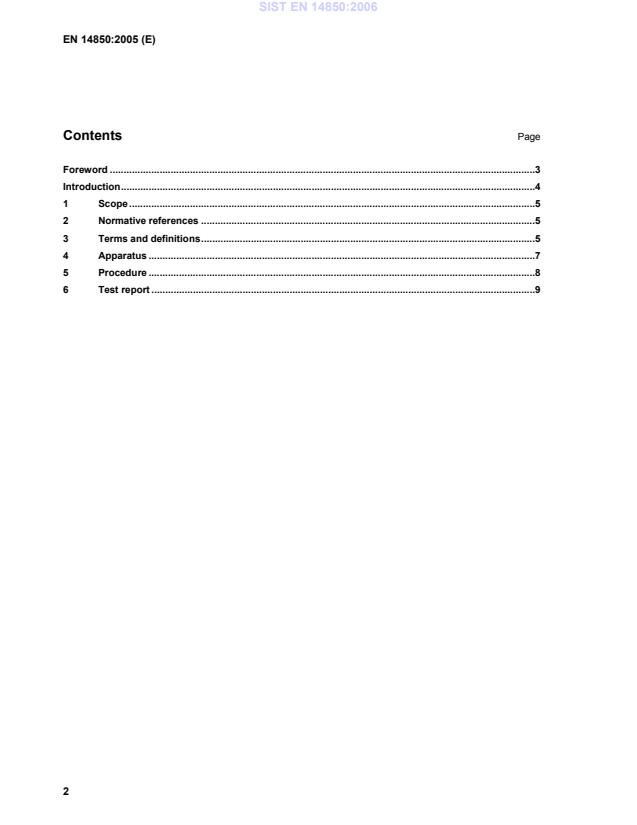

Contents Page
Foreword .3
Introduction.4
1 Scope .5
2 Normative references .5
3 Terms and definitions.5
4 Apparatus .7
5 Procedure .8
6 Test report .9

Foreword
This document (EN 14850:2005) has been prepared by Technical Committee CEN/TC 261 “Packaging”, the
secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by May 2006, and conflicting national standards shall be withdrawn at the
latest by May 2006.
This draft European Standard is one of a series of thirteen related standards with the following titles:
EN 14847, Aerosol containers — Tinplate containers — Dimensions of the 25,4 mm aperture.
EN 14848, Aerosol containers — Metal containers with 25,4 mm aperture — Dimensions of valve cups.
EN 14849, Aerosol containers — Glass containers — Dimensions of aerosol valve ferrules.
EN 14850, Aerosol containers — Metal containers with 25,4 mm aperture — Measurement of contact height.
EN 14851, Aerosol containers — Aerosol foam flammability test.
EN 14852, Aerosol containers — Determination of the ignition distance of the spray jet.
EN 14853, Aerosol containers — Enclosed space ignition test.
EN 14854, Aerosol containers — Glass containers — Dimensions of the neck finish.
prEN 15006, Metal aerosol containers — Aluminium containers — Dimensions of the 25,4 mm (one inch)
aperture.
prEN 15007, Metal aerosol containers — Tinplate containers — Dimensions of three-piece cans.
prEN 15008, Metal aerosol containers — Dimen
...
