Chemical analysis of ferrous materials - Determination of titanium in steels and cast irons - Flame atomic absorption spectrometric method

This European Standard specifies a flame atomic absorption spectrometric method for the determination of titanium in steels and cast irons. The method is applicable to non-alloyed and alloyed steels and cast irons with titanium contents of 0,01 % to 1,0 % (m/m).

Chemische Analyse von Eisenwerkstoffen - Bestimmung des Titananteils in Stahl und Eisen - Flammenatomabsorptionsspektrometrisches Verfahren

Diese Europäische Norm legt ein flammenatomabsorptionsspektrometrisches Verfahren zur Bestimmung von Titan in Stahl und Gusseisen fest. Das Verfahren ist auf legierte und unlegierte Stähle und Gusseisen mit Titangehalten von 0,01 % Massenanteil bis 1,0 %°Massenanteil anwendbar.

Analyse chimique des produits ferreux - Détermination du titane dans les aciers et les fontes - Méthode par spectrométrie d'absorption atomique dans la flamme

La présente Norme européenne spécifie une méthode de détermination du titane dans les aciers et les fontes
par spectrométrie d'absorption atomique dans la flamme. La méthode est applicable aux aciers alliés et nonalliés
et aux fontes dont les teneurs en titane sont comprises entre 0,01 % et 1,0 % (m/m).

Kemična analiza železovih zlitin - Določevanje titana v jeklih in železovih litinah - Plamenska atomska absorpcijska spektrometrična metoda

Ta evropski standard določa plamensko atomsko absorpcijsko spektrometrično metodo za določevanje titana v jeklih in železovih litinah. Metoda se uporablja za nelegirana in legirana jekla in železove litine z vsebnostjo titana od 0,01 % do 1,0 % (m/m).

General Information

Status
Published
Publication Date
14-May-2014
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
13-May-2014
Due Date
18-Jul-2014
Completion Date
15-May-2014

Relations

Buy Standard

Standard
EN 10211:2014
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Chemische Analyse von Eisenwerkstoffen - Bestimmung des Titananteils in Stahl und Eisen - Flammenatomabsorptionsspektrometrisches VerfahrenAnalyse chimique des produits ferreux - Détermination du titane dans les aciers et les fontes - Méthode par spectrométrie d'absorption atomique dans la flammeChemical analysis of ferrous materials - Determination of titanium in steels and cast irons - Flame atomic absorption spectrometric method77.080.01Železne kovine na splošnoFerrous metals in general77.040.30Kemijska analiza kovinChemical analysis of metalsICS:Ta slovenski standard je istoveten z:EN 10211:2013SIST EN 10211:2014en,fr,de01-julij-2014SIST EN 10211:2014SLOVENSKI
STANDARDSIST EN 10211:19971DGRPHãþD



SIST EN 10211:2014



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10211
November 2013 ICS 77.040.30 Supersedes EN 10211:1995English Version
Chemical analysis of ferrous materials - Determination of titanium in steels and cast irons - Flame atomic absorption spectrometric method
Analyse chimique des produits ferreux - Détermination du titane dans les aciers et les fontes - Méthode par spectrométrie d'absorption atomique dans la flamme
Chemische Analyse von Eisenwerkstoffen - Bestimmung des Titananteils in Stahl und Eisen - Flammenatomabsorptionsspektrometrisches Verfahren This European Standard was approved by CEN on 29 September 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10211:2013 ESIST EN 10211:2014

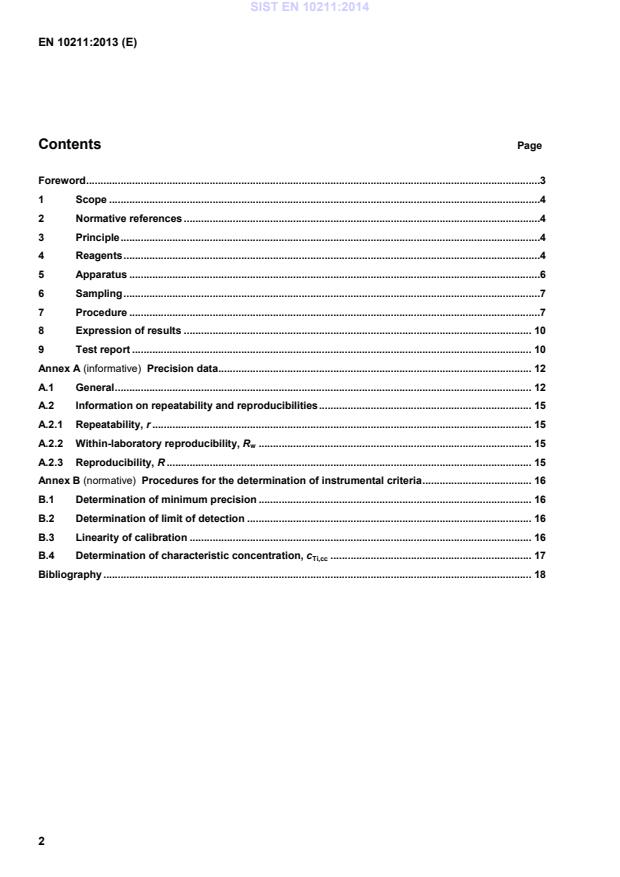

EN 10211:2013 (E) 2 Contents
Page Foreword .3 1 Scope .4 2 Normative references .4 3 Principle .4 4 Reagents .4 5 Apparatus .6 6 Sampling .7 7 Procedure .7 8 Expression of results . 10 9 Test report . 10 Annex A (informative)
Precision data . 12 A.1 General . 12 A.2 Information on repeatability and reproducibilities . 15 A.2.1 Repeatability, r . 15 A.2.2 Within-laboratory reproducibility, Rw . 15 A.2.3 Reproducibility, R . 15 Annex B (normative)
Procedures for the determination of instrumental criteria . 16 B.1 Determination of minimum precision . 16 B.2 Determination of limit of detection . 16 B.3 Linearity of calibration . 16 B.4 Determination of characteristic concentration, cTi,cc . 17 Bibliography . 18
SIST EN 10211:2014



EN 10211:2013 (E) 3 Foreword This document (EN 10211:2013) has been prepared by Technical Committee ECISS/TC 102 “Methods of chemical analysis for iron and steel”, the secretariat of which is held by SIS. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by May 2014, and conflicting national standards shall be withdrawn at the latest by May 2014. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 10211:1995. In comparison with the previous edition of EN 10211, the following technical changes were made: — Clause 1, “steel and iron” replaced by “non-alloyed and alloyed steels and cast irons”; — Clause 3, clarification regarding the use of aluminium chloride within both dissolutions described; — Addition of 5.2.3 (information on the linearity criteria); — Table 1, addition of terms corresponding to 0,025 % and 0,075 % titanium; — Subclause 7.6 was merged in Subclause 7.5; — Clause 8, formula: notation changed; — Annex A, the notes were included in the text and the correlation coefficients corrected; — Annex B: added. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 10211:2014



EN 10211:2013 (E) 4 1 Scope This European Standard specifies a flame atomic absorption spectrometric method for the determination of titanium in steels and cast irons. The method is applicable to non-alloyed and alloyed steels and cast irons with titanium contents of 0,01 % to 1,0 % (m/m). 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN ISO 648, Laboratory glassware - Single-volume pipettes (ISO 648) EN ISO 1042, Laboratory glassware - One-mark volumetric flasks (ISO 1042) EN ISO 14284, Steel and iron - Sampling and preparation of samples for the determination of chemical composition (ISO 14284) 3 Principle Two dissolution procedures are possible and described: a) The first one is specific to cast irons and is based on dissolution of the test portion with nitric and perchloric acids, followed by evaporation with perchloric acid to dryness. The further steps being a separation of the insolubilised silica by filtration and collection of the filtrate. b) The second one, which can be used for steels as well as for cast irons is based on dissolution of the test portion with hydrochloric and nitric acid. This dissolution is followed by: 1) filtration and ignition of the acid insoluble residue and removal of silica with hydrofluoric acid; 2) fusion of the residue with a mixture of boric acid and sodium carbonate, dissolution of the melt with acid and addition of this solution to the reserved filtrate. Addition of aluminium chloride as interaction buffer, in both cases. Nebulisation of the test solution into a slightly fuel rich nitrous oxide/acetylene flame, of an atomic absorption spectrometer. Spectrometric measurement of the atomic absorption of the 365,3 nm (or 364,3 nm) spectral line emitted by a titanium hollow-cathode lamp. 4 Reagents During the analysis, use only reagents of recognised analytical grade and only distilled water or water of equivalent purity. 4.1 Nitric acid, HNO3 (20 = 1,40 g/ml). 4.2 Hydrochloric acid, 20 = 1,19 g/ml). SIST EN 10211:2014



EN 10211:2013 (E) 5 4.3 Perchloric acid, HClO4 20 = 1,67 g/ml). 4.4 Sulphuric acid, H2SO4 20 = 1,84 g/ml). 4.5 Hydrofluoric acid, 20 = 1,15 g/ml). 4.6 Nitric acid solution, 1 + 1. Add 100 ml of nitric acid (4.1) to 100 ml water 4.7 Hydrochloric acid solution, 1 + 1. Add 100 ml of hydrochloric acid (4.2) to 100 ml water 4.8 Aluminium chloride solution, equivalent to 10 g/l Al. Dissolve 90 g of hydrated aluminium chloride (ALCl3 . 6H2O) in a 600 ml beaker with water and transfer the solution into a 1 000 ml one-mark volumetric flask. Dilute to the mark with water and mix well. 4.9 Fusion mixture. Mix one part by mass of boric acid, H3BO3 and one part of sodium carbonate anhydrous, Na2CO3. Store in a stoppered polyethylene container. 4.10 Iron-perchloric matrix solution, 20 g/l Fe. Weigh, to the nearest 0,01 g, 10,00 g of pure iron free of titanium or of known low titanium content. Transfer into a 600 ml beaker and cover with a watch glass. Add in small portions, 150 ml of nitric acid (4.6). When effervescence ceases, add 200 ml of perchloric acid (4.3). Heat gently, until the iron is completely dissolved. Continue heating at a temperature at which a steady reflux of white perchloric acid fumes is maintained on the walls of the beaker. Continue heating until there are no perchloric acid fumes visible inside the beaker and the iron perchlorate crystallises. Allow to cool, add 150 ml of water, swirl and boil gently to dissolve the salts. Transfer quantitatively into a 500 ml one-mark volumetric flask. Dilute to the mark with water and mix. 4.11 Iron–chloro nitric matrix solution, 20 g/l Fe. Weigh, to the nearest 0,01 g, 20,00 g of pure iron free of titanium or of known low titanium content. Transfer into a 600 ml beaker, add 200 ml of water and then 220 ml of hydrochloric acid (4.2), in small portions. Cover with a watch glass and heat gently until effervescence ceases. Add gradually 60 ml of nitric acid (4.1). Heat for about 10 min at about 80 °C, to expel nitrous fumes. Allow to cool and transfer quantitatively into a 1 000 ml one-mark volumetric flask. Add water until about 600 ml and add 20 g of fusion mixture (4.9). Dissolve, dilute to the mark with water and mix. 4.12 Titanium, 1 g/l standard solution. Weigh (1 ± 0,001) g of titanium (99,99 % purity), transfer into a 400 ml beaker and cover with a watch glass. Dissolve it in 200 ml of hydrochloric acid solution (4.7) and add two drops of hydrofluoric acid (4.5). Heat gently until the metal is dissolved. After cooling, transfer the solution quantitatively into a 1 000 ml one-mark volumetric flask, dilute to the mark with water and mix well. SIST EN 10211:2014



EN 10211:2013 (E) 6 1 ml of this solution contains 1 mg of titanium. 4.13 Titanium, 0,5 g/l standard solution [freshly prepared]. Transfer 50,0 ml of titanium standard solution (4.12) into a 100 ml one-mark volumetric flask. Dilute to the mark with water and mix well. 1 ml of this standard solution contains 0,5 mg of titanium. 4.14 Titanium, 0,05 g/l standard solution [freshly prepared]. Transfer 10,0 ml of titanium standard solution (4.12) into a 200 ml one-mark volumetric flask. Dilute to the mark with water and mix well. 1 ml of this standard solution contains 0,05 mg of titanium. 5 Apparatus All volumetric glassware shall be Class A and calibrated, in accordance with EN ISO 648 or EN ISO 1042 as appropriate. 5.1 30 ml platinum crucibles. 5.2 Atomic absorption spectrometer. This shall be equipped with a titanium hollow-cathode lamp and supplied with nitrous oxide and acetylene sufficiently pure to give a a clear, steady slightly fuel-rich flame, free from water and oil, and free from titanium. The atomic absorption spectrometer used will be satisfactory if, after optimisation according to 7.5, the limit of detection and characteristic concentration are in reasonable agreement with the values given by the manufacturer and it meets the precision criteria given in 5.2.1 to 5.2.3. It is also recommended that the instrument should conform to the additional performance requirements given in 5.2.4. 5.2.1 Minimum precision. Calculate the standard deviation of 10 measurements of the absorbance of the most concentrated calibration solution. The standard deviation shall not exceed 1,5 % of the mean absorbance of this solution. Calculate the standard deviation of 10 measurements of the absorbance of the least concentrated calibration solution (excluding the zero member). The standard deviation shall not exceed 0,5 % of the mean absorbance of the most concentrated calibration solution. 5.2.2 Limit of detection. The limit of detection is a number, expressed in units of concentration (or amount) that describes the lowest concentration level (or amount) of an element that can be determined to be statistically different from an analytical blank. The limit of detection of titanium in a matrix similar to that of the final test portion solution shall be better than 0,2 µg/ml for the 365,3 nm line and better than 0,1 µg/ml for the 364,3 nm line. SIST EN 10211:2014



EN 10211:2013 (E) 7
5.2.3 Linearity of calibration. The value of the slope of the calibration graph covering the top 20 % of the concentration range (expressed as a change in absorbance) shall not be less than 0,7 times the value of the slope for the bottom 20 % of the concentration range (expressed as a change in absorbance) determined in the same way. For instruments with automatic calibration using two or more standard solutions, it shall be established prior to the analysis, by obtaining absorbance readings, that the above requirements for graph linearity are fulfilled. 5.2.4 Characteristic concentration. The characteristic concentration for titanium in a matrix similar to the final test portion solution shall be better than 1,9 µg/ml for the 365,3 nm line and better than 1,4 µg/ml for the 364,3 nm line. 5.3 Ancillary equipment. A system for acquisition of the measured values, data processing and evaluation is necessary. Usually data processing and evaluation is performed with the appropriate software of the computer, connected to the atomic absorption spectrometer. Scale expansion can be used until the noise observed is greater than the read-out error and is preferred for absorbances below 0,1. If scale expansion has to be used and
...
