SIST EN 60317-46:2014
(Main)Specifications for particular types of winding wires - Part 46: Aromatic polyimide enamelled round copper wire, class 240
Specifications for particular types of winding wires - Part 46: Aromatic polyimide enamelled round copper wire, class 240
This part of IEC 60317 specifies the requirements of enamelled round copper winding wire of class 240 with a sole coating of aromatic polyimide resin.
The range of nominal conductor diameters covered by this standard is:
– grade 1: 0,020 mm up to and including 2,000 mm;
– grade 2: 0,020 mm up to and including 5,000 mm.
The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013.
/
Spécifications pour types particuliers de fils de bobinage - Partie 46: Fil de section circulaire en cuivre émaillé avec polyimide aromatique, classe 240
La CEI 60317-46:2013 spécifie les exigences relatives au fil de bobinage de section circulaire en cuivre émaillé de classe 240 avec un revêtement unique de résine polyimide aromatique. La gamme des diamètres nominaux des conducteurs couverte par la présente norme est: - grade 1: 0,020 mm jusques et y compris 2,000 mm; - grade 2: 0,020 mm jusques et y compris 5,000 mm. Les diamètres nominaux des conducteurs sont spécifiés à l'Article 4 de la CEI 60317-0-1:2013. Cette deuxième édition annule et remplace la première édition parue en 1997. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - dans le domaine d'application, suppression de la mention 'dans certains pays'; - un nouveau paragraphe contenant des notes générales sur le fil de bobinage auparavant intégrées au domaine d'application; - un nouveau paragraphe contenant des exigences de l'aspect; - révision des notes de l'Article 19, Facteur de dissipation diélectrique; - un nouvel Article 23, Détection des microfissures en immersion. Mots clés: exigences relatives au fil de bobinage de section circulaire en cuivre émaillé, classe 240, revêtement unique de résine polyimide aromatique
Specifikacije za posebne vrste navijalnih žic - 46. del: Okrogla bakrena žica, prevlečena z aromatskim poliimidom, razred 240 (IEC 60317-46:2013)
Ta del standarda IEC 60317 določa zahteve za emajlirane okrogle bakrene navijalne žice razreda 240 z enojno prevleko iz aromatske poliimidne smole.
Razpon nazivnega premera prevodnika, ki ga zajema ta standard, je:
– razred 1: od 0,020 mm do vključno 2000 mm;
– razred 2: od 0,020 mm do vključno 5000 mm.
Nazivni premeri prevodnika so navedeni v točki 4 standarda IEC 60317-0-1:2013.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-april-2014
Nadomešča:
SIST EN 60317-46:2001
Specifikacije za posebne vrste navijalnih žic - 46. del: Okrogla bakrena žica,
prevlečena z aromatskim poliimidom, razred 240 (IEC 60317-46:2013)
Specifications for particular types of winding wires - Part 46: Aromatic polyimide
enamelled round copper wire, class 240
/
Spécifications pour types particuliers de fils de bobinage - Partie 46: Fil de section
circulaire en cuivre émaillé avec polyimide aromatique, classe 240
Ta slovenski standard je istoveten z: EN 60317-46:2014
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 60317-46
NORME EUROPÉENNE
February 2014
EUROPÄISCHE NORM
ICS 29.060.10 Supersedes EN 60317-46:1997
English version
Specifications for particular types of winding wires -
Part 46: Aromatic polyimide enamelled round copper wire, class 240
(IEC 60317-46:2013)
Spécifications pour types particuliers de Technische Lieferbedingungen für
fils de bobinage - bestimmte Typen von Wickeldrähten -
Partie 46: Fil de section circulaire en Teil 46: Runddrähte aus Kupfer,
cuivre émaillé avec polyimide aromatique, lackisoliert mit aromatischen Polyimiden,
classe 240 Klasse 240
(CEI 60317-46:2013) (IEC 60317-46:2013)
This European Standard was approved by CENELEC on 2013-11-18. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-46:2014 E

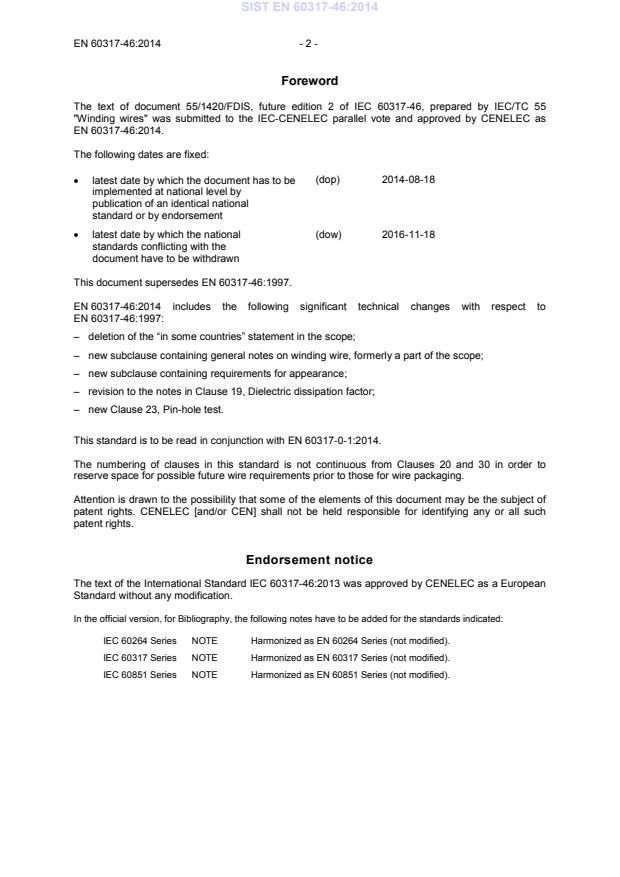

Foreword
The text of document 55/1420/FDIS, future edition 2 of IEC 60317-46, prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2014-08-18
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-11-18
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60317-46:1997.
EN 60317-46:1997:
– deletion of the “in some countries” statement in the scope;
– new subclause containing general notes on winding wire, formerly a part of the scope;
– new subclause containing requirements for appearance;
– revision to the notes in Clause 19, Dielectric dissipation factor;
– new Clause 23, Pin-hole test.
This standard is to be read in conjunction with EN 60317-0-1:2014.
The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order to
reserve space for possible future wire requirements prior to those for wire packaging.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60317-46:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60264 Series NOTE Harmonized as EN 60264 Series (not modified).
IEC 60317 Series NOTE Harmonized as EN 60317 Series (not modified).
IEC 60851 Series NOTE Harmonized as EN 60851 Series (not modified).
- 3 - EN 60317-46:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC 60317-0-1 2013 Specifications for particular types EN 60317-0-1 2014
of winding wires -
Part 0-1: General requirements - Enamelled
round copper wire
IEC 60317-46 ®
Edition 2.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 46: Aromatic polyimide enamelled round copper wire, class 240
Spécifications pour types particuliers de fils de bobinage –
Partie 46: Fil de section circulaire en cuivre émaillé avec polyimide aromatique,
classe 240
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX K
ICS 29.060.10 ISBN 978-2-8322-1138-0
– 2 – 60317-46 © IEC:2013
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative reference . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 6
3.3 Appearance . 6
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 2,500 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 9
17 Solderability . 9
18 Heat or solvent bonding . 9
19 Dielectric dissipation factor . 9
20 Resistance to transformer oil . 9
21 Loss of mass . 9
23 Pin hole test . 9
30 Packaging. 9
Bibliography . 10
Table 1 – Resistance to abrasion . 8
60317-46 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –
Part 46: Aromatic polyimide enamelled round copper wire, class 240
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility t
...
SLOVENSKI STANDARD
01-april-2014
1DGRPHãþD
SIST EN 60317-46:2001
6SHFLILNDFLMH]DSRVHEQHYUVWHQDYLMDOQLKåLFGHO 2NURJODEDNUHQDåLFD
SUHYOHþHQD]DURPDWVNLPSROLLPLGRPUD]UHG ,(&
Specifications for particular types of winding wires - Part 46: Aromatic polyimide
enamelled round copper wire, class 240
/
Spécifications pour types particuliers de fils de bobinage - Partie 46: Fil de section
circulaire en cuivre émaillé avec polyimide aromatique, classe 240
Ta slovenski standard je istoveten z: EN 60317-46:2014
ICS:
29.060.10 Žice Wires
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 60317-46
NORME EUROPÉENNE
February 2014
EUROPÄISCHE NORM
ICS 29.060.10 Supersedes EN 60317-46:1997
English version
Specifications for particular types of winding wires -
Part 46: Aromatic polyimide enamelled round copper wire, class 240
(IEC 60317-46:2013)
Spécifications pour types particuliers de Technische Lieferbedingungen für
fils de bobinage - bestimmte Typen von Wickeldrähten -
Partie 46: Fil de section circulaire en Teil 46: Runddrähte aus Kupfer,
cuivre émaillé avec polyimide aromatique, lackisoliert mit aromatischen Polyimiden,
classe 240 Klasse 240
(CEI 60317-46:2013) (IEC 60317-46:2013)
This European Standard was approved by CENELEC on 2013-11-18. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-46:2014 E
Foreword
The text of document 55/1420/FDIS, future edition 2 of IEC 60317-46, prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2014-08-18
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-11-18
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60317-46:1997.
EN 60317-46:1997:
– deletion of the “in some countries” statement in the scope;
– new subclause containing general notes on winding wire, formerly a part of the scope;
– new subclause containing requirements for appearance;
– revision to the notes in Clause 19, Dielectric dissipation factor;
– new Clause 23, Pin-hole test.
This standard is to be read in conjunction with EN 60317-0-1:2014.
The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order to
reserve space for possible future wire requirements prior to those for wire packaging.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60317-46:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60264 Series NOTE Harmonized as EN 60264 Series (not modified).
IEC 60317 Series NOTE Harmonized as EN 60317 Series (not modified).
IEC 60851 Series NOTE Harmonized as EN 60851 Series (not modified).
- 3 - EN 60317-46:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC 60317-0-1 2013 Specifications for particular types EN 60317-0-1 2014
of winding wires -
Part 0-1: General requirements - Enamelled
round copper wire
IEC 60317-46 ®
Edition 2.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 46: Aromatic polyimide enamelled round copper wire, class 240
Spécifications pour types particuliers de fils de bobinage –
Partie 46: Fil de section circulaire en cuivre émaillé avec polyimide aromatique,
classe 240
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX K
ICS 29.060.10 ISBN 978-2-8322-1138-0
– 2 – 60317-46 © IEC:2013
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative reference . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 6
3.3 Appearance . 6
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 2,500 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 9
17 Solderability . 9
18 Heat or solvent bonding . 9
19 Dielectric dissipation factor . 9
20 Resistance to transformer oil . 9
21 Loss of mass . 9
23 Pin hole test . 9
30 Packaging. 9
Bibliography . 10
Table 1 – Resistance to abrasion . 8
60317-46 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –
Part 46: Aromatic polyimide enamelled round copper wire, class 240
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
