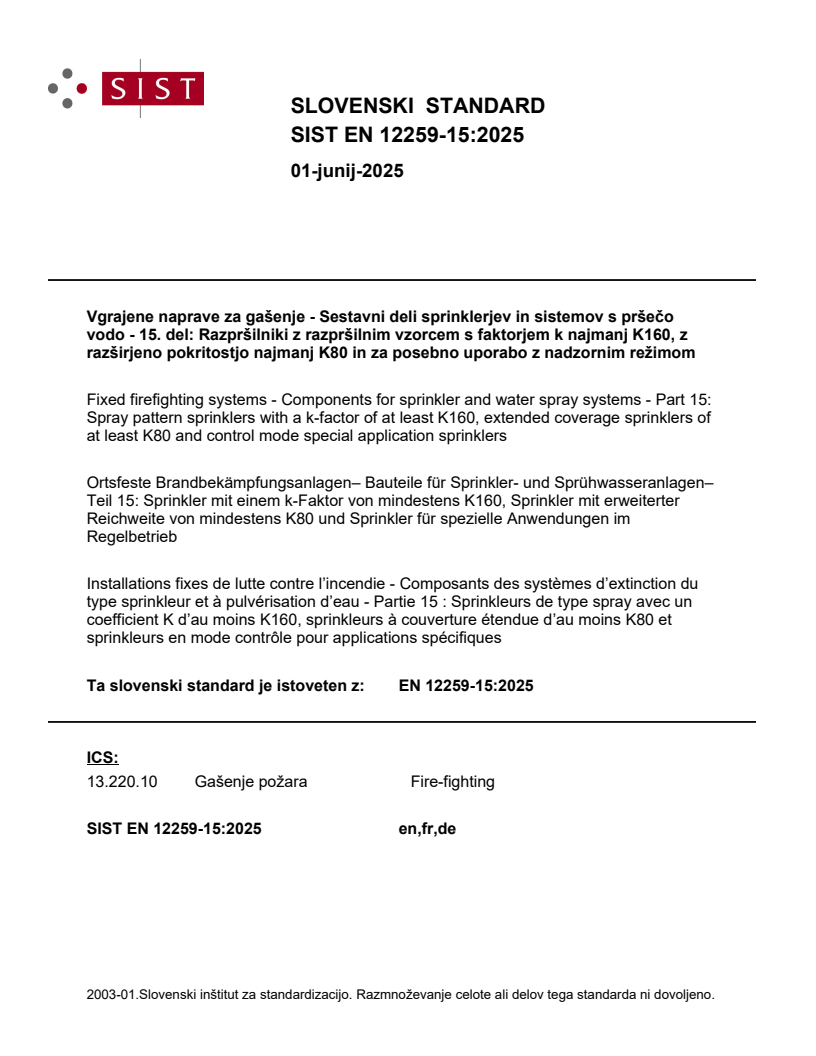

SLOVENSKI STANDARD
01-junij-2025
Vgrajene naprave za gašenje - Sestavni deli sprinklerjev in sistemov s pršečo
vodo - 15. del: Razpršilniki z razpršilnim vzorcem s faktorjem k najmanj K160, z
razširjeno pokritostjo najmanj K80 in za posebno uporabo z nadzornim režimom
Fixed firefighting systems - Components for sprinkler and water spray systems - Part 15:
Spray pattern sprinklers with a k-factor of at least K160, extended coverage sprinklers of
at least K80 and control mode special application sprinklers
Ortsfeste Brandbekämpfungsanlagen– Bauteile für Sprinkler- und Sprühwasseranlagen–
Teil 15: Sprinkler mit einem k-Faktor von mindestens K160, Sprinkler mit erweiterter
Reichweite von mindestens K80 und Sprinkler für spezielle Anwendungen im
Regelbetrieb
Installations fixes de lutte contre l’incendie - Composants des systèmes d’extinction du
type sprinkleur et à pulvérisation d’eau - Partie 15 : Sprinkleurs de type spray avec un
coefficient K d’au moins K160, sprinkleurs à couverture étendue d’au moins K80 et
sprinkleurs en mode contrôle pour applications spécifiques
Ta slovenski standard je istoveten z: EN 12259-15:2025
ICS:
13.220.10 Gašenje požara Fire-fighting
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 12259-15
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2025
EUROPÄISCHE NORM
ICS 13.220.20
English Version
Fixed firefighting systems - Components for sprinkler and
water spray systems - Part 15: Spray pattern sprinklers
with a k-factor of at least K160, extended coverage
sprinklers of at least K80 and control mode special
application sprinklers
Installations fixes de lutte contre l'incendie - Ortsfeste Brandbekämpfungsanlagen - Bauteile für
Composants des systèmes d'extinction du type Sprinkler- und Sprühwasseranlagen - Teil 15: Schirm-
sprinkleur et à pulvérisation d'eau - Partie 15 : Sprinkler mit einem k-Faktor von mindestens K160,
Sprinkleurs de type spray avec un coefficient K d'au Weitwurf-Sprinkler von mindestens K80 und Sprinkler
moins K160, sprinkleurs à couverture étendue d'au für spezielle Anwendungen im Regelbetrieb
moins K80 et sprinkleurs en mode contrôle pour
applications spécifiques
This European Standard was approved by CEN on 2 March 2025.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12259-15:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Assessment methods and criteria . 6
4.1 Tolerances . 6
4.2 Connections . 6
4.3 Durability of coated sprinklers . 6
4.4 High temperature exposure . 6
4.5 Conductivity (C-Factor). 7
4.6 Sensitivity (Air oven) . 7
4.7 Leak resistance . 9
4.8 Release of the sprinkler at minimum operating pressure (for spray pattern, EC and ECS
sprinklers) . 9
4.9 Nominal operating temperature . 9
4.10 Function (only for CMSA) . 10
4.11 Size of water passageways . 11
4.12 Sprinkler temperature identification . 11
4.13 Water distribution . 12
4.14 Actual Delivered Density . 22
4.15 Extinguishing performance . 27
4.16 Discharge coefficient . 28
4.17 Sensitivity (Response time index) . 31
4.18 Frame strength . 31
4.19 Strength of release element – fusible link type . 32
4.20 Strength of release element – bulb type . 33
4.21 Water hammer . 36
4.22 Strength of deflector . 36
4.23 Vibration resistance . 36
4.24 Impact test . 37
4.25 Freezing . 37
4.26 High ambient temperature exposure (90-day test) . 38
4.27 Thermal shock . 38
4.28 Corrosion . 38
5 Marking . 38
6 Manufacturer’s installation instructions . 39
Annex A (normative) Tolerances . 41
Annex B (normative) Extinguishing performance . 42
B.1 General. 42
B.2 Values for performance under fire . 42
Annex C (informative) Actual delivered density (ADD) . 78
Bibliography . 80
European foreword
This document (EN 12259-15:2025) has been prepared by Technical Committee CEN/TC 191 “Fixed
firefighting systems”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2025, and conflicting national standards shall
be withdrawn at the latest by October 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
EN 12259, Fixed firefighting systems — Components for sprinkler and water spray systems, consists of the
following parts:
— Part 1: Sprinklers;
— Part 2: Wet alarm valve assemblies;
— Part 3: Dry alarm valve assemblies;
— Part 4: Water motor alarms;
— Part 5: Water flow detectors;
— Part 9: Deluge alarm valves;
— Part 12: Pumps;
— Part 13: ESFR sprinklers;
— Part 14: Sprinklers for residential applications.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
The response characteristics of classic sprinklers (EN 12259-1 and EN 12259-15) is based on the
measurement of both sensitivity and conductivity (C-factor). For EN 12259-13 sprinkler type (ESFR)
their response characteristics are determined without reference to its conductivity.
1 Scope
This document specifies requirements and test methods for spray pattern sprinklers with a k-factor of at
least K160, extended coverage (EC) sprinklers of at least K80, extended coverage storage sprinklers of at
least K200 and control mode special application (CMSA) sprinklers. This document only covers sprinkler
types up to K360.
This document does not apply to concealed, conventional, flat spray, flush and recessed sprinklers.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12259 (all parts), Fixed firefighting systems — Components for sprinkler and water spray systems
EN 12259-1:1999+A1:2001, Fixed firefighting systems — Components for sprinkler and water spray
systems — Part 1: Sprinklers
EN 12845 (all parts), Fixed firefighting systems — Automatic sprinkler systems
EN IEC 60751, Industrial platinum resistance thermometers and platinum temperature sensors
(IEC 60751)
ISO 7-1, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances
and designation
3 Terms and definitions
For the purposes of this document, the terms and definitions given in the EN 12845 series and the
EN 12259 series apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
extended coverage sprinkler
sprinkler with a k-factor of 80 to 200 in
...
