SIST EN 17456:2021

Wood flooring and parquet - Determination of top layer delamination of multilayer elements - Test method

This document specifies a test method to determine the top layer delamination of multilayer parquet elements according to EN 13489 with different structures, dimensions and adhesives for internal use as flooring, at the time of the first delivery of the product.
The document specifies 2 pre-treatments (PT1 and PT2) of the test specimens.
The test methods described in this document allow to determine the minimum top layer bonding quality, also for the use application on floor heating, and for the identification of bonding failure.
NOTE 1   For this application, the pre-treatments have proven to be suitable.
This document does not apply to the bonding quality of plywood if it is in use in the multilayer parquet construction.
NOTE 2   This standard doesn’t allow to estimate the compatibility of use in wet conditions.

Holzfußböden und Parkett - Bestimmung der Delaminierung der Decklagen von Mehrschichtelementen - Prüfverfahren

Dieses Dokument legt ein Prüfverfahren fest, mit dem die Delaminierung der Deckschicht von Mehrschichtparkettelementen nach EN 13489 mit unterschiedlichen Konstruktionsweisen, Abmessungen und Klebstoffen, die zur Verwendung als Bodenbelag im Innenbereich vorgesehen sind, zum Zeitpunkt der ersten Lieferung des Produkts bestimmt werden kann.
Das Dokument legt 2 Vorbehandlungen (PT1 und PT2) fest, denen die Prüfkörper unterzogen werden.
Die in diesem Dokument beschriebenen Prüfverfahren ermöglichen es, eine Mindestqualität der Deckschichtverklebung, auch für die Anwendung auf Fußbodenheizungen, zu bestimmen und Verklebungsversagen zu identifizieren.
ANMERKUNG 1   Für diese Anwendung haben sich die Vorbehandlungen als geeignet erwiesen.
Dieses Dokument gilt nicht für die Verklebungsqualität von Sperrholz, sofern dieses in der Mehrschichtparkettkonstruktion verwendet wird.
ANMERKUNG 2   Diese Norm ermöglicht es nicht, die Verwendung unter feuchten Bedingungen einzuschätzen.

Planchers en bois et parquets - Détermination du décollement de la couche supérieure des éléments contrecollés - Méthode d'essai

Le présent document spécifie une méthode d’essai visant à déterminer le décollement de la couche supérieure des éléments de parquets contrecollés conformément à l’EN 13489 avec différentes structures, dimensions et colles et pour utilisation en intérieur comme revêtement de sol, au moment de la première livraison du produit.
Le document spécifie deux prétraitements (PT1 et PT2) des éprouvettes.
Les méthodes d’essai décrites dans le présent document permettent de déterminer la qualité de collage minimale de la couche supérieure. Elle est également utilisée pour les applications liées au chauffage par le sol et pour l’identification des défauts de collage.
NOTE 1   Les prétraitements se sont révélés appropriés pour cette application.
Le présent document ne s’applique pas à la qualité de collage du contreplaqué éventuellement utilisé dans la construction du parquet contrecollé.
NOTE 2   La présente norme ne permet pas d’estimer la compatibilité d’utilisation en conditions humides.

Lesene talne obloge in parket - Ugotavljanje delaminacije zgornje plasti večslojnih elementov - Preskusna metoda

General Information

• Status: Published
• Public Enquiry End Date: 09-Jan-2020
• Publication Date: 24-May-2021
• ICS: 79.080 - Semi-manufactures of timber
• ICS: 97.150 - Floor coverings
• Technical Committee: LLZ - Les, lesni izdelki in zaščita lesa
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 24-May-2021
• Due Date: 29-Jul-2021
• Completion Date: 25-May-2021
• Ref Project: EN 17456:2021 - Wood flooring and parquet - Determination of top layer delamination of multilayer elements - Test method

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 17456:2021
01-julij-2021
Lesene talne obloge in parket - Ugotavljanje delaminacije zgornje plasti večslojnih
elementov - Preskusna metoda
Wood flooring and parquet - Determination of top layer delamination of multilayer
elements - Test method
Holzfußböden und Parkett - Bestimmung der Delaminierung der Decklagen von
Mehrschichtelementen - Prüfverfahren
Planchers en bois et parquets - Détermination du décollement de la couche supérieure
des éléments contrecollés - Méthode d'essai
Ta slovenski standard je istoveten z: EN 17456:2021
ICS:
79.080 Polizdelki iz lesa Semi-manufactures of timber
97.150 Talne obloge Floor coverings
SIST EN 17456:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 17456:2021

---------------------- Page: 2 ----------------------
SIST EN 17456:2021


EN 17456
EUROPEAN STANDARD

NORME EUROPÉENNE

April 2021
EUROPÄISCHE NORM
ICS 79.080
English Version

Wood flooring and parquet - Determination of top layer
delamination of multilayer elements - Test method
Planchers en bois et parquets - Détermination du Holzfußböden und Parkett - Bestimmung der
décollement de la couche supérieure des éléments Delaminierung der Decklagen von
contrecollés - Méthode d'essai Mehrschichtelementen - Prüfverfahren
This European Standard was approved by CEN on 12 March 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17456:2021 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
SIST EN 17456:2021
EN 17456:2021 (E)

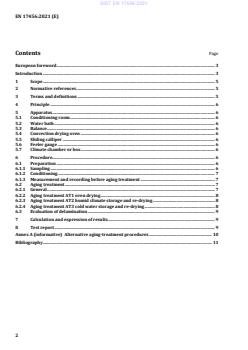

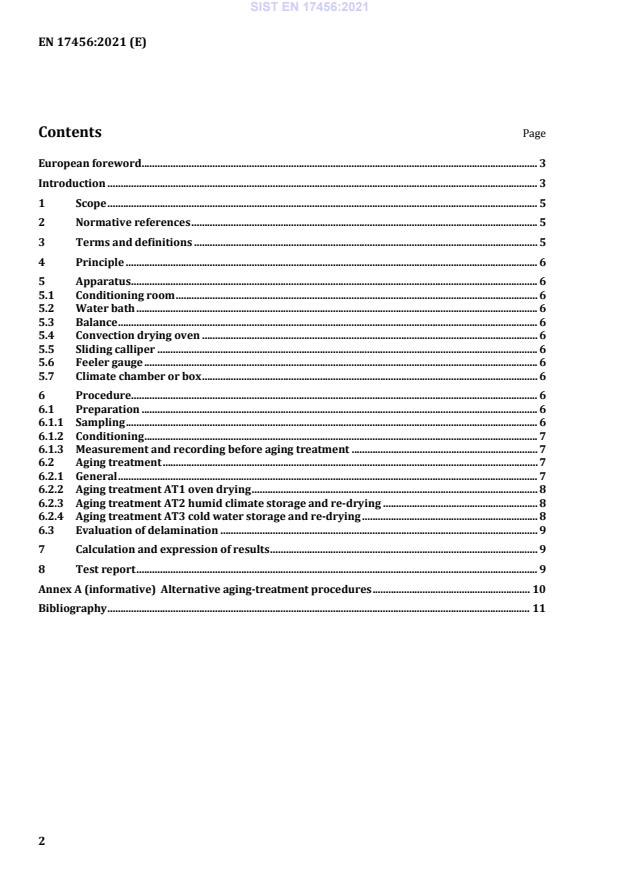

Contents Page
European foreword . 3
Introduction . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 6
5 Apparatus . 6
5.1 Conditioning room . 6
5.2 Water bath . 6
5.3 Balance . 6
5.4 Convection drying oven . 6
5.5 Sliding calliper . 6
5.6 Feeler gauge . 6
5.7 Climate chamber or box . 6
6 Procedure. 6
6.1 Preparation . 6
6.1.1 Sampling . 6
6.1.2 Conditioning . 7
6.1.3 Measurement and recording before aging treatment . 7
6.2 Aging treatment . 7
6.2.1 General . 7
6.2.2 Aging treatment AT1 oven drying . 8
6.2.3 Aging treatment AT2 humid climate storage and re-drying . 8
6.2.4 Aging treatment AT3 cold water storage and re-drying . 8
6.3 Evaluation of delamination . 9
7 Calculation and expression of results . 9
8 Test report . 9
Annex A (informative) Alternative aging-treatment procedures . 10
Bibliography . 11

2

---------------------- Page: 4 ----------------------
SIST EN 17456:2021
EN 17456:2021 (E)
European foreword
This document (EN 17456:2021) has been prepared by Technical Committee CEN/TC 175 “Round and
sawn timber”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2021, and conflicting national standards shall
be withdrawn at the latest by October 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
3

---------------------- Page: 5 ----------------------
SIST EN 17456:2021
EN 17456:2021 (E)
Introduction
This document is one of a series of standards specifying requirements and test methods for wood flooring
and parquet.
This document specifies a test method with three aging-treatments to measure the top layer bonding of
multilayer parquet with different structures, dimensions and adhesives.
Floor heating systems, low energy or passive houses as well as public areas with heavy exposures
represent a potential high stress to wood flooring and parquet elements that require them to withstand
the effects of temperature and humidity occurring in practical installation situations.
The test method described in this document simulates these situations. By that the already existing large
amount of knowledge about multilayer parquet and values for product characteristics attested by long
use and experience is extended for the benefit of producers, installers, dealers and customers. For new
products, technical data will have to be verified by testing.
NOTE A Round Robin trial was carried out involving seven international laboratories. The test method is
therefore suitable as a yes/no decision for failure in the top layer bonding or poor product quality, but it does not
allow quantification. It is possible to use it in conjunction with low limits of allowable delamination.
4

---------------------- Page: 6 ----------------------
SIST EN 17456:2021
EN 17456:2021 (E)
1 Scope
This document specifies a test method to determine the top layer delamination of multilayer parquet
elements according to EN 13489 with different structures, dimensions and adhesives for internal use as
flooring, at the time of the first delivery of the product.
The document specifies a test method with three aging-treatments (AT1, AT2 and AT3) of the test
specimens.
The test method described in this document allows to determine a top layer bonding quality, also for
parquet used on floor heating, and for the identification of bonding failure.
NOTE 1 For bottom layer of three layers elements the test met
...

SLOVENSKI STANDARD
oSIST prEN 17456:2020
01-januar-2020
Lesene talne obloge in parket - Ugotavljanje delaminacije zgornje in spodnje plasti
večslojnih elementov - Preskusna metoda
Wood flooring and parquet - Determination of top and bottom layer delamination of
multilayer elements - Test method
Holzfußböden und Parkett - Bestimmung der Delaminierung der Decklagen von
Mehrschichtelementen - Prüfverfahren
Planchers en bois et parquets - Détermination du décollement de la couche supérieure
et de la couche inférieure des éléments contrecollés - Méthode d'essai
Ta slovenski standard je istoveten z: prEN 17456
ICS:
79.080 Polizdelki iz lesa Semi-manufactures of timber
97.150 Talne obloge Floor coverings
oSIST prEN 17456:2020 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 17456:2020

---------------------- Page: 2 ----------------------
oSIST prEN 17456:2020


DRAFT
EUROPEAN STANDARD
prEN 17456
NORME EUROPÉENNE

EUROPÄISCHE NORM

November 2019
ICS 79.080
English Version

Wood flooring and parquet - Determination of top and
bottom layer delamination of multilayer elements - Test
method
Planchers en bois et parquets - Détermination du Holzfußböden und Parkett - Bestimmung der
décollement de la couche supérieure et de la couche Delaminierung der Decklagen von
inférieure des éléments contrecollés - Méthode d'essai Mehrschichtelementen - Prüfverfahren
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 175.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 17456:2019 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
oSIST prEN 17456:2020
prEN 17456:2019 (E)
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 6
5.1 Conditioning room . 6
5.2 Water bath . 6
5.3 Balance . 6
5.4 Convection drying oven . 6
5.5 Sliding calliper . 6
5.6 Feeler gauge . 6
6 Procedure. 6
6.1 Preparation . 6
6.1.1 Sampling . 6
6.1.2 Conditioning . 6
6.1.3 Measurement and recording before pre-treatment . 7
6.2 Pre-treatment . 7
6.2.1 General . 7
6.2.2 Pre-treatment PT1 oven drying . 7
6.2.3 Pre-treatment PT2 cold water storage and re-drying . 7
6.3 Evaluation of delamination . 7
7 Calculation and expression of results . 8
8 Test report . 8
Annex A (informative) Alternative pre-treatment procedures . 9

2

---------------------- Page: 4 ----------------------
oSIST prEN 17456:2020
prEN 17456:2019 (E)
European foreword
This document (prEN 17456:2019) has been prepared by Technical Committee CEN/TC 175 “Round and
Sawn Timber”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document has no previous edition.
3

---------------------- Page: 5 ----------------------
oSIST prEN 17456:2020
prEN 17456:2019 (E)
Introduction
This document is one of a series of standards specifying requirements and test methods for wood flooring
and wood panelling and cladding.
This document specifies a test method to test and evaluate the top layer bonding of multilayer parquet
with different structures, dimensions and adhesives.
Floor heating systems, low energy or passive houses as well as public areas with heavy exposures
represent a potential high stress to wood flooring and parquet elements that require them to withstand
the effects of temperature and humidity occurring in practical installation situations.
The test method described in this document simulates these situations. By that the already existing large
amount of knowledge about multilayer parquet and values for product characteristics attested by long
use and experience is extended for the benefit of producers, installers, dealers and customers. For new
products, technical data will have to be verified by testing.
NOTE A Round Robin trial was carried out involving seven international laboratories. There it was concluded
that a very good agreement in terms of delamination between the laboratories was observed when very low or very
high delamination was rated. At moderate delamination’s, there was strong scattering of the individual values
within the laboratories, partially between 0 % and 100 % delamination, but also between the laboratories
sometimes very significant differences in the results occurred. The test method is t
...
