SLOVENSKI STANDARD
SIST EN IEC 62841-3-7:2021/A11:2021
01-julij-2021
Elektromotorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost - 3-
7. del: Posebne zahteve za premične stenske žage - Dopolnilo A11
Electric motor-operated hand-held tools, transportable tools and lawn and garden
machinery - Safety - Part 3-7: Particular requirements for transportable wall saws
Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses -
Sécurité - Partie 3-7: Exigences particulières pour les scies murales portables
Ta slovenski standard je istoveten z: EN IEC 62841-3-7:2021/A11:2021
ICS:
25.080.60 Strojne žage Sawing machines
25.140.20 Električna orodja Electric tools
SIST EN IEC 62841-3-7:2021/A11:2021 en,fr
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 62841-3-7:2021/A11:2021
---------------------- Page: 2 ----------------------
SIST EN IEC 62841-3-7:2021/A11:2021
EUROPEAN STANDARD EN IEC 62841-3-7:2021/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2021
ICS 25.140.20
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 3-7: Particular
requirements for transportable wall saws
Outils électroportatifs à moteur, outils portables et machines Elektrische motorbetriebene handgeführte Werkzeuge,
pour jardins et pelouses - Sécurité - Partie 3-7: Exigences transportable Werkzeuge und Rasen- und
particulières pour les scies murales portables Gartenmaschinen - Sicherheit - Teil 3-7: Besondere
Anforderungen für transportable Wandsägen
This amendment A11 modifies the European Standard EN IEC 62841-3-7:2021; it was approved by CENELEC on 2021-04-26. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62841-3-7:2021/A11:2021 E
---------------------- Page: 3 ----------------------
SIST EN IEC 62841-3-7:2021/A11:2021
EN IEC 62841 3 7:2021/A11:2021 (E)

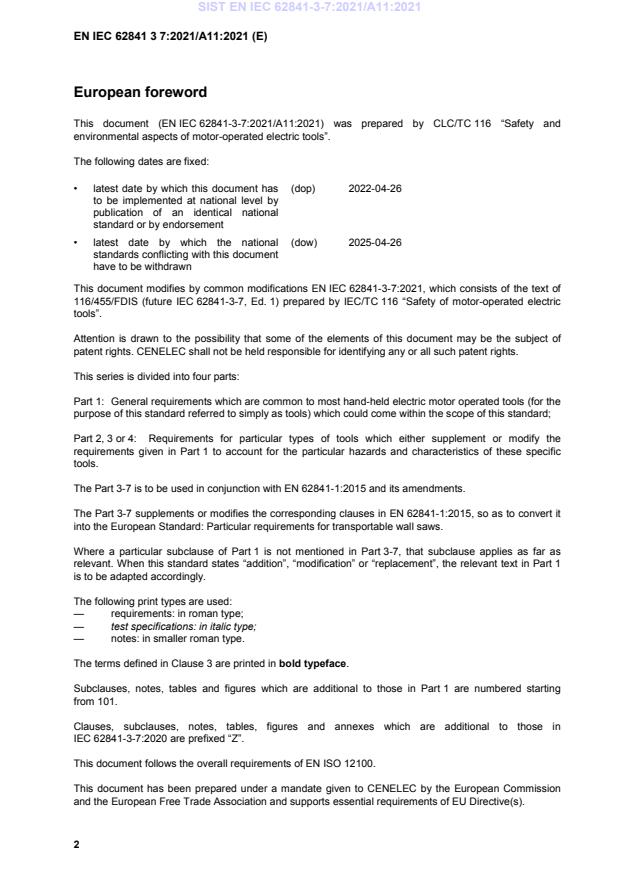

European foreword
This document (EN IEC 62841-3-7:2021/A11:2021) was prepared by CLC/TC 116 “Safety and
environmental aspects of motor-operated electric tools”.
The following dates are fixed:
• latest date by which this document has (dop) 2022-04-26
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2025-04-26
standards conflicting with this document
have to be withdrawn
This document modifies by common modifications EN IEC 62841-3-7:2021, which consists of the text of
116/455/FDIS (future IEC 62841-3-7, Ed. 1) prepared by IEC/TC 116 “Safety of motor-operated electric
tools”.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This series is divided into four parts:
Part 1: General requirements which are common to most hand-held electric motor operated tools (for the
purpose of this standard referred to simply as tools) which could come within the scope of this standard;
Part 2, 3 or 4: Requirements for particular types of tools which either supplement or modify the
requirements given in Part 1 to account for the particular hazards and characteristics of these specific
tools.
The Part 3-7 is to be used in conjunction with EN 62841-1:2015 and its amendments.
The Part 3-7 supplements or modifies the corresponding clauses in EN 62841-1:2015, so as to convert it
into the European Standard: Particular requirements for transportable wall saws.
Where a particular subclause of Part 1 is not mentioned in Part 3-7, that subclause applies as far as
relevant. When this standard states “addition”, “modification” or “replacement”, the relevant text in Part 1
is to be adapted accordingly.
The following print types are used:
— requirements: in roman type;
— test specifications: in italic type;
— notes: in smaller roman type.
The terms defined in Clause 3 are printed in bold typeface.
Subclauses, notes, tables and figures which are additional to those in Part 1 are numbered starting
from 101.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 62841-3-7:2020 are prefixed “Z”.
This document follows the overall requirements of EN ISO 12100.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association and supports essential requirements of EU Directive(s).
2
---------------------- Page: 4 ----------------------
SIST EN IEC 62841-3-7:2021/A11:2021
EN IEC 62841 3 7:2021/A11:2021 (E)
For the relationship with EU Directive(s), see informative Annex ZZ, which is an integral part of this
document.
Compliance with the clauses of Part 1 together with Part 3-7 provides one means of conforming with the
essential health and safety requirements of the Directive concerned.
3
---------------------- Page: 5 ----------------------
SIST EN IEC 62841-3-7:2021/A11:2021
EN IEC 62841 3 7:2021/A11:2021 (E)
1 Modification to Clause 1, “Scope”
Replace the existing text of Clause 1 with the following:
“This clause of Part 1 is applicable, except as follows:
Replacement of the third paragraph:
The rated voltage is not more than 250 V for single-phase a.c. or d.c. tools, and 480 V for three-phase
a.c. tools.
Addition:
This document applies to transportable wall saws guided by a track guiding system intended for dry
cutting or to be connected to a liquid system for cutting concrete, stone or similar material by means of a
diamond wheel. The rated speed of the diamond wheel does not exceed a peripheral speed of 100 m/s
at rated capacity.
This document does not apply to transportable wall saws with a design that allows an automatic change
of the cutting direction without user intervention before any change of the cutting direction.
This document does not apply to transportable wall saws that employ hydraulic systems.
This document does not apply to hand-held cut-off machines.
NOTE 101 Hand-held cut-off machines will be covered by a future part of IEC 62841-2.
This document covers all significant hazards, hazardous situations or hazardous events relevant for tools
covered by this standard.
NOTE Z101 Essential requirements not mentioned in Table ZZ.1 are deemed to be not applicable, because the
corresponding hazards are either not relevant for tools covered by this standard or do not require specific action by
the designer.”
2 Addition to Clause 2, “Normative references”
Add the following normative reference and information and delete from the Bibliography:
"Replacement of normative reference ISO 11203:
ISO 11203:1995, Acoustics — Noise emitted by machinery and equipment — Determination of emission
sound pressure levels at a work station and at other specified positions from the sound power level"
3 Modification to Clause 3, “Terms and definitions”
Replace the existing 3.106 with the following:
“3.106
saw unit
unit on which the diamond wheel, the wheel guard, the saw unit feed motor, if any, and the interface to
connect it to the track guiding system are mounted”
4 Modifications to Clause 8, “Marking and instructions”
Add the following additional safety warning to 8.14.1.101:
“f) Never leave the wall saw unattended during operation. This reduces the risk of jamming the
diamond wheel which could cause loss of control or damage to the wall saw.
NOTE This warning is omitted, if the wall saw is equipped with a momentary power switch without a provision
to lock it in the “on” position.”
4
---------------------- Page: 6 ----------------------
SIST EN IEC 62841-3-7:2021/A11:2021
EN IEC 62841 3 7:2021/A11:2021 (E)
Replace the text and NOTE after 8.14.2 c) 101) with the following:
“8.14.2 Za) Replacement:
Emissions
1) The noise emission, measured in accordance with I.2, as follows:
— A-weighted emission sound pressure level L and its uncertainty K , where L exceeds
pA pA pA
70 dB(A).
Where L does not exceed 70 dB(A), this fact shall be indicated;
pA
— A-weighted sound power level L and its uncertainty K , where the A-weighted emission
WA WA
sound pressure level L exceeds 80 dB(A);
pA
— C-weighted peak emission sound pressure level L , where this exceeds 130 dB in relation
pC,peak
to 20 µPa.
2) Recommendation for the operator to wear hearing protection.
3) The following information:
— that the declared noise emission value(s) have been measured in accordance with a standard
test method and may be used for comparing one tool with another;
— that the declared noise emission value(s) may also be used in a preliminary assessment of
exposure.
4) A warning:
— that the noise emissions during actual use of the power tool can differ by up to 10 dB compared
to the declared values, depending on the diamond wheel and working conditions, which should
be taken into account when selecting hearing protection; and
— of the need to identify safety measures to protect the operator that are based on an estimation of
the noise exposure in the actual conditions of use (taking account of all parts of the operating
cycle such as the times when the tool is switched off and when it is running idle in addition to the
trigger time).”
5 Addition to Clause 19, “Mechanical hazards”
Add the following new subclause 19.4:
“19.4 Addition:
Wall saws with manual feed shall have at least one handle or grasping surface to ensure safe handling
during use.”
6 Modifications to Clause 20, “Mechanical strength”
Add the following new subclause 20.3:
“20.3 Addition:
If a wall saw includes any hand-held unit(s) such as a remote control, only 20.3.1 applies for these
hand-held unit(s).”
Replace the first paragraph of subclause 20.5 with the following:
“Wall saw handles and grasping surfaces for safe handling during use as required by 19.4 shall have
adequate mechanical strength in order to provide insulation between the grasping area and the output
shaft.”
5
---------------------- Page: 7 ----------------------
SIST EN IEC 62841-3-7:2021/A11:2021
EN IEC 62841 3 7:2021/A11:2021 (E)
7 Modifications to Clause 21, “Construction”
Replace the existing subclause 21.30 with the following:
“21.30 This subclause of Part 1 is applicable for handles and grasping surfaces for safe handling during
use as required by 19.4.”
Replace the third paragraph of subclause 21.102 with the following:
“Controls on the saw unit shall override commands from the remote control.”
Delete the existing subclause 21.104.
Replace the existing subclause 21.105 with the following:
“21.105 Tools equipped with motor-fed saw units shall be fitted with (an) additional control(s),
separate from the power switch, for
— selecting the direction of travel for the saw unit feed motor; and
— turning the saw unit feed motor off and on.
The actuating member of this control(s) shall be easily visible
...
SLOVENSKI STANDARD
kSIST FprEN IEC 62841-3-7:2020/oprAA:2020
01-oktober-2020
Elektromotorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost - 3-
7. del: Posebne zahteve za premične stenske žage - Dopolnilo AA
Electric motor-operated hand-held tools, transportable tools and lawn and garden
machinery - Safety - Part 3-7: Particular requirements for transportable wall saws
Ta slovenski standard je istoveten z: FprEN IEC 62841-3-7:2020/prAA
ICS:
25.080.60 Strojne žage Sawing machines
25.140.20 Električna orodja Electric tools
kSIST FprEN IEC 62841-3- en
7:2020/oprAA:2020
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
kSIST FprEN IEC 62841-3-7:2020/oprAA:2020
---------------------- Page: 2 ----------------------
kSIST FprEN IEC 62841-3-7:2020/oprAA:2020
EUROPEAN STANDARD DRAFT
FprEN IEC 62841-3-7:2020
NORME EUROPÉENNE
EUROPÄISCHE NORM
prAA
August 2020
ICS
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 3-7: Particular
requirements for transportable wall saws
To be completed To be completed
This draft amendment prAA, if approved, will modify the European Standard FprEN IEC 62841-3-7:2020; it is submitted to CENELEC
members for enquiry.
Deadline for CENELEC: 2020-11-06.
It has been drawn up by CLC/TC 116.
If this draft becomes an amendment, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.
This draft amendment was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 70327 Ref. No. FprEN IEC 62841-3-7:2020/prAA E
---------------------- Page: 3 ----------------------
kSIST FprEN IEC 62841-3-7:2020/oprAA:2020
FprEN 62841-3-7:2020/prAA:2020 (E)
1 European foreword
2 This document (FprEN 62841-3-7:2020/prAA:2020) was prepared by CLC/TC 116 “Safety and
3 environmental aspects of motor-operated electric tools”.
4 This document is currently submitted to the Enquiry.
5 The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 48 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
6 This document modifies by common modifications FprEN 62841-3-7:2020, which consists of the text of
7 116/455/FDIS (future IEC 62841-3-7, Ed. 1) prepared by IEC/TC 116 “Safety of motor-operated electric
8 tools”.
9 If approved, this draft amendment will be published as EN 62841-3-7:202X/A11:202X.
10 This series is divided into four parts:
11 Part 1: General requirements which are common to most hand-held electric motor operated tools (for the
12 purpose of this standard referred to simply as tools) which could come within the scope of this standard;
13 Part 2, 3 or 4: Requirements for particular types of tools which either supplement or modify the
14 requirements given in Part 1 to account for the particular hazards and characteristics of these specific
15 tools.
16 This Part 3-7 is to be used in conjunction with EN 62841-1:2015.
17 This Part 3-7 supplements or modifies the corresponding clauses in EN 62841-1:2015, so as to convert it
18 into the European Standard: Particular requirements for transportable wall saws.
19 Where a particular subclause of Part 1 is not mentioned in this Part 3-7, that subclause applies as far as
20 relevant. When this standard states “addition”, “modification” or “replacement”, the relevant text in Part 1
21 is to be adapted accordingly.
22 The following print types are used:
23 — requirements; in roman type
24 — test specifications: in italic type;
25 — notes: in smaller roman type.
26 The terms defined in Clause 3 are printed in bold typeface.
27 Subclauses, notes, tables and figures which are additional to those in Part 1 are numbered starting
28 from 101.
29 Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
30 IEC 62841-3-7:202X are prefixed “Z”.
31 This document follows the overall requirements of EN ISO 12100.
2
---------------------- Page: 4 ----------------------
kSIST FprEN IEC 62841-3-7:2020/oprAA:2020
FprEN 62841-3-7:2020/prAA:2020 (E)
32 This document has been prepared under a mandate given to CENELEC by the European Commission
33 and the European Free Trade Association and supports essential requirements of EU Directive(s).
34 For the relationship with EU Directive(s), see informative Annex ZZ, which is an integral part of this
35 document.
36 Compliance with the clauses of Part 1 together with this Part 3-7 provides one means of conforming with
37 the essential health and safety requirements of the Directive concerned.
3
---------------------- Page: 5 ----------------------
kSIST FprEN IEC 62841-3-7:2020/oprAA:2020
FprEN 62841-3-7:2020/prAA:2020 (E)
38 1 Modification to Clause 1, “Scope”
39 Replace the existing text of Clause 1 with the following:
40 “This clause of Part 1 is applicable, except as follows:
41 Replacement of the third paragraph:
42 The rated voltage is not more than 250 V for single-phase a.c. or d.c. tools, and 480 V for three-phase
43 a.c. tools.
44 Addition:
45 This document applies to transportable wall saws guided by a track guiding system intended for dry
46 cutting or to be connected to a liquid system for cutting concrete, stone or similar material by means of a
47 diamond wheel. The rated speed of the diamond wheel does not exceed a peripheral speed of 100 m/s
48 at rated capacity.
49 This document does not apply to transportable wall saws with a design that allows an automatic change
50 of the cutting direction without user intervention before any change of the cutting direction.
51 This document does not apply to transportable wall saws that employ hydraulic systems.
52 This document does not apply to hand-held cut-off machines.
53 NOTE 101 Hand-held cut-off machines will be covered by a future part of IEC 62841-2.
54 This document covers all significant hazards, hazardous situations or hazardous events relevant for tools
55 covered by this standard.
56 NOTE Z101 Essential requirements not mentioned in Table ZZ.1 are deemed to be not applicable, because the
57 corresponding hazards are either not relevant for tools covered by this standard or do not require specific action by
58 the designer.”
59 2 Modification to Clause 3, “Terms and definitions”
60 Replace the existing 3.106 with the following:
61 "3.106
62 saw unit
63 unit on which the diamond wheel, the wheel guard, the saw unit feed motor, if any, and the interface to
64 connect it to the track guiding system are mounted"
65 3 Modifications to Clause 8, “Marking and instructions”
66 Add the following additional safety warning to 8.14.1.101:
67 "f) Never leave the wall saw unattended during operation. This reduces the risk of jamming the
68 diamond wheel which could cause loss of control or damage to the wall saw.
69 NOTE This warning is omitted, if the wall saw is equipped with a momentary power switch without a provision
70 to lock it in the on position."
71 Replace the text and NOTE after 8.14.2 c) 101) with the following:
72 “8.14.2 Za) Replacement:
73 Emissions
74 1) The noise emission, measured in accordance with I.2, as follows:
75 — A-weighted emission sound pressure level L and its uncertainty K , where L exceeds
pA pA pA
76 70 dB(A).
77 Where L does not exceed 70 dB(A), this fact shall be indicated;
pA
4
---------------------- Page: 6 ----------------------
kSIST FprEN IEC 62841-3-7:2020/oprAA:2020
FprEN 62841-3-7:2020/prAA:2020 (E)
78 — A-weighted sound power level L and its uncertainty K , where the A-weighted emission
WA WA
79 sound pressure level L exceeds 80 dB(A);
pA
80 — C-weighted peak emission sound pressure level L , where this exceeds 63 Pa (130 dB in
pCpeak
81 relation to 20 µPa).
82 2) Recommendation for the operator to wear hearing protection.
83 3) The following information:
84 — that the declared noise emission value(s) have been measured in accordance with a standard
85 test method and may be used for comparing one tool with another;
86 — that the declared noise emission value(s) may also be used in a preliminary assessment of
87 exposure.
88 4) A warning:
89 — that the noise emissions during actual use of the power tool can differ by up to 10 dB compared
90 to the declared values, depending on the diamond wheel and working conditions, which should
91 be taken into account when selecting hearing protection; and
92 — of the need to identify safety measures to protect the operator that are based on an estimation of
93 exposure in the actual conditions of use (taking account of all parts of the operating cycle such
94 as the times when the tool is switched off and when it is running idle in addition to the trigger
95 time).”
96 4 Addition to Clause 19, “Mechanical hazards”
97 Add the following new subclause 19.4:
98 “19.4 Addition:
99 Wall saws with manual feed shall have at least one handle or grasping surface to ensure safe handling
100 during use.”
101 5 Modifications to Clause 20, “Mechanical strength”
102 Add the following new subclause 20.3:
103 “20.3 Addition:
104 If a wall saw includes any hand-held unit(s) such as a remote control, only 20.3.1 applies for these
105 hand-held unit(s).”
106 Replace the first paragraph of subclause 20.5 with the following:
107 “Wall saw handles and grasping surfaces for safe handling during use as required by 19.4 shall have
108 adequate mechanical strength in order t
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
