TITLE:
Amendment 1 - Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery - Safety - Part 4-1: Particular requirements for chain saws
PROPOSED STABILITY DATE: 2027
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.
SIST EN 62841-4-1:2020/oprA1:2023
IEC CDV 62841-4-1:2017/AMD1© IEC 2022 – 2 – 116/641/CDV

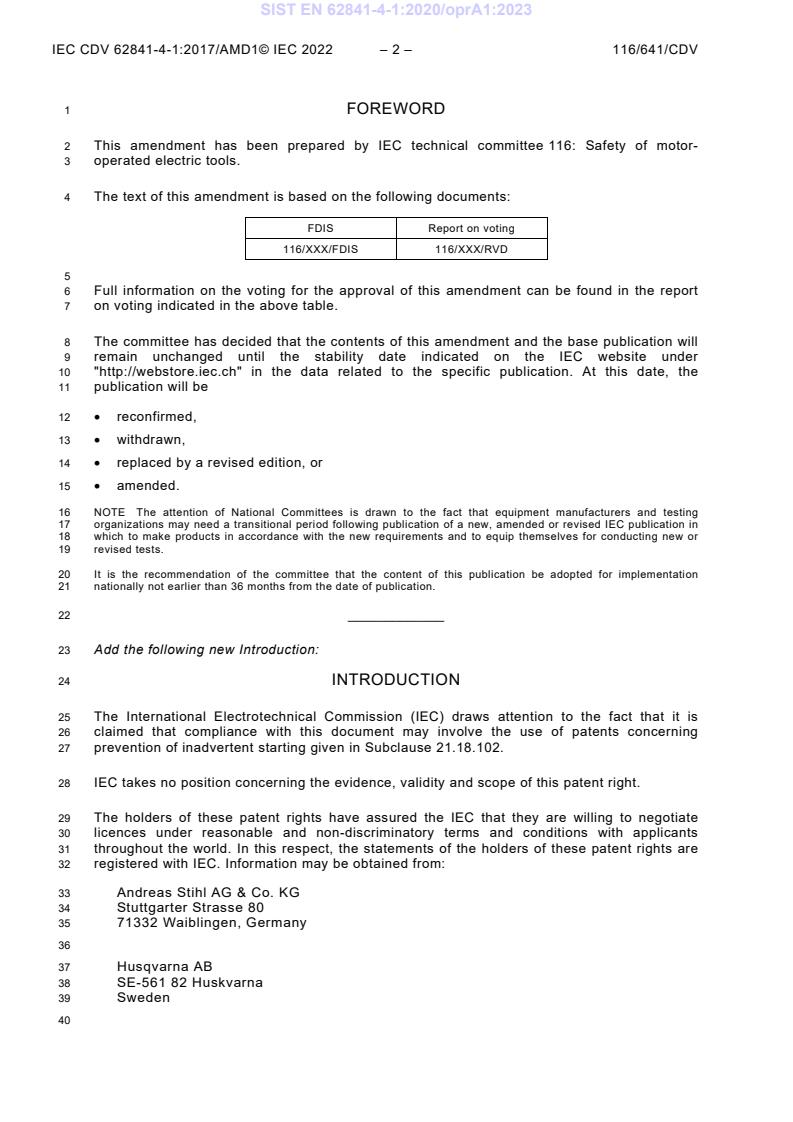

1 FOREWORD
2 This amendment has been prepared by IEC technical committee 116: Safety of motor-
3 operated electric tools.
4 The text of this amendment is based on the following documents:
FDIS Report on voting
116/XXX/FDIS 116/XXX/RVD
6 Full information on the voting for the approval of this amendment can be found in the report
7 on voting indicated in the above table.
8 The committee has decided that the contents of this amendment and the base publication will
9 remain unchanged until the stability date indicated on the IEC website under
10 "http://webstore.iec.ch" in the data related to the specific publication. At this date, the
11 publication will be
12 • reconfirmed,
13 • withdrawn,
14 • replaced by a revised edition, or
15 • amended.
16 NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
17 organizations may need a transitional period following publication of a new, amended or revised IEC publication in
18 which to make products in accordance with the new requirements and to equip themselves for conducting new or
19 revised tests.
20 It is the recommendation of the committee that the content of this publication be adopted for implementation
21 nationally not earlier than 36 months from the date of publication.
22 _____________
23 Add the following new Introduction:
24 INTRODUCTION
25 The International Electrotechnical Commission (IEC) draws attention to the fact that it is
26 claimed that compliance with this document may involve the use of patents concerning
27 prevention of inadvertent starting given in Subclause 21.18.102.
28 IEC takes no position concerning the evidence, validity and scope of this patent right.
29 The holders of these patent rights have assured the IEC that they are willing to negotiate
30 licences under reasonable and non-discriminatory terms and conditions with applicants
31 throughout the world. In this respect, the statements of the holders of these patent rights are
32 registered with IEC. Information may be obtained from:
33 Andreas Stihl AG & Co. KG
34 Stuttgarter Strasse 80
35 71332 Waiblingen, Germany
37 Husqvarna AB
38 SE-561 82 Huskvarna
39 Sweden
SIST EN 62841-4-1:2020/oprA1:2023
IEC CDV 62841-4-1:2017/AMD1© IEC 2022 – 3 – 116/641/CDV
41 Robert Bosch GmbH
42 Postfach 30 02 20
43 D-70442 Stuttgart, Germany
44 Attention is drawn to the possibility that some of the elements of this document may be the
45 subject of patent rights other than those identified above. IEC shall not be held responsible
46 for identifying any or all such patent rights.
47 ISO (www.iso.org/patents) and IEC (http://patents.iec.ch) maintain on-line data bases of
48 patents relevant to their standards. Users are encouraged to consult the data bases for the
49 most up to date information concerning patents.
50 2 Normative references
51 Add the following normative references:
52 IEC 60664-3:2016, Insulation coordination for equipment within low-voltage systems – Part 3:
53 Use of coating, potting or moulding for protection against pollution
54 ISO 37:2017, Rubber, vulcanized or thermoplastic – Determination of tensile stress-strain
55 properties
56 5 General conditions for the tests
57 Delete Subclause 5.14.
58 Add the following new subclause:
59 5.15 Addition:
60 For tests carried out at any percentage of rated input or rated current, except for no-load,
61 the saw chain and the guide bar may be removed and the chain saw loaded by means of a
62 brake.
63 7 Classification
64 Replace the existing text of Part 1, Subclause 7.2 with the following new text:
65 7.2 Chain saws shall not be classified with a degree of protection against harmful
66 ingress of water higher than IPX0 according to IEC 60529:1989.
67 Compliance is checked by inspection.
68 8 Marking and instructions
69 Add the following new subclause:
70 8.1 Replacement:
71 Chain saws shall be marked with rating information as follows:
72 – rated voltage(s) or rated voltage range, in volts. Machines for star-delta connection shall
73 be clearly marked with the two rated voltages (for example 230 ∆/ 400 Y). A machine that
74 complies with this standard for a voltage range, may also be marked with any single
75 voltage or smaller voltage range within that range;
SIST EN 62841-4-1:2020/oprA1:2023
IEC CDV 62841-4-1:2017/AMD1© IEC 2022 – 4 – 116/641/CDV
76 – symbol for nature of supply, unless the rated frequency(ies) or rated frequency range is
77 marked. The symbol for nature of supply shall be placed next to the marking for rated
78 voltage;
79 – rated input, in watts or rated current, in amperes. The rated input or rated current to
80 be marked on the machine is the total maximum input or current that can be drawn from
81 external circuit at the same time. If a machine has alternative components which can be
82 selected by a control device, the rated input or rated current is that corresponding to
83 the highest loading possible;
84 – symbol for class II construction, for class II tools (machines) only.
85 Add the following new subclause:
86 8.1.101 Chain saws shall not be marked with an I P r at i ng for the degree of protection
87 against harmful ingress of water higher than IPX0 according to IEC
88 60529:1989/AMD1:1999/AMD2:2013. Chain saws may be marked with an IP rating for the
89 degree of protection against solid foreign objects and access to hazardous
90 par t s in accordance with IEC 60529:1989/AMD1:1999/AMD2:2013.
91 Compliance is checked by inspection.
92 Replace the existing text of the third dash of 8.2 with the following new text:
93 – “Do not expose to rain” or the safety sign specified in Annex AA.
94 14 Moisture resistance
95 Add the following new subclause:
96 14.2 This subclause of Part 1 is not applicable.
97 Replace the existing text of 14.2.1 with the following new text:
98 14.2.1 This subclause of Part 1 is not applicable.
99 Add the following new subclauses:
100 14.2.2 to 14.2.3 These subclauses of Part 1 are not applicable.
101 Add the following new subclause:
102 21.35 This subclause of Part 1 is not applicable.
103 Replace the existing text of 21.103 with the following new text:

104 21.103 Spiked bumper
105 Chain saws with a nominal guide bar size or size range in accordance with 8.3 exceeding
106 400 mm shall
107 – be equipped with a spiked bumper (see Figure 101); or
108 – have a provision for mounting one.
109 Compliance is checked by inspection.
SIST EN 62841-4-1:2020/oprA1:2023
IEC CDV 62841-4-1:2017/AMD1© IEC 2022 – 5 – 116/641/CDV
111 Annexes
112 Add the following new Annex:
113 Annex C
114 (normative)
116 Leakage current
118 Addition:
119 C.101 Measurement of insulation touch current for battery-operated machines
120 The insulation touch current is measured for machines with a working voltage that is a
121 hazardous voltage, where there is an accessible part or surface conductively connected to
122 internal circuitry, other than through protective impedance.
123 The insulation touch current is measured as the weighted touch current by means of the
124 circuit of Figure C.3 of Part 1 between
125 – the accessible part(s) or surface(s) connected to internal circuitry;
126 and
127 – metal foil stretched across the surface of all accessible part(s) or surface(s) not connected
128 to internal circuitry.
129 The measurement circuit of Figure C.3 of Part 1 shall meet the accuracy specifications in
130 Clause G.3 of IEC 60990:1999.
131 If the insulation touch current exceeds the specified limit due to capacitance effects, then
132 metal foil with an area not exceeding 20 cm × 10 cm shall be used. If its area is smaller than
133 the surface under test, it is moved to make sure all parts of the surface are tested. The heat
134 dissipation of the machine shall, however, not be affected by the metal foil in areas such as
135 ventilation openings.
136 For the test, the machine is operated at no-load with a fully charged battery.
137 The insulation touch current shall not exceed 2,0 mA, unless otherwise specified in the
138 relevant Clause of this document.
SIST EN 62841-4-1:2020/oprA1:2023
IEC CDV 62841-4-1:2017/AMD1© IEC 2022 – 6 – 116/641/CDV
140 Annex K
141 Add the following new Clause:
142 K.3 Terms and definitions
143 Replacement of Part 1, Subclause 3.63:
144 K.3.63
145 working voltage
146 voltage, without the effect of transient voltages, across any insulation or between any parts of
147 different potential when the tool is supplied by (a) fully charged battery(ies) and operating at
148 no-load, or with the tool in the "off" condition, whichever is greater
149 Replacement of Part 1, Subclause K.3.211:
150 K.3.211
151 hazardous voltage
152 voltage between parts
153 – for machines intended for use in rain, having
154 • an average value exceeding 30 V d.c.; or
155 • a peak value exceeding 21,2 V when the peak-to-peak ripple exceeds 10 % of the
156 average value; or
157 – for other machines, having
158 • an average value exceeding 60 V d.c.; or
159 • a peak value exceeding 42,4 V when the peak-to-peak ripple exceeds 10 % of the
160 average value.
161 Note 301 to entry: For machines classified in accordance with K.7.2 as “Immersion in water to a depth of up to 1 m
162 for cleaning is permitted”, it is assumed that the operator’s hands are wet during machine cleaning while immersed
163 in water.
164 Add the following new subclause:
165 K.3.301
166 insulation touch current
167 current which flows through a person upon contact with accessible parts of a battery-
168 operated machine with a working voltage that is a hazardous voltage, where at least one
169 accessible part is connected to internal circuitry other than through protective impedance
170 Add the following new subclause:
171 K.7.2 Replacement:
172 Chain saws shall be of one of the following categories with respect to moisture resistance:
173 – exposure to rain, cleaning with water or immersion in water is not permitted; or
174 – use in rain is permitted; or
175 – cleaning with low-pressure water is permitted; or
176 – immersion in water to a depth of up to 1 m for cleaning is permitted.
177 Machines that are classified as “Use in rain is permitted” may additionally be classified as
178 “Cleaning with Low-Pressure Water is permitted” or “Immersion in water to a depth of up to
179 1 m for cleaning is permitted”.
SIST EN 62841-4-1:2020/oprA1:2023
IEC CDV 62841-4-1:2017/AMD1© IEC 2022 – 7 – 116/641/CDV
180 Compliance is checked by inspection and by the relevant tests, as applicable.
181 K.7.301 Detachable battery packs and separable battery packs shall be of one of the
182 following categories with respect to moisture resistance:
183 – exposure to rain, cleaning with water or immersion in water is not permitted; or
184 – use in rain is permitted; or
185 – cleaning with low-pressure water is permitted; or
186 – immersion in water to a depth of up to 1 m for cleaning is permitted.
187 Compliance is checked by inspection and by the relevant tests, as applicable.
188 Add the following new subclause:
189 K.8.1 This subclause of Part 4-1 is not applicable.
190 Add the following new subclause:
191 K.8.1.301 Chain saws, detachable battery packs and separable battery packs shall not
192 be marked with an IPX1, IPX2 or IPX3 rating.
193 Compliance is checked by inspection.
194 Add the following new subclause:
195 K.8.1.302 Chain saws shall be marked in accordance with their classification in K.7.2 as
...
