Thermal insulation products for buildings - In-situ formed loose fill cellulose (LFCI) products - Part 1: Specification for the products before installation

This European Standard specifies requirements for loose-fill cellulose insulation (LFCI) products for the thermal and/or sound insulation of buildings when installed into walls, floors, galleries, roofs and ceilings.
This European Standard is a specification for the loose-fill cellulose insulation (LFCI) products before installation.
This European Standard describes the product characteristics and includes procedures for testing, marking and labelling and the rules for evaluation of conformity.
Products covered by this European Standard may also be used in prefabricated thermal insulation systems and composite panels; the structural performance of systems incorporating these products is not covered.
Products with a declared thermal conductivity at 10 °C greater than 0,060 W/(m  K) or a declared thermal resistance lower than 0,25 m2  K/W are not covered by this European Standard.
This European Standard does not specify the required level of all properties to be achieved by a product to demonstrate fitness for purpose in a particular application. The required levels are to be found in local regulations or non-conflicting standards.
This European Standard does not cover factory made cellulose products placed on the market as bats, mats or boards intended to be used for the insulation of buildings or loose-fill cellulose products for the insulation of building equipment and industrial installations.

Wärmedämmstoffe für Gebäude - An der Verwendungsstelle hergestellter Wärmedämmstoff aus Zellulosefüllstoff (LFCI) - Teil 1: Spezifikation für die Produkte vor dem Einbau

Diese Europäische Norm legt Anforderungen für Produkte aus Zellulosefüllstoff (LFCI, en: Loose-Fill Cellulose Insulation) fest, die als Wärme- und/oder Schalldämmung von Gebäuden in Wände, Fußböden, Galerien, Dächer und Decken eingebaut werden.
Diese Europäische Norm ist eine Spezifikation für Wärmedämmprodukte aus Zellulosedämmstoff (LFCI) vor dem Einbau.
Diese Europäische Norm beschreibt die Produkteigenschaften und enthält Verfahren für die Prüfung, Kennzeichnung und Etikettierung sowie Festlegungen für die Konformitätsbewertung.
Die von dieser Europäischen Norm abgedeckten Produkte dürfen auch in vorgefertigten Wärmedämmsystemen und Mehrschicht-Verbundplatten verwendet werden; das Tragverhalten von Systemen, die diese Produkte enthalten, wird jedoch nicht behandelt.
Produkte mit einem Nennwert der Wärmeleitfähigkeit bei 10 °C von mehr als 0,060 W/(m  K) oder einem Nennwert des Wärmedurchlasswiderstands von weniger als 0,25 m2  K/W sind nicht Gegenstand dieser Europäischen Norm.
Diese Europäische Norm legt keine erforderlichen Leistungsstufen für die Eigenschaften fest, die ein Produkt für den Nachweis der Gebrauchstauglichkeit in einer bestimmten Anwendung erreichen muss. Die erforderlichen Stufen können örtlichen Regelwerken oder nicht entgegenstehenden Normen entnommen werden.
Diese Europäische Norm gilt weder für werkseitig hergestellte Zelluloseprodukte für die Wärmedämmung von Gebäuden, die in Form von Matten oder Platten in Verkehr gebracht werden, noch für Zellulosedämmstoff-produkte für die Wärmedämmung von haus- und betriebstechnischen Anlagen.

Produits isolants thermiques destinés aux applications du bâtiment - Isolation thermique formée en place à base de cellulose (LFCI) - Partie 1 : Spécification des produits en vrac avant la mise en oeuvre

La présente Norme européenne spécifie les exigences relatives aux produits d’isolation cellulosiques en vrac (LFCI) destinés à servir d’isolation thermique et/ou acoustique lorsqu'ils sont installés dans des parois, planchers, galeries, toitures et plafonds.
La présente Norme Européenne est une spécification des produits d'isolation cellulosiques en vrac (LFCI) avant la mise en place.
La présente Norme européenne décrit les caractéristiques des produits et inclut les modes opératoires pour les essais, le marquage et l'étiquetage, ainsi que les règles à respecter pour l'évaluation de la conformité.
Les produits concernés par la présente Norme européenne peuvent également être utilisés en systèmes préfabriqués d’isolation thermique et panneaux composites ; la performance structurelle des systèmes incorporant ces produits n’est pas couverte.
Les produits ayant une conductivité thermique à 10 °C (température moyenne) supérieure à 0,060 W/(m  K) ou une résistance thermique déclarée inférieure à 0,25 m2  K/W ne sont pas couverts par la présente Norme européenne.
La présente Norme européenne ne spécifie pas le niveau requis de toutes les propriétés que doit acquérir un produit pour démontrer son aptitude à l’emploi pour une application particulière. Les niveaux requis figurent dans les réglementations locales ou les normes qui ne sont pas en contradiction.
La présente Norme européenne ne couvre pas les produits cellulosiques fabriqués en usine et mis sur le marché sous forme de nattes, de matelas ou de panneaux destinés à être utilisés pour l’isolation de bâtiments ou les produits cellulosiques en vrac destinés à l’isolation des équipements du bâtiment et des installations industrielles.

Toplotnoizolacijski proizvodi za stavbe - Razsuti celulozni proizvodi (LFCI) za oblikovanje na mestu vgradnje - 1. del: Specifikacija za proizvode pred vgradnjo

Ta evropski standard določa zahteve za razsute celulozne izolacijske proizvode (LFCI) za toplotno in/ali zvočno izolacijo sten, tal, galerij, streh in stropov v zgradbah.
Ta evropski standard je specifikacija za razsute celulozne izolacijske proizvode (LFCI) pred vgradnjo.
Ta evropski standard opisuje lastnosti proizvoda in vključuje postopke za preskušanje, označevanje in etiketiranje ter pravila za ocenjevanje skladnosti.
Proizvodi iz tega evropskega standarda se lahko uporabljajo tudi v predizdelanih sistemih toplotne izolacije in vezanih ploščah; strukturne lastnosti sistemov iz teh proizvodov niso opisane.
Proizvodi z deklarirano toplotno prevodnostjo pri 10 °C, višjo od 0,060 W/(mK), ali deklarirano toplotno upornostjo, nižjo od 0,25 m2K/W, niso zajeti v tem evropskem standardu.
Ta evropski standard ne določa zahtevane ravni vseh lastnosti, ki jo mora proizvod doseči, da se dokaže njegova primernost za namen v posamezni vrsti uporabe. Zahtevane ravni so določene v lokalnih uredbah ali standardih, ki niso v nasprotju s tem standardom.
Ta evropski standard ne zajema tovarniških celuloznih proizvodov, ki so na voljo na trgu v obliki kopren, podlog ali plošč za izolacijo stavb, ali razsutih celuloznih proizvodov za izolacijo opreme stavb in industrijskih naprav.

General Information

Status
Published
Publication Date
10-Jun-2019
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
13-May-2019
Due Date
18-Jul-2019
Completion Date
11-Jun-2019

RELATIONS

Buy Standard

Standard
SIST EN 15101-1:2013+A1:2019
English language
66 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 15101-1:2013+A1:2019
01-julij-2019
Toplotnoizolacijski proizvodi za stavbe - Razsuti celulozni proizvodi (LFCI) za
oblikovanje na mestu vgradnje - 1. del: Specifikacija za proizvode pred vgradnjo

Thermal insulation products for buildings - In-situ formed loose fill cellulose (LFCI)

products - Part 1: Specification for the products before installation
Wärmedämmstoffe für Gebäude - An der Verwendungsstelle hergestellter

Wärmedämmstoff aus Zellulosefüllstoff (LFCI) - Teil 1: Spezifikation für die Produkte vor

dem Einbau

Produits isolants thermiques destinés aux applications du bâtiment - Isolation thermique

formée en place à base de cellulose (LFCI) - Partie 1 : Spécification des produits en vrac

avant la mise en oeuvre
Ta slovenski standard je istoveten z: EN 15101-1:2013+A1:2019
ICS:
91.100.60 Materiali za toplotno in Thermal and sound insulating
zvočno izolacijo materials
SIST EN 15101-1:2013+A1:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 15101-1:2013+A1:2019
---------------------- Page: 2 ----------------------
SIST EN 15101-1:2013+A1:2019
EN 15101-1:2013+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2019
EUROPÄISCHE NORM
ICS 91.100.60 Supersedes EN 15101-1:2013
English Version
Thermal insulation products for buildings - In-situ formed
loose fill cellulose (LFCI) products - Part 1: Specification
for the products before installation

Produits isolants thermiques destinés aux applications Wärmedämmstoffe für Gebäude - An der

du bâtiment - Isolation thermique formée en place à Verwendungsstelle hergestellter Wärmedammstoff aus

base de cellulose (LFCI) - Partie 1 : Spécification des Zellulosefüllstoff (LFCI) - Teil 1: Spezifikation für die

produits en vrac avant la mise en oeuvre Produkte vor dem Einbau

This European Standard was approved by CEN on 8 August 2013 and includes Amendment 1 approved by CEN on 6 January

2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15101-1:2013+A1:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 15101-1:2013+A1:2019
EN 15101-1:2013+A1:2019 (E)

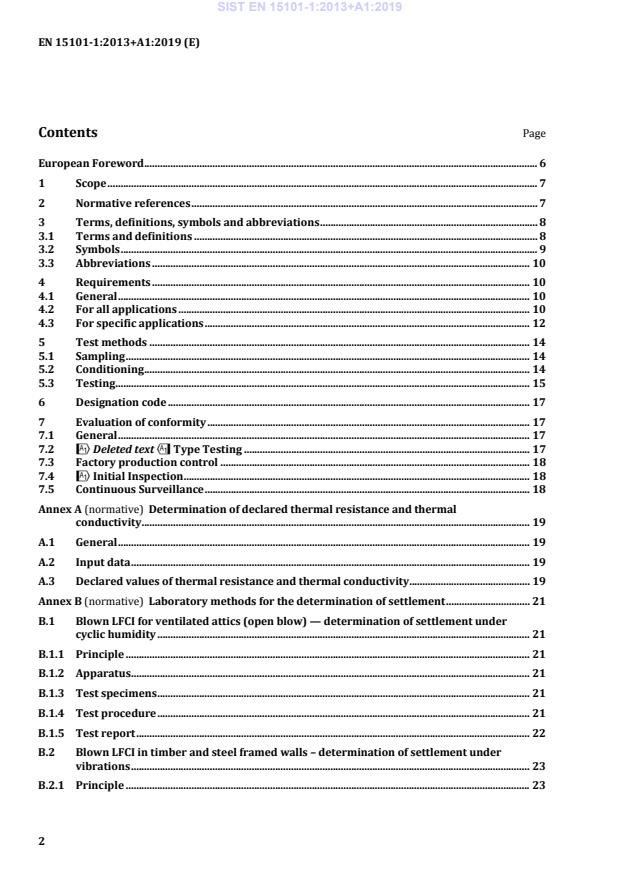

Contents Page

European Foreword ...................................................................................................................................................... 6

1 Scope .................................................................................................................................................................... 7

2 Normative references .................................................................................................................................... 7

3 Terms, definitions, symbols and abbreviations ................................................................................... 8

3.1 Terms and definitions ................................................................................................................................... 8

3.2 Symbols ............................................................................................................................................................... 9

3.3 Abbreviations ................................................................................................................................................ 10

4 Requirements ................................................................................................................................................ 10

4.1 General ............................................................................................................................................................. 10

4.2 For all applications ...................................................................................................................................... 10

4.3 For specific applications ............................................................................................................................ 12

5 Test methods ................................................................................................................................................. 14

5.1 Sampling .......................................................................................................................................................... 14

5.2 Conditioning ................................................................................................................................................... 14

5.3 Testing .............................................................................................................................................................. 15

6 Designation code .......................................................................................................................................... 17

7 Evaluation of conformity ........................................................................................................................... 17

7.1 General ............................................................................................................................................................. 17

7.2 !Deleted text" Type Testing ............................................................................................................. 17

7.3 Factory production control ...................................................................................................................... 18

7.4 !Initial Inspection .................................................................................................................................... 18

7.5 Continuous Surveillance ............................................................................................................................ 18

Annex A (normative) Determination of declared thermal resistance and thermal

conductivity .................................................................................................................................................... 19

A.1 General ............................................................................................................................................................. 19

A.2 Input data ........................................................................................................................................................ 19

A.3 Declared values of thermal resistance and thermal conductivity .............................................. 19

Annex B (normative) Laboratory methods for the determination of settlement ................................ 21

B.1 Blown LFCI for ventilated attics (open blow) — determination of settlement under

cyclic humidity .............................................................................................................................................. 21

B.1.1 Principle .......................................................................................................................................................... 21

B.1.2 Apparatus ........................................................................................................................................................ 21

B.1.3 Test specimens .............................................................................................................................................. 21

B.1.4 Test procedure .............................................................................................................................................. 21

B.1.5 Test report ...................................................................................................................................................... 22

B.2 Blown LFCI in timber and steel framed walls – determination of settlement under

vibrations ........................................................................................................................................................ 23

B.2.1 Principle .......................................................................................................................................................... 23

---------------------- Page: 4 ----------------------
SIST EN 15101-1:2013+A1:2019
EN 15101-1:2013+A1:2019 (E)

B.2.2 Apparatus ........................................................................................................................................................ 23

B.2.3 Test specimen ................................................................................................................................................ 25

B.2.4 Procedure ........................................................................................................................................................ 25

B.2.5 Calculation and expression of test results ........................................................................................... 25

B.2.6 Accuracy of measurements ....................................................................................................................... 26

B.2.7 Test report ...................................................................................................................................................... 26

B.3 Blown LFCI for ventilated attics — determination of settlement under impact
excitation and under increased temperature and moisture (informative and for FPC

only) ................................................................................................................................................................... 27

B.3.1 Principle ........................................................................................................................................................... 27

B.3.2 Apparatus ........................................................................................................................................................ 28

B.3.3 Test specimens .............................................................................................................................................. 29

B.3.4 Test procedure .............................................................................................................................................. 29

B.3.5 Calculations and expression of results ................................................................................................. 30

B.3.6 Test report ...................................................................................................................................................... 31

Annex C (normative) Testing for reaction to fire of products ..................................................................... 32

C.1 Scope ................................................................................................................................................................. 32

C.1.1 General ............................................................................................................................................................. 32

C.1.2 Product and installation parameters .................................................................................................... 32

C.1.3 Ignitability (EN ISO 11925-2) ................................................................................................................... 33

C.1.4 Single Burning Item [SBI] (EN 13823) for loose-fill cellulose insulation products .............. 34

Annex D (normative) Specimen preparation method for the water absorption test ......................... 38

D.1 Principle ........................................................................................................................................................... 38

D.2 Conditioning ................................................................................................................................................... 38

D.3 Procedure ........................................................................................................................................................ 38

Annex E (normative) Method of test for corrosion resistance .................................................................... 39

E.1 Principle ........................................................................................................................................................... 39

E.2 Conditioning ................................................................................................................................................... 39

E.3 Reagents and materials .............................................................................................................................. 39

E.4 Apparatus ........................................................................................................................................................ 39

E.4.1 Humidity chamber, maintained at (40 ± 2) °C and (90 to 95) % relative humidity ............. 39

E.4.2 Four cylindrical glass crystallizing dishes, well washed, nominally 90 mm in

diameter and 50 mm deep......................................................................................................................... 39

E.4.3 Rubber or PVC gloves. ................................................................................................................................. 39

E.4.4 Stainless steel spatula. ................................................................................................................................ 39

E.4.5 Tweezers. ......................................................................................................................................................... 39

E.5 Procedure ........................................................................................................................................................ 40

---------------------- Page: 5 ----------------------
SIST EN 15101-1:2013+A1:2019
EN 15101-1:2013+A1:2019 (E)

E.6 !Declaration" of the results ............................................................................................................. 40

E.7 Report ............................................................................................................................................................... 41

Annex F (normative) Method for determining mould fungi resistance .................................................. 42

F.1 Scope ................................................................................................................................................................. 42

F.2 Significance and use .................................................................................................................................... 42

F.3 Apparatus ........................................................................................................................................................ 42

F.4 Reagents and materials .............................................................................................................................. 42

F.5 Specimens ....................................................................................................................................................... 43

F.5.1 Viability control specimens ...................................................................................................................... 43

F.5.2 Comparative material ................................................................................................................................. 43

F.5.3 Test specimens .............................................................................................................................................. 43

F.6 Procedure........................................................................................................................................................ 43

F.6.1 Spore suspension ......................................................................................................................................... 43

F.6.2 Inoculation of test specimens, comparative material and control specimens ...................... 44

F.6.3 Incubation ....................................................................................................................................................... 44

F.7 Test analysis ................................................................................................................................................... 44

F.7.1 General ............................................................................................................................................................. 44

F.7.2 Validation ........................................................................................................................................................ 44

F.7.3 Classification .................................................................................................................................................. 44

F.8 Report ............................................................................................................................................................... 45

F.9 Precision and bias ........................................................................................................................................ 45

Annex G (normative) Specimen preparation method for the airflow resistance test ........................ 46

G.1 Principle .......................................................................................................................................................... 46

G.2 Procedure........................................................................................................................................................ 46

Annex H (normative) Specimen preparation method for thermal resistance and thermal

conductivity test ........................................................................................................................................... 47

H.1 Principle .......................................................................................................................................................... 47

H.2 Procedure........................................................................................................................................................ 47

H.2.1 Horizontal applications, loft and floors ............................................................................................... 47

H.2.2 Cavity insulation, frame constructions and cavity walls ............................................................... 48

Annex I (normative) Factory production control ............................................................................................ 50

Annex J (normative) Testing for reaction to fire of products in standardized assemblies

simulating end-use application(s) ......................................................................................................... 53

J.1 Scope ................................................................................................................................................................. 53

J.2 Product and installation parameters .................................................................................................... 53

J.3 Mounting and fixing .................................................................................................................................... 54

J.3.1 Ignitability (EN ISO 11925-2) ................................................................................................................... 54

---------------------- Page: 6 ----------------------
SIST EN 15101-1:2013+A1:2019
EN 15101-1:2013+A1:2019 (E)

J.3.2 Single Burning Item [SBI] (EN 13823) ................................................................................................... 54

J.4 Field of application....................................................................................................................................... 57

Annex K (normative) An example of a performance chart ........................................................................... 60

Annex ZA (informative) !Relationship of this European Standard with Regulation (EU)

No.305/2011 .................................................................................................................................................. 61

ZA.1 Scope and relevant characteristics ........................................................................................................ 61

ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) ...................... 63

ZA.3 Assignment of AVCP tasks ......................................................................................................................... 63

Bibliography ................................................................................................................................................................. 66

---------------------- Page: 7 ----------------------
SIST EN 15101-1:2013+A1:2019
EN 15101-1:2013+A1:2019 (E)
European Foreword

This document (EN 15101-1:2013+A1:2019) has been prepared by Technical Committee CEN/TC 88

“Thermal insulating materials and products”, the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by October 2019, and conflicting national standards shall

be withdrawn at the latest by October 2019.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association !deleted text".

For relationship with EU !Regulation"(s), see informative Annex ZA, which is an integral part of

this document.
This document includes Amendment 1 approved by CEN on 01 January 2019.
This document supersedes EN 15101-1:2013.

The start and finish of text introduced or altered by amendment is indicated in the text by tags !".

This European Standard consists of two parts which form a package. The first part is the harmonized

part satisfying the mandate !deleted text"and is the basis for the CE marking covering the products,

which are placed on the market. The second part, which is the non-harmonized part, covers the

installation checks for the installed products.

This European Standard is one of a series for mineral wool, expanded clay, expanded perlite, exfoliated

vermiculite, polyurethane/polyisocyanurate, cellulose, bound expanded polystyrene and expanded

polystyrene in situ formed insulation products used in buildings, but this standard may be used in other

areas where appropriate.

The reduction in energy used and emissions produced during the installed life of insulation products

exceeds by far the energy used and emissions made during the production and disposal processes.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,

Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Serbia Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
---------------------- Page: 8 ----------------------
SIST EN 15101-1:2013+A1:2019
EN 15101-1:2013+A1:2019 (E)
1 Scope

This European Standard specifies requirements for loose-fill cellulose insulation (LFCI) products for the

thermal and/or sound insulation of buildings when installed into walls, floors, galleries, roofs and

ceilings.

This European Standard is a specification for the loose-fill cellulose insulation (LFCI) products before

installation.

This European Standard describes the product characteristics and includes procedures for testing,

marking and labelling and the rules for evaluation of conformity.

Products covered by this European Standard may also be used in prefabricated thermal insulation

systems and composite panels; the structural performance of systems incorporating these products is

not covered.

Products with a declared thermal conductivity at 10 °C greater than 0,060 W/(m × K) or a declared

thermal resistance lower than 0,25 m × K/W are not covered by this European Standard.

This European Standard does not specify the required level of all properties to be achieved by a product

to demonstrate fitness for purpose in a particular application. The required levels are to be found in

local regulations or non-conflicting standards.

This European Standard does not cover factory made cellulose products placed on the market as bats,

mats or boards intended to be used for the insulation of buildings or loose-fill cellulose products for the

insulation of building equipment and industrial installations.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

EN 312, Particleboards - Specifications

EN 508-1, Roofing and cladding products from metal sheet - Specification for self-supporting of steel,

aluminium or stainless steel sheet - Part 1: Steel
EN 520, Gypsum plasterboards — Definitions, requirements and test methods

EN 1609, Thermal insulating products for building applications - Determination of short term water

absorption by partial immersion

EN 12086:2013, Thermal insulating products for building applications - Determination of water vapour

transmission properties

EN 12667, Thermal performance of building materials and products - Determination of thermal resistance

by means of guarded hot plate and heat flow meter methods - Products of high and medium thermal

resistance
EN 13172:2012, Thermal insulation products - Evaluation of conformity

EN 13238, Reaction to fire tests for building products - Conditioning procedures and general rules for

selection of substrates

EN 13501-1, Fire classification of construction products and building elements - Part 1: Classification

using data from reaction to fire tests
---------------------- Page: 9 ----------------------
SIST EN 15101-1:2013+A1:2019
EN 15101-1:2013+A1:2019 (E)

EN 13823:2010, Reaction to fire tests for building products — Building products excluding floorings

exposed to the thermal attack by a single burning item

!EN 16733, Reaction to fire tests for building products - Determination of a building product's

propensity to undergo continuous smouldering"

EN 29053, Acoustics — Materials for acoustical applications — Determination of airflow resistance

(ISO 9053)

EN ISO 354:2003, Acoustics - Measurement of sound absorption in a reverberation room (ISO 354:2003)

EN ISO 10456, Building materials and products - Hygrothermal properties -Tabulated design values and

procedures for determining declared and design thermal values (ISO 10456:2007)

EN ISO 11654, Acoustics - Sound absorbers for use in buildings - Rating of sound absorption (ISO

11654:1997)

EN ISO 11925-2, Reaction to fire tests - Ignitability of products subjected to direct impingement of flame -

Part 2: Single-flame source test (ISO 11925-2:2010)

ISO 12491, Statistical methods for quality control of building materials and components

3 Terms, definitions, symbols and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
open blow applications
all applications except cavity applications
3.1.2
declared insulation thickness: “open blow” applications

installed insulation thickness minus the thickness loss according to the settlement class of the product

3.1.3
declared insulation thickness: cavity applications
identical with the thickness of the cavity
3.1.4
floor
horizontal division between two s
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
