ASTM F823-22

Standard Specification for Desk, Log, Marine, Steel, with Cabinet

ABSTRACT
This specification covers the construction of marine log desks of steel construction with cabinets that are to be provided with two adjustable shelves. Sheet metal shall be of commercial quality and the metal components shall be joined by welding or gluing with a structural adhesive to prevent racking of chest during handling. Spotwelds shall be spaced at a specific distance wherein visible spotwelds higher than the general surface of the adjacent metal shall be ground flush while visible spotweld depressions shall be spot filled and sanded flush. To prevent buckling or oil-canning, side panels shall be stiffened suitably. Sound deadening shall be vermin proof and shall be applied to back and inner face of sides of chest. A furniture base shall also be provided to secure the log desk to deck.
SCOPE
1.1 This specification covers the construction of marine log desks of steel construction with cabinets.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Mar-2022
• ICS: 47.020.70 - Navigation and control equipment
• Technical Committee: F25 - Ships and Marine Technology
• Drafting Committee: F25.03 - Outfitting and Deck Machinery

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation:F823 −22 An American National Standard
Standard Specification for
1
Desk, Log, Marine, Steel, with Cabinet
ThisstandardisissuedunderthefixeddesignationF823;thenumberimmediatelyfollowingthedesignationindicatestheyearoforiginal
adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.Asuperscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3.1.1 log desk with cabinet—a desk with attached cabinet
located in various places aboard ship for making records and
1.1 This specification covers the construction of marine log
for storage. Log desk has a drawer with a writing surface at the
desks of steel construction with cabinets.
top and a cabinet with adjustable shelves and doors below.
1.2 The values stated in inch-pound units are to be regarded
as standard. The values given in parentheses are mathematical
4. Ordering Information
conversions to SI units that are provided for information only
4.1 Orders for items purchased under this specification shall
and are not considered standard.
include the following information:
1.3 This international standard was developed in accor-
4.1.1 Quantity.
dance with internationally recognized principles on standard-
4.1.2 Paint:
ization established in the Decision on Principles for the
4.1.2.1 Color—Purchaser shall pick from manufacturer’s
Development of International Standards, Guides and Recom-
samples or submit sample chip of color desired.
mendations issued by the World Trade Organization Technical
4.1.2.2 Manufacturer’s standard baked enamel will be fur-
Barriers to Trade (TBT) Committee.
nished unless otherwise required and indicated by the pur-
chaser.
2. Referenced Documents
4.1.3 Options for Tops:
2
2.1 ASTM Standards:
4.1.3.1 Unless otherwise specified in the ordering
A1008/A1008M Specification for Steel, Sheet, Cold-Rolled,
documents, the top supplied by the furniture manufacturer may
Carbon, Structural, High-Strength Low-Alloy, High-
be, at his option, Type I, II, III, or IV in accordance with
Strength Low-Alloy with Improved Formability, Required
Specification F826.
Hardness, Solution Hardened, and Bake Hardenable
4.1.3.2 Color or pattern of top covering material shall be
D907 Terminology of Adhesives
specified.
F782 Specification for Doors, Furniture, Marine
4.1.4 Options for Drawers—Drawer locks shall be fur-
F825 Specification for Drawers, Furniture, Marine, Steel
nished only when specified in ordering documents. Master
F826 Specification for Tops, Furniture, Marine, Steel
keying of drawer locks will not be provided unless required
3
2.2 AISC Manual:
and defined by the ordering documents. See Specification F825
AISCWireandSheetMetalGauges EquivalentThicknessin
for lock description.
Decimals of an Inch, U.S. Standard Gauge (USSG) for
4.1.5 Options for Doors—Door locks shall be furnished
Uncoated Hot and Cold Rolled Sheets
only when specified in ordering documents. Master keying of
door locks will not be provided unless required and defined in
3. Terminology
the ordering documents. Doors shall be Type I in accordance
with Specification F782.
3.1 Definitions of Terms Specific to This Standard:
4.1.6 If the total weight of the chest of drawers is required
it shall be requested by the purchaser.
1
This specification is under the jurisdiction of ASTM Committee F25 on Ships
and Marine Technology and is the direct responsibility of Subcommittee F25.03 on
5. Materials and Manufacture
Outfitting and Deck Machinery.

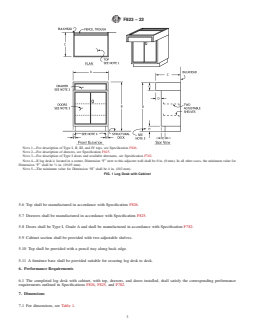

5.1 For typical design, see Fig. 1.
Current edition approved April 1, 2022. Published April 2022. Originally
approved in 1983. Last previous edition approved in 2017 as F823 – 93 (2017).
5.2 Sheet metal shall be in accordance with Specification
DOI: 10.1520/F0823-22.
2 A1008/A1008M, commercial quality.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
5.2.1 Minimum sheet metal thickness shall be:
Standards volume information, refer to the standard’s Document Summary page on
5.2.1.1 Sides and front rails 0.042 in. (1.06 mm).
the ASTM website.
3
5.2.1.2 Back 0.032 in. (0.81 mm).
Available from American Institute of Steel Construction (AISC), 130 E.
Randolph St., Suite 2000, Chicago, IL 60601-6219, http://www.aisc.org. 5.2.1.3 Base frame 0.053 in. (1.34 mm).
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
F823−22
NOTE 1—For description of Type I, II, III, and IV tops, see Specification F826.
NOTE 2—For description of drawers, see Sp
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

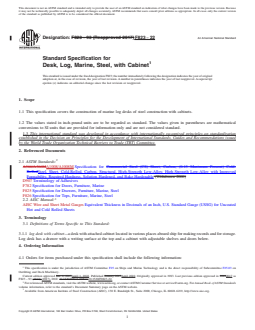

Designation: F823 − 93 (Reapproved 2017) F823 − 22 An American National Standard
Standard Specification for
1
Desk, Log, Marine, Steel, with Cabinet
This standard is issued under the fixed designation F823; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers the construction of marine log desks of steel construction with cabinets.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
A366/A366MA1008/A1008M Specification for Commercial Steel (CS) Sheet, Carbon, (0.15 Maximum Percent) Cold-
RolledSteel, Sheet, Cold-Rolled, Carbon, Structural, High-Strength Low-Alloy, High-Strength Low-Alloy with Improved
Formability, Required Hardness, Solution Hardened, and Bake Hardenable (Withdrawn 2000)
D907 Terminology of Adhesives
F782 Specification for Doors, Furniture, Marine
F825 Specification for Drawers, Furniture, Marine, Steel
F826 Specification for Tops, Furniture, Marine, Steel
3
2.2 AISC Manual:
AISC Wire and Sheet Metal Gauges Equivalent Thickness in Decimals of an Inch, U.S. Standard Gauge (USSG) for Uncoated
Hot and Cold Rolled Sheets
3. Terminology
3.1 Definitions of Terms Specific to This Standard:
3.1.1 log desk with cabinet—a desk with attached cabinet located in various places aboard ship for making records and for storage.
Log desk has a drawer with a writing surface at the top and a cabinet with adjustable shelves and doors below.
4. Ordering Information
4.1 Orders for items purchased under this specification shall include the following information:
1
This specification is under the jurisdiction of ASTM Committee F25 on Ships and Marine Technology and is the direct responsibility of Subcommittee F25.03 on
Outfitting and Deck Machinery.
Current edition approved Jan. 1, 2017April 1, 2022. Published January 2017April 2022. Originally approved in 1983. Last previous edition approved in 20102017 as
F823 – 93 (2010).(2017). DOI: 10.1520/F0823-93R17.10.1520/F0823-22.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
Available from American Institute of Steel Construction (AISC), 130 E. Randolph St., Suite 2000, Chicago, IL 60601-6219, http://www.aisc.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

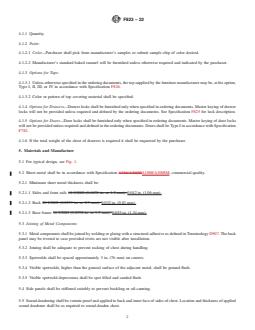

F823 − 22
4.1.1 Quantity.
4.1.2 Paint:
4.1.2.1 Color—Purchaser shall pick from manufacturer’s samples or submit sample chip of color desired.
4.1.2.2 Manufacturer’s standard baked enamel will be furnished unless otherwise required and indicated by the purchaser.
4.1.3 Options for Tops:
4.1.3.1 Unless otherwise specified in the ordering documents, the top supplied by the furniture manufacturer may be, at his option,
Type I, II, III, or IV in accordance with Specification F826.
4.1.3.2 Color or pattern of top covering material shall be specified.
4.1.4 Options for Drawers—Drawer locks shall be furnished only when specified in ordering documents. Master keying of drawer
locks will not be provided unless required and defined by the ordering documents. See Specification F825 for lock description.
4.1.5 Options for Doors—Door locks shall be furnished only when specified in ordering documents. Master keying of door locks
will not be provided unless required and defined in the ordering documents. Doors shall be Type I in accordance with Specification
F782.
4.1.6 If the total weight of the chest of drawers is required it shall be requested by the purchaser.
5. Materials and Manufacture

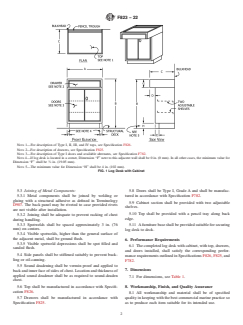

5.1 For typical design, see Fig. 1.
5.2 Sheet metal shall be in accordance with Specification
...
