ASTM F782-19
(Specification)Standard Specification for Doors, Furniture, Marine
Standard Specification for Doors, Furniture, Marine
ABSTRACT
This specification covers the construction of doors in marine furniture requiring hinged doors. Doors may be flush, right-hand, left-hand, or panel doors. Sheet metal shall be cold-rolled steel, commercial quality, furniture grade. Aluminum extrusions shall be Type 6063-T6 aluminum alloy. Aluminum sheet shall be Type 5052-H32 aluminum alloy. Metal components shall be joined by welding or gluing with a structural adhesive. Doors shall be capable of supporting a specified vertical load, applied at the lock edge of door, with door in any position. Doors shall be subject to tilt test.
SCOPE
1.1 This specification covers the construction of furniture doors for use where invoked by other marine furniture specifications.
1.2 This specification applies to all furniture doors for marine furniture, in items requiring hinged doors.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

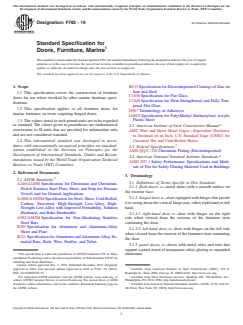

Designation: F782 −19 An American National Standard
Standard Specification for
1
Doors, Furniture, Marine
ThisstandardisissuedunderthefixeddesignationF782;thenumberimmediatelyfollowingthedesignationindicatestheyearoforiginal
adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.Asuperscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope B633 Specification for Electrodeposited Coatings of Zinc on
Iron and Steel
1.1 This specification covers the construction of furniture
C1036 Specification for Flat Glass
doors for use where invoked by other marine furniture speci-
C1048 Specification for Heat-Strengthened and Fully Tem-
fications.
pered Flat Glass
1.2 This specification applies to all furniture doors for
D907 Terminology of Adhesives
marine furniture, in items requiring hinged doors.
D4802 Specification for Poly(Methyl Methacrylate) Acrylic
Plastic Sheet
1.3 The values stated in inch-pound units are to be regarded
3
as standard. The values given in parentheses are mathematical
2.2 American Institute of Steel Construction Manual:
conversions to SI units that are provided for information only
AISC Wire and Sheet Metal Gages—Equivalent Thickness
and are not considered standard.
in Decimals of an Inch, U.S. Standard Gage (USSG) for
Uncoated Hot and Cold-Rolled Sheets
1.4 This international standard was developed in accor-
4
dance with internationally recognized principles on standard-
2.3 Federal Specifications:
ization established in the Decision on Principles for the
AMS-QQ-C-320 Chromium Plating (Electrodeposited)
Development of International Standards, Guides and Recom-
5
2.4 American National Standard Institute Standards:
mendations issued by the World Trade Organization Technical
ANSI Z97.1 Safety Performance Specifications and Meth-
Barriers to Trade (TBT) Committee.
ods of Test for Safety Glazing Material Used in Buildings
2. Referenced Documents
3. Terminology
2
2.1 ASTM Standards:
3.1 Definitions of Terms Specific to This Standard:
A240/A240M Specification for Chromium and Chromium-
3.1.1 flush doors, n—metal doors with a smooth surface on
Nickel Stainless Steel Plate, Sheet, and Strip for Pressure
the exterior face.
Vessels and for General Applications
3.1.2 hinged door, n—doorequippedwithhingesthatpermit
A1008/A1008M Specification for Steel, Sheet, Cold-Rolled,
ittoswingabouttheverticalhingeaxis,eitherrighthandorleft
Carbon, Structural, High-Strength Low-Alloy, High-
hand.
Strength Low-Alloy with Improved Formability, Solution
Hardened, and Bake Hardenable
3.1.2.1 right-hand door, n—door with hinges on the right
A582/A582M Specification for Free-Machining Stainless
side when viewed from the exterior of the furniture item
Steel Bars
containing the door.
B209 Specification for Aluminum and Aluminum-Alloy
3.1.2.2 left-hand door, n—door with hinges on the left side
Sheet and Plate
when viewed from the exterior of the furniture item containing
B221 Specification forAluminum andAluminum-Alloy Ex-
the door.
truded Bars, Rods, Wire, Profiles, and Tubes
3.1.3 panel doors, n—doors with metal stiles and rails that
supportapanelinsertoftransparentsafetyglazingorexpanded
1
This specification is under the jurisdiction of ASTM Committee F25 on Ships
aluminum.
and Marine Technology and is the direct responsibility of Subcommittee F25.03 on
Outfitting and Deck Machinery.
Current edition approved Dec. 1, 2019. Published December 2019. Originally
3
approved in 1982. Last previous edition approved in 2012 as F782 – 01 (2012). Available from American Institute of Steel Construction (AISC), 130 E.
DOI: 10.1520/F0782-19. Randolph St., Suite 2000, Chicago, IL 60601-6219, http://www.aisc.org.
2 4
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Available from DLA Document Services, Building 4/D, 700 Robbins Ave.,
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
5
Standards volume information, refer to the standard’s Document Summary page on Available from American National Standards Institute (ANSI), 25 W. 43rd St.,
the ASTM website. 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

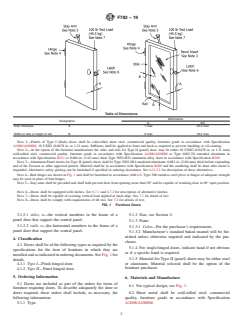

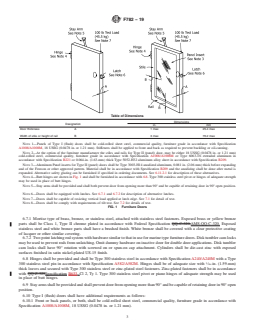

F782 − 19
Table of Dimensions
Dimensions
Designation
in. mm
Door thickness A 1 max 25.4 max
Width of stile or height of rail B 3 max 76.2 max
NOTE 1—Panels of Type I (flush) door
...

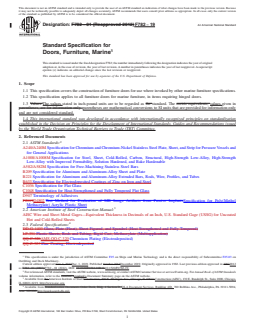

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F782 − 01 (Reapproved 2012) F782 − 19 An American National Standard
Standard Specification for
1
Doors, Furniture, Marine
This standard is issued under the fixed designation F782; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope
1.1 This specification covers the construction of furniture doors for use where invoked by other marine furniture specifications.
1.2 This specification applies to all furniture doors for marine furniture, in items requiring hinged doors.
1.3 Values The values stated in inch-pound units are to be regarded as the standard. The metric equivalents, values given in
parentheses, are for information only. parentheses are mathematical conversions to SI units that are provided for information only
and are not considered standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
A240/A240M Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and
for General Applications
A1008/A1008M Specification for Steel, Sheet, Cold-Rolled, Carbon, Structural, High-Strength Low-Alloy, High-Strength
Low-Alloy with Improved Formability, Solution Hardened, and Bake Hardenable
A582/A582M Specification for Free-Machining Stainless Steel Bars
B209 Specification for Aluminum and Aluminum-Alloy Sheet and Plate
B221 Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire, Profiles, and Tubes
B633 Specification for Electrodeposited Coatings of Zinc on Iron and Steel
C1036 Specification for Flat Glass
C1048 Specification for Heat-Strengthened and Fully Tempered Flat Glass
D907 Terminology of Adhesives
F2119D4802 Test Method for Evaluation of MR Image Artifacts from Passive ImplantsSpecification for Poly(Methyl
Methacrylate) Acrylic Plastic Sheet
3
2.2 American Institute of Steel Construction Manual:
AISC Wire and Sheet Metal Gages—Equivalent Thickness in Decimals of an Inch, U.S. Standard Gage (USSG) for Uncoated
Hot and Cold-Rolled Sheets
4
2.3 Federal Specifications:
DD-G-1403 Glass, Plate (Float), Sheet Figured, and Spandrel (Heat Strengthened and Fully Tempered)
LP-391 Plastic Sheets, Rods and Tubing, Rigid Cast, Methacrylate (Multiapplication)
QQ-C-320AMS-QQ-C-320 Chromium Plating (Electrodeposited)
QQ-Z-325 Zinc Coating, Electrodeposited
1
This specification is under the jurisdiction of ASTM Committee F25 on Ships and Marine Technology and is the direct responsibility of Subcommittee F25.03 on
Outfitting and Deck Machinery.
Current edition approved June 1, 2012Dec. 1, 2019. Published October 2012December 2019. Originally approved in 1982. Last previous edition approved in 20072012
as F782 - 01 (2007).F782 – 01 (2012). DOI: 10.1520/F0782-01R12.10.1520/F0782-19.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’sstandard’s Document Summary page on the ASTM website.
3
Available from the American Institute of Steel Construction, 400 N. Michigan Ave., Chicago, IL 60611.Construction (AISC), 130 E. Randolph St., Suite 2000, Chicago,
IL 60601-6219, http://www.aisc.org.
4
Available from Standardization Documents Order Desk, Bldg. 4 Section D, DLA Document Services, Building 4/D, 700 Robbins Ave., Philadelphia, PA 19111-5094,
Attn: NPODS.http://quicksearch.dla.mil.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

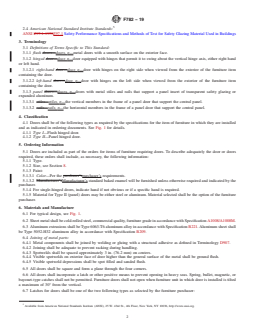

F782 − 19
5
2.4 American National Standard Institute Standards:
ANSI Z97.1-1975Z97.1 Safety Performance Specifications and Methods of Test for Safety Glazing Material Used in Buildings
3. Terminology
3.1 Definitions of Terms Specific to This Standard:
3.1.1 flush doors—doors, n—metal doors with a smooth surface on the exterior face.
3.1.2 hinged door—door, n—door equipped with hinges tha
...
