ASTM C401-12(2022)

Standard Classification of Alumina and Alumina-Silicate Castable Refractories

SIGNIFICANCE AND USE
3.1 Alumina and alumina-silicate castable refractories are produced to yield property characteristics commensurate with different end-use properties. Volume stability, modulus of rupture, bulk density, and lime content have become useful measures to distinguish various alumina and alumina-silicate castable formulations for initial fitness for service. This classification is considered useful for purchase specifications and for quality control.
SCOPE
1.1 This classification covers alumina and alumina-silicate castable refractories that, when tempered with water, will develop structural strength by chemical action.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Aug-2022
• ICS: 81.080 - Refractories
• Technical Committee: C08 - Refractories
• Drafting Committee: C08.92 - The Joseph E. Kopanda Subcommittee for Editorial, Terminology and Classification

Relations

• Refers: ASTM C133-24 - Standard Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• Effective Date: 01-Apr-2024
• Refers: ASTM C113-14(2019) - Standard Test Method for Reheat Change of Refractory Brick
• Effective Date: 01-Nov-2019
• Refers: ASTM C113-14 - Standard Test Method for Reheat Change of Refractory Brick
• Effective Date: 01-Mar-2014
• Refers: ASTM C865-13 - Standard Practice for Firing Refractory Concrete Specimens
• Effective Date: 01-Sep-2013
• Refers: ASTM C134-95(2010) - Standard Test Methods for Size, Dimensional Measurements, and Bulk Density of Refractory Brick and Insulating Firebrick
• Effective Date: 01-Apr-2010
• Refers: ASTM C133-97(2008)e1 - Standard Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• Effective Date: 01-Aug-2008
• Refers: ASTM C133-97(2008) - Standard Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• Effective Date: 01-Aug-2008
• Refers: ASTM C113-02(2008) - Standard Test Method for Reheat Change of Refractory Brick
• Effective Date: 01-Aug-2008
• Refers: ASTM C862-02(2008) - Standard Practice for Preparing Refractory Concrete Specimens by Casting
• Effective Date: 01-Mar-2008
• Refers: ASTM C865-02(2007) - Standard Practice for Firing Refractory Concrete Specimens
• Effective Date: 01-Oct-2007
• Refers: ASTM C134-95(2005) - Standard Test Methods for Size, Dimensional Measurements, and Bulk Density of Refractory Brick and Insulating Firebrick
• Effective Date: 01-Dec-2005
• Refers: ASTM C133-97(2003) - Standard Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• Effective Date: 10-Apr-2003
• Refers: ASTM C865-02 - Standard Practice for Firing Refractory Concrete Specimens
• Effective Date: 10-Nov-2002
• Refers: ASTM C113-02 - Standard Test Method for Reheat Change of Refractory Brick
• Effective Date: 10-Nov-2002
• Refers: ASTM C862-02 - Standard Practice for Preparing Refractory Concrete Specimens by Casting
• Effective Date: 10-Nov-2002

Overview

ASTM C401-12(2022): Standard Classification of Alumina and Alumina-Silicate Castable Refractories establishes internationally recognized criteria for classifying alumina and alumina-silicate castable refractories. Developed by ASTM International, this standard is essential for manufacturers, purchasers, and end-users involved in the selection and quality assurance of refractory materials. The classification covers castables that, when mixed with water, develop structural strength through chemical action, making them suitable for a variety of high-temperature industrial applications.

Key Topics

• Classification Basis: Castable refractories are grouped according to critical properties such as lime (CaO) content, volume stability, modulus of rupture, and bulk density.
• Types of Castables:
  • No Cement Castables (NCC): ≤ 0.2% lime
  • Ultra-Low Cement Castables (ULCC): >0.2% to 1.0% lime
  • Low Cement Castables (LCC): >1.0% to 2.5% lime
  • Conventional Castables: >2.5% lime
• Strength Categories: Conventional castables are further classified as normal or high-strength, based on their modulus of rupture after drying.
• Volume Stability: Test requirements ensure dimensional stability when subjected to specified firing temperatures, which is critical for performance in service.
• Insulating Castables: These are classified by bulk density and volume stability, emphasizing their suitability for thermal insulation under high temperatures.
• Testing and Quality Control: The standard references methods for determining modulus of rupture, permanent linear change, and bulk density, guiding quality assurance and acceptance criteria.

Applications

ASTM C401-12(2022) provides significant practical value by ensuring consistent performance and safety in the following industries and applications:

• Metallurgical Furnaces: Selection and specification of lining materials for steel, aluminum, and non-ferrous metal furnaces benefit from standardized performance metrics.
• Petrochemical Processing: Refractory castables classified by ASTM C401 are essential for lining reactors, kilns, and other thermal processing units where chemical resistance and thermal stability are required.
• Cement and Lime Kilns: High-temperature durability and volume stability classified under this standard support extended service life and lower maintenance requirements.
• Incinerators and Power Generation: Insulating castables help improve energy efficiency and protect structural components from thermal stress.
• Purchase Specifications: Enables clear communication between buyers and suppliers, ensuring that materials meet performance expectations and project requirements.
• Quality Control: Provides a framework for routine verification of supplied materials using standardized test methods, reducing the risk of failure in critical processes.

Related Standards

Several ASTM standards are referenced within ASTM C401-12(2022) and support its application:

• ASTM C113 - Test Method for Reheat Change of Refractory Brick
• ASTM C133 - Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• ASTM C134 - Test Methods for Size, Dimensional Measurements, and Bulk Density of Refractory Brick and Insulating Firebrick
• ASTM C862 - Practice for Preparing Refractory Concrete Specimens by Casting
• ASTM C865 - Practice for Firing Refractory Concrete Specimens

These related documents help establish a comprehensive approach to testing and evaluating castable refractory materials, further supporting the objectives of ASTM C401.

---

Keywords: alumina castable refractories, alumina-silicate refractories, ASTM C401, insulating castable refractories, low-cement castables, no-cement castables, ultra-low cement castables, refractory classification, high-temperature materials, quality control, industrial furnaces.

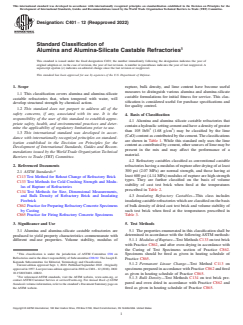

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: C401 −12 (Reapproved 2022)
Standard Classification of
Alumina and Alumina-Silicate Castable Refractories
This standard is issued under the fixed designation C401; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope rupture, bulk density, and lime content have become useful
measures to distinguish various alumina and alumina-silicate
1.1 This classification covers alumina and alumina-silicate
castable formulations for initial fitness for service. This clas-
castable refractories that, when tempered with water, will
sification is considered useful for purchase specifications and
develop structural strength by chemical action.
for quality control.
1.2 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
4. Basis of Classification
responsibility of the user of this standard to establish appro-
4.1 Alumina and alumina silicate castable refractories that
priate safety, health, and environmental practices and deter-
containahydraulicsettingcementandhaveadensityofgreater
mine the applicability of regulatory limitations prior to use.
3 3
than 105 lb/ft (1.68 g/cm ) may be classified by the lime
1.3 This international standard was developed in accor-
(CaO) content as contributed by the cement.The classifications
dance with internationally recognized principles on standard-
are shown in Table 1. While this standard only uses the lime
ization established in the Decision on Principles for the
content as contributed by cement, other sources of lime may be
Development of International Standards, Guides and Recom-
present in the mix and may affect the performance of a
mendations issued by the World Trade Organization Technical
material.
Barriers to Trade (TBT) Committee.
4.2 Refractory castables classified as conventional castable
2. Referenced Documents refractories having a modulus of rupture after drying of at least
300 psi (2.07 MPa) are normal strength, and those having at
2.1 ASTM Standards:
least 600 psi (4.14 MPa) modulus of rupture are high-strength
C113 Test Method for Reheat Change of Refractory Brick
types. They are further classified on the basis of volume
C133 Test Methods for Cold Crushing Strength and Modu-
stability of cast test brick when fired at the temperatures
lus of Rupture of Refractories
prescribed in Table 2.
C134 Test Methods for Size, Dimensional Measurements,
and Bulk Density of Refractory Brick and Insulating 4.3 Insulating Refractory Castables—This class includes
Firebrick insulating castable refractories which are classified on the basis
C862 Practice for Preparing Refractory Concrete Specimens of bulk density of dried cast test brick and volume stability of
by Casting
such test brick when fired at the temperatures prescribed in
C865 Practice for Firing Refractory Concrete Specimens Table 3.
3. Significance and Use 5. Test Methods
5.1 The properties enumerated in this classification shall be
3.1 Alumina and alumina-silicate castable refractories are
produced to yield property characteristics commensurate with determined in accordance with the following ASTM methods:
5.1.1 ModulusofRupture—Test Methods C133 on test brick
different end-use properties. Volume stability, modulus of
with Practice C862, and after oven drying in accordance with
the Curing of Test Specimens section of Practice C862.
This classification is under the jurisdiction of ASTM Committee C08 on
Specimens should be fired as given in heating schedule of
Refractories and is the direct responsibility of Subcommittee C08.92 The Joseph E.
Practice C865.
Kopanda Subcommittee for Editorial, Terminology and Classification.
5.1.2 Permanent Linear Change—Test Method C113 on
Current edition approved Sept. 1, 2022. Published September 2022 . Originally
specimens prepared in accordance with Prac
...
