ASTM E539-19
(Test Method)Standard Test Method for Analysis of Titanium Alloys by Wavelength Dispersive X-Ray Fluorescence Spectrometry
Standard Test Method for Analysis of Titanium Alloys by Wavelength Dispersive X-Ray Fluorescence Spectrometry
SIGNIFICANCE AND USE
5.1 This method is suitable for providing data on the chemical composition of titanium alloys having compositions within the scope of the standard. It is intended for routine production control and for determination of chemical composition for the purpose of certifying material specification compliance. Additionally, the analytical performance data included with this method may be used as a benchmark to determine if similar X-ray spectrometers provide equivalent precision and accuracy.
5.2 Compositions outside the ranges in 1.1 may be reported if proper method validation is performed. Refer to Guide E2857 for information on method validation.
SCOPE
1.1 This test method2 covers the X-ray fluorescence analysis of titanium alloys for the following elements in the ranges indicated:
Element
Range, %
Aluminum
0.041 to 8.00
Chromium
0.013 to 4.00
Copper
0.015 to 0.60
Iron
0.023 to 2.00
Manganese
0.003 to 9.50
Molybdenum
0.005 to 4.00
Nickel
0.005 to 0.80
Niobium
0.004 to 7.50
Palladium
0.014 to 0.200
Ruthenium
0.019 to 0.050
Silicon
0.014 to 0.15
Tin
0.017 to 3.00
Vanadium
0.017 to 15.50
Yttrium
0.0011 to 0.0100
Zirconium
0.007 to 4.00
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in Section 10.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

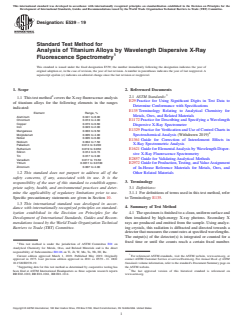

Designation: E539 − 19
Standard Test Method for
Analysis of Titanium Alloys by Wavelength Dispersive X-Ray
1
Fluorescence Spectrometry
This standard is issued under the fixed designation E539; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
3
2
2.1 ASTM Standards:
1.1 Thistestmethod coverstheX-rayfluorescenceanalysis
E29 Practice for Using Significant Digits in Test Data to
of titanium alloys for the following elements in the ranges
Determine Conformance with Specifications
indicated:
E135 Terminology Relating to Analytical Chemistry for
Element Range, %
Metals, Ores, and Related Materials
Aluminum 0.041 to 8.00
Chromium 0.013 to 4.00
E1172 Practice for Describing and Specifying a Wavelength
Copper 0.015 to 0.60
Dispersive X-Ray Spectrometer
Iron 0.023 to 2.00
E1329 Practice for Verification and Use of Control Charts in
Manganese 0.003 to 9.50
4
Molybdenum 0.005 to 4.00 Spectrochemical Analysis (Withdrawn 2019)
Nickel 0.005 to 0.80
E1361 Guide for Correction of Interelement Effects in
Niobium 0.004 to 7.50
X-Ray Spectrometric Analysis
Palladium 0.014 to 0.200
Ruthenium 0.019 to 0.050
E1621 Guide for ElementalAnalysis by Wavelength Disper-
Silicon 0.014 to 0.15
sive X-Ray Fluorescence Spectrometry
Tin 0.017 to 3.00
E2857 Guide for Validating Analytical Methods
Vanadium 0.017 to 15.50
Yttrium 0.0011 to 0.0100
E2972 Guide for Production, Testing, and ValueAssignment
Zirconium 0.007 to 4.00
of In-House Reference Materials for Metals, Ores, and
1.2 This standard does not purport to address all of the Other Related Materials
safety concerns, if any, associated with its use. It is the
3. Terminology
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter-
3.1 Definitions:
mine the applicability of regulatory limitations prior to use. 3.1.1 For definitions of terms used in this test method, refer
Specific precautionary statements are given in Section 10.
to Terminology E135.
1.3 This international standard was developed in accor-
4. Summary of Test Method
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the 4.1 The specimen is finished to a clean, uniform surface and
then irradiated by high-energy X-ray photons. Secondary X
Development of International Standards, Guides and Recom-
rays are produced and emitted from the sample. Using analyz-
mendations issued by the World Trade Organization Technical
ing crystals, this radiation is diffracted and directed towards a
Barriers to Trade (TBT) Committee.
detectorthatmeasuresthecountratesatspecifiedwavelengths.
The output(s) of the detector(s) is integrated or counted for a
fixed time or until the counts reach a certain fixed number.
1
This test method is under the jurisdiction of ASTM Committee E01 on
Analytical Chemistry for Metals, Ores, and Related Materials and is the direct
responsibility of Subcommittee E01.06 on Ti, Zr, W, Mo, Ta, Nb, Hf, Re.
3
Current edition approved March 1, 2019. Published May 2019. Originally For referenced ASTM standards, visit the ASTM website, www.astm.org, or
approved in 1975. Last previous edition approved in 2011 as E539 – 11. DOI: contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
10.1520/E0539-19. Standards volume information, refer to the standard’s Document Summary page on
2
Supporting data for this test method as determined by cooperative testing has the ASTM website.
4
been filed at ASTM International Headquarters as three separate research reports The last approved version of this historical standard is referenced on
RR:E02-1010, RR:E01-1061, RR:E01-1114. www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

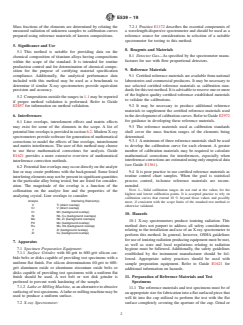

E539 − 19
Mass fractions of the elements are determined by relating the 7.2.1 Practice E1172 describes the essential components of
measured radiation of unknown samples to calibration curves a wavelength-dispersive spectrometer and should be used as a
prepared using reference materials of known compositions. reference source for considerations in selection of a suitable
spectrometer for testing to this method.
5. Significance and Use
8. Reagents and Materials
5.1 This method is suitable for providing data on the
8.1 Detector Gas—As specified by the spect
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

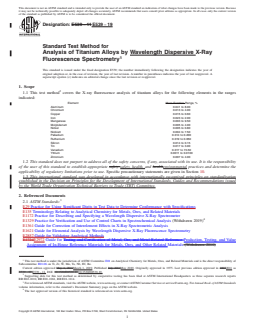

Designation: E539 − 11 E539 − 19
Standard Test Method for
Analysis of Titanium Alloys by Wavelength Dispersive X-Ray
1
Fluorescence Spectrometry
This standard is issued under the fixed designation E539; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
2
1.1 This test method covers the X-ray fluorescence analysis of titanium alloys for the following elements in the ranges
indicated:
Element Mass Fraction Range, %
Aluminum 0.041 to 8.00
Chromium 0.013 to 4.00
Copper 0.015 to 0.60
Iron 0.023 to 2.00
Manganese 0.003 to 9.50
Molybdenum 0.005 to 4.00
Nickel 0.005 to 0.80
Niobium 0.004 to 7.50
Palladium 0.014 to 0.200
Ruthenium 0.019 to 0.050
Silicon 0.014 to 0.15
Tin 0.017 to 3.00
Vanadium 0.017 to 15.50
Yttrium 0.0011 to 0.0100
Zirconium 0.007 to 4.00
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use. Specific precautionary statements are given in Section 10.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
3
2.1 ASTM Standards:
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E135 Terminology Relating to Analytical Chemistry for Metals, Ores, and Related Materials
E1172 Practice for Describing and Specifying a Wavelength Dispersive X-Ray Spectrometer
4
E1329 Practice for Verification and Use of Control Charts in Spectrochemical Analysis (Withdrawn 2019)
E1361 Guide for Correction of Interelement Effects in X-Ray Spectrometric Analysis
E1621 Guide for Elemental Analysis by Wavelength Dispersive X-Ray Fluorescence Spectrometry
E2857 Guide for Validating Analytical Methods
E1724E2972 Guide for Testing and Certification of Metal, Ore, and Metal-Related Reference Production, Testing, and Value
Assignment of In-House Reference Materials for Metals, Ores, and Other Related Materials (Withdrawn 2010)
1
This test method is under the jurisdiction of ASTM Committee E01 on Analytical Chemistry for Metals, Ores, and Related Materials and is the direct responsibility of
Subcommittee E01.06 on Ti, Zr, W, Mo, Ta, Nb, Hf, Re.
Current edition approved May 1, 2011March 1, 2019. Published July 2011May 2019. Originally approved in 1975. Last previous edition approved in 20072011 as
E539 – 07.E539 – 11. DOI: 10.1520/E0539-11.10.1520/E0539-19.
2
Supporting data for this test method as determined by cooperative testing has been filed at ASTM International Headquarters as three separate research reports
RR:E02-1010, RR:E01-1061, RR:E01-1114.
3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
4
The last approved version of this historical standard is referenced on www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

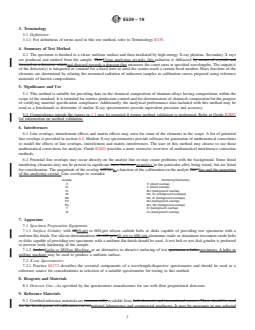

E539 − 19
3. Terminology
3.1 Definitions:
3.1.1 For definitions of terms used in this test method, refer to Terminology E135.
4. Summary of Test Method
4.1 The specimen is finished to a clean, uniform surface and then irradiated by high-energy X-ray photons. Secondary X rays
are produced and emitted from the sample. This Using analyzing crystals, this radiation is diffracted by means of crystals and
focused on a detector, whichand directed towards a detector that measures the count rates at specified wavelengths. The output(s)
of the detector(s) is integrated or counted for a fixed time or until the counts reach a certain fixed number. Mass fractions of the
elements are determined by relating the measured radiation of unknown samples to calibration curves prepared using reference
materials of known compositions.
5. Signi
...
