EN 13776
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2023
EUROPÄISCHE NORM
ICS 43.080.10 Supersedes EN 13776:2013
English Version
LPG equipment and accessories - Filling and discharge
procedures for LPG road tankers
Équipements et accessoires pour GPL - Procédures de Flüssiggas-Geräte und Ausrüstungsteile - Füll- und
chargement et déchargement des camions-citernes Entleerungsverfahren für Straßentankfahrzeuge für
pour GPL Flüssiggas (LPG)
This European Standard was approved by CEN on 24 April 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13776:2023 E
worldwide for CEN national Members.

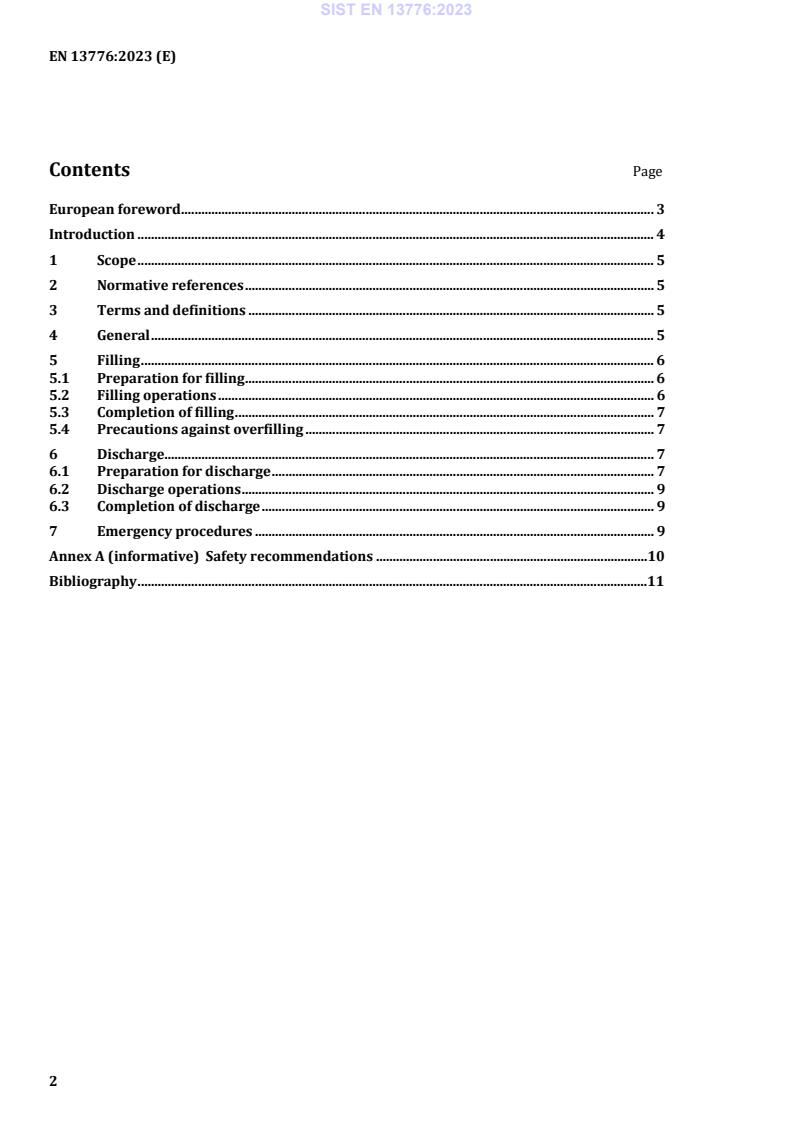

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General . 5
5 Filling . 6
5.1 Preparation for filling . 6
5.2 Filling operations . 6
5.3 Completion of filling . 7
5.4 Precautions against overfilling . 7
6 Discharge . 7
6.1 Preparation for discharge . 7
6.2 Discharge operations . 9
6.3 Completion of discharge . 9
7 Emergency procedures . 9
Annex A (informative) Safety recommendations .10
Bibliography .11
European foreword
This document (EN 13776:2023) has been prepared by Technical Committee CEN/TC 286 “Liquefied
petroleum gas equipment and accessories”, the secretariat of which is held by NSAI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by November 2023, and conflicting national standards shall
be withdrawn at the latest by November 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13776:2013.
In comparison with the previous edition, the following technical modifications have been made:
— Removal of the previous Annex A giving a table of LPG mixtures;
— A new Annex A was added giving recommendations on the personal protection equipment;
— Removal of Annex B on the Environmental checklist;
— Addition of a reference to CEN/TS 16765;
— Updating of the Introduction;
— A requirement was added to 5.1.3 that all electrical equipment required for the filling process shall
be suitable for the hazardous zone according to ATEX;
— Both the filling and the discharge requirements were harmonized with the ones for rail tanker in
EN 14841;
— References and clarifications concerning ADR [5] were added to improve clarity.
This document will be submitted for reference in:
— the RID; and/or
— the technical annexes of the ADR [5].
NOTE These regulations take precedence over any clause of this document. It is emphasized that RID/ADR are
being revised regularly at intervals of two years which can lead to temporary non-compliances with the clauses of
this document.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
This document calls for the use of substances and procedures that can be injurious to health if adequate
precautions are not taken. It refers only to technical suitability and does not absolve the user from legal
obligations relating to health and safety at any stage.
The frequencies of the different types of pressure vessel inspection are given by the relevant international
regulations concerning the transport of dangerous goods.
Protection of the environment is a key political issue in Europe and elsewhere. For CEN/TC 286 this is
covered in CEN/TS 16765 [1], and this Technical Specification should be read in conjunction with this
document. CEN/TS 16765 provides guidance on the environmental aspects to be considered regarding
equipment and accessories produced for the LPG industry and the following is addressed:
a) design;
b) manufacture;
c) packaging;
d) use and operation; and
e) disposal.
It is recommended that companies using this document develop an environmental management policy.
For guidance, see EN ISO 14001 [2].
It has been assumed in the drafting of this document that the execution of its provisions is entrusted to
appropriately qualified and experienced people.
All pressures are gauge pressures unless otherwise stated.
NOTE This document requires measurement of material properties, dimensions and pressures. All such
measurements are subject to a degree of uncertainty due to tolerances in measuring equipment, etc. It can be
beneficial to refer to the leaflet “Measurement uncertainty leaflet” SP INFO 2000 27 [4].
1 Scope
This document specifies filling, discharge and emergency procedures for road tankers equipped in
accordance with EN 12252 used for the transport of liquefied petroleum gas (LPG).
This document does not apply to “batteries of receptacles”.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12252, LPG equipment and accessories - Equipping of LPG road tankers
CEN/TS 16769, LPG equipment and accessories - Terminology
3 Terms and definitions
For the purposes of this document, the terms and definitions given in CEN/TS 16769 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
4 General
4.1 Safety systems as required by EN 12252 shall be used. Personnel carrying out LPG transfer
operations shall wear personal protection equipment. Recommendations for personal protection
equipment are given in Annex A. The operations of filling and discharging shall be done under constant
supervision.
NOTE Recommendations for personal protection equipment are given in Annex A.
4.2 The filling and discharge areas shall be inspected for fire hazards prior to beginning operations.
Suitable fire protection shall be readily available.
NOTE Responsibilities for fire protection are subject to national regulations.
4.3 Written procedures and other appropriate information shall be made readily available, understood
and followed by those undertaking filling and discharging procedures.
NOTE ADR [5] requires drivers to have an ADR driver training certificate as given in part 8 of ADR.
Consideration shall be given to include specific instructions for the use of the road tanker’s LPG
equipment and fixed LPG installation relevant to the operations in the training programme. These
instructions shall be based on risk assessment and address all requirements of Clauses 5 and 6.
4.4 Written procedures shall be readily available, understood and followed. This shall be achieved by
training and supervision. The responsibilities of all persons involved in the operation shall be clearly
defined.
5 Filling
5.1 Preparation for filling
5.1.1 The vehicle shall be driven to the filling area and positioned in accordance with the site procedure.
5.1.2 Any device intended to or provided to check the loaded quantity shall be operational and in the
correct position.
5.1.3 All road tanker electrical equipment not required for the filling process shall be switched off. Any
other sources of ignition shall be removed/de-activated. All electrical equipment required for the filling
process shall be suitable for the hazardous zone according to ATEX.
NOTE Refer to Directive 2014/34/EU [7] and EN IEC 60079-10-1:2021 [3].
5.1.4 The handbrake shall be applied and, where required, the wheel chock put in place. Anti-drive-
away system interlock/installation barriers shall be engaged.
5.1.5 The electrostatic potential of the road tanker and the discharging pressure vessel shall then be
equalised before the LPG hoses or loading arms are connected.
5.1.6 All road tanker valves shall be checked to ensure that they are in the closed position.
5.1.7 Blanking caps or blind flanges shall be removed from the liquid and vapour connections (where
fitted and when used) to be used.
5.1.8 Ensure that the site is safe for filling LPG and adequate ullage capacity is available. Specific
requirements for this shall be part of the site procedures, if applicable.
5.1.9 Hoses and loading arms shall be checked for kinks, wear or obvious damage. Fill-couplings, seals
and necessary attachments shall be examined to ensure compatibility and that no dirt or any other
foreign matter is present before connection.
5.1.10 Connections shall be properly made before starting to fill. Hoses/loading arms shall not be fully
extended in making the connections. A check shall be made for any sign of leakage before filling
commences. Any leakage shall be rectified before proceeding.
5.1.11 Precautions shall be taken to ensure that the grade of LPG to be filled is correctly identified and
that the road tanker is suitable for the intended load and that it is correctly labelled (see ADR,
4.3.3.2.5 [5]).
NOTE In the ADR [5] the terms “placarding” and “orange-coloured plate marking” are used in place o
...
