EN 1124-2:2014

Pipes and fittings of longitudinally welded stainless steel pipes with spigot and socket for waste water systems - Part 2: System S, forms and dimensions

This European Standard applies to pipes and fittings of longitudinally welded stainless steel pipes with spigot and socket for waste water systems and specifies dimensions and tolerances for pipes, fittings and pipe connectors and establishes a system of designations for the different pipe and fitting types that conform to the stated requirements.
This part of EN 1124 is only valid in connection with EN 1124 1.

Rohre und Formstücke aus längsnahtgeschweißtem, nichtrostendem Stahlrohr mit Steckmuffe für Abwasserleitungen - Teil 2: System S, Formen und Maße

Diese Europäische Norm gilt für Rohre und Formstücke aus längsnahtgeschweißtem, nichtrostendem Stahlrohr mit Steckmuffe für Abwasserleitungen. Sie legt Maße und Grenzabmaße für Rohre, Formstücke und Rohrverbindungen fest und enthält zur ein¬fachen Identifizierung jedes Bauteils ein System für die Bezeichnung der verschiedenen Arten von Rohren und Formstücken, die mit den angegebenen Anforderungen übereinstimmen.
Dieser Teil von EN 1124 gilt nur in Verbindung mit EN 1124 1.

Tubes et raccords de tube soudés longitudinalement en acier inoxydable, à manchon enfichable pour réseaux d'assainissement - Partie 2: Système S, formes et dimensions

La présente Norme européenne s’applique aux tubes et raccords de tubes soudés longitudinalement en acier inoxydable, à manchon enfichable, pour réseaux d’assainissement. Elle spécifie les dimensions et tolérances pour tubes, raccords et jonctions de tubes et définit un système pour la désignation des différents types de tubes et raccords qui correspondent aux exigences indiquées.
La présente partie de l'EN 1124 n’est valable qu’en liaison avec l’EN 1124-1.

Vzdolžno varjene nerjavne jeklene cevi in spojniki z obojko za sisteme za odpadno vodo - 2. del: Sistem S - Oblike in mere

Standard EN 1124-2 se uporablja za cevi in spojnike vzdolžno varjenih nerjavnih jeklenih cevi z obojkami za sisteme za odpadno vodo ter določa mere in tolerance za cevi, spojnike in cevne priključke, pri čemer podaja sistem oznak za različne vrste cevi in spojnikov, ki ustrezajo navedenim zahtevam. Ta del standarda EN 1124 velja samo v povezavi s standardom EN 1124-1.

General Information

• Status: Published
• Publication Date: 17-Jun-2014
• ICS: 23.040.05 - Pipeline and its parts for external sewage systems
• ICS: 23.040.10 - Iron and steel pipes
• ICS: 23.040.40 - Metal fittings
• ICS: 23.040.60 - Flanges, couplings and joints
• Technical Committee: CEN/TC 165 - Waste water engineering
• Drafting Committee: CEN/TC 165/WG 7 - Steel pipes
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Completion Date: 11-May-2020
• Ref Project: SIST EN 1124-2:2014 - Pipes and fittings of longitudinally welded stainless steel pipes with spigot and socket for waste water systems - Part 2: System S, forms and dimensions

Relations

• Replaces: EN 1124-2:2007 - Pipes and fittings of longitudinally welded stainless steel pipes with spigot and socket for waste water systems - Part 2: System S; dimensions
• Effective Date: 18-Jun-2011

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Vzdolžno varjene nerjavne jeklene cevi in spojniki z obojko za sisteme za odpadno vodo - 2. del: Sistem S - Oblike in mereRohre und Formstücke aus längsnahtgeschweißtem, nichtrostendem Stahlrohr mit Steckmuffe für Abwasserleitungen - Teil 2: System S, Formen und MaßeTubes et raccords de tube soudés longitudinalement en acier inoxydable, à manchon enfichable pour réseaux d'assainissement - Partie 2: Système S, formes et dimensionsPipes and fittings of longitudinally welded stainless steel pipes with spigot and socket for waste water systems - Part 2: System S, forms and dimensions93.030Zunanji sistemi za odpadno vodoExternal sewage systems23.040.10Železne in jeklene ceviIron and steel pipesICS:Ta slovenski standard je istoveten z:EN 1124-2:2014SIST EN 1124-2:2014en,fr,de01-oktober-2014SIST EN 1124-2:2014SLOVENSKI
STANDARDSIST EN 1124-2:20091DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1124-2
June 2014 ICS 23.040.10; 23.040.40 Supersedes EN 1124-2:2007English Version
Pipes and fittings of longitudinally welded stainless steel pipes with spigot and socket for waste water systems - Part 2: System S, forms and dimensions
Tubes et raccords de tube soudés longitudinalement en acier inoxydable, à manchon enfichable pour réseaux d'assainissement - Partie 2: Système S, formes et dimensions
Rohre und Formstücke aus längsnahtgeschweißtem, nichtrostendem Stahlrohr mit Steckmuffe für Abwasserleitungen - Teil 2: System S, Formen und Maße This European Standard was approved by CEN on 17 April 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1124-2:2014 ESIST EN 1124-2:2014

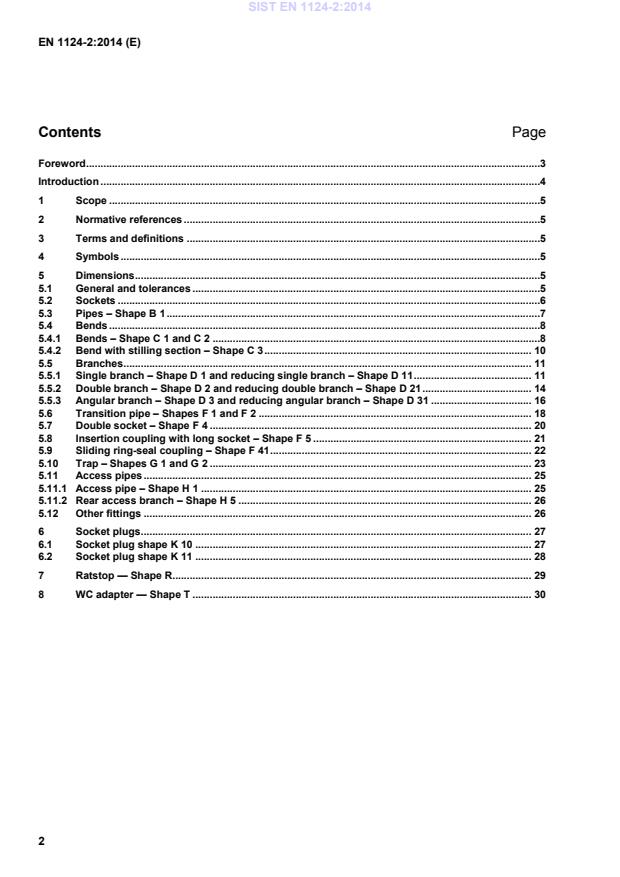

Key a standard socket b socket joint X effective sealing point Figure 1 — Socket types SIST EN 1124-2:2014

Dimensions in millimetres Nominal size DN/OD Dimensions and tolerances D1 D2 o s t1 max t2 max t5a 40 40 2,00+ 40,7 5,00+ < 2 % of DN 1,00 ± 0,2 18 18 30 50 50 2,00+ 50,5 6,00+ 20 75 75 3,00+ 75,6 6,00+ 20 25 35 82 82,4 3,00+ 83,2 4,00+ 30 90 90 3,00+ 90,8 5,00+ 24 30 40 110 110 3,00+ 110,6 7,00+ 26 32 125 125 3,00+ 125,8 6,00+ 35 45 160 160 4,00+ 160,7 8,00+ 1,25 ± 0,2 32 42 50 200 200 4,00+ 200,8 8,00+ 1,50 ± 0,3 40 50 55 250 250 5,00+ 251,0 8,00+ 1,50 8,03,0+ 45 55 65 315 315 6,00+ 316,2 8,00+ 1,50 8,03,0+ 62 a Installation instructions only (necessary least insertion depth for tightness of pipe connection). 5.3 Pipes – Shape B 1 The effective length of pipes shall conform to Table 5.
Figure 2 — Shape B 1 Designation of a drainage steel pipe (B 1) of nominal size DN/OD 110 with an effective length L = 1 000 mm: Pipe EN 1124-2 — B 1 – 110 – 1000 SIST EN 1124-2:2014

Dimensions in millimetres Nominal size DN/OD Effective length L
± 5 40 150 250 500 750 1 000 1 500 2 000 3 000 4 000 5 000 6 000 50 75 82 90 110 125 160 200 250 315 5.4 Bends 5.4.1 Bends – Shape C 1 and C 2
Figure 3 — Shapes C 1 and C 2 Designation of a bend (C 2) of nominal size DN/OD 110 and . = 45°: Bend EN 1124-2 — C 2 – 110 – 45
Dimensions in millimetres Nominal size . = 15° . = 30° . = 45° . = 70° . = 87,5° DN/OD l1 l2 l5 l1 l2 l5 l1 l2 l5 r l1 l2 l5 r l1 l2 l5 r 40 53 11 21tt+≥ 55 14 21tt+≥ 58 21 21tt+≥ 1D≥ 69 27 21tt+≥ 1D≥ 79 32 21tt+≥ 1D≥ 50 54 12 57 16 60 26 77 35 86 40 75 66 16 71 21 76 33 95 45 107 53 82 66 17 71 23 80 30 94 42 109 53 90 72 19 78 25 84 38 — — 120 63 110 79 22 85 28 93 43 116 59 134 73 125 84 19 98 28 110 88 136 76 161 93 160 99 29 110 40 131 55 163 82 181 105 200 123 31 136 45 154 61 320 230 213 120 250 136 40 153 58 177 76 388 292 255 158 315 151 46 172 68 199 91 — — 290 186
...
