EN 15182-4
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2019
EUROPÄISCHE NORM
ICS 13.220.10 Supersedes EN 15182-4:2007+A1:2009
English Version
Portable equipment for projecting extinguishing agents
supplied by firefighting pumps - Hand-held branchpipes
for fire service use - Part 4: High pressure branchpipes PN

Equipement portable de projection d'agents Tragbare Geräte zum Ausbringen von Löschmitteln, die

d'extinction alimenté par des pompes à usage incendie mit Feuerlöschpumpen gefördert werden - Strahlrohre

- Lances à main destinées aux services d'incendie et de für die Brandbekämpfung - Teil 4:

secours - Partie 4 : Lances haute pression PN 40 Hochdruckstrahlrohre PN 40
This European Standard was approved by CEN on 10 June 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15182-4:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 15182-4:2019
EN 15182-4:2019 (E)

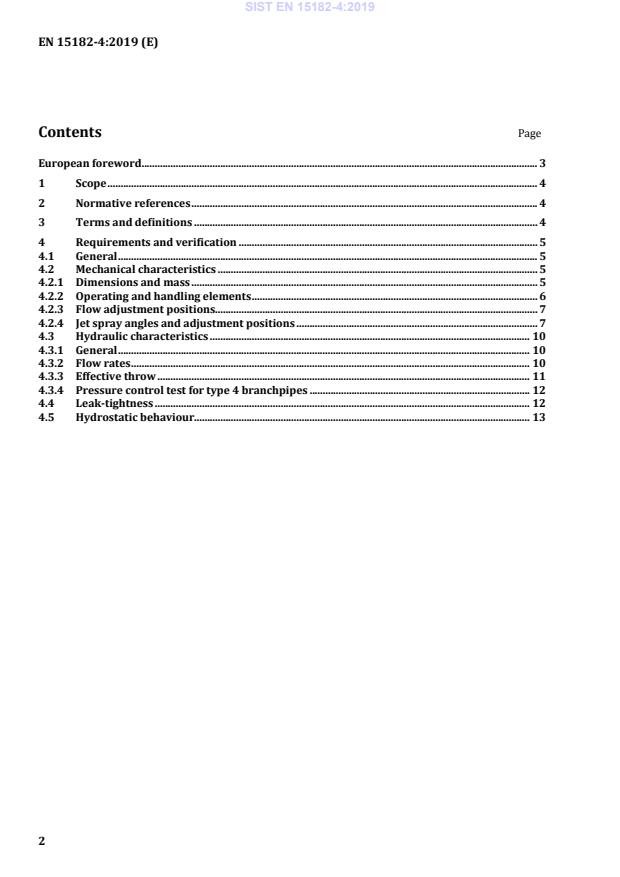

Contents Page

European foreword ....................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Requirements and verification .................................................................................................................. 5

4.1 General ................................................................................................................................................................ 5

4.2 Mechanical characteristics .......................................................................................................................... 5

4.2.1 Dimensions and mass .................................................................................................................................... 5

4.2.2 Operating and handling elements ............................................................................................................. 6

4.2.3 Flow adjustment positions........................................................................................................................... 7

4.2.4 Jet spray angles and adjustment positions ............................................................................................ 7

4.3 Hydraulic characteristics .......................................................................................................................... 10

4.3.1 General ............................................................................................................................................................. 10

4.3.2 Flow rates ........................................................................................................................................................ 10

4.3.3 Effective throw .............................................................................................................................................. 11

4.3.4 Pressure control test for type 4 branchpipes .................................................................................... 12

4.4 Leak-tightness ............................................................................................................................................... 12

4.5 Hydrostatic behaviour................................................................................................................................ 13

---------------------- Page: 4 ----------------------
SIST EN 15182-4:2019
EN 15182-4:2019 (E)
European foreword

This document (EN 15182-4:2019) has been prepared by Technical Committee CEN/TC 192 “Fire and

rescue service equipment”, the secretariat of which is held by BSI.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by February 2020, and conflicting national standards

shall be withdrawn at the latest by February 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 15182-4:2007+A1:2009.
Compared to EN 15182-4:2007+A1:2009 the following changes have been made:
— new maximum flowrate: 250 l/min;
— the definitions have been updated;
— each verification has been placed under the corresponding requirement;

— a test to measure the forces needed to move the rotating elements which have detents (4.2.2) has

been added;
— the requirements for flowrates (4.3.2) have been updated;

— the verifications for leak-tightness (4.4) and hydrostatic behaviour (4.5) have been updated;

— improvement of the wording/editorial changes.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 15182-4:2019
EN 15182-4:2019 (E)
1 Scope

In addition to the requirements given in EN 15182-1:2019, this document applies to hand-held high

pressure branchpipes (nozzles) with a nominal pressure of 40 bar (4,0 MPa) PN 40, with a maximum

flow rate up to 250 l/min at a reference pressure of 6 bar (0,6 MPa). It deals with:

— safety requirements;
— performance requirements;
— test methods.
This document applies to branchpipes as defined in Annex A of EN 15182-1:2019.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 15182-1:2019, Portable equipment for projecting extinguishing agents supplied by firefighting

pumps — Hand-held branchpipes for fire service use — Part 1: Common requirements
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 15182-1:2019 and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
high pressure branchpipe

branchpipe including a shut-off device and an adjustable pattern with a nominal pressure (maximum

operating pressure) of 40 bar
Note 1 to entry: Branchpipe is defined in 3.1 of EN 15182-1:2019.
3.1.1
high pressure branchpipe – type 1
high pressure branchpipe with adjustable pattern at variable flow
Note 1 to entry: Changing pattern changes the flow at one given pressure.
3.1.2
high pressure branchpipe – type 2
high pressure branchpipe with adjustable pattern at fixed flow

Note 1 to entry: Changing pattern does not change the flow at one given pressure.

---------------------- Page: 6 ----------------------
SIST EN 15182-4:2019
EN 15182-4:2019 (E)
3.1.3
high pressure branchpipe – type 3
high pressure branchpipe with adjustable pattern at selectable, fixed flow

Note 1 to entry: Changing pattern does not change the flow at one given pressure.

3.1.4
high pressure branchpipe – type 4
automatic
...
