EN ISO 22476-5:2023

Geotechnical investigation and testing - Field testing - Part 5: Prebored pressuremeter test (ISO 22476-5:2023)

This document is applicable to pressuremeter tests using cylindrical flexible probes placed in pre-existent boreholes using testing procedures other than the Menard procedure.
Pressuremeter tests following the Menard procedure are provided in ISO 22476-4.
NOTE          A high-pressure flexible pressuremeter probe which contains transducers for the measurement of radial displacements is also known as flexible dilatometer probe or high-pressure dilatometer probe.
This document applies to tests performed in any kind of grounds, starting from soils, treated or untreated fills, hard soils and soft rocks, up to hard and very hard rocks, either on land or offshore.
The parameters derived from this test can include stiffness, strength, initial in-situ stress state and consolidation properties.

Geotechnische Erkundung und Untersuchung - Felduntersuchungen - Teil 5: Pressiometerversuch in Vorbohrungen (ISO 22476‑5:2023)

Dieses Dokument gilt für Pressiometerversuche mit zylindrischen, flexiblen Sonden, die in bereits vorhandene Bohrlöcher eingesetzt werden und andere Versuchsverfahren als das Menard-Verfahren anwenden.
Pressiometerversuche nach dem Ménard-Verfahren sind in ISO 22476 4 beschrieben.
ANMERKUNG   Eine flexible Hochdruck-Pressiometer-Sonde, die Aufnehmer für die Messung von radialen Aufweitungen enthält, wird auch als flexible Dilatometer-Sonde oder Hochdruck-Dilatometer-Sonde bezeichnet.
Dieses Dokument gilt für Versuche, die in jeder Art von Baugrund durchgeführt werden, angefangen bei Böden, behandelten oder unbehandelten Aufschüttungen, festen Böden und weichem Gestein bis hin zu festem und sehr festem Gestein, entweder an Land oder vor der Küste.
Die aus diesem Versuch abgeleiteten Parameter können die Steifigkeit, die Festigkeit, den anfänglichen Spannungszustand in situ und die Festigungseigenschaften umfassen.

Reconnaissance et essais géotechniques - Essais en place - Partie 5: Essai au pressiomètre en préforage (ISO 22476-5:2023)

Ce document s’applique aux essais au pressiomètre utilisant des sondes flexibles cylindriques placées dans des trous de forage pré-existants, réalisés selon des procédures autres que la procédure Ménard.
Les essais au pressiomètre selon la procédure Ménard sont disponibles dans l’ISO 22476-4.
NOTE            Une sonde pressiométrique flexible haute pression qui comporte des capteurs destinés à la mesure des déplacements radiaux est également appelée dilatomètre flexible ou dilatomètre haute pression.
Ce document s’applique aux essais réalisés dans tout type de terrain, depuis des sols, des remblais traités ou non traités, des sols durs et des roches tendres, jusqu’à des roches dures et très dures, à terre ou en mer.
Les paramètres déduits de cet essai peuvent inclure le module, la résistance, l’état de contrainte in situ initial et des propriétés de consolidation.

Geotehnično preiskovanje in preskušanje - Preskušanje na terenu - 5. del: Preskus v vrtini s presiometrom (ISO 22476-5:2023)

Ta dokument se uporablja za preskuse s presiometrom, pri katerih se v obstoječe vrtine namestijo cilindrične prožne preskuševalne glave in pri katerih se uporabljajo postopki, drugačni od Ménardovega postopka.
Preskusi s presiometrom po Ménardovem postopku so podani v standardu ISO 22476-4.
OPOMBA:          prožna visokotlačna preskuševalna glava presiometra, ki vključuje pretvornik za merjenje radialnih odmikov, je znana tudi kot prožna dilatometrska preskuševalna glava ali visokotlačna dilatometrska preskuševalna glava.
Ta dokument se uporablja za preskuse, ki se izvajajo na vseh vrstah tal, kar vključuje vse od zemljin, obdelanih ali neobdelanih polnil, trdih zemljin in mehkih skal do trdih in zelo trdih skal, in sicer na kopnem ali morju.
Parametri, pridobljeni s tem preskusom, lahko vključujejo togost, trdnost, prvotno stanje obremenjenosti in-situ ter lastnosti, povezane s konsolidacijo.

General Information

• Status: Published
• Publication Date: 11-Apr-2023
• ICS: 93.020 - Earthworks. Excavations. Foundation construction. Underground works
• Technical Committee: CEN/TC 341 - Geotechnical Investigation and Testing
• Drafting Committee: CEN/TC 341/WG 5 - Borehole expansion tests
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 12-Apr-2023
• Completion Date: 12-Apr-2023
• Ref Project: SIST EN ISO 22476-5:2023 - Geotechnical investigation and testing - Field testing - Part 5: Prebored pressuremeter test (ISO 22476-5:2023)

Relations

• Replaces: EN ISO 22476-5:2012 - Geotechnical investigation and testing - Field testing - Part 5: Flexible dilatometer test (ISO 22476-5:2012)
• Effective Date: 18-Jan-2023

Standards Content (Sample)

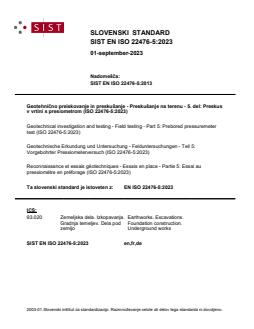

SLOVENSKI STANDARD
