EN 17308
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2024
EUROPÄISCHE NORM
ICS 13.030.50; 83.160.01 Supersedes CEN/TS 17308:2019
English Version
Materials produced from end of life tyres - Steel wire -
Determination of the non-metallic content
Matériaux obtenus à partir de pneus usagés non Aus Altreifen gewonnene Materialien - Stahldrähte -
réutilisables (PUNR) - Fils métalliques - Détermination Bestimmung der nicht-metallischen Bestandteile
de la teneur en matériaux non métalliques
This European Standard was approved by CEN on 6 October 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17308:2024 E
worldwide for CEN national Members.

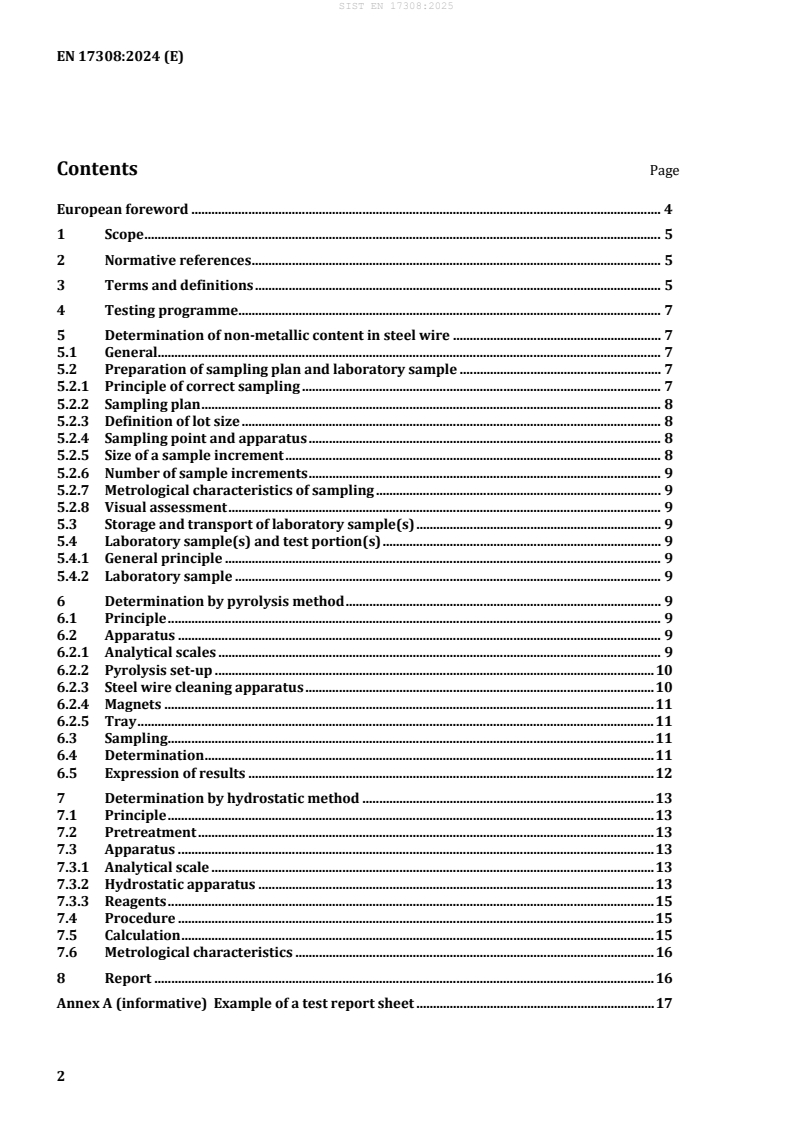

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Testing programme . 7
5 Determination of non-metallic content in steel wire . 7
5.1 General. 7
5.2 Preparation of sampling plan and laboratory sample . 7
5.2.1 Principle of correct sampling . 7
5.2.2 Sampling plan . 8
5.2.3 Definition of lot size . 8
5.2.4 Sampling point and apparatus . 8
5.2.5 Size of a sample increment . 8
5.2.6 Number of sample increments . 9
5.2.7 Metrological characteristics of sampling . 9
5.2.8 Visual assessment . 9
5.3 Storage and transport of laboratory sample(s) . 9
5.4 Laboratory sample(s) and test portion(s) . 9
5.4.1 General principle . 9
5.4.2 Laboratory sample . 9
6 Determination by pyrolysis method . 9
6.1 Principle . 9
6.2 Apparatus . 9
6.2.1 Analytical scales . 9
6.2.2 Pyrolysis set-up . 10
6.2.3 Steel wire cleaning apparatus . 10
6.2.4 Magnets . 11
6.2.5 Tray . 11
6.3 Sampling . 11
6.4 Determination . 11
6.5 Expression of results . 12
7 Determination by hydrostatic method . 13
7.1 Principle . 13
7.2 Pretreatment . 13
7.3 Apparatus . 13
7.3.1 Analytical scale . 13
7.3.2 Hydrostatic apparatus . 13
7.3.3 Reagents . 15
7.4 Procedure . 15
7.5 Calculation . 15
7.6 Metrological characteristics . 16
8 Report . 16
Annex A (informative) Example of a test report sheet . 17
Annex B (informative) Schematic diagram of a pyrolyzer . 18
Annex C (informative) Explanation of the formula used in the hydrostatic method . 19
Bibliography . 21
European foreword
This document (EN 17308:2024) has been prepared by Technical Committee CEN/TC 366 “Materials
obtained from End-of-Life Tyres (ELT)”, the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2025 and conflicting national standards shall be
withdrawn at the latest by May 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TS 17308:2019.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies two different methods for the quantitative estimation of non-metallic content
remaining adhered to the steel wire obtained from the recovery of materials from end-of-life tyres.
The pyrolysis method is considered as the reference method while the hydrostatic method is considered
as an in situ method.
This document includes sample collection and the preparation of representative samples based on a
sampling plan for the purpose of their characterization.
This document does not apply to the operational performance or fitness for use of the materials which
are deemed to be a function of agreements between the manufacturer and the customer.
This document does not apply to address all the safety concerns, if any, associated with its use. This
document does not establish appropriate safety and health practices and does not determine the
applicability of regulatory limitations prior to its use.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 14243 (all parts), Materials obtained from end of life tyres
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp/
3.1
sample
amount of material taken from a population and intended to provide information on the population
3.2
increment
portion of material extracted in a single operation of the sampling device
[SOURCE: EN 14243-1:2019, 3.1.3, modified – “sub-portion” is replaced by “portion”.]
3.3
characteristic
property which helps to identify or differentiate items of a given population
Note 1 to entry: The characteristic can be either quantitative (by variables) or qualitative (by attributes).
[SOURCE: EN 14243-1:2019, 3.1.4]
3.4
lot
defined quantity of material for which a characteristic is to be determined
Note 1 to entry: In sampling standards, the lot is also designated as the stated size or volume that is considered
appropriate for assessing the material. It follows that variations occurring in the material on any finer scale than
this are deemed not to be of relevance.
3.5
combined sample
sample consisting of all the increments taken from a lot
Note 1 to entry: A combined sample is a quantity of material, representative of the lot for which the quality is to be
determined.
3.6
field sample
sample taken in the field and from which laboratory samples are produced
3.7
laboratory sample
sample or sub-sample sent to or received by the laboratory
Note 1 to entry: When the laboratory sample has been prepared (reduced) by subdivision, mixing or crushing, or
by a combination of these processes, it becomes the test sample. A laboratory sample that requires no preparation
can be used direct
...
