EN 17178
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2019
EUROPÄISCHE NORM
ICS 75.160.20
English Version
Liquid petroleum products - Determination of the total
volatile sulfur content in liquefied petroleum gases by
ultraviolet fluorescence spectroscopy

Produits pétroliers liquides - Détermination de la Flüssige Mineralölerzeugnisse - Bestimmung des

teneur en soufre volatil dans les gaz de pétrole Gesamtgehaltes an flüchtigem Schwefel in Flüssiggas

liquéfiés par spectroscopie de fluorescence ultra- (LPG) durch Ultraviolettfluoreszenz-Spektroskopie

violette
This European Standard was approved by CEN on 20 June 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17178:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 17178:2019
EN 17178:2019 (E)

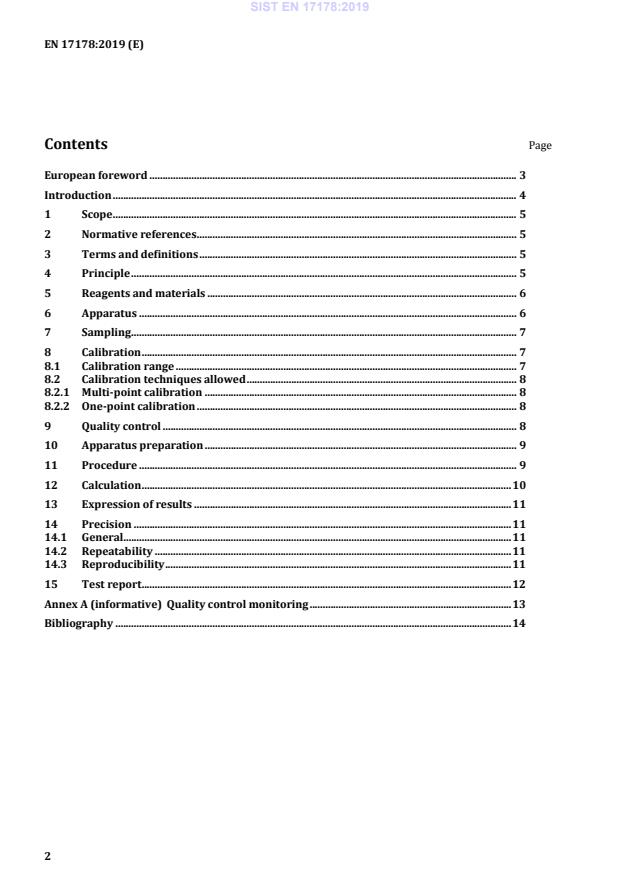

Contents Page

European foreword ............................................................................................................................................ 3

Introduction .......................................................................................................................................................... 4

1 Scope .......................................................................................................................................................... 5

2 Normative references .......................................................................................................................... 5

3 Terms and definitions ......................................................................................................................... 5

4 Principle ................................................................................................................................................... 5

5 Reagents and materials ...................................................................................................................... 6

6 Apparatus ................................................................................................................................................ 6

7 Sampling ................................................................................................................................................... 7

8 Calibration ............................................................................................................................................... 7

8.1 Calibration range .................................................................................................................................. 7

8.2 Calibration techniques allowed ....................................................................................................... 8

8.2.1 Multi-point calibration ....................................................................................................................... 8

8.2.2 One-point calibration .......................................................................................................................... 8

9 Quality control ....................................................................................................................................... 8

10 Apparatus preparation ....................................................................................................................... 9

11 Procedure ................................................................................................................................................ 9

12 Calculation ............................................................................................................................................. 10

13 Expression of results ......................................................................................................................... 11

14 Precision ................................................................................................................................................ 11

14.1 General.................................................................................................................................................... 11

14.2 Repeatability ........................................................................................................................................ 11

14.3 Reproducibility .................................................................................................................................... 11

15 Test report ............................................................................................................................................. 12

Annex A (informative) Quality control monitoring ............................................................................. 13

Bibliography ....................................................................................................................................................... 14

---------------------- Page: 4 ----------------------
SIST EN 17178:2019
EN 17178:2019 (E)
European foreword

This document (EN 17178:2019) has been prepared by Technical Committee CEN/TC 19 “Gaseous and

liquid fuels, lubricants and related products of petroleum, synthetic and biological origin”, the secretariat

of which is held by NEN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by March 2020 and conflicting national standards shall be

withdrawn at the latest by March 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN not be held responsible for identifying any or all such patent rights.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,

Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,

Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North

Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United

Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 17178:2019
EN 17178:2019 (E)
Introduction

The sulfur content of LPG used for fuel purposes contributes to SO emissions and can lead to corrosion

in engine and exhaust systems. Sulfur also acts as catalyst poison, blocking and damaging catalysts like

catalytic converters in cars and process catalysts in the chemical industry where LPG is used as feedstock.

Due to the need for lower sulfur limits, this document was developed in order to solve precision issues

with existing test methods [3, 4].
---------------------- Page: 6 ----------------------
SIST EN 17178:2019
EN 17178:2019 (E)
1 Scope

This document specifies an ultraviolet (UV) fluorescence test method for the determination of the sulfur

content of liquefied petroleum gases (LPG) containing up to 0,35 % (m/m) halogens, and having sulfur

contents in the range of 2 mg/kg to 50 mg/kg.

This test method does not detect sulfur compounds that do not vaporize under the conditions of the test.

NOTE 1 LPG is defined as low pressure liquefied gas composed of one or more light hydrocarbons which are

assigned to UN 1011, 1075, 1965, 1969 or 1978 only and which consists mainly of propane, propene, butane, butane

isomers, butenes with traces of other hydrocarbon gases.

NOTE 2 For the purposes of this document, the terms “% (m/m)” and “% (V/V)” are used to represent

respectively the mass fraction, µ, and the volume fraction, φ.

WARNING — The use of this standard can involve hazardous materials, operations and equipment. This

standard does not purport to address all the safety problems associated with its use. It is the

responsibility of users of this standard to take appropriate measures to ensure the safety and health of

personnel prior to the application of the standard, and fulfil statutory and regulatory requirements for

this purpose.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN ISO 4257, Liquefied petroleum gases — Method of sampling (ISO 4257)
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Principle

This test method is used to determine sulfur in process feeds and in finished products and can also be

used for compliance determinations when acceptable to a regulatory authority.

An appropriate sample is taken from the sample container and introduced into the analyser. The gaseous

sample then enters a high temperature (900 °C – 1 100 °C) combustion tube where sulfur is oxidized to

sulfur dioxide (SO ) in an oxygen rich atmosphere.

Water produced during the sample combustion is removed and the remaining sample combustion gases

are exposed to UV light. The SO absorbs the energy from the UV light and is converted to excited sulfur

dioxide (SO *). The fluorescence emitted from the excited SO * molecules as they return to a stable state

2 2

SO is detected by a photomultiplier tube and the resulting signal is a measure of the sulfur contained in

the sample.
---------------------- Page: 7 ----------------------
SIST EN 17178:2019
EN 17178:2019 (E)
5 Reagents and materials

5.1 Inert gas, argon or helium, high purity grade with a minimum purity of 99,9 % (V/V).

5.2 Oxygen, high purity grade with a minimum purity of 99,75 % (V/V), maximum moisture content of

5 mg/kg preferably dried over an additional molecular sieve.
CAUTION — Oxygen vigorously accelerates combustion.
5.3 Calibration standards.

Certified LPG calibration standards from commercial sources or calibration gases prepared using

certified permeation tube devices are recommended. Table 1 lists the sulfur source material and diluent

matrices proven to give good results.
Table 1 — Standard materials
Sulfur source Diluent
Dimethyl sulfide Mixture of n-butane, iso-butane, propylene, propane

Other sulfur sources and diluent materials may be used if precision and accuracy are not degraded.

NOTE Calibration standards are typically re-mixed and re-certified on a regular basis depending upon

frequency of use and age. These calibration standards have a useful shelf life of about 6 to 12 months.

Due to the reactive nature of the sulfur components, it is recommended to measure the calibration

standards shortly after they have been prepared and pour these into a suitably passivated LPG sampling

cylinder.

5.4 Quality control samples, preferably portions of one or more gas or LPG materials, stable and

representat
...
