EN ISO 4796-2:2000

Laboratory glassware - Bottles - Part 2: Conical neck bottles (ISO 4796-2:2000)

This part of ISO 4796 specifies a series of bottles with a conical, wide or narrow neck with or without ground joints,
suitable for the storage of liquid and solid chemicals and reagents in general laboratory use.

Laborgeräte aus Glas - Flaschen - Teil 2: Flaschen mit konischem Hals (ISO 4796-2:2000)

Diese Internationale Norm legt eine Reihe von Flaschen mit weitem oder engem konischen Hals mit oder ohne Kegelschliff für die Lagerung von flüssigen und festen Chemikalien und Reagenzien für den allgemeinen Laborgebrauch fest.

Verrerie de laboratoire - Flacons - Partie 2: Flacons à col conique (ISO 4796-2:2000)

La présente partie de l'ISO 4796 spécifie une série de flacons à col conique large ou étroit, avec ou sans joint rodé,
pour la conservation des produits chimiques et réactifs liquides et solides, pour un usage courant de laboratoire.

Laboratorijska steklovina - Steklenice - 2. del: Steklenice s stožeastim vratom (ISO 4796-2:2000)

General Information

• Status: Published
• Publication Date: 31-Mar-2000
• ICS: 71.040.20 - Laboratory ware and related apparatus
• Technical Committee: CEN/TC 332 - Laboratory equipment
• Drafting Committee: CEN/TC 332/WG 1 - Glass and plastics devices including volumetric instruments
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 15-Dec-2007
• Completion Date: 15-Dec-2007
• Ref Project: SIST EN ISO 4796-2:2000 - Laboratory glassware - Bottles - Part 2: Conical neck bottles (ISO 4796-2:2000)

Overview

EN ISO 4796-2:2000 - Laboratory glassware - Bottles - Part 2: Conical neck bottles (ISO 4796-2:2000) defines a standardized series of conical neck laboratory bottles for the storage of liquid and solid chemicals and reagents. Published by CEN and identical to ISO 4796-2:2000, the standard covers bottle types, nominal capacities, materials, construction features, socket/ground-joint compatibility and marking. It ensures interchangeability, safety and predictable performance for laboratory glassware used in research, quality control and production labs.

Key topics and technical requirements

• Types and identification
  • Four bottle types: WS (wide-neck socket), WJ (wide-neck with ground joint), NS (narrow-neck socket), NJ (narrow-neck with ground joint).
  • Designation format example: Laboratory bottle ISO 4796-2 - 100 WS.
• Nominal capacities
  • Wide-neck series: 50, 100, 250, 500, 1 000, 2 000 ml.
  • Narrow-neck series: 25, 30, 50, 100, 250, 500, 1 000, 2 000, 2 500, 5 000, 10 000, 20 000 ml.
  • Nominal capacity is measured to the turn of the shoulder; total capacity to the base of the neck is ≈ 15% greater.
• Material and glass quality
  • Bottles shall be made of clear, colourless or amber borosilicate glass 3.3 (ISO 3585) or other glass meeting class HGB 3 (ISO 719) for hydrolytic resistance.
  • Internal stress and visible defects are to be minimized to reduce fracture risk from thermal/mechanical shock.
• Dimensions and tolerances
  • Dimensional data (heights, diameters, wall thickness minima, and socket/joint sizes) are specified in the standard’s Table 1 and figures. Interchangeable ground joints must comply with ISO 383.
• Construction features
  • Stable bases, smooth shoulder-to-neck transitions, tapered sides, and a strengthening lip to facilitate pouring.
  • Optional protective plastic coatings are permitted if resistant to steam sterilization at 135 °C.
• Stoppers
  • Acceptable stoppers: glass (matched expansion, ground to ISO 383), rubber (for smooth sockets), or inert plastics (e.g., polypropylene) sized for joints.

Applications and users

• Practical uses: chemical storage, reagent containment, sterile or steam-sterilizable containers, general laboratory ware in academic, pharmaceutical, industrial and analytical labs.
• Primary users: glassware manufacturers, laboratory procurement teams, quality assurance personnel, lab managers, equipment designers and regulatory/standards committees who require consistent dimensions and material properties for safe handling and interchangeability.

Related standards

• ISO 383 - Interchangeable conical ground joints
• ISO 3585 - Borosilicate glass 3.3 - Properties
• ISO 719 - Hydrolytic resistance of glass
• ISO 4796-1:2000 - Bottles - Part 1: Screw-neck bottles

This standard provides clear specifications for reliable, interoperable conical neck bottles - essential for safe chemical storage and consistent laboratory operations.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2000
1DGRPHãþD
SIST ISO 4796:1995
Laboratorijska steklovina - Steklenice - 2. del: Steklenice s stožeastim vratom (ISO
4796-2:2000)
Laboratory glassware - Bottles - Part 2: Conical neck bottles (ISO 4796-2:2000)
Laborgeräte aus Glas - Flaschen - Teil 2: Flaschen mit konischem Hals (ISO 4796-
2:2000)
Verrerie de laboratoire - Flacons - Partie 2: Flacons a col conique (ISO 4796-2:2000)
Ta slovenski standard je istoveten z: EN ISO 4796-2:2000
ICS:
71.040.20 Laboratorijska posoda in Laboratory ware and related
aparati apparatus
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 4796-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2000
ICS 71.040.20
English version
Laboratory glassware - Bottles - Part 2: Conical neck bottles
(ISO 4796-2:2000)
Verrerie de laboratoire - Flacons - Partie 2: Flacons à col Laborgeräte aus Glas - Flaschen - Teil 2: Flaschen mit
conique (ISO 4796-2:2000) konischem Hals (ISO 4796-2:2000)
This European Standard was approved by CEN on 1 April 2000.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2000 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 4796-2:2000 E
worldwide for CEN national Members.

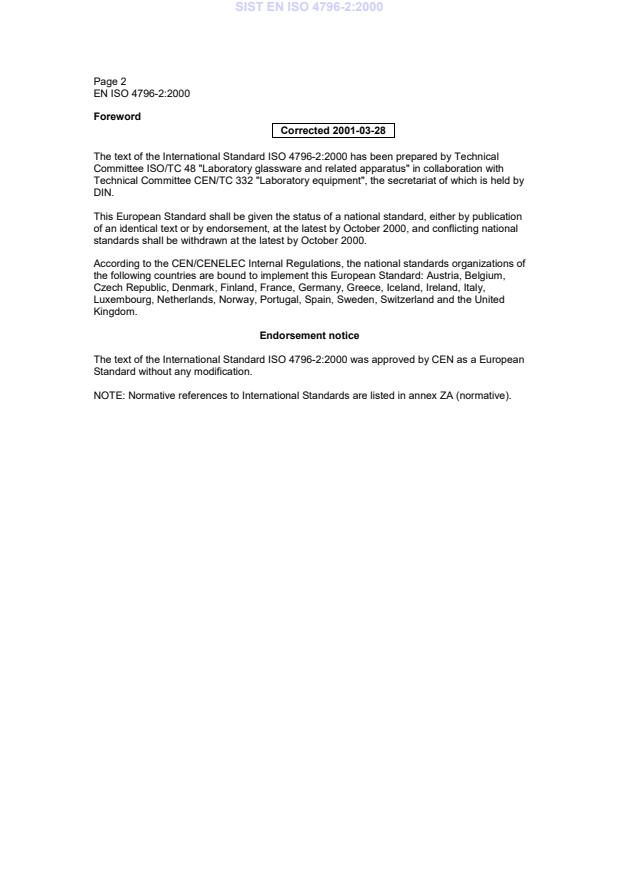

Page 2
Foreword
Corrected 2001-03-28
The text of the International Standard ISO 4796-2:2000 has been prepared by Technical
Committee ISO/TC 48 "Laboratory glassware and related apparatus" in collaboration with
Technical Committee CEN/TC 332 "Laboratory equipment", the secretariat of which is held by
DIN.
This European Standard shall be given the status of a national standard, either by publication
of an identical text or by endorsement, at the latest by October 2000, and conflicting national
standards shall be withdrawn at the latest by October 2000.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Czech Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy,
Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United
Kingdom.
Endorsement notice
The text of the International Standard ISO 4796-2:2000 was approved by CEN as a European
Standard without any modification.
NOTE: Normative references to International Standards are listed in annex ZA (normative).

Page 3
Annex ZA (normative)
Normative references to international publications
with their relevant European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions
of any of these publications apply to this European Standard only when incorporated in it by
amendment or revision. For undated references the latest edition of the publication referred to
applies (including amendments).
NOTE Where an International Publication has been modified by common modifications,
indicated by (mod.), the relevant EN/HD applies.
Publication Year Title EN Year
ISO 4796-1 2000 Laboratory glassware - Bottles - Part 1: EN ISO 4796-1 2000
Screw-neck bottles
INTERNATIONAL ISO
STANDARD 4796-2
First edition
2000-04-01
Laboratory glassware — Bottles —
Part 2:
Conical neck bottles
Verrerie de laboratoire — Flacons —
Partie 2: Flacons à col conique
Reference number
ISO 4796-2:2000(E)
©
ISO 2000
ISO 4796-2:2000(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail [e-mail]
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved

ISO 4796-2:2000(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 4796 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 4796-2 was prepared by Technical Committee ISO/TC 48, Laboratory glassware and
related apparatus, Subcommittee SC 2, General laboratory glassware (other than measuring apparatus).
Parts 1 and
...
