EN 14470-1:2004

Fire safety storage cabinets - Part 1: Safety storage cabinets for flammable liquids

This European Standard is a product specification, giving performance requirements for fire safety cabinets to be used for the storage of flammable liquids in laboratories. It is applicable to cabinets with a total internal volume of not greater than 1 m3, which may be free standing, restrained to a wall or mounted on wheels or castors. It is not applicable to brick enclosures or walk-in storage rooms.
This European Standard is not applicable to cabinets which do not take their weight on their base.
Requirements are given in respect of the construction of the cabinet and its capacity to resist fire conditions on the outside. A classification of cabinets is given, according to the level of fire resistance offered, and a type test is included, which draws on already existing fire resistance tests, such as those given in ISO 834-1 [1] and EN 1363-1.
The tests described in this European Standard are type tests.
NOTE 1   This European Standard does not discriminate between different flammable liquids, which may have considerably different physical properties. The suitability of the standard in respect of any given flammable liquid should be ascertained by the user.
NOTE 2   Attention is drawn to national regulations which may apply with regard to the storage of flammable liquids.

Feuerwiderstandsfähige Lagerschränke - Teil 1: Sicherheitsschränke für brennbare Flüssigkeiten

Diese Europäische Norm ist eine Produktspezifikation, die Leistungsanforderungen an feuerwiderstandsfähige Sicherheitsschränke zur Lagerung von brennbaren Flüssigkeiten in Laboratorien stellt. Sie ist anwendbar für Schränke mit einem Gesamtinnenvolumen von max. 1 m³. Diese können freistehend, an einer Wand befestigt oder auf Rädern oder Rollen montiert sein. Sie ist nicht anzuwenden auf gemauerte Einfassungen oder begehbare Lagerräume.
ANMERKUNG   Diese Europäische Norm ist nicht auf Schränke anwendbar, die ihr eigenes Gewicht nicht an ihrer Grundfläche aufnehmen.
Es werden Anforderungen bezüglich der Konstruktion des Schrankes und seiner Fähigkeit festgelegt, äußerer Brandeinwirkung standzuhalten. Es wird eine Einteilung der Schränke nach dem Grad der Feuerwiderstandsfähigkeit vorgenommen, und es wird eine Baumusterprüfung festgelegt, die auf bereits existierenden Feuerwiderstandsprüfungen beruht, wie z.B. diejenigen nach ISO 834-1:1999 und EN 1363-1:1999.
ANMERKUNG 1   Diese Europäische Norm unterscheidet nicht zwischen verschiedenen brennbaren Flüssigkeiten, die ganz unterschiedliche physikalische Eigenschaften haben können. Die Anwendbarkeit der Norm in Bezug auf irgendeine gegebene brennbare Flüssigkeit sollte vom Anwender sichergestellt werden.
ANMERKUNG 2   Die in dieser Norm beschriebenen Sicherheitsschränke sind ebenfalls für brennbare feste Stoffe geeignet.
Die in dieser Europäischen Norm beschriebenen Prüfungen sind Baumusterprüfungen.

Armoires de stockage de sécurité incendie - Partie 1: Armoires de stockage de sécurité pour liquides inflammables

La présente Norme européenne est une spécification de produit donnant les exigences de performances pour les armoires de sécurité anti-feu à utiliser pour entreposer des liquides inflammables dans les laboratoires. Elle est applicable aux armoires dont le volume interne total est inférieur ou égal à 1 m3, qui peuvent être sur pied, fixées au mur ou montées sur roulettes. Elle n’est applicable ni aux enceintes en briques ni aux locaux de stockage.
NOTE   La présente Norme européenne n’est pas applicable aux armoires qui ne reposent pas au sol.
Les exigences portent sur la construction de l’armoire et sa capacité à résister à des conditions de feu externe. La présente norme fournit une classification des armoires selon le niveau de résistance au feu offert et elle inclut un essai de type qui fait appel aux essais de résistance au feu déjà existants, tels que ceux indiqués dans l’ISO 834 1 [1] et l’EN 1363-1.
Les essais décrits dans la présente Norme européenne sont des essais de type.
NOTE 1   La présente Norme européenne ne fait pas de différence entre les différents liquides inflammables, lesquels peuvent avoir des propriétés physiques très différentes. Il convient que l’utilisateur vérifie l’aptitude à l’emploi de la norme en fonction du liquide inflammable considéré.
NOTE 2   L’attention est attirée sur les réglementations nationales qui peuvent s’appliquer au stockage des liquides inflammables.

Ognjevarne omarice za shranjevanje kemikalij - 1. del: Ognjevarne omarice za shranjevanje vnetljivih tekočin

General Information

• Status: Withdrawn
• Publication Date: 27-Apr-2004
• Withdrawal Date: 13-Apr-2025
• ICS: 13.220.40 - Ignitability and burning behaviour of materials and products
• ICS: 71.040.10 - Chemical laboratories. Laboratory equipment
• Technical Committee: CEN/TC 332 - Laboratory equipment
• Drafting Committee: CEN/TC 332/WG 2 - Fittings and fixtures
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 05-Jul-2023
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 14470-1:2004 - Fire safety storage cabinets - Part 1: Safety storage cabinets for flammable liquids

Relations

• Replaced By: EN 14470-1:2023 - Fire safety storage cabinets - Part 1: Safety storage cabinets for flammable liquids
• Effective Date: 19-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2004
2JQMHYDUQHRPDULFH]DVKUDQMHYDQMHNHPLNDOLMGHO2JQMHYDUQHRPDULFH]D
VKUDQMHYDQMHYQHWOMLYLKWHNRþLQ
Fire safety storage cabinets - Part 1: Safety storage cabinets for flammable liquids
Feuerwiderstandsfähige Lagerschränke - Teil 1: Sicherheitsschränke für brennbare
Flüssigkeiten
Armoires de stockage de sécurité incendie - Partie 1: Armoires de stockage de sécurité
pour liquides inflammables
Ta slovenski standard je istoveten z: EN 14470-1:2004
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
71.040.10 Kemijski laboratoriji. Chemical laboratories.
Laboratorijska oprema Laboratory equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 14470-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2004
ICS 13.220.40; 71.040.10
English version
Fire safety storage cabinets - Part 1: Safety storage cabinets for
flammable liquids
Armoires de stockage de sécurité incendie - Partie 1: Feuerwiderstandsfähige Lagerschränke - Teil 1:
Armoires de stockage de sécurité pour liquides Sicherheitsschränke für brennbare Flüssigkeiten
inflammables
This European Standard was approved by CEN on 2 February 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14470-1:2004: E
worldwide for CEN national Members.

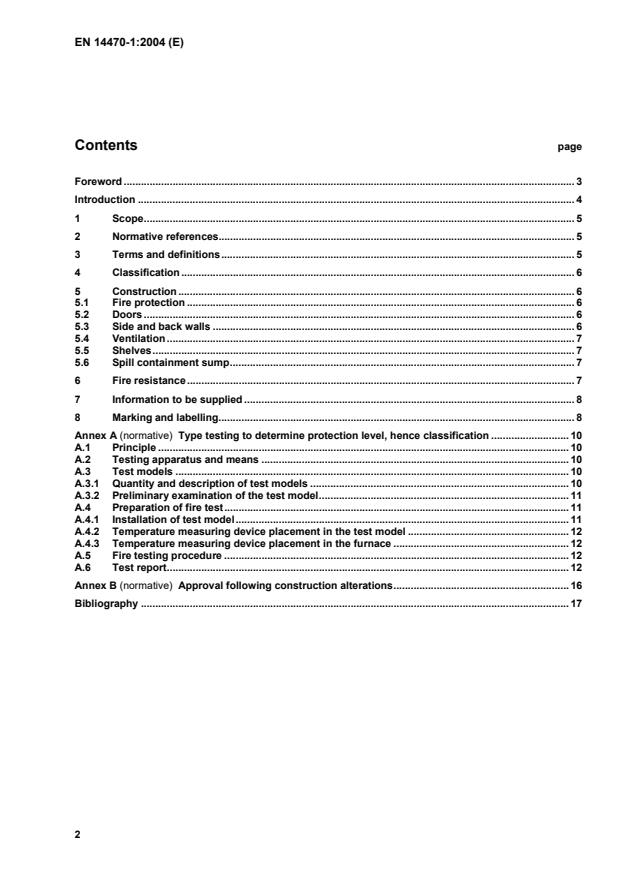

Contents page
Foreword . 3
Introduction . 4
1 Scope. 5
2 Normative references. 5
3 Terms and definitions. 5
4 Classification. 6
5 Construction. 6
5.1 Fire protection . 6
5.2 Doors . 6
5.3 Side and back walls . 6
5.4 Ventilation . 7
5.5 Shelves. 7
5.6 Spill containment sump. 7
6 Fire resistance. 7
7 Information to be supplied . 8
8 Marking and labelling. 8
Annex A (normative) Type testing to determine protection level, hence classification . 10
A.1 Principle . 10
A.2 Testing apparatus and means . 10
A.3 Test models . 10
A.3.1 Quantity and description of test models . 10
A.3.2 Preliminary examination of the test model. 11
A.4 Preparation of fire test. 11
A.4.1 Installation of test model. 11
A.4.2 Temperature measuring device placement in the test model . 12
A.4.3 Temperature measuring device placement in the furnace . 12
A.5 Fire testing procedure . 12
A.6 Test report. 12
Annex B (normative) Approval following construction alterations. 16
Bibliography . 17
Foreword
This document (EN 14470-1:2004) has been prepared by Technical Committee CEN/TC 332
“Laboratory equipment”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2004, and conflicting national standards
shall be withdrawn at the latest by October 2004.
Annexes A and B are normative.
This document includes a Bibliography.
EN 14470, Fire safety storage cabinets, consists of the following parts:
Part 1 — Safety storage cabinets for flammable liquids
Part 2 — Safety storage cabinets for pressurised gas cylinders (in preparation)
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia,
Spain, Sweden, Switzerland and United Kingdom.
Introduction
This European Standard describes the design and testing criteria for safety cabinets to be used in
laboratories to store flammable liquids in closed containers at normal room temperatures.
Primarily, this European Standard covers the three major safety requirements for storage of
flammable liquids, which are:
a) minimising the fire risks associated with the storage of flammable substances and protection of
the cabinet's contents in the event of fire for a known (tested) minimum length of time (fire rating);
b) minimising the amount of vapour released into the working environment;
c) retention of accidental spillage within the cabinet.
Testing of the cabinet [see a) above] under fire conditions is a normative part of the standard and the
procedures and interpretation of the tests are described in detail.
The fire test [see a) above] provides for four categories of fire protection / ratings. In practice the
degree of fire protection/rating allows the user to select, depending on individual circumstances, a
cabinet which will allow sufficient time for personnel to leave, and fire fighters to enter the laboratory
before it is likely to that the flammables stored turn a possible minor / extinguishable fire into an
uncontrollable one. The methods of achieving b) and c) above are sufficiently flexible to allow for
local/national needs.
Caution should be exercised when determining the appropriate cabinet fire rating when flammables
having auto-ignition temperatures below 200 °C and/or having high vapour pressures at room
temperature are involved. When such flammable materials are being stored, expert advice should be
sought.
1 Scope
This European Standard is a product specification, giving performance requirements for fire safety
cabinets to be used for the storage of flammable liquids in laboratories. It is applicable to cabinets
with a total internal volume of not greater than 1 m , which may be free standing, restrained to a wall
or mounted on wheels or castors. It is not applicable to brick enclosures or walk-in storage rooms.
This European Standard is not applicable to cabinets which do not take their weight on their base.
Requirements are given in respect of the construction of the cabinet and its capacity to resist fire
conditions on the outside. A classification of cabinets is given, according to the level of fire resistance
offered, and a type test is included, which draws on already existing fire resistance tests, such as
those given in ISO 834-1 [1] and EN 1363-1.
The tests described in this European Standard are type tests.
NOTE 1 This European Standard does not discriminate between different flammable liquids, which may have
considerably different physical properties. The suitability of the standard in respect of any given flammable liquid
should be ascertained by the user.
NOTE 2 Attention is drawn to national regulations which may apply with regard to the storage of flammable
liquids.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text, and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
EN 1363-1:1999, Fire resistance tests — Part 1: General requirements.
EN ISO 4796-2, Laboratory glassware — Bottles — Part 2: Conical neck bottles (ISO 4796-2:2000).
EN ISO 13943:2000, Fire safety — Vocabulary (ISO 13943:2000).
ISO 3864 (all Parts), Safety colours and safety signs.
3 Terms and definitions
For the purposes of this European Standard, the terms and definitions given in EN ISO 13943:2000
and the following apply.
3.1
type
specimen of a design manufactured with the characteristics intended for series production
3.2
type testing
conformity testing on the basis of one or more specimens of product representative of the production
4 Classification
A fire safety storage cabinet shall be classified as one of the Types listed in Table 1.
Table 1 — Fire safety storage cabinet Type classification
Type Time taken Test Ventilation Self-closing
for T to rise according to connection doors
by 180 K EN 1363-1 facility
required
(min)
15
 !!!
30

!!!
60

!!!
90
 !!!
5 Construction
5.1 Fire protection
In the case of a fire, the cabinet shall assure that, for at least 15 min, the contents of the cabinet do
not contribute any additional risks or spread of fire.
5.2 Doors
5.2.1 The doors of the cabinet shall be fully self-closing from any position.
The closing time of the doors, from the time of door release, shall not exceed 20 s. The time for
closing doors from their completely open position or from the position given by a hold open feature
shall be measured with a stopwatch, at a temperature of (20 ± 5) °C.
If a hold-open feature is included, the doors shall close fully in the event of a temperature of
(50 ) °C being reached in the vicinity of the front of the cabinet. The temperature release sensor
-10
for this shall be positioned in freely circulating air, so that it can heat up rapidly.
5.2.2 The temperature release component of the closing device shall be confirmed as conforming
to the requirements specified in 5.2.1, by the manufacturer's declaration of conformity.
5.2.3 Doors and their surroundings shall be designed such that the risk of injuries by pinching is
minimised. To minimise injuries by closure of the doors, the static force shall not exceed 100 N
between the main closing edge and the counter closing edge.
5.2.4 It shall be possible to operate each door single-handedly.
5.2.5 If the doors are lockable, the locking device shall not compromise the self-closing
performance required in 5.2.1.
5.3 Side and back walls
The side and back walls of the cabinet shall be of the same thickness and comparable construction.
...
