EN ISO 14451-5:2013

Pyrotechnic articles - Pyrotechnic articles for vehicles - Part 5: Requirements and categorization for airbag gas generators (ISO 14451-5:2013)

ISO 14451-5:2013 specifies the types and order of tests for application to the airbag gas generators and sets out the acceptance criteria and means of categorization.
ISO 14451-5:2013 applies to type tests.
ISO 14451-5:2013 is not applicable to articles containing military explosives or commercial blasting agents except for black powder or flash composition.

Pyrotechnische Gegenstände - Pyrotechnische Gegenstände für Fahrzeuge - Teil 5: Anforderungen und Kategorisierung von Airbaggasgeneratoren (ISO 14451-5:2013)

Die vorliegende Norm legt die Arten und die Reihenfolge der anzuwendenden Prüfverfahren für Airbaggasgeneratoren
auf fest und legt die entsprechenden Bewertungskriterien fest.

Articles pyrotechniques - Articles pyrotechniques pour véhicules - Partie 5: Exigences relatives aux générateurs de gaz de sac gonflable et leur classement en catégories (ISO 14451-5:2013)

L'ISO 14451-5:2013 spécifie les types et l'ordre des essais à réaliser sur les générateurs de gaz de sac gonflable et établit les critères d'acceptation correspondants et les règles de classement en catégories.
Elle est applicable aux essais de type.
Elle n'est pas applicable aux articles contenant des explosifs militaires ou des substances explosives commerciales, à l'exception de la poudre noire ou de la composition lumineuse.

Pirotehnični izdelki - Pirotehnični izdelki za vozila - 5. del: Zahteve za plinske generatorje zračnih blazin (ISO 14451-5:2013)

Ta del standarda ISO 14451 določa vrste in zaporedje preskusov za uporabo pri plinskih generatorjih zračnih blazin ter navaja merila sprejemljivosti in načine kategorizacije zadevnih generatorjev. Ta del standarda ISO 14451 se uporablja za tipske preskuse. Ta del standarda ISO 14451 se ne uporablja za izdelke, ki vsebujejo vojaški eksploziv ali tržne eksplozivne sestavine, razen črnega smodnika ali bliskovnega praška.

General Information

• Status: Published
• Publication Date: 19-Mar-2013
• Withdrawal Date: 29-Sep-2013
• ICS: 43.040.80 - Crash protection and restraint systems
• ICS: 71.100.30 - Explosives. Pyrotechnics and fireworks
• Technical Committee: CEN/TC 212 - Fireworks
• Drafting Committee: CEN/TC 212/WG 4 - Pyrotechnic articles for vehicles
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 20-Mar-2013
• Due Date: 02-Aug-2013
• Completion Date: 20-Mar-2013
• Directive: 2007/23/EC - Directive 2007/23/EC of the European Parliament and of the Council of 23 May 2007 on the placing on the market of pyrotechnic articles
• Directive: 2013/29/EU - Directive 2013/29/EU of the European Parliament and of the Council of 12 June 2013 on the harmonisation of the laws of the Member States relating to the making available on the market of pyrotechnic articles (recast)
• Mandate: M/416 - Standardization mandate assigned to CEN concerning pyrotechnic articles
• Ref Project: SIST EN ISO 14451-5:2013 - Pyrotechnic articles - Pyrotechnic articles for vehicles - Part 5: Requirements for airbag gas generators (ISO 14451-5:2013)

Overview

EN ISO 14451-5:2013 (ISO 14451-5:2013) defines the requirements, test sequence and categorization for airbag gas generators - the pyrotechnic gas sources used to inflate vehicle airbags. This European adoption by CEN applies to type tests for pyrotechnic articles for vehicles and excludes articles containing military explosives or commercial blasting agents (except black powder or flash composition). The standard supports conformity with EC Directive 2007/23/EC for pyrotechnic articles.

Key Topics and Requirements

• Scope and applicability
  • Applies to airbag gas generators and to type testing only.
  • Not applicable to military explosives or commercial blasting agents (with noted exceptions).
• Design verification and documentation
  • Requires complete documentation as referenced in ISO 14451-2 test-method requirements.
• Mandatory tests and acceptance criteria
  • Drop test: no ignition; no spill out of pyrotechnic composition.
  • Vibration & temperature test: no ignition; no spill out.
  • Thermal humidity cycling test: no ignition.
  • Electrostatic discharge (ESD) test: no ignition; if igniters are already tested to ISO 14451-8, the ESD requirement for the generator may be considered satisfied.
  • Fire test: specified heating rate of 50 K/min; generator must be engulfed by flames in specified positions (tubular, disc or equivalent); acceptance criteria limit foreseeable fragmentation and hazards.
  • Tank test and functioning test: defined in Clause 4.8–4.9 (see standard for full criteria).
• Test matrix and categorization
  • Clause 5 provides the test matrix to determine applicable tests.
  • Clause 6 defines categorization criteria for airbag gas generators based on test outcomes.

Applications and Users

Who uses EN ISO 14451-5:2013:

• Automotive OEMs and suppliers designing or sourcing airbag gas generators
• Safety engineers and R&D teams working on passive restraint systems
• Accredited test laboratories performing type tests on pyrotechnic articles for vehicles
• Regulatory and conformity-assessment bodies demonstrating compliance with EU Directive 2007/23/EC
• Quality and safety managers responsible for component certification and categorization

Practical value:

• Ensures consistent testing requirements and acceptance criteria for airbag inflator safety
• Helps manufacturers classify generators into safety categories and document conformity
• Reduces risk by standardizing tests for ignition, leakage, ESD resistance and fire behaviour

Related Standards

• ISO 14451 series: Part 1 (Terminology), Part 2 (Test methods), Part 3 (Labelling), Part 4 (Micro gas generators), Part 6 (Airbag modules), Part 8 (Igniters), Part 9 (Actuators), Part 10 (Semi-finished products)
• EC Directive 2007/23/EC - placing on the market of pyrotechnic articles (see Annex ZA relationship in the standard)

Keywords: EN ISO 14451-5:2013, ISO 14451-5:2013, airbag gas generators, pyrotechnic articles, vehicle safety, testing requirements, categorization, type tests.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2013
3LURWHKQLþQLL]GHONL3LURWHKQLþQLL]GHONL]DYR]LODGHO=DKWHYH]DSOLQVNH
JHQHUDWRUMH]UDþQLKEOD]LQ,62
Pyrotechnic articles - Pyrotechnic articles for vehicles - Part 5: Requirements for airbag
gas generators (ISO 14451-5:2013)
Pyrotechnische Gegenstände - Pyrotechnische Gegenstände für Fahrzeuge - Teil 5:
Anforderungen an Airbaggasgeneratoren (ISO 14451-5:2013)
Articles pyrotechniques - Articles pyrotechniques pour véhicules - Partie 5: Exigences
relatives aux générateurs de gaz de sac gonflable (ISO 14451-5:2013)
Ta slovenski standard je istoveten z: EN ISO 14451-5:2013
ICS:
43.040.80 Varnostne naprave in sistemi Safety installations and
za zadrževanje restraint systems
71.100.30 Eksplozivi. Pirotehnika Explosives. Pyrotechnics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 14451-5
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2013
ICS 43.040.80
English Version
Pyrotechnic articles - Pyrotechnic articles for vehicles - Part 5:
Requirements and categorization for airbag gas generators (ISO
14451-5:2013)
Articles pyrotechniques - Articles pyrotechniques pour Pyrotechnische Gegenstände - Pyrotechnische
véhicules - Partie 5: Exigences relatives aux générateurs Gegenstände für Fahrzeuge - Teil 5: Anforderungen und
de gaz de sac gonflable et leur classement en catégories Kategorisierung von Airbaggasgeneratoren (ISO 14451-
(ISO 14451-5:2013) 5:2013)
This European Standard was approved by CEN on 9 February 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14451-5:2013: E
worldwide for CEN national Members.

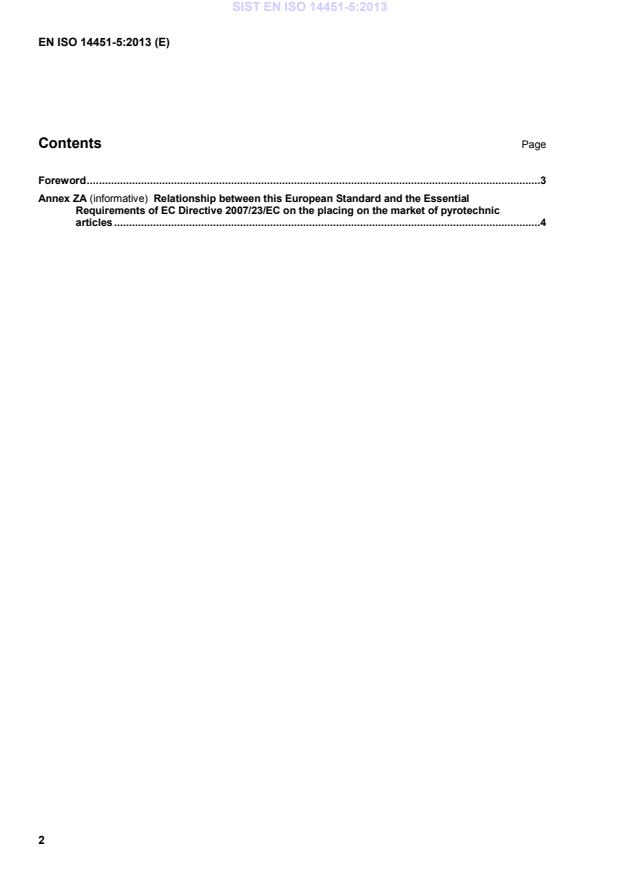

Contents Page
