DRAFT
EUROPEAN STANDARD
prEN 15267-4
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2022
ICS 13.040.99 Will supersede EN 15267-4:2017
English Version
Air quality - Assessment of air quality monitoring
equipment - Part 4: Performance criteria and test
procedures for portable automated measuring systems for
periodic measurements of emissions from stationary
sources
Qualité de l'air - Évaluation des équipements de Luftbeschaffenheit - Beurteilung von Einrichtungen zur
surveillance de la qualité de l'air - Partie 4 : Überwachung der Luftbeschaffenheit - Teil 4:
Spécifications de performance et modes opératoires Mindestanforderungen und Prüfprozeduren für
d'essai des systèmes de mesurage automatisés portable automatische Messeinrichtungen für
portables pour le mesurage périodique des émissions wiederkehrende Messungen von Emissionen aus
de source stationären Quellen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 264.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15267-4:2022 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
oSIST prEN 15267-4:2022
prEN 15267-4:2022 (E)

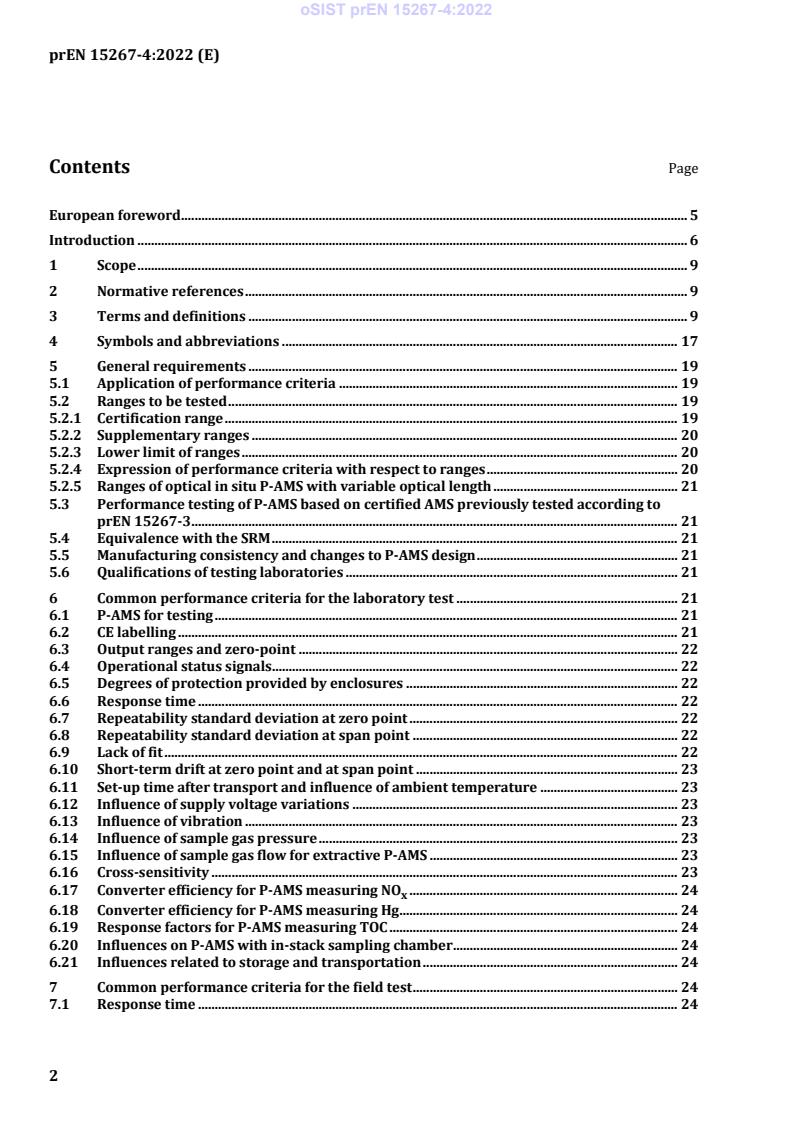

Contents Page
European foreword . 5
Introduction . 6
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 9
4 Symbols and abbreviations . 17
5 General requirements . 19
5.1 Application of performance criteria . 19
5.2 Ranges to be tested . 19
5.2.1 Certification range . 19
5.2.2 Supplementary ranges . 20
5.2.3 Lower limit of ranges . 20
5.2.4 Expression of performance criteria with respect to ranges . 20
5.2.5 Ranges of optical in situ P-AMS with variable optical length . 21
5.3 Performance testing of P-AMS based on certified AMS previously tested according to
prEN 15267-3 . 21
5.4 Equivalence with the SRM . 21
5.5 Manufacturing consistency and changes to P-AMS design . 21
5.6 Qualifications of testing laboratories . 21
6 Common performance criteria for the laboratory test . 21
6.1 P-AMS for testing . 21
6.2 CE labelling . 21
6.3 Output ranges and zero-point . 22
6.4 Operational status signals. 22
6.5 Degrees of protection provided by enclosures . 22
6.6 Response time . 22
6.7 Repeatability standard deviation at zero point . 22
6.8 Repeatability standard deviation at span point . 22
6.9 Lack of fit . 22
6.10 Short-term drift at zero point and at span point . 23
6.11 Set-up time after transport and influence of ambient temperature . 23
6.12 Influence of supply voltage variations . 23
6.13 Influence of vibration . 23
6.14 Influence of sample gas pressure . 23
6.15 Influence of sample gas flow for extractive P-AMS . 23
6.16 Cross-sensitivity . 23
6.17 Converter efficiency for P-AMS measuring NO . 24
x
6.18 Converter efficiency for P-AMS measuring Hg . 24
6.19 Response factors for P-AMS measuring TOC . 24
6.20 Influences on P-AMS with in-stack sampling chamber . 24
6.21 Influences related to storage and transportation . 24
7 Common performance criteria for the field test . 24
7.1 Response time . 24
2

---------------------- Page: 4 ----------------------
oSIST prEN 15267-4:2022
prEN 15267-4:2022 (E)
7.2 Short-term drift at zero point and at span point . 25
7.3 Reproducibility . 25
8 Specific performance criteria for measured components . 25
8.1 General . 25
8.2 P-AMS measuring gaseous measured components . 25
8.2.1 Performance criteria . 25
8.2.2 P-AMS measuring TOC. 27
8.2.3 P-AMS measuring Hg . 28
8.3 P-AMS measuring particulate matter . 28
9 General test requirements . 29
10 Test procedures for the laboratory test . 30
10.1 P-AMS for testing . 30
10.2 CE labelling . 30
10.3 Output ranges and zero point . 31
10.4 Operational status signals . 31
10.5 Degrees of protection provided by enclosures . 31
10.6 Response time . 31
10.7 Repeatability standard deviation at zero point . 33
10.8 Repeatability standard deviation at span point . 34
10.9 Lack of fit . 34
10.10 Short-term drift at zero point and at span point . 36
10.11 Set-up time after transportation and influence of ambient temperature . 36
10.12 Influence of supply voltage variations . 37
10.13 Influence of vibration . 38
10.14 Influence of sample gas pressure. 39
10.15 Influence of sample gas flow for extractive P-AMS . 39
10.16 Cross-sensitivity . 40
10.17 Converter efficiency for P-AMS measuring NO . 41
x
10.18 Converter efficiency for P-AMS measuring Hg . 42
10.19 Response factors for P-AMS measuring TOC . 42
10.20 Influences on P-AMS with in-stack sampling chamber . 43
10.21 Influences related to storage and transportation . 43
11 Requirements for the field test . 43
12 Common test procedures for the field test . 44
12.1 Response time . 44
12.2 Short-term drift at zero point and at span point . 44
12.3 Reproducibility . 45
13 Equivalence with the SRM . 46
14 Measurement uncertainty . 46
15 Test report . 46
Annex A (informative) European standard reference methods (SRM) and reference
methods (RM). 48
Annex B (normative) Minimum requirements for a test bench . 49
Annex C (normative) Interferents . 50
Annex D (informative) Example for the determination of the expanded uncertainty . 51
D.1 Determination of uncertainty contributions . 51
3

---------------------- Page: 5 ----------------------
oSIST prEN 15267-4:2022
prEN 15267-4:2022 (E)
D.2 Elements required for the uncertainty determinations . 51
D.3 Example of an uncertainty calculation for a P-AMS measuring CO . 53
D.4 Determination of uncertainty contributions by use of sensitivity coefficients . 55
Annex E (normative) Test of linearity . 57
E.1 Description of the test procedure . 57
E.2 Establishment of the regression line . 57
E.3 Calculation of the residuals of the average concentrations . 58
Annex F (informative) Elements of a performance test report . 59
Bibliography . 62

4

---------------------- Page: 6 ----------------------
oSIST prEN 15267-4:2022
prEN 15267-4:2022 (E)
European foreword
This document (prEN 15267-4:2022) has been prepared by Technical Committee CEN/TC 264 “Air
quality”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 15267-4:2017.
In comparison with the previous edition, the following technical modifications have been made:
a) The title of the revised EN 15267 series has been clarified to avoid the impression that all parts deal
with the certification of automated measuring systems. The title has been generalized so that
specifically Part 1 and Part 2 are also applicable to other air quality monitoring equipment.
b) The title of revised EN 15267-4 has been clarified to make it clear that Part 4 deals with portable
automated measuring systems for periodic measurements of emissions from stationary sources.
c) The performance criteria test and procedures were adapted to the state of the art in measurement
technology.
d) Requirements for portable automated measuring systems measuring mercury have been added.
e) References have been updated.
This document is Part 4 of a series of European Standards:
— EN 15267-1, Air quality — Assessment of air quality monitoring equipment — Part 1: General
principles of certification
— EN 15267-2, Air quality — Assessment of air quality monitoring equipment — Part 2: Initial assessment
of the manufacturer’s quality management system and post certification surveillance for the
manufacturing process
— EN 15267-3, Air quality — Assessment of air quality monitoring equipment — Part 3: Performance
criteria and test procedures for stationary automated measuring systems for continuous monitoring of
emissions from stationary sources
— EN 15267-4, Air quality — Assessment of air quality monitoring equipment — Part 4: Performance
criteria and test procedures for portable automated measuring systems for periodic measurements of
emissions from stationary sources
5

---------------------- Page: 7 ----------------------
oSIST prEN 15267-4:2022
prEN 15267-4:2022 (E)
Introduction
0.1  General
The assessment of air quality monitoring equipment (AQME) supports the requirements of certain
Directives of the European Union (EU), which require, either directly or indirectly, that this equipment
complies with performance criteria, maximum permissible measurement uncertainties and test
requirements. These Directives include the Directive 2010/75/EU on industrial emissions (IED),
Directive (EU) 2015/2193 on medium combustion plants and the Directive 2008/50/EC on ambient air
quality and cleaner air for Europe.
The assessment of AQME consists of the following sequential stages:
a) performance testing;
b) initial assessment of the manufacturer’s quality management system (QMS);
c) certification;
d) surveillance for the manufacturing process.
This document specifies the performance criteria and test procedures for performance testing of portable
automated measuring systems (P-AMS) used for periodic measurements of stationary source emissions.
Testing applies to complete measuring systems.
NOTE 1 Portable electrical apparatus designed to measure combustion flue gas parameters of heating appliances
are specified in EN 50379–1 to EN 50379–3.
The application of P-AMS for periodic measurements of stationary source emissions is based on
— specification of the standard reference method (SRM) and validation of the SRM;
— specification of the alternative method (AM) if the P-AMS is based on an AM;
— certification of the P-AMS in accordance with EN 15267-1, EN 15267-2 and EN 15267-4 including
demonstration of equivalence with the SRM in the field if the P-AMS is based on an AM;
— on-going quality management by the user of the P-AMS in line with EN ISO/IEC 17025.
NOTE 2 Examples for SRM and AM for different measured components are listed in Annex A.
The overall assessment for the purposes of certification is conformity testing, while the evaluation of
performance against specified performance criteria is performance testing.
0.2  Legal drivers
This document supports at least the requirements of the following EU Directives:
— Directive 2010/75/EU on industrial emissions;
— Directive (EU) 2015/2193 on the limitation of emissions of certain pollutants into the air from
medium combustion plants;
— Directive 2003/87/EC establishing a system for greenhouse gas emission allowance trading.
However, this document can also be applied to the monitoring requirements specified in other
EU Directives.
6

---------------------- Page: 8 ----------------------
oSIST prEN 15267-4:2022
prEN 15267-4:2022 (E)
0.3  Periodic measurements
Certified P-AMS can be used as SRM or AM for periodic measurements of stationary source emissions.
0.4  Relationship to EN 14181
Certified P-AMS can be used as SRM or AM for the calibration and validation of stationary AMS for QAL2
and AST purposes.
0.5  Processes
Field testing of P-AMS is ordinarily carried out on industrial processes representative of the range of
application of the SRM or AM. The premise is that if the P-AMS performs acceptably on these processes,
then experience has shown that the P-AMS generally performs well on the majority of other processes.
However, there are always exceptions and it is the responsibility of the user to ensure that the P-AMS
performs adequately on a specific process.
The necessary field test of P-AMS is specified in this document.
0.6  Performance characteristics
A combination of laboratory test and field test is detailed within this document. The laboratory test is
designed to assess whether P-AMS can meet, under controlled conditions, the relevant performance
criteria. The field test is designed to assess whether P-AMS can continue to work and meet the relevant
performance criteria in real applications including transportation to the measurement site, set-up of the
P-AMS and measurement.
The main P-AMS performance characteristics are:
— response time;
— repeatability standard deviation;
— lack of fit (linearity);
— short-term drift;
— influence of ambient temperature;
— influence of supply voltage variations;
— influence of vibration;
— influence of sample gas pressure;
— influence of sample gas flow for extractive P-AMS;
— cross-sensitivity to likely interferents contained in the waste gas other than the measured
component;
— converter efficiency for P-AMS measuring NO ;
x
— converter efficiency of P-AMS measuring Hg;
— response factors for P-AMS measuring TOC;
— reproducibility;
7

---------------------- Page: 9 ----------------------
oSIST prEN 15267-4:2022
prEN 15267-4:2022 (E)
— trueness and precision of the P-AMS against the SRM under field conditions if the P-AMS is based on
an AM.
Additional performance characteristics specific to the SRM or AM are included in the performance test.
The quality assurance and quality control (QA/QC) procedures to be applied by the user of the P-AMS are
also assessed in the performance test.
This document is an application and elaboration of EN ISO 9169 with additional and alternative
provisions for the performance test of P-AMS. Where this document appears to differ from EN ISO 9169,
it either elaborates upon the requirements of EN ISO 9169 or differs in minor ways owing to the necessity
to conduct the performance test of P-AMS.
0.7  Relationship to prEN 15267-3
This document is based on prEN 15267-3, which specifies the performance test of stationary AMS for the
continuous monitoring of emissions from stationary sources. Many requirements of this document are
identical to those of prEN 15267-3. This document deviates from prEN 15267-3 only where the portable
use and the use as SRM or AM require different or additional requirements. Therefore, this document
allows a combined testing according to prEN 15267-3 and prEN 15267-4 where an AMS is designed for
stationary and portable use. It also allows a reduced performance test of P-AMS, which have been already
certified according to prEN 15267-3 for stationary use.
8

---------------------- Page: 10 ----------------------
oSIST prEN 15267-4:2022
prEN 15267-4:2022 (E)
1 Scope
This document specifies the general performance criteria and test procedures for the performance test
of portable automated measuring systems (P-AMS) used for periodic measurements of stationary source
emissions. It applies to the performance test of P-AMS based on measurement techniques specified by
the standard reference method (SRM) or an alternative method (AM).
The performance test is based on the general performance criteria and test procedures specified in this
document and on the specific requirements specified for the SRM or AM. This includes testing of the
applicability and correct implementation of the QA/QC procedures specified for the SRM or AM.
This document supports the requirements of particular EU Directives.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 14793, Stationary source emissions - Demonstration of equivalence of an alternative method with a
reference method
EN 15259, Air quality - Measurement of stationary source emissions - Requirements for measurement
sections and sites and for the measurement objective, plan and report
EN 50160, Voltage characteristics of electricity supplied by public electricity networks
EN 60068-2-6, Environmental testing - Part 2-6: Tests - Test Fc: Vibration (sinusoidal) (IEC 60068-2-6)
EN 60529, Degrees of protection provided by enclosures (IP Code)
EN ISO 14956, Air quality - Evaluation of the suitability of a measurement procedure by comparison with a
required measurement uncertainty (ISO 14956)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
air quality monitoring equipment
AQME
automated measuring system or data acquisition and handling system
[SOURCE: prEN 15267-1:2021, 3.1]
3.2
automated measuring system
AMS
entirety of all measuring instruments and additional devices for obtaining a result of measurement
9

---------------------- Page: 11 ----------------------
oSIST prEN 15267-4:2022
prEN 15267-4:2022 (E)
Note 1 to entry: The term “automated measuring system” applies to stationary and portable AMS.
Note 2 to entry: Apart from the actual measuring device (the a
...
