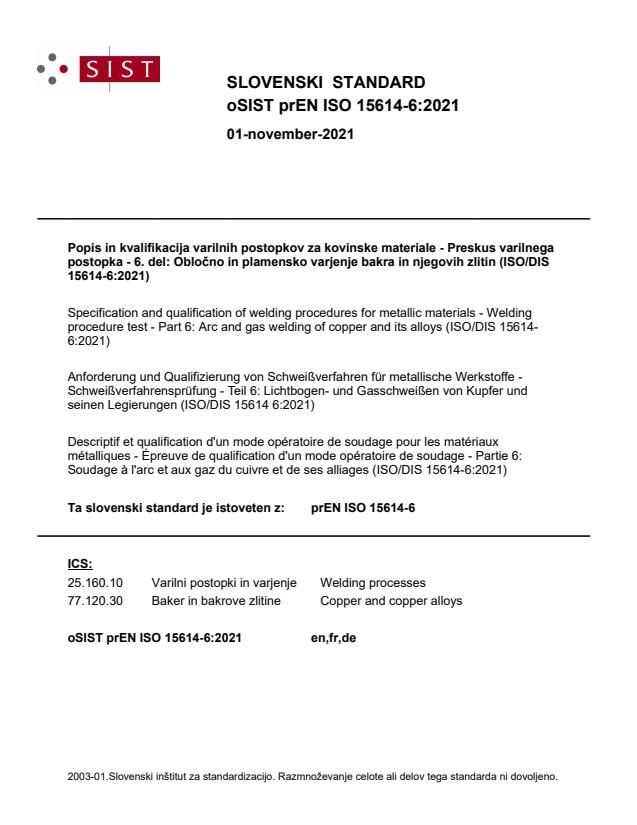

SLOVENSKI STANDARD
01-november-2021
Popis in kvalifikacija varilnih postopkov za kovinske materiale - Preskus varilnega
postopka - 6. del: Obločno in plamensko varjenje bakra in njegovih zlitin (ISO/DIS
15614-6:2021)
Specification and qualification of welding procedures for metallic materials - Welding
procedure test - Part 6: Arc and gas welding of copper and its alloys (ISO/DIS 15614-
6:2021)
Anforderung und Qualifizierung von Schweißverfahren für metallische Werkstoffe -
Schweißverfahrensprüfung - Teil 6: Lichtbogen- und Gasschweißen von Kupfer und
seinen Legierungen (ISO/DIS 15614 6:2021)
Descriptif et qualification d'un mode opératoire de soudage pour les matériaux
métalliques - Épreuve de qualification d'un mode opératoire de soudage - Partie 6:
Soudage à l'arc et aux gaz du cuivre et de ses alliages (ISO/DIS 15614-6:2021)
Ta slovenski standard je istoveten z: prEN ISO 15614-6
ICS:
25.160.10 Varilni postopki in varjenje Welding processes
77.120.30 Baker in bakrove zlitine Copper and copper alloys
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

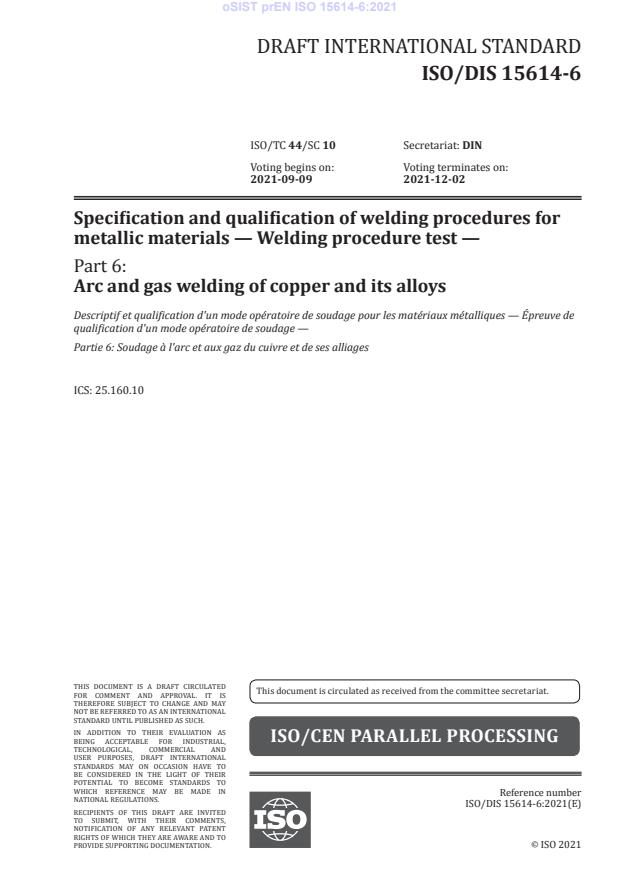

DRAFT INTERNATIONAL STANDARD
ISO/DIS 15614-6
ISO/TC 44/SC 10 Secretariat: DIN
Voting begins on: Voting terminates on:
2021-09-09 2021-12-02
Specification and qualification of welding procedures for
metallic materials — Welding procedure test —
Part 6:
Arc and gas welding of copper and its alloys
Descriptif et qualification d'un mode opératoire de soudage pour les matériaux métalliques — Épreuve de
qualification d'un mode opératoire de soudage —
Partie 6: Soudage à l'arc et aux gaz du cuivre et de ses alliages
ICS: 25.160.10
THIS DOCUMENT IS A DRAFT CIRCULATED
This document is circulated as received from the committee secretariat.
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
ISO/CEN PARALLEL PROCESSING
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 15614-6:2021(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2021
ISO/DIS 15614-6:2021(E)
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
ISO/DIS 15614-6:2021(E)
Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions .2
4 Welding processes .2
5 Preliminary welding procedure specification (pWPS) .2
6 Welding procedure test .3
7 Test pieces .3
7.1 General . 3
7.2 Shape and dimensions of test pieces . 3
7.2.1 General. 3
7.2.2 Butt joint in plate with full penetration . 3
7.2.3 Butt weld between plates with raised edges . 3
7.2.4 Butt joint in pipe with full penetration . 3
7.2.5 T-joint. 5
7.2.6 Branch connection . . 6
7.3 Welding of test pieces . 6
8 Examination and testing of test pieces .7
8.1 Extent of testing . 7
8.2 Location and taking of test specimens . 8
8.3 Non-destructive testing . 8
8.4 Destructive testing .12
8.4.1 General.12
8.4.2 Transverse tensile test .12
8.4.3 Bend test .12
8.4.4 Macroscopic examination .13
8.4.5 Fracture testing .13
8.5 Acceptance levels .13
8.6 Re-testing .14
9 Range of qualification .14
9.1 General .14
9.2 Related to the manufacturer .14
9.3 Related to the parent material .14
9.3.1 Parent material grouping .14
9.3.2 Parent material thickness and pipe diameter . .15
9.3.3 Angle of branch connection .16
9.4 Common to all welding procedures .16
9.4.1 Welding process .16
9.4.2 Welding positions . . .16
9.4.3 Type of joint/weld .17
9.4.4 Filler material, designation .17
9.4.5 Type of current .17
9.4.6 Heat input .17
9.4.7 Preheat temperature .17
9.4.8 Interpass temperature .17
9.4.9 Post-weld heat treatment or ageing .17
9.4.10 Initial heat treatment .18
9.5 Specific to processes .18
9.5.1 Process 131 .18
9.5.2 Process 141 .18
9.5.3 Process 15 .18
ISO/DIS 15614-6:2021(E)
9.5.4 Process 311 .18
10 Welding procedure qualification record (WPQR) .18
Annex A (informative) Example of a welding procedure qualification record form (WPQR) .20
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2014/68/EU (PED) aimed to be covered .24
Annex ZB (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2014/29/EU (SPVD) aimed to be covered .25
Bibliography .26
iv © ISO 2021 – All rights reserved
ISO/DIS 15614-6:2021(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 44, Welding and allied processes,
Subcommittee SC 10, Quality management in the field of welding.
This second edition cancels and replaces the first edition (ISO 15614-6:2006), which has been
technically revised.
Any feedback, question or request for official interpretation related to any aspect of this document
should be directed to the Secretariat of ISO/TC 44/SC 10 via your national standards body. A complete
listing of these bodies can be found at www .iso .org/ members .html. Official interpretations, where they
exist, are available from this page: https:// committee .iso .org/ sites/ tc44/ home/ interpretation .html.
The main changes compared to the previous edition are as follows:
— normative references have been updated;
— to be updated closer to publication.
A list of all parts in the ISO 15614 series can be found on the ISO website.
DRAFT INTERNATIONAL STANDARD ISO/DIS 15614-6:2021(E)
Specification and qualification of welding procedures for
metallic materials — Welding procedure test —
Part 6:
Arc and gas welding of copper and its alloys
1 Scope
This document specifies how a preliminary welding procedure specification is qualified by welding
procedure tests. It applies to arc and gas welding of copper and copper alloys in all product forms.
This document defines the conditions for the execution of welding procedure tests and the range of
qualification for welding procedures for welding operations within the range of variables listed in
Clause 9.
This document is applicable to all new welding procedures. However, it does not invalidate previous
welding procedure tests made to former national standards or specifications. Where additional tests
have to be carried out to make the qualification technically equivalent, it is only necessary to do the
additional tests on a test piece made in accordance with this document.
Additional tests can be required by application standards.
The principles of this document may be applied to other fusion welding processes.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3452-1, Non-destructive testing — Penetrant testing — Part 1: General principles
ISO 4063:2009, Welding and allied processes — Nomenclature of processes and reference numbers
ISO 4136, Destructive tests on welds in metallic materials — Transverse tensile test
ISO 5173, Destructive tests on welds in metallic materials — Bend tests
ISO 6520-1, Welding and allied processes — Classification of geometric imperfections in metallic
materials — Part 1: Fusion welding
ISO 6947, Welding and allied processes — Welding positions
ISO 9017, Destructive tests on welds in metallic materials — Fracture test
ISO 9606-3, Approval testing of welders — Fusion welding — Part 3: Copper and copper alloys
ISO 10042:2018, Welding — Arc-welded joints in aluminium and its alloys — Quality levels for imperfections
ISO 14175, Welding consumables — Gases and gas mixtures for fusion welding and allied processes
ISO 14732, Welding personnel — Qualification testing of welding operators and weld setters for mechanized
and automatic welding of metallic materials
ISO 15607, Specification and qualification of welding procedures for metallic materials — General rules
ISO/DIS 15614-6:2021(E)
ISO/TR 15608, Welding — Guidelines for a metallic materials grouping system
ISO 15609-1, Specification and qualification of welding procedures for metallic materials — Welding
procedure specification — Part 1: Arc welding
ISO 15609-2, Specification and qualification of welding procedures for metallic materials — Welding
procedure specification — Part 2: Gas welding
ISO 15613, Specification and qualification of welding procedures for metallic materials — Qualification
based on pre-production welding test
ISO 17636 (all parts), Non-destructive testing of welds — Radiographic testing
ISO 17637, Non-destructive testing of welds — Visual testing of fusion-welded joints
ISO 17639, Destructive tests on welds in metallic materials — Macroscopic and microscopic examination of
welds
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 15607 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Welding processes
Arc and gas welding are covered by the following processes in accordance with ISO 4063:2009.
111 manual metal-arc welding (metal-arc welding with covered electrode);
131 MIG (metal inert gas) welding with solid wire electrode;
132 MIG welding with flux-cored electrode;
133 MIG welding with metal-cored electrode;
141 TIG (tungsten inert gas) welding with solid filler material (wire/rod);
142 Autogenous TIG welding;
143 TIG welding with tubular-cored filler material (wire/rod);
145 TIG welding using reducing gas and solid filler material (wire/rod);
146 TIG welding using reducing gas and tubular-cored filler material (wire/rod);
15 plasma arc welding;
311 oxy-acetylene welding.
5 Preliminary welding procedure specification (pWPS)
A preliminary welding procedure specification shall be prepared in accordance with ISO 15609-1 or
ISO 15609-2.
2 © ISO 2021 – All rights reserved
ISO/DIS 15614-6:2021(E)
6 Welding procedure test
Test pieces shall be prepared and tested in accordance with Clauses 7 and 8.
The welder or welding operator who undertakes the welding procedure test satisfactorily, in
accordance with this document, is qualified for the appropriate range of qualification in accordance
with ISO 9606-3 or ISO 14732 providing that the relevant testing requirements are met.
7 Test pieces
7.1 General
The welded joint to which the welding procedure will relate to in production shall be represented by
making a standardized test piece or test pieces, in accordance with 7.2. Where the production/joint
geometry requirements do not represent the standardized test pieces as shown in this document,
ISO 15613 shall be used.
7.2 Shape and dimensions of test pieces
7.2.1 General
The length or number of test pieces shall be sufficient to allow all required tests to be carried out.
Additional test pieces, or test pieces longer than the minimum size, may be prepared in order to allow
for extra testing and/or for re-testing specimens (see 8.6).
For all test pieces except branch connections (see Figure 5) and fillet welds (see Figure 4), the material
thickness, t, shall be the same for both plates/pipes to be welded.
If required by the application standard, the direction of plate rolling shall be marked on the test piece.
The thickness and/or outside pipe diameter of the test pieces shall be selected in accordance with
9.3.2.1 to 9.3.2.4.
The shape and minimum dimensions of the test piece shall be as given in 7.2.2 to 7.2.6.
7.2.2 Butt joint in plate with full penetration
The test piece shall be prepared in accordance with Figure 1.
7.2.3 Butt weld between plates with raised edges
The test piece shall be prepared in accordance with Figure 2.
7.2.4 Butt joint in pipe with full penetration
The test piece shall be prepared in accordance with Figure 3.
NOTE The word “pipe”, alone or in combination, is used to mean “pipe”, “tube” or “hollow section”.
ISO/DIS 15614-6:2021(E)
Key
1 joint preparation and fit-up as detailed in the preliminary welding procedure specification (pWPS)
a minimum value 150 mm
b minimum value 300 mm
t material thickness
Figure 1 — Test piece for a butt joint in plate with full penetration
4 © ISO 2021 – All rights reserved
ISO/DIS 15614-6:2021(E)
Key
1 joint preparation and fit-up as detailed in the preliminary welding procedure specification (pWPS) or as shown
in ISO 17659
a minimum value 100 mm
b minimum value 300 mm
t material thickness
Figure 2 — Butt welds between plates with raised edges
Key
1 joint preparation and fit-up as detailed in the preliminary welding procedure specification (pWPS)
a minimum value 150 mm
D outside pipe diameter
t material thickness
Figure 3 — Test piece for a butt joint in pipe with full penetration
7.2.5 T-joint
The test piece shall be prepared in accordance with Figure 4.
ISO/DIS 15614-6:2021(E)
Key
1 joint preparation and fit-up as detailed in the preliminary welding procedure specification (pWPS)
a minimum value 150 mm
b minimum value 300 mm
t , t material thicknesses
1 2
Figure 4 — Test piece for a T-joint
This may be used for full penetration butt welds or fillet welds.
7.2.6 Branch connection
The test piece shall be prepared in accordance with Figure 5. The angle α is the minimum to be used
in production. This may be used for full penetration joints (set-on or set-in or set-through joint, and for
fillet welds).
7.3 Welding of test pieces
The preparation and welding of test pieces shall be carried out in accordance with the pWPS, and under
the general conditions of welding in production which they shall represent. Welding positions and
limitations for the angle of slope and rotation of the test piece shall be in accordance with ISO 6947. If
tack welds are to be fused into the final joint, they shall be included in the test piece.
Welding and testing of the test pieces shall be witnessed by an examiner or examining body.
6 © ISO 2021 – All rights reserved
ISO/DIS 15614-6:2021(E)
Key
1 joint preparation and fit-up as detailed in the preliminary welding procedure specification (pWPS)
α branch angle
a minimum value 150 mm
D outside diameter of the main pipe
t main-pipe material thickness
D outside diameter of the branch pipe
t branch-pipe material thickness
Figure 5 — Test piece for a branch joint
8 Examination and testing of test pieces
8.1 Extent of testing
Testing includes both non-destructive testing (NDT) and destructive testing which shall be in
accordance with the requirements of Table 1.
An application standard may specify additional tests which may include:
— longitudinal weld tensile test;
— all-weld metal bend test;
— corrosion tests;
— chemical analysis;
— hardness test.
NOTE Specific service, material or manufacturing conditions may require more comprehensive testing than
is specified in this document, in order to gain more information and to avoid repeating the welding procedure
test at a later date just to obtain additional test data.
ISO/DIS 15614-6:2021(E)
Table 1 — Examination and testing of test pieces
Test piece Type of test Extent of testing Footnote
Butt joint wit
...
