EN ISO 16231-1:2013

Self-propelled agricultural machinery - Assessment of stability - Part 1: Principles (ISO 16231-1:2013)

ISO 16231-1:2013 specifies principles for the assessment of stability with respect to the design and construction of self-propelled ride-on machines used in agriculture and the hazard of rolling over or tipping over, or both when the machine is used as intended and under the conditions foreseeable by the manufacturer. In addition, it specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer.
ISO 16231-1:2013 is not applicable to
?       machines with an unladen mass lower than 400 kg;
?       machines covered by other machine specific standards dealing with the protection against rollover and tip-over (e.g. agricultural tractors, forestry tractors);
?       hazards associated with road transport operations;
?       free fall events;
?       rollover as a result of impact collisions.
ISO 16231-1:2013 is not applicable to machines manufactured before the date of its publication.

Selbstfahrende Maschinen in der Landwirtschaft - Bewertung der Stabilität - Teil 1: Richtlinien (ISO 16231-1:2013)

Diese Internationale Norm legt Richtlinien für die Bewertung der Stabilität in Bezug auf die Entwicklung von
selbstfahrenden Maschinen in der Landwirtschaft sowie für die Bewertung der Gefahr des Überschlagens
oder Umkippens oder beider zugleich fest, wenn die Maschine bestimmungsgemäß und unter den vom
Hersteller vorgesehenen Bedingungen genutzt wird. Zusätzlich bestimmt sie die Art der Informationen zu
sicheren Arbeitsverfahren (einschließlich der verbleibenden Risiken), die durch den Hersteller zur Verfügung
zu stellen sind.
Diese Internationale Norm ist nicht anwendbar auf:
- Maschinen, die durch andere maschinenspezifische Standards erfasst werden, die sich mit dem Schutz
vor Überschlagen oder Umkippen befassen (z. B. land- oder forstwirtschaftliche Zugmaschinen),
- Gefahren, die mit Arbeitsvorgängen während der Beförderung auf Straßen einhergehen,
- Vorgänge eines freien Falls oder Überschlagens in Folge eines Anpralls.
Diese Internationale Norm ist nicht anwendbar auf Maschinen, die vor dem Veröffentlichungsdatum dieser
Norm hergestellt wurden.

Machines agricoles automotrices - Évaluation de la stabilité - Partie 1: Principes (ISO 16231-1:2013)

L'ISO 16231-1:2013 fixe les principes de l'évaluation de la stabilité au regard de la conception et de la fabrication des machines automotrices à conducteur porté utilisées dans le domaine agricole ainsi que de l'appréciation du risque de retournement ou de renversement, ou de la combinaison de ces deux risques, lorsque la machine est utilisée comme prévu et dans les conditions prévisibles par le fabricant. En outre, l'ISO 16231-1:2013 précise le type d'informations sur les pratiques de travail sûres (y compris les risques résiduels) à fournir par le fabricant.
L'ISO 16231-1:2013 n'est pas applicable:
aux machines de masse à vide inférieure à 400 kg;
aux machines traitées dans d'autres normes spécifiques relatives à la protection contre le retournement et le renversement (par exemple, tracteurs agricoles ou forestiers);
aux risques liés aux opérations de transport sur route;
aux cas de chute libre;
au retournement à la suite de collisions.
L'ISO 16231-1:2013 n'est pas applicable aux machines construites avant la date de sa publication.

Samognani kmetijski stroji - Ugotavljanje stabilnosti - Načela (ISO 16231-1:2013)

Ta del standarda ISO 16231 določa načela za ugotavljanje stabilnosti ob upoštevanju zasnove in izdelave samognanih kmetijskih strojev s sedežem ter nevarnosti, da se stroj prevrne in/ali prekucne, ko se uporablja v skladu z namembnostjo in pod pogoji, ki jih je predvidel proizvajalec. Določa tudi vrsto informacij o varnih delovnih praksah (vključno z ostalimi tveganji), ki jih mora zagotoviti proizvajalec. Ta del standarda ISO 16231 se ne uporablja za:
– stroje z neobremenjeno maso, ki je manjša od 400 kg;
– stroje, ki so zajeti v drugih standardih za stroje, ki obravnavajo zaščito pred prevrnitvijo (npr. kmetijski traktorji, gozdarski traktorji);
– nevarnosti, ki so povezane s cestnim prevozom;
– dogodke prostega pada;
– prevrnitev, ki je posledica trka.
Ta del standarda ISO 16231 se ne uporablja za stroje, izdelane pred datumom njegove objave.

General Information

• Status: Published
• Publication Date: 30-Apr-2013
• Withdrawal Date: 29-Nov-2013
• ICS: 65.060.01 - Agricultural machines and equipment in general
• ICS: 65.060.10 - Agricultural tractors and trailed vehicles
• Technical Committee: CEN/TC 144 - Tractors and machinery for agriculture and forestry
• Drafting Committee: CEN/TC 144/WG 2 - Tractors and self propelled machines
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 01-May-2013
• Completion Date: 01-May-2013
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: SIST EN ISO 16231-1:2013 - Self-propelled agricultural machinery - Assessment of stability - Part 1: Principles (ISO 16231-1:2013)

EN ISO 16231-1:2013 - Overview

EN ISO 16231-1:2013 (Self-propelled agricultural machinery - Assessment of stability - Part 1: Principles) specifies principles for assessing the stability of ride‑on, self‑propelled agricultural machines with respect to the hazards of rollover and tip‑over. It sets out the risk‑assessment framework, selection of protective measures, verification approaches and the type of information for use (operator’s manual) manufacturers must provide. The standard applies to new machines (not to machines manufactured before publication) and excludes machines under 400 kg, machines covered by other machine‑specific rollover standards (e.g. agricultural tractors), road transport hazards, free‑fall events and rollovers caused by impact collisions.

Key topics and requirements

• Risk assessment: Identify whether rollover/tip‑over hazards exist considering intended use, operating/ground conditions (slopes), machine physical properties, machine limits and operator capabilities.
• Protective measures: If risk is significant, one or more of the following must be applied:
  • Design to ensure Static Overturning Angle (SOA) ≥ Required Static Stability Angle (RSSA) with a suitable safety factor;
  • Fit Self‑Protective Devices (SPD) (attachments that improve stability);
  • Implement Automatic Protective Systems (APS) that intervene (e.g., reduce speed or change configuration) when stability limits are approached;
  • Provide a deflection limiting volume through a Self‑Protective Structure (SPS) or a Roll‑Over Protective Structure (ROPS) and ensure a compatible operator restraint (seat belt) installed per ISO 3776.
• Verification: The standard references verification procedures (see its Table 1) for checking functional measures and inspection/test methods in relevant directions (forward, rearward, lateral).
• Information for use: Required content for the operator’s manual, including safe working practices and residual risks.

Applications and users

EN ISO 16231-1:2013 is intended for:

• Manufacturers of self‑propelled agricultural machinery to design and document machine stability measures and prepare operator manuals.
• Design and safety engineers performing stability risk assessments and selecting ROPS/APS/SPD solutions.
• Test laboratories and certification bodies verifying conformance and validating protective measures.
• Compliance officers applying EU Machinery Directive (2006/42/EC) requirements; Annex ZA links this standard to Essential Requirement 3.4.3 (note: compliance with Part 2 is also required for full presumption of conformity).

Related standards

• ISO 16231‑2 (Calculations and test procedures - under preparation / used with Part 1)
• ISO 3776‑1/2/3 (seat belts - anchorage location, strength, assemblies)
• ISO 4254‑1 (Agricultural machinery - General safety requirements)

Keywords: EN ISO 16231-1:2013, self-propelled agricultural machinery, stability assessment, rollover, tip-over, ROPS, APS, SPD, operator’s manual, machinery safety.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2013
6DPRJQDQLNPHWLMVNLVWURML8JRWDYOMDQMHVWDELOQRVWL1DþHOD,62
Self-propelled agricultural machinery - Assessment of stability - Part 1: Principles (ISO
16231-1:2013)
Selbstfahrende Maschinen in der Landwirtschaft - Bewertung der Stabilität - Teil 1:
Richtlinien (ISO 16231-1:2013)
Machines agricoles automotrices - Évaluation de la stabilité - Partie 1: Principes (ISO
16231-1:2013)
Ta slovenski standard je istoveten z: EN ISO 16231-1:2013
ICS:
65.060.01 Kmetijski stroji in oprema na Agricultural machines and
splošno equipment in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 16231-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2013
ICS 65.060.01
English Version
Self-propelled agricultural machinery - Assessment of stability -
Part 1: Principles (ISO 16231-1:2013)
Machines agricoles automotrices - Évaluation de la stabilité Selbstfahrende Maschinen in der Landwirtschaft -
- Partie 1: Principes (ISO 16231-1:2013) Bewertung der Stabilität - Teil 1: Richtlinien (ISO 16231-
1:2013)
This European Standard was approved by CEN on 7 March 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 16231-1:2013: E
worldwide for CEN national Members.

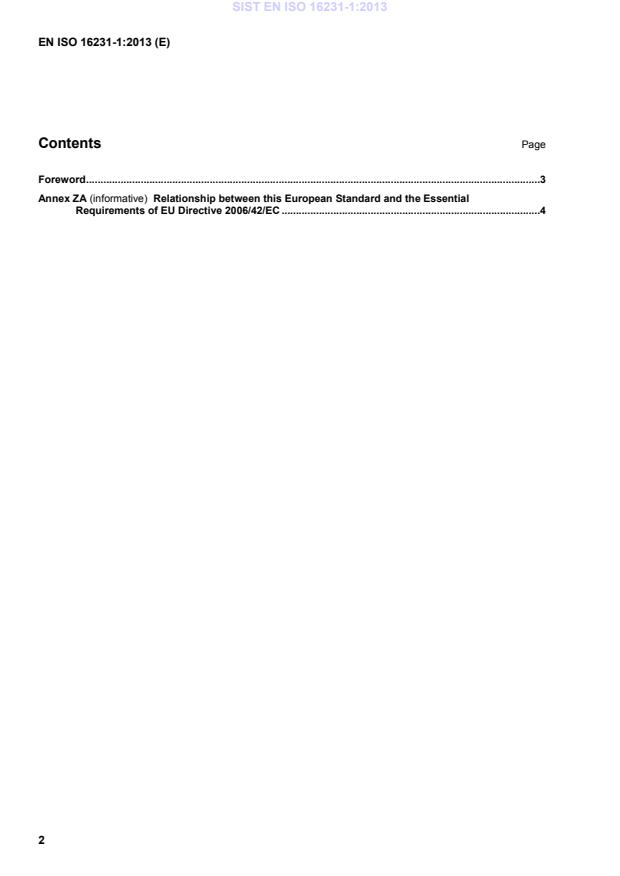

Contents Page
Foreword .3
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC .4

Foreword
This document (EN ISO 16231-1:2013) has been prepared by Technical Committee ISO/TC 23 "Tractors and
machinery for agriculture and forestry" in collaboration with Technical Committee CEN/TC 144 “Tractors and
machinery for agriculture and forestry” the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by November 2013, and conflicting national standards shall be withdrawn
at the latest by November 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 16231-1:2013 has been approved by CEN as EN ISO 16231-1:2013 without any modification.
Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association to provide a means of conforming to Essential Requirements of the
New Approach Directive 2006/42/EC on machinery
Once this standard is cited in the Official Journal of the European Union under that Directive and has been
implemented as a national standard in at least one Member State, compliance with the normative clauses of
this standard confers, within the limits of the scope of this standard, a presumption of conformity with the
Essential Requirement 3.4.3 of that Directive and associated EFTA regulations.
NOTE In addition, compliance with EN ISO 16231-2 is required to achieve presumption of conformity with the
Essential Requirement indicated in this Annex.
WARNING — Other requirements and other EU Directives may be applicable to the product(s) falling within
the scope of this standard.
INTERNATIONAL ISO
STANDARD 16231-1
First edition
2013-05-01
Self-propelled agricultural
machinery — Assessment of stability —
Part 1:
Principles
Machines agricoles automotrices — Évaluation de la stabilité —
Partie 1: Principes
Reference number
ISO 16231-1:2013(E)
©
ISO 2013
ISO 16231-1:2013(E)
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

ISO 16231-1:2013(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principles . 3
4.1 Risk assessment . 3
4.2 Protective measures . 3
4.3 Information for use . 3
5 Verification of safety requirements and/or protective measures .3
6 Operator’s manual . 4
ISO 16231-1:2013(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/dir
...
