Portable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable foam equipment - Part 3: Low and medium expansion hand-held foam branchpipes PN 16

1.1   This European Standard applies to handheld foam branchpipes, and self-inducting foam branchpipes, for low and medium expansion foam used by fire and rescue services and defines their specification and test procedures.
NOTE   In this European Standard, the term "branchpipe" also refers to "hand-held foam branchpipes".
1.2   This European Standard is not applicable to hand-held foam branchpipes which have been manufactured before its date of publication as European Standard.

Tragbare Geräte zum Ausbringen von Löschmitteln, die mit Feuerlöschpumpen gefördert werden - Tragbare Schaumgeräte - Teil 3: Schwer-und Mittelschaumrohre PN 16

1.1   Diese Europäische Norm gilt für von Hand geführte Schaumstrahlrohre und selbstansaugende Schaumstrahlrohre für Mittel- und Schwerschaum, die von Feuerwehren verwendet werden und legt deren Spezifikationen und Prüfverfahren fest.
ANMERKUNG   In dieser Europäischen Norm steht der Begriff 'Strahlrohr' auch für 'Schaumstrahlrohr'.
1.2   Diese Europäische Norm gilt nicht für Schaumstrahlrohre, die vor der Veröffentlichung dieser Europäischen Norm hergestellt wurden.

Equipement portable de projection d’agents d’extinction alimenté par des pompes à usage incendie - Equipements mousse portables - Partie 3 : Lances à mousse à main PN 16 bas et moyen foisonnement

.1   La présente Norme européenne s'applique aux lances à mousse à main, et aux lances à mousse
auto-aspirantes, pour bas et moyen foisonnement utilisées par les services de secours et de lutte contre l'incendie, et définit leur spécification et les procédures d'essais.
NOTE   Dans la présente Norme européenne, le terme "lance" fait également référence aux "lances à mousse à main".
1.2   La présente Norme européenne ne s'applique pas aux lances à mousse à main qui ont été fabriquées avant sa date de publication comme Norme européenne.

General Information

Status
Published
Publication Date
08-Sep-2015
Current Stage
9060 - Closure of 2 Year Review Enquiry - Review Enquiry
Due Date
04-Mar-2021
Completion Date
04-Mar-2021
Ref Project

Buy Standard

Standard
EN 16712-3:2015
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tragbare Geräte zum Ausbringen von Löschmitteln, die mit Feuerlöschpumpen gefördert werden - Tragbare Schaumgeräte - Teil 3: Schwer-und Mittelschaumrohre PN 16Equipement portable de projection d’agents d’extinction alimenté par des pompes à usage incendie - Equipements mousse portables - Partie 3: Lances à mousse à main PN 16 bas et moyen foisonnementPortable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable foam equipment - Part 3: Low and medium expansion handheld foam branchpipes PN 1613.220.10Gašenje požaraFire-fightingICS:Ta slovenski standard je istoveten z:EN 16712-3:2015SIST EN 16712-3:2015en,fr,de01-november-2015SIST EN 16712-3:2015SLOVENSKI

STANDARD
SIST EN 16712-3:2015
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16712-3
September
t r s w ICS
s uä t t rä s r English Version

Portable equipment for projecting extinguishing agents supplied by fire fighting pumps æ Portable foam equipment æ Part

uã Low and medium expansion handæheld foam branchpipes PN

s x Equipement portable de projection d 5agents d 5extinction alimenté par des pompes à usage incendie æ Equipements mousse portables æ Partie

u ã Lances à mousse à main PN
s x bas et moyen foisonnement

Tragbare Geräte zum Ausbringen von Löschmittelná die mit Feuerlöschpumpen gefördert werden æ Tragbare Schaumgeräte æ Teil

uã Schweræund Mittelschaumrohre PN
s x This European Standard was approved by CEN on
s August
t r s wä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels

t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s x y s tæ uã t r s w ESIST EN 16712-3:2015

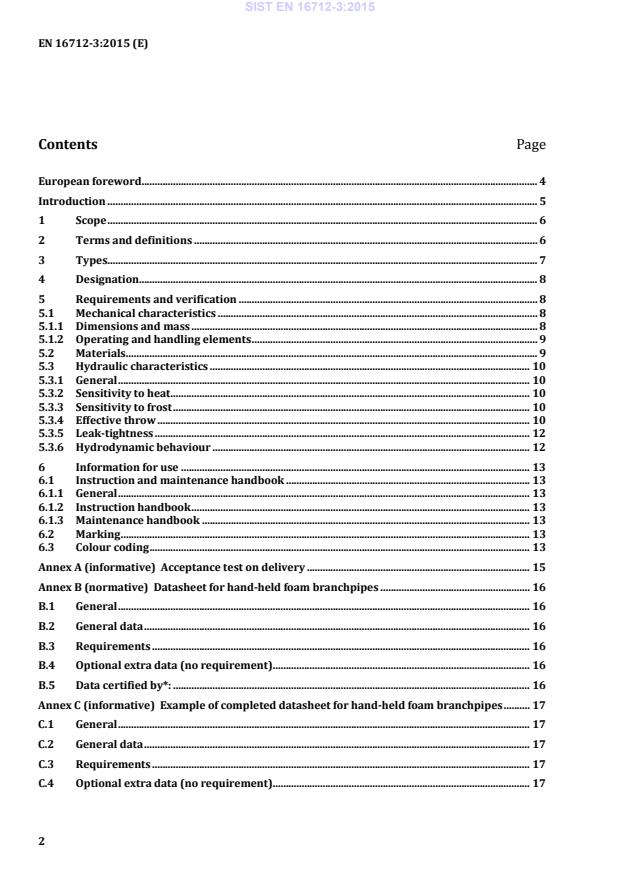

EN 16712-3:2015 (E) 2 Contents Page European foreword ....................................................................................................................................................... 4 Introduction .................................................................................................................................................................... 5 1 Scope .................................................................................................................................................................... 6 2 Terms and definitions ................................................................................................................................... 6 3 Types .................................................................................................................................................................... 7 4 Designation........................................................................................................................................................ 8 5 Requirements and verification .................................................................................................................. 8 5.1 Mechanical characteristics .......................................................................................................................... 8 5.1.1 Dimensions and mass .................................................................................................................................... 8 5.1.2 Operating and handling elements ............................................................................................................. 9 5.2 Materials ............................................................................................................................................................. 9 5.3 Hydraulic characteristics .......................................................................................................................... 10 5.3.1 General ............................................................................................................................................................. 10 5.3.2 Sensitivity to heat ......................................................................................................................................... 10 5.3.3 Sensitivity to frost ........................................................................................................................................ 10 5.3.4 Effective throw .............................................................................................................................................. 10 5.3.5 Leak-tightness ............................................................................................................................................... 12 5.3.6 Hydrodynamic behaviour ......................................................................................................................... 12 6 Information for use ..................................................................................................................................... 13 6.1 Instruction and maintenance handbook ............................................................................................. 13 6.1.1 General ............................................................................................................................................................. 13 6.1.2 Instruction handbook ................................................................................................................................. 13 6.1.3 Maintenance handbook ............................................................................................................................. 13 6.2 Marking ............................................................................................................................................................ 13 6.3 Colour coding ................................................................................................................................................. 13 Annex A (informative)

Acceptance test on delivery ..................................................................................... 15 Annex B (normative)

Datasheet for hand-held foam branchpipes ......................................................... 16 B.1 General ............................................................................................................................................................. 16 B.2 General data ................................................................................................................................................... 16 B.3 Requirements ................................................................................................................................................ 16 B.4 Optional extra data (no requirement) .................................................................................................. 16 B.5 Data certified by*: ........................................................................................................................................ 16 Annex C (informative)

Example of completed datasheet for hand-held foam branchpipes .......... 17 C.1 General ............................................................................................................................................................. 17 C.2 General data ................................................................................................................................................... 17 C.3 Requirements ................................................................................................................................................ 17 C.4 Optional extra data (no requirement) .................................................................................................. 17 SIST EN 16712-3:2015

EN 16712-3:2015 (E) 3 C.5 Data certified by*: ......................................................................................................................................... 17 Bibliography ................................................................................................................................................................. 18

SIST EN 16712-3:2015

EN 16712-3:2015 (E) 4 European foreword This document (EN 16712-3:2015) has been prepared by Technical Committee CEN/TC 192 “Fire and Rescue Service Equipment”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by March 2016, and conflicting national standards shall be withdrawn at the latest by March 2016. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. EN 16712 consists of the following parts, under the general title “Portable equipment for projecting extinguishing agents supplied by fire fighting pumps — Portable foam equipment”: — Part 1: Inductors PN 16; — Part 2: Pick-up tubes; — Part 3: Low and medium expansion hand-held foam branchpipes PN 16; — Part 4: High expansion foam generators PN 16. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 16712-3:2015

EN 16712-3:2015 (E) 5 Introduction Hand-held foam branchpipes are used to expand foam water solution by the addition of air and to project the foam onto a fire or fire risk. SIST EN 16712-3:2015

EN 16712-3:2015 (E) 6 1 Scope 1.1 This European Standard applies to hand-held foam branchpipes, and self-inducting foam branchpipes, for low and medium expansion foam used by fire and rescue services and defines their specification and test procedures. NOTE In this European Standard, the term “branchpipe” also refers to “hand-held foam branchpipes”. 1.2 This European Standard is not applicable to hand-held foam branchpipes which have been manufactured before its date of publication as European Standard. 2 Terms and definitions For the purposes of this document, the following terms and definitions apply. 2.1 handheld foam branchpipe hand-operated device in which the water foam solution is mixed with air to produce foam that is then expelled in the form of a jet Note 1 to entry: The branchpipe may be equipped with a pressure gauge. 2.2 combination handheld foam branchpipe handheld foam branchpipe capable of producing either low expansion foam or medium expansion foam Note 1 to entry: The branchpipe may be equipped with a pressure gauge. 2.3 pressures Note 1 to entry: Pressures are expressed in bar. Note 2 to entry: 1 bar = 0,1 MPa (105 Pa). 2.3.1 wor

...
