EN 573-3:2019/FprA1

Aluminium and aluminium alloys - Chemical composition and form of wrought products - Part 3: Chemical composition and form of products

This document specifies the chemical composition limits of wrought aluminium and wrought aluminium alloys and form of products.
NOTE The chemical composition limits of aluminium and aluminium alloys specified herein are completely identical with those registered with the Aluminium Association, 1525, Wilson Boulevard, Suite 600, Arlington, VA 22209, USA, for the corresponding alloys.

Aluminium und Aluminiumlegierungen - Chemische Zusammensetzung und Form von Halbzeug - Teil 3: Chemische Zusammensetzung und Erzeugnisformen

Aluminium et alliages d'aluminium - Composition chimique et forme des produits corroyés - Partie 3 : Composition chimique et forme des produits

Aluminij in aluminijeve zlitine - Kemična sestava in oblika gnetenih izdelkov - 3. del: Kemična sestava in oblika izdelkov

General Information

• Status: Not Published
• Publication Date: 29-May-2022
• Withdrawal Date: 28-Aug-2022
• ICS: 77.120.10 - Aluminium and aluminium alloys
• ICS: 77.150.10 - Aluminium products
• Technical Committee: CEN/TC 132 - Aluminium and aluminium alloys
• Drafting Committee: CEN/TC 132/WG 5 - Extruded and drawn products
• Current Stage: 5060 - Closure of Vote - Formal Approval
• Start Date: 30-Dec-2021
• Due Date: 10-Aug-2022
• Completion Date: 30-Dec-2021
• Ref Project: SIST EN 573-3:2019/oprA1:2021 - Aluminium and aluminium alloys - Chemical composition and form of wrought products - Part 3: Chemical composition and form of products

Relations

• Merged Into: EN 573-3:2019+A1:2022 - Aluminium and aluminium alloys - Chemical composition and form of wrought products - Part 3: Chemical composition and form of products
• Effective Date: 18-Jan-2023
• Amends: EN 573-3:2019 - Aluminium and aluminium alloys - Chemical composition and form of wrought products - Part 3: Chemical composition and form of products
• Effective Date: 22-Jul-2020

Overview

EN 573-3:2019/FprA1 is a European standard developed by the European Committee for Standardization (CEN) under Technical Committee CEN/TC 132. This document specifies the chemical composition limits and form of wrought aluminium and aluminium alloys products. The standard aligns closely with the Aluminium Association’s registered compositions, ensuring global consistency in aluminium alloy specifications.

This amendment amendment provides updated chemical composition tables for various aluminium alloy series and details the forms in which wrought products are provided. It serves as a vital reference for manufacturers, suppliers, and engineers involved in aluminium product design, production, and quality control.

Key Topics

• Chemical Composition Limits
  Defines precise elemental limits for key alloying elements such as Silicon (Si), Iron (Fe), Copper (Cu), Manganese (Mn), Magnesium (Mg), Chromium (Cr), Nickel (Ni), Zinc (Zn), Titanium (Ti), Gallium (Ga), and Vanadium (V) across different alloy series:

  • 2xxx series - Al-Cu alloys (e.g., EN AW-2033, EN AW-2077)
  • 4xxx series - Al-Si alloys (e.g., EN AW-4025)
  • 6xxx series - Al-MgSi alloys (e.g., EN AW-6061)

• Alloy Series Modifications
  Updates and adds important alloys to respective tables including chemical makeup and form designations to address evolving industry needs.

• Form of Wrought Products
  Specifies available product forms such as forgings, wire, drawing stock, sheets, can stock, extrusions, foil, tubes, and welding stock, aligned with the chemical composition classifications.

• Equivalence to Aluminium Association Standards
  Confirms that the chemical compositions are identical to those registered by the Aluminium Association (USA), facilitating global trade and interoperability.

Applications

EN 573-3:2019/FprA1 is essential in various practical contexts within the aluminium industry:

• Manufacturing and Quality Control
  Enables consistency in producing aluminium wrought products by ensuring chemical composition compliance for specific alloys.

• Material Specification and Procurement
  Assists buyers and engineers in specifying aluminium alloys with precise chemical limits for construction, automotive, aerospace, packaging, and electrical industries.

• Product Design and Engineering
  Supports designers in selecting alloys with tailored properties-such as strength, corrosion resistance, or machinability-based on standardized composition formulas.

• Regulatory and Certification Processes
  Facilitates harmonized certification and conformity assessment processes across European and international markets by providing clear compositional criteria.

• Research and Development
  Acts as a foundation reference for developing new aluminium alloys or refining existing alloys with defined chemical parameters.

Related Standards

• EN 573-1 & EN 573-2 - These parts cover general information and mechanical properties of aluminium and aluminium alloys, complementing the chemical composition focus of EN 573-3.

• Aluminium Association Specifications - As EN 573-3 chemical limits match those registered by this US organization, cross-referencing ensures global standardization.

• CEN/TC 132 Standards - Additional norms developed by the same committee on aluminium alloys handling, testing, and classification.

• ISO 209-1 - International standard on aluminium alloy designations which align with the classifications in EN 573-3.

---

Keywords: aluminium alloys, wrought aluminium products, chemical composition limits, EN 573-3, CEN aluminium standards, aluminium alloy series, aluminium product forms, alloy specifications, aluminium manufacturing, aluminium quality control

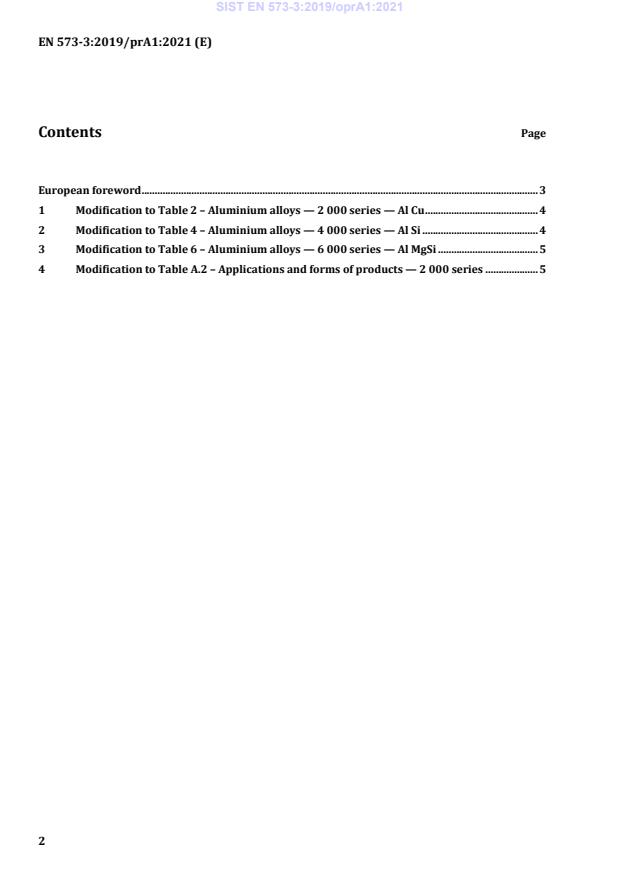

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2021
Aluminij in aluminijeve zlitine - Kemična sestava in oblika gnetenih izdelkov - 3.
del: Kemična sestava in oblika izdelkov
Aluminium and aluminium alloys - Chemical composition and form of wrought products -
Part 3: Chemical composition and form of products
Aluminium und Aluminiumlegierungen - Chemische Zusammensetzung und Form von
Halbzeug - Teil 3: Chemische Zusammensetzung und Erzeugnisformen
Aluminium et alliages d'aluminium - Composition chimique et forme des produits
corroyés - Partie 3 : Composition chimique et forme des produits
Ta slovenski standard je istoveten z: EN 573-3:2019/prA1
ICS:
77.040.30 Kemijska analiza kovin Chemical analysis of metals
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
EN 573-3:2019
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
January 2021
ICS 77.120.10; 77.150.10
English Version
Aluminium and aluminium alloys - Chemical composition
and form of wrought products - Part 3: Chemical
composition and form of products
Aluminium et alliages d'aluminium - Composition Aluminium und Aluminiumlegierungen - Chemische
chimique et forme des produits corroyés - Partie 3 : Zusammensetzung und Form von Halbzeug - Teil 3:
Composition chimique et forme des produits Chemische Zusammensetzung und Erzeugnisformen
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 132.

This draft amendment A1, if approved, will modify the European Standard EN 573-3:2019. If this draft becomes an amendment,
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 573-3:2019/prA1:2021 E
worldwide for CEN national Members.
...
