EN 1676:2020

Aluminium and aluminium alloys - Alloyed ingots for remelting - Specifications

This document defines the requirements for grades of alloyed aluminium ingots intended for remelting.
It specifies the classifications and designations applicable to these grades, the conditions in which they are produced, their properties and the marks by which they are identified.

Aluminium und Aluminiumlegierungen - Legierte Masseln zum Wiedereinschmelzen - Spezifikationen

Dieses Dokument legt die Anforderungen an die Sorten von legiertem Aluminium in Masseln fest, die zum Wiedereinschmelzen bestimmt sind.
Es legt die Klassifizierungen und Bezeichnungen dieser Sorten, die Herstellungsbedingungen, die Eigenschaften sowie die Kennzeichnung zur Identifizierung fest.

Aluminium et alliages d’aluminium - Lingots pour refusion en alliages d’aluminium - Spécifications

Le présent document définit les exigences pour les nuances de lingots d’alliages d’aluminium destinés à la refusion.
Il spécifie la classification et la désignation applicables à ces nuances, leurs conditions de production, leurs propriétés et leurs marques d’identification.

Aluminij in aluminijeve zlitine - Legirani bloki za pretaljevanje - Specifikacije

General Information

• Status: Published
• Publication Date: 21-Apr-2020
• Withdrawal Date: 30-Oct-2020
• ICS: 77.120.10 - Aluminium and aluminium alloys
• ICS: 77.150.10 - Aluminium products
• Technical Committee: CEN/TC 132 - Aluminium and aluminium alloys
• Drafting Committee: WG 34 - Casting and recycling
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 02-Dec-2025
• Completion Date: 02-Dec-2025
• Ref Project: SIST EN 1676:2020 - Aluminium and aluminium alloys - Alloyed ingots for remelting - Specifications

Relations

• Replaces: EN 1676:2010 - Aluminium and aluminium alloys - Alloyed ingots for remelting - Specifications
• Effective Date: 12-Aug-2015

Overview

EN 1676:2020 - "Aluminium and aluminium alloys - Alloyed ingots for remelting - Specifications" is a European standard published by CEN that defines requirements for alloyed aluminium ingots intended for remelting. The standard covers classification and designation systems, production and manufacturing conditions, chemical composition limits, quality control, marking, packaging and delivery documentation for remelt ingots used in the aluminium value chain.

This revision (2020) supersedes EN 1676:2010 and includes updates to alloy listings and composition limits.

Key topics and requirements

• Scope and designations: Specifies how alloyed ingots for remelting are classified and designated (numerical and chemical-symbol systems referenced to EN 1780 series).
• Chemical composition: Lists allowable element concentrations for many common casting and remelt alloys in Table 1. The standard requires compliance with those limits unless purchaser and supplier agree otherwise.
• Production & manufacturing: Allows producer discretion for processes unless the order document states otherwise; suppliers must notify purchasers of changes that could affect quality.
• Quality control & testing: Requires supplier responsibility for inspection and tests before shipment. Chemical analysis methods and sampling are referenced (EN 14242 for ICP-OES analysis; EN 14361 for sampling).
• Freedom from defects & form: Sets expectations for acceptable product form and defect tolerances for ingots.
• Ordering information: Defines mandatory order details (alloy designation, product form, quantity, certificate requirements, and any special conditions).
• Marking, packaging & delivery documents: Specifies identification marks, packaging practices and documentation to accompany shipments.
• Inspection & complaints: Procedures for product inspection, testing, inspection documents and complaint handling are included.

Key changes in the 2020 revision include deletion and addition of certain alloys in Table 1 and a reduction of the maximum permissible lead content.

Applications and users

EN 1676:2020 is directly relevant to:

• Foundries, remelters and aluminium recyclers managing ingot feedstock
• Primary and secondary aluminium producers supplying alloyed ingots
• Purchasing, quality and metallurgical engineers specifying feedstock for casting or extrusion
• Product designers and specifications writers ensuring material traceability
• Certification bodies and testing laboratories performing chemical analysis

Use cases include procurement of remelt ingots, material compliance checks, supplier contracts, and quality control programs in aluminium casting and recycling operations.

Related standards

• EN 1780-1 / EN 1780-2 / EN 1780-3 - designation and writing rules for ingots
• EN 12258-1 - aluminium terms and definitions
• EN 14242 - chemical analysis (ICP-OES)
• EN 14361 - sampling from metal melts
• EN 576 - unalloyed aluminium ingots

Keywords: EN 1676:2020, aluminium ingots for remelting, alloyed ingots, aluminium alloys, remelting specifications, chemical composition, quality control, foundries, aluminium recyclers.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2020
Nadomešča:
SIST EN 1676:2010
Aluminij in aluminijeve zlitine - Legirani bloki za pretaljevanje - Specifikacije
Aluminium and aluminium alloys - Alloyed ingots for remelting - Specifications
Aluminium und Aluminiumlegierungen - Legiertes Aluminium in Masseln -
Spezifikationen
Aluminium et alliages d’aluminium - Lingots pour refusion en aluminium allié -
Spécifications
Ta slovenski standard je istoveten z: EN 1676:2020
ICS:
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 1676
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2020
EUROPÄISCHE NORM
ICS 77.120.10 Supersedes EN 1676:2010
English Version
Aluminium and aluminium alloys - Alloyed ingots for
remelting - Specifications
Aluminium et alliages d'aluminium - Lingots pour Aluminium und Aluminiumlegierungen - Legierte
refusion en alliages d'aluminium - Spécifications Masseln zum Wiedereinschmelzen - Spezifikationen
This European Standard was approved by CEN on 2 March 2020.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1676:2020 E
worldwide for CEN national Members.

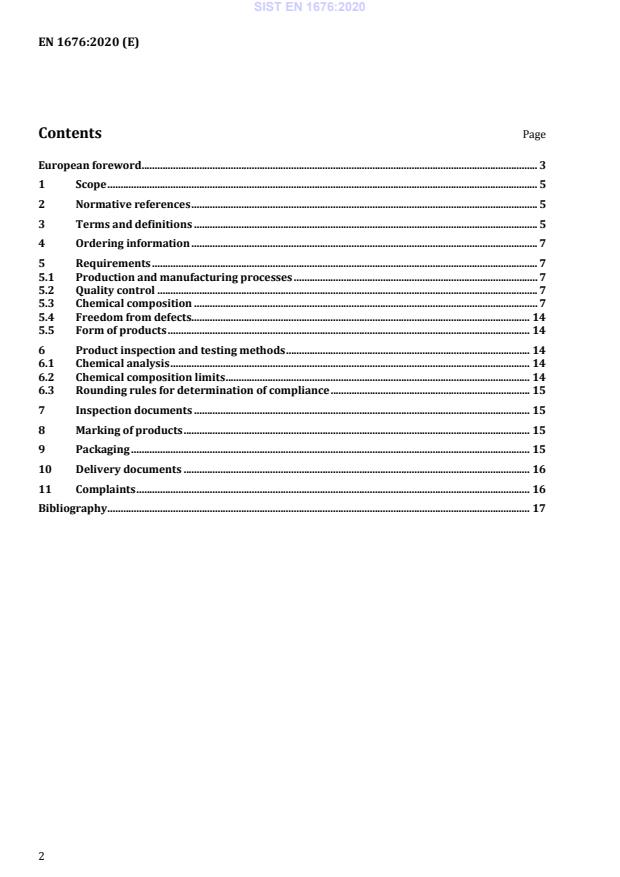

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Ordering information . 7
5 Requirements . 7
5.1 Production and manufacturing processes . 7
5.2 Quality control . 7
5.3 Chemical composition . 7
5.4 Freedom from defects. 14
5.5 Form of products . 14
6 Product inspection and testing methods . 14
6.1 Chemical analysis . 14
6.2 Chemical composition limits . 14
6.3 Rounding rules for determination of compliance . 15
7 Inspection documents . 15
8 Marking of products . 15
9 Packaging . 15
10 Delivery documents . 16
11 Complaints . 16
Bibliography . 17

European foreword
This document (EN 1676:2020) has been prepared by Technical Committee CEN/TC 132 “Aluminium
and aluminium alloys”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2020, and conflicting national standards shall
be withdrawn at the latest by October 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
CEN/TC 132 affirms it is its policy that in the case when a patentee refuses to grant licences on
standardized products under reasonable and not discriminatory conditions, then this product shall be
removed from the corresponding standard.
This document supersedes EN 1676:2010.
Within its programme of work, Technical Committee CEN/TC 132 entrusted CEN/TC 132/WG 23
“Revision of EN 1676 and EN 1706” to revise EN 1676:2010.
In comparison with EN 1676:2010, the following significant changes were made:
a) In Table 1, the following alloys were deleted:
1) EN AB-21200 [EN AB-Al Cu4MnMg];
2) EN AB-43100 [EN AB-Al Si10Mg(b)].
b) In Table 1, the following new alloys were added:
1) EN AB-42300 [EN AB-Al Si7(Mg)];
2) EN AB-42400 [EN AB-Al Si7MnMg];
3) EN AB-44600 [EN AB-Al Si10Mn];
4) EN AB-45600 [EN AB-Al Si7Cu1Mg0,6];
5) EN AB-47200 [EN AB-Al Si12(Fe)];
6) EN AB-48200 [EN AB-Al Si15Cu3MgFe].
c) In Table 1, the maximum limit for lead was reduced to 0,29 %.
d) In Table 1, the chemical composition limits of the alloys EN AB-43000 [EN AB-Al Si10Mg], EN AB-
43300 [EN AB-Al Si9Mg] and EN AB-51300 [EN AB-AlMg5] were modified.
e) In Table 1, footnotes were added and modified.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
1 Scope
This document defines the requirements for grades of alloyed aluminium ingots intended for remelting.
It specifies the classifications and designations applicable to these grades, the conditions in which they
are produced, their properties and the marks by which they are identified.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1780-1, Aluminium and aluminium alloys — Designation of alloyed aluminium ingots for remelting,
master alloys and castings — Part 1: Numerical designation system
EN 1780-2, Aluminium and aluminium alloys — Designation of alloyed aluminium ingots for remelting,
master alloys and castings — Part 2: Chemical symbol based designation system
EN 1780-3, Aluminium and aluminium alloys — Designation of alloyed aluminium ingots for remelting,
master alloys and castings — Part 3: Writing rules for chemical composition
EN 12258-1:2012, Aluminium and aluminium alloys — Terms and definitions — Part 1: General terms
EN 14242, Aluminium and aluminium alloys — Chemical analysis — Inductively coupled plasma optical
emission spectral analysis
EN 14361, Aluminium and aluminium alloys — Chemical analysis — Sampling from metal melts
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 12258-1:2012 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp/ui
3.1
alloy
substance having metallic properties and composed of two or more elements so combined that they
cannot readily be separated by physical means
[SOURCE: EN 12258-1:2012, 2.2.1]
3.2
alloying element
metallic or non-metallic element which is controlled within specific upper limits and lower limits for the
purpose of giving the aluminium alloy certain special properties
[SOURCE: EN 12258-1:2012, 2.2.3]
3.3
impurity
metallic or non-metallic element present in a metal, the minimum content of which is not controlled
Note 1 to entry: Typically, the maximum concentration of an impurity in aluminium is controlled.
Note 2 to entry: Impurities are not intentionally added to the melt.
[SOURCE: EN 12258-1:2012, 2.2.4]
3.4
casting alloy
alloy primarily intended for the production of castings
[SOURCE: EN 12258-1:2012, 2.2.5]
3.5
ingot for remelting
remelt ingot
ingot intended and suitable for remelting
Note 1 to entry: Large ingots for remelting, typically having a mass of about 500 kg, are often called “sows”.
Note 2 to entry: Small ingots for remelting typically having a mass of less than 25 kg, are often called “pigs”.
[SOURCE: EN 12258-1:2012, 2.4.4]
3.6
casting
product at or near finished shape, formed by solidification of the metal in a mould or a die
[SOURCE: EN 12258-1:2012, 2.5.1]
3.7
melt
quantity of molten metal that has simultaneously undergone the same preparatory treatment in the
furnace before the casting operation
[SOURCE: EN 12258-1:2012, 4.1.3]
3.8
order document
document or set of documents to which supplier and purchaser agreed at the time of ordering
Note 1 to entry: An ordering document can be an order of the purchaser confirmed by the supplier or a
quotation of the supplier confirmed by the purchaser.
[SOURCE: EN 12258-1:2012, 3.11.10]
4 Ordering information
The order document shall define the product required and shall contain the following information:
a) designation of the aluminium alloy according to this document (or the purchaser code after
agreement between the supplier and the purchaser);
b) form of the product;
c) quantity:
1) mass (in metric tonnes);
2) tolerance quantity, if required;
d) any requirements for certificates of conformity, test and/or analysis reports or inspection
certificates;
e) any additional requirements agreed between the supplier and the purchaser, such as metallurgical
structure, samples, delivery details, etc.
5 Requirements
5.1 Production and manufacturing processes
Unless otherwise specified in the order document, the production and manufacturing processes shall be
left to the discretion of the producer.
Unless it is explicitly stated in the order document, no obligation shall be placed on the manufacturer to
use the same processes for subsequent and similar orders. However, the supplier should inform the
purchaser of any change that could affect the quality of the ingots or the final products.
5.2 Quality control
The supplier shall be responsible for carrying out all inspection and tests required by the relevant
European Standard and/or the particular specification, prior to shipment of the product. If the
purchaser wishes to inspect the product at the supplier's works, he shall stipulate this at the time of
placing the order.
5.3 Chemical composition
Each grade of alloyed aluminium ingot for remelting shall be in accordance with the designations and
chemical composition specified in Table 1.
NOTE For unalloyed aluminium ingots, see EN 576.
For alloys that are not in Table 1, the writing rules for designations and chemical compositions, as
specified in EN 1780-1, EN 1780-2 and EN 1780-3, shall be applied.
If the purchaser requires content limits for elements not specified in this document, these limits shall be
stated on the order document, after agreement between supplier and purchaser.
Table 1 — Chemical composition of ingots
Expressed in percentage by mass
a e
Alloy designation
Others
i d
Alloy Group Si Fe Cu Mn Mg Cr Ni Zn Sn Aluminium
Pb Ti
i
Numerical Chemical symbols Total
Each
0,20 to 0,15 to
0,15 0,30 4,2 to 0,35 0,25
EN AB-21000 EN AB-Al Cu4MgTi 0,10 — 0,05 0,10 0,05 0,05 0,03 0,10 Remainder
5,0
(0,20) (0,35) (0,15 to (0,15 to
0,35) 0,30)
AlCu
0,15 to
0,15 0,15 4,2 to 0,25
EN AB-21100 EN AB-Al Cu4Ti 0,55 — — — 0,07 — — 0,03 0,10 Remainder
(0,18) (0,19) 5,2 (0,15 to
0,30)
0,50 to 0,07 to
0,50 0,08 0,65 0,15
0,30 to
AlSiMgTi EN AB-41000 EN AB-Al Si2MgTi 1,6 to 2,4 — 0,05 0,10 0,05 0,05 0,05 0,15 Remainder
(0,60) (0,10) 0,50 (0,45 to (0,05 to
0,65) 0,20)
0,25 to
f
0,45 0,15 0,65
0,20
EN AB-42000 EN AB-Al Si7Mg 6,5 to 7,5 0,35 — 0,15 0,15 0,15 0,05 0,05 0,15 Remainder
(0,20 to
(0,55) (0,20)
(0,25)
0,65)
0,30 to
f
0,15 0,03 0,45
0,18
EN AB-42100 EN AB-Al Si7Mg0,3 6,5 to 7,5 0,10 — — 0,07 — — 0,03 0,10 Remainder
(0,19) (0,05) (0,25 to
(0,25)
0,45)
0,50 to
f
0,15 0,03 0,70
0,18
AlSi7Mg EN AB-42200 EN AB-Al Si7Mg0,6 6,5 to 7,5 0,10 — — 0,07 — — 0,03 0,10 Remainder
(0,19) (0,05) (0,45 to
(0,25)
0,
...
