EN 573-3:2019
(Main)Aluminium and aluminium alloys - Chemical composition and form of wrought products - Part 3: Chemical composition and form of products
Aluminium and aluminium alloys - Chemical composition and form of wrought products - Part 3: Chemical composition and form of products
This document specifies the chemical composition limits of wrought aluminium and wrought aluminium alloys and form of products.
NOTE The chemical composition limits of aluminium and aluminium alloys specified herein are completely identical with those registered with the Aluminium Association, 1525, Wilson Boulevard, Suite 600, Arlington, VA 22209, USA, for the corresponding alloys.
Aluminium und Aluminiumlegierungen - Chemische Zusammensetzung und Form von Halbzeug - Teil 3: Chemische Zusammensetzung und Erzeugnisformen
Dieses Dokument legt die Grenzwerte für die chemische Zusammensetzung von Aluminium und Aluminium-Knetlegierungen und die Erzeugnisformen fest.
ANMERKUNG Die hier festgelegten Grenzwerte für die chemische Zusammensetzung von Aluminium und Aluminiumlegierungen stimmen völlig mit den entsprechenden Legierungen überein, die bei der Aluminium Association, 1525, Wilson Boulevard, Suite 600, Arlington, VA 22209, USA, registriert sind.
Aluminium et alliages d'aluminium - Composition chimique et forme des produits corroyés - Partie 3 : Composition chimique et forme des produits
Le présent document spécifie les limites de composition chimique des aluminiums et alliages d’aluminium corroyés et les formes de produits.
NOTE Les limites de composition chimique de l’aluminium et des alliages d’aluminium spécifiées ici sont strictement identiques à celles enregistrées auprès de l’Aluminium Association, 1525 Wilson Boulevard, Suite 600, Arlington, VA 22209, États-Unis, pour les alliages correspondants.
Aluminij in aluminijeve zlitine - Kemična sestava in oblika gnetenih izdelkov - 3. del: Kemična sestava in oblika izdelkov
Ta dokument določa mejne vrednosti kemične sestave kovanega aluminija in kovanih aluminijevih zlitin ter obliko izdelkov.
OPOMBA: Omejitve kemijske sestave aluminija in aluminijevih zlitin, navedene v tem dokumentu, so popolnoma enake omejitvam, ki so za ustrezne zlitine registrirane pri združenju Aluminium Association, 1525, Wilson Boulevard, Suite 600, Arlington, VA 22209, ZDA.
General Information
Relations
Standards Content (Sample)

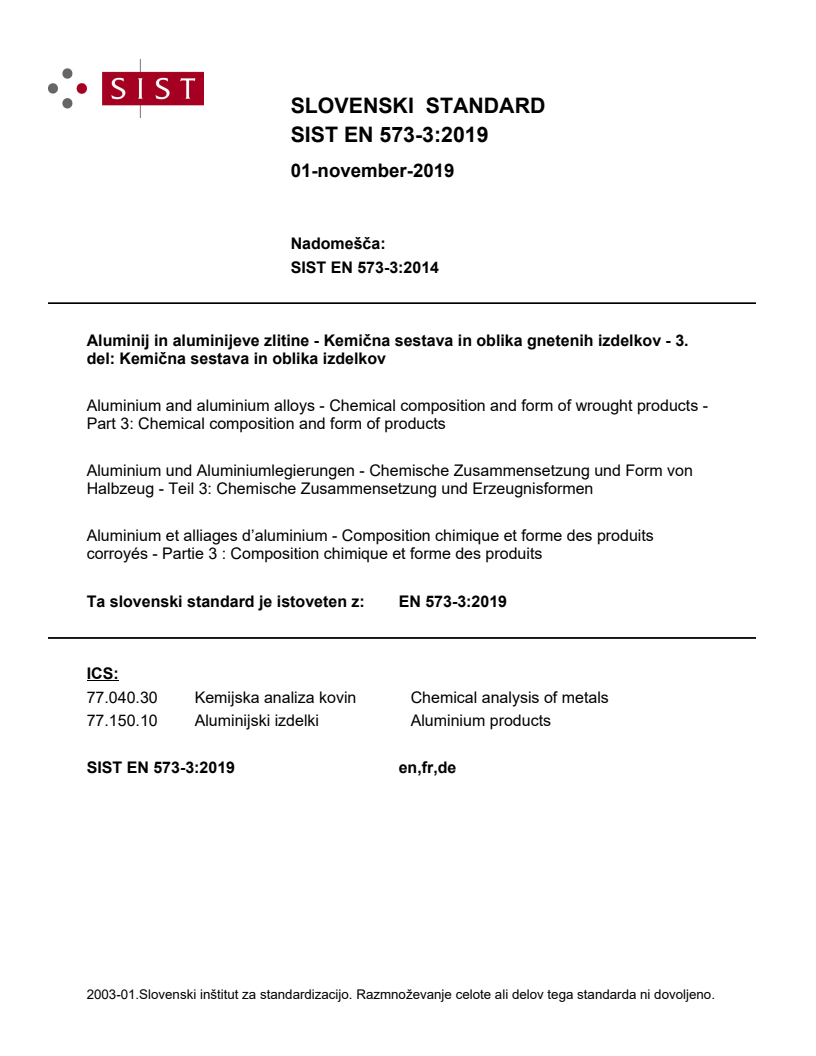

SLOVENSKI STANDARD
01-november-2019
Nadomešča:
SIST EN 573-3:2014
Aluminij in aluminijeve zlitine - Kemična sestava in oblika gnetenih izdelkov - 3.
del: Kemična sestava in oblika izdelkov
Aluminium and aluminium alloys - Chemical composition and form of wrought products -
Part 3: Chemical composition and form of products
Aluminium und Aluminiumlegierungen - Chemische Zusammensetzung und Form von
Halbzeug - Teil 3: Chemische Zusammensetzung und Erzeugnisformen
Aluminium et alliages d’aluminium - Composition chimique et forme des produits
corroyés - Partie 3 : Composition chimique et forme des produits
Ta slovenski standard je istoveten z: EN 573-3:2019
ICS:
77.040.30 Kemijska analiza kovin Chemical analysis of metals
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

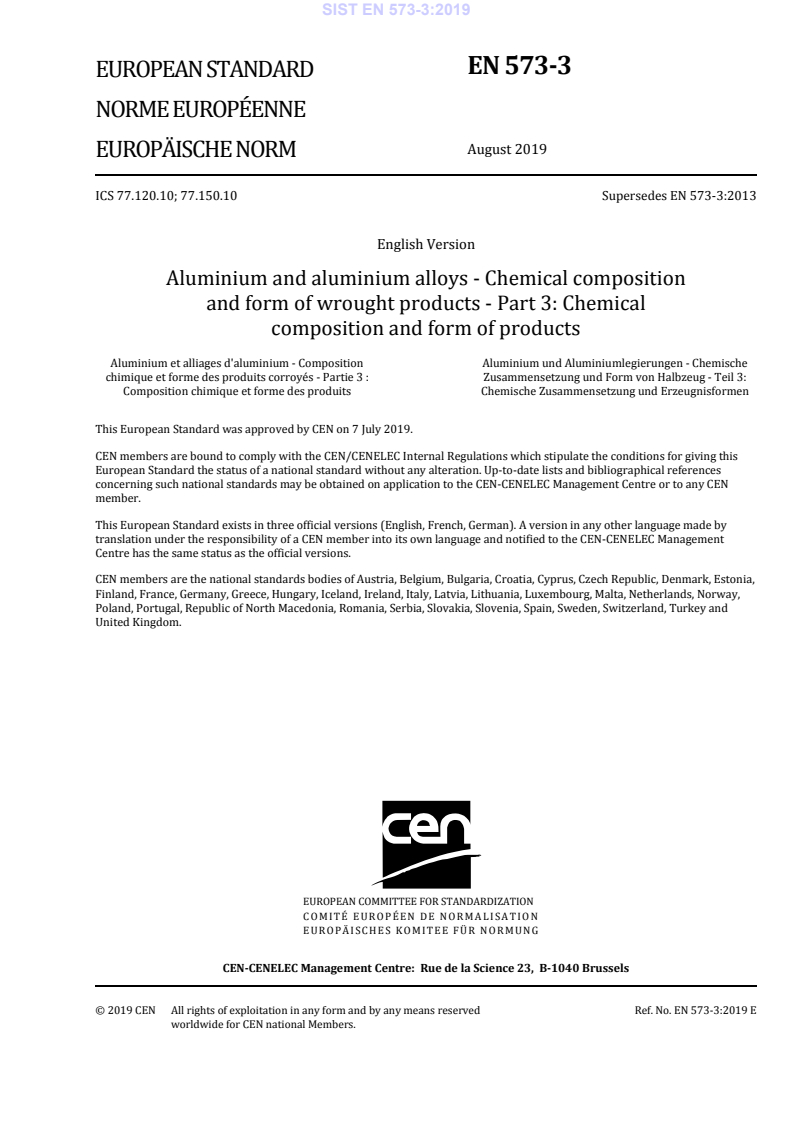

EN 573-3
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2019
EUROPÄISCHE NORM
ICS 77.120.10; 77.150.10 Supersedes EN 573-3:2013
English Version
Aluminium and aluminium alloys - Chemical composition
and form of wrought products - Part 3: Chemical
composition and form of products
Aluminium et alliages d'aluminium - Composition Aluminium und Aluminiumlegierungen - Chemische
chimique et forme des produits corroyés - Partie 3 : Zusammensetzung und Form von Halbzeug - Teil 3:
Composition chimique et forme des produits Chemische Zusammensetzung und Erzeugnisformen
This European Standard was approved by CEN on 7 July 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 573-3:2019 E
worldwide for CEN national Members.

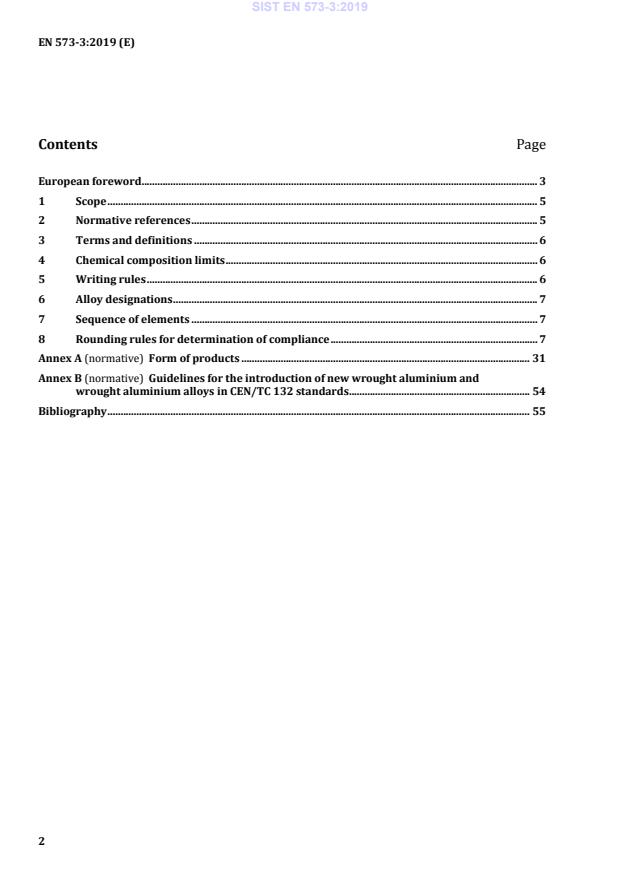

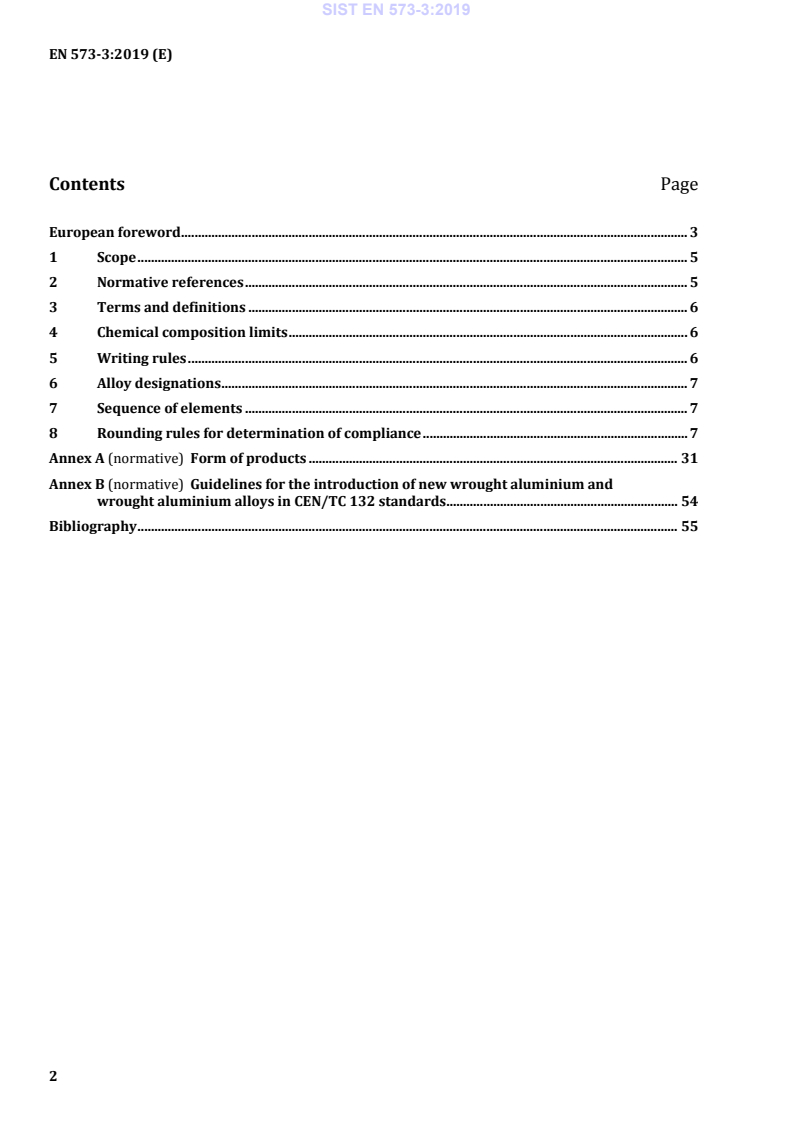

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Chemical composition limits . 6
5 Writing rules . 6
6 Alloy designations . 7
7 Sequence of elements . 7
8 Rounding rules for determination of compliance . 7
Annex A (normative) Form of products . 31
Annex B (normative) Guidelines for the introduction of new wrought aluminium and
wrought aluminium alloys in CEN/TC 132 standards . 54
Bibliography . 55
European foreword
This document (EN 573-3:2019) has been prepared by Technical Committee CEN/TC 132 “Aluminium
and aluminium alloys”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2020, and conflicting national standards
shall be withdrawn at the latest by February 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document will supersede EN 573-3:2013.
Within its programme of work, Technical Committee CEN/TC 132 entrusted CEN/TC 132/WG 5
“Extruded and drawn products” to revise EN 573-3:2013.
CEN/TC 132 has decided to revise this document as follows:
— addition of the alloy EN AW-2016 in Table 2 and A.2;
— addition of the alloy EN AW-4025 in Tables 4 and A.4;
— addition of the alloy EN AW-6050 in Tables 6 and A.6;
— addition of the alloy EN AW-5018B in Tables 5 and A.5;
— addition of the alloy EN AW-8026 in Table 8 and A.8;
— correction of the alloy EN AW-5449 in Table 5;
— correction of the alloy EN AW-6064A in Table 6;
— modification of the order of alloys to conform with Aluminium Association System.
EN 573 comprises the following parts under the general title Aluminium and aluminium alloys —
Chemical composition and form of wrought products:
— Part 1: Numerical designation system;
— Part 2: Chemical symbol based designation system;
— Part 3: Chemical composition and form of products;
— Part 4: Forms of products;
— Part 5: Codification of standardized wrought products.
CEN/TC 132 affirms its policy that if a patentee refuses to grant licenses on standardized products
under reasonable and not discriminatory conditions, this product will be removed from the
corresponding document.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
1 Scope
This document specifies the chemical composition limits of wrought aluminium and wrought
aluminium alloys and form of products.
NOTE The chemical composition limits of aluminium and aluminium alloys specified herein are completely
identical with those registered with the Aluminium Association, 1525, Wilson Boulevard, Suite 600, Arlington,
VA 22209, USA, for the corresponding alloys.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 485-2, Aluminium and aluminium alloys — Sheet, strip and plate – Part 2: Mechanical properties
EN 541, Aluminium and aluminium alloys — Rolled products for cans, closures and lids — Specifications
EN 546-2, Aluminium and aluminium alloys — Foil — Part 2: Mechanical properties
EN 570, Aluminium and aluminium alloys — Impact extrusion slugs obtained from wrought products —
Specification
EN 573-2, Aluminium and aluminium alloys — Chemical composition and form of wrought products —
Part 2: Chemical symbol based designation system
EN 586-2, Aluminium and aluminium alloys — Forgings — Part 2: Mechanical properties and additional
property requirements
EN 602, Aluminium and aluminium alloys — Wrought products — Chemical composition of semi-finished
products used for the fabrication of articles for use in contact with foodstuff
EN 603-2, Aluminium and aluminium alloys — Wrought forging stock — Part 2: Mechanical properties
EN 683-2, Aluminium and aluminium alloys — Finstock — Part 2: Mechanical properties
EN 754-2, Aluminium and aluminium alloys — Cold drawn rod/bar and tube — Part 2: Mechanical
properties
EN 755-2, Aluminium and aluminium alloys — Extruded rod/bar, tube and profiles — Part 2: Mechanical
properties
EN 1301-2, Aluminium and aluminium alloys — Drawn wire — Part 2: Mechanical properties
EN 1592-2, Aluminium and aluminium alloys — HF seam welded tubes — Part 2: Mechanical properties
EN 1715-2, Aluminium and aluminium alloys — Drawing stock — Part 2: Specific requirements for
electrical applications
EN 1715-3, Aluminium and aluminium alloys — Drawing stock — Part 3: Specific requirements for
mechanical uses (excluding welding)
EN 1715-4, Aluminium and aluminium alloys — Drawing stock — Part 4: Specific requirements for
welding applications
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
4 Chemical composition limits
The chemical composition of aluminium and aluminium alloys is specified in percentage by mass in
Tables 1 to 8. Limits of impurities are expressed as a maximum; limits of alloying elements shown as a
range. Aluminium is specified as a minimum for unalloyed aluminium, and as a remainder for
aluminium alloys.
The chemical composition of internationally registered wrought aluminium and wrought aluminium
alloys not listed in this document can be found in Teal sheet [1].
Analysis shall be made for elements which are specified, for example Pb, Sn, Bi, Sb, Zr.
5 Writing rules
5.1 Standard limits for alloying elements and impurities are expressed in percentage by mass to the
following decimal places:
— less than 0,001 % 0,000X;
— 0,001 % but less than 0,01 % 0,00X;
— 0,01 % but less than 0,10 %:
— unalloyed aluminium made by a refining process 0,0XX;
— others 0,0X;
— 0,10 % to 0,55 % 0,XX;
— over 0,55 % 0,X; X,X; XX,X.
Exception: combined Si + Fe limits for 1xxx designations shall be expressed as 0,XX or 1,XX.
5.2 The aluminium content for unalloyed aluminium made by a refining process is the difference
between 100,00 % and the sum of all other metallic elements present in amounts of 0,001 0 % or more
each, expressed to the third decimal place before determining the sum, which is rounded to the second
decimal place before subtracting.
For unalloyed aluminium not made by a refining process, the aluminium content is the difference
between 100,00 % and the sum of all other metallic elements present in amounts of 0,010 % or more
each expressed to the second decimal place before determining the sum.
6 Alloy designations
The numerical designation systems used in Teal sheets and European Standards for wrought aluminium
alloys are identical. As specified in EN 573-1 [3] the prefix EN AW- is added.
The alternative chemical symbol based alloy designation system shall be based on EN 573-2.
Both the numerical and the chemical symbol based designations are indicated in Tables 1 to 8.
The International numerical system is the preferred one. The chemical symbol based designations are
indicated for reference only.
7 Sequence of elements
Standard limits for alloying elements and impurities are expressed in the following sequence: silicon,
iron, copper, manganese, magnesium, chromium, nickel, zinc, titanium, gallium, vanadium, remarks,
other elements each, other elements total, aluminium.
Limits of additional specified elements are inserted in alphabetical order of their chemical symbols
under “Remarks”.
8 Rounding rules for determination of compliance
In recording chemical analysis test results, the number representing the result for any element specified
in this standard shall be expressed to the same number of decimal places as the corresponding number
in this standard. For unalloyed aluminium, the aluminium content is derived as described in 5.2.
The following rounding rules shall be used for determination of compliance with this standard:
a) when the figure immediately after the last figure to be retained is less than 5, the last figure to be
retained remains unchanged;
b) when the figure immediately after the last figure to be retained is greater than 5, or equal to 5 and
followed by at least one figure other than zero, the last figure to be retained is increased by one;
c) when the figure immediately after the last figure to be retained is equal to 5 and followed by zeros
only, the last figure to be retained remains unchanged if even and is increased by one if odd.
Table 1 — Aluminium — 1 000 series
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical Total
Numerical Each min.
symbols b
EN AW- EN AW-Al
c
0,25 0,40 0,05 0,05 0,05 - - 0,07 0,05 - - - 0,03 -
99,50
1050A 99,
...
