EN 4106:2013

Aerospace series - Non-metallic materials - Structural adhesive systems - Paste adhesive - Technical specification

This European Standard defines the requirements for manufacture, qualification, inspection and testing of products in structural adhesive systems where the adhesive is supplied in the form of a paste, either a one part or two part system, for aerospace applications. The adhesive may be used in conjunction with a primer whose requirements are also included in this European Standard. It is applicable whenever referenced on a material standard.

Luft- und Raumfahrt - Nichtmetallische Werkstoffe - Strukturelle Klebstoffsysteme - Klebstoffpaste - Technische Lieferbedingungen

Diese Europäische Norm legt die Anforderungen für die Herstellung, Qualifikation und Prüfung von Produkten in strukturellen Klebstoffsystemen fest, bei denen der Klebstoff in Form einer Paste vorliegt, entweder als Ein- oder Zweikomponentensystem, zur Anwendung in der Luft- und Raumfahrt. Der Klebstoff kann in Verbindung mit einem Haftgrundmittel verwendet werden, für den die Anforderungen ebenfalls in dieser Norm enthalten sind. Sie ist immer dann anzuwenden, wenn in einer Werkstoffnorm auf sie verwiesen wird.

Série aérospatiale - Matériaux non-métalliques - Systèmes d’adhésifs structuraux - Adhésif en pâte - Spécification technique

La présente Norme européenne définit les exigences relatives à la fabrication, la qualification, le contrôle et les essais de produits dans les systèmes d’adhésifs structuraux, systèmes en une seule ou en deux parties, lorsque l’adhésif est fourni sous forme de pâte, pour les applications aérospatiales. L’adhésif peut être utilisé conjointement avec le primaire dont les exigences sont aussi incluses dans la présente Norme européenne. Elle s’applique chaque fois qu’elle est citée en référence dans une norme de matériau.

Aeronavtika - Nekovinski materiali - Strukturni adhezivni sistemi - Sistemi za lepljenje struktur - Tehnična specifikacija

General Information

• Status: Published
• Publication Date: 22-Jan-2013
• Withdrawal Date: 30-Jul-2013
• ICS: 49.025.50 - Adhesives
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4/S 8 - Thermoplastics
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 23-Jan-2013
• Completion Date: 23-Jan-2013
• Ref Project: SIST EN 4106:2014 - Aerospace series - Non-metallic materials - Structural adhesive systems - Paste adhesive - Technical specification

Overview

EN 4106:2013 - “Aerospace series - Non‑metallic materials - Structural adhesive systems - Paste adhesive - Technical specification” (CEN) defines procurement, manufacture, qualification, inspection and testing requirements for paste structural adhesive systems used in aerospace. It covers both one‑part and two‑part paste adhesives and the associated primers, and is applicable whenever referenced by a material standard. Prepared under ASD‑STAN and published by CEN, EN 4106:2013 is part of the EN non‑metallic materials series (level 3) and links to overall organisation guidance in EN 4385.

Key topics

• Scope & definitions: Terms such as batch, shelf life, shop life, pot life, primer, filler and adhesive system are defined to ensure consistent use in aerospace material standards.
• Manufacturing & traceability: Requires a documented manufacturing schedule, full traceability to raw material batches and conformity with EN 9133 (qualification of standard parts) and EN 9100 (quality systems).
• Product quality: Criteria for freedom from defects, uniform colour, absence of lumps/contaminants, and primer/adhesive mixing behavior.
• Shelf life / shop life / pot life: Specifies that adhesives and primers must meet property requirements throughout declared shelf and shop life when stored under specified conditions.
• Qualification & testing: Mandatory manufacturer qualification programs supervised by a mandated body; full, reduced and re‑qualification routes described. Relevant test methods referenced include EN 2243 series (single lap shear, peel, shear stress/strain), EN 6040/6041/6064 (HPLC, DSC), EN 6042 (IR), EN 2757/2781 (primer tests), density/viscosity/flashpoint standards and other aerospace test methods.
• Release testing & sampling: Batch release testing is the manufacturer’s responsibility. Sampling rules are defined (e.g., primer elementary units of 40 L, paste adhesive elementary units of 250 L) and purchasers may witness tests.

Applications

• Selection, procurement and certification of structural paste adhesives and primers for aircraft and aerospace structures.
• Use in bonded primary or secondary structural joints where paste adhesives are specified by material or project standards.
• Basis for supplier quality agreements, qualification dossiers, and acceptance testing for aircraft OEMs, Tier‑1 suppliers and material manufacturers.

Who should use this standard

• Aerospace adhesive manufacturers and formulators
• Material engineers and specification writers at OEMs and subcontractors
• Quality, procurement and certification teams responsible for material qualification and batch release
• Test laboratories performing aerospace adhesive qualification and release tests

Related standards

Relevant cross‑references include EN 4385, EN 9133, EN 9100, EN 2243 series, EN 6040/6041/6042/6064, EN 2757, EN 2781, ISO Guide 22 and TR 7000‑6. Use EN 4106:2013 alongside applicable material standards that reference it.

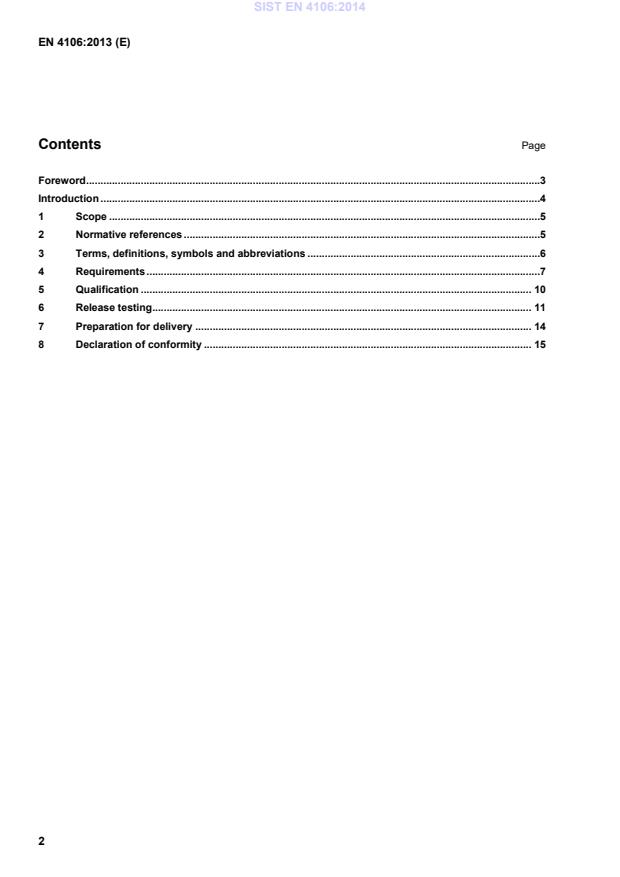

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Nichtmetallische Werkstoffe - Strukturelle Klebstoffsysteme - Klebstoffpasten - Technische LieferbedingungenSérie aérospatiale - Matériaux non-métalliques - Systèmes d’adhésifs structuraux - Adhésif en pâte - Spécification techniqueAerospace series - Non-metallic materials - Structural adhesive systems - Paste adhesive - Technical specification49.025.50LepilaAdhesivesICS:Ta slovenski standard je istoveten z:EN 4106:2013SIST EN 4106:2014en01-februar-2014SIST EN 4106:2014SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4106
January 2013 ICS 49.025.50 English Version
Aerospace series - Non-metallic materials - Structural adhesive systems - Paste adhesive - Technical specification
Série aérospatiale - Matériaux non-métalliques - Systèmes d'adhésifs structuraux - Adhésif en pâte - Spécification technique
Luft- und Raumfahrt - Nichtmetallische Werkstoffe - Strukturelle Klebstoffsysteme - Klebstoffpasten - Technische Lieferbedingungen This European Standard was approved by CEN on 10 November 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4106:2013: ESIST EN 4106:2014

EN 2379, Aerospace series — Fluids for assessment of non-metallic materials 1) EN 2757, Aerospace series — Structural adhesives system — Test method — Determination of the drying and ignition residues of primers EN 2781, Aerospace series — Non-metallic materials — Structural adhesives — Test methods — Determination of the primer thickness EN 4385, Aerospace series — Non-metallic materials — General organisation of standardisation — Links between types of standards 1) EN 4387, Aerospace series — Non-metallic materials — Rules for drafting and presentation of technical specifications 1) EN 6040, Aerospace series — Non-metallic materials — Test method — Analysis of thermoset systems by High Performance Liquid Chromatography (HPLC) 1) EN 6041, Aerospace series — Non-metallic materials — Test method — Analysis of non-metallic materials (uncured) by Differential Scanning Calorimetry (DSC) 1) EN 6042, Aerospace series — Organic compounds — Test method — Analysis by infrared spectroscopy 1) EN 6064, Aerospace series — Non-metallic materials — Analysis of non-metallic materials (cured) for the determination of the extent of cure by Differential Scanning Calorimetry (DSC) 1)
1) Published as ASD-STAN Prestandard at the date of publication of this standard (www.asd-stan.org). SIST EN 4106:2014

2) Published as ASD-STAN Technical Report at the date of publication of this standard (www.asd-stan.org). SIST EN 4106:2014
...
