Chimneys - Concrete System Chimneys - Part 2: Balanced flue applications

This European Standard specifies the materials, dimensional and performance requirements for straight concrete system chimneys for balanced flue applications comprising a concrete flue liner and a combustion air supply duct, and a combination of compatible chimney components, which may be concrete flue blocks (see Clause 4), obtained or specified from one manufacturing source with product responsibility for the whole chimney.
The European Standard does not apply to concrete system chimneys with back ventilation.
This European Standard does not cover products designated wet (W) in conjunction with corrosion class 3.
This European Standard also applies to concrete system chimneys constructed from storey-height elements and flue blocks reinforced for handling.
This European Standard does not apply to structurally independent (free standing or self-supporting) system chimneys.
NOTE   Any reference to the term flue blocks implies both flue blocks and their fittings, except where otherwise indicated.

Abgasanlagen - System-Abgasanlagen aus Beton - Teil 2: Luft-Abgas-Systeme

Diese Europäische Norm legt die Anforderungen an Werkstoffe, Abmessungen und die Leistungsfähigkeit von geraden Luft-Abgas-Systemen aus Beton fest, welche aus einem Betoninnenrohr, einem Verbrennungsluftschacht und einer Kombination von aufeinander abgestimmten Abgasanlagenbauteilen bestehen, bei denen es sich um Betonformblöcke (siehe Abschnitt 4) handeln kann, die von einem Hersteller bezogen oder definiert werden, der die Produkthaftung für die gesamte Abgasanlage übernimmt.
Die Europäische Norm gilt nicht für hinterlüftete System-Abgasanlagen aus Beton.
Diese Europäische Norm gilt nicht für Produkte, die in Verbindung mit Korrosionswiderstandsklasse 3 mit feucht (W) gekennzeichnet sind.
Diese Europäische Norm gilt außerdem für System-Abgasanlagen aus Beton, die aus geschosshohen Elementen und mit einer Transportbewehrung versehenen Formblöcken gebaut sind.
Diese Europäische Norm gilt nicht für baulich unabhängige (freistehende oder selbsttragende) System-Abgasanlagen.
ANMERKUNG   Sämtliche Verweisungen auf den Begriff "Formblöcke" beziehen sich in dieser Norm immer sowohl auf Formblöcke als auch auf ihre Formstücke, außer wenn es anders angegeben ist.

Conduits de fumée - Conduits-Systèmes de fumée en béton - Partie 2: Applications équilibrées

Le présent document spécifie les exigences relatives aux matériaux, aux dimensions et aux performances des conduits-systèmes de fumée droits en béton pour applications équilibrées comprenant un conduit intérieur en béton, un conduit d’alimentation en air comburant et des éléments manufacturés compatibles, qui peuvent être des conduits simple et multiparois en béton (voir 4), fabriqués ou spécifiés par un seul fabricant, responsable de la totalité du conduit de fumée.
Le présent document ne s’applique qu’aux conduits-systèmes de fumée ventilés par l’extérieur.
Le présent document ne couvre pas les produits désignés « humides » (W) associés à la classe de corrosion 3.
Le présent document couvre également les conduit-systèmes de fumée hauteur d’étage et les conduits armés pour la manutention.
Le présent document ne s’applique pas aux conduits-systèmes de fumée structurellement indépendants (libres ou autoportants).
NOTE   Toute référence au terme « conduit de fumée » implique l’ensemble des conduits et leurs accessoires, sauf indication contraire.

Dimovodne naprave - Betonske sistemske dimovodne naprave - 2. del: Tlačno izravnan sistem

Ta evropski standard določa materiale, mere in zahtevane lastnosti za ravne sistemske dimnike iz betona za tlačno izravnane dimniške sisteme, ki vključujejo betonske tuljave in cev za dovod zraka za izgorevanje ter kombinacijo združljivih sestavnih delov dimnikov, ki so lahko betonske tuljave (glej točko 4), pridobljene od enega proizvodnega vira, proizvodno odgovornega za celoten dimnik, ali ki jih določi ta vir.
Standard se ne uporablja za betonske sistemske dimnike s povratnim prezračevanjem.
Ta standard ne zajema mokrih (W) označenih proizvodov skupaj s korozijskim razredom 3.
Ta evropski standard se uporablja tudi za betonske sistemske dimnike iz elementov za etažno višino in tuljav, ojačanih za namene rokovanja.
OPOMBA:   Vsa sklicevanja na izraz tuljava pomenijo tuljave in njihove fitinge, razen če je navedeno drugače.

General Information

Status
Published
Publication Date
07-Mar-2017
Current Stage
9020 - Submission to 2 Year Review Enquiry - Review Enquiry
Due Date
15-Apr-2022
Completion Date
15-Apr-2022

Buy Standard

Standard
EN 16497-2:2017
English language
48 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Abgasanlagen - System-Abgasanlagen aus Beton - Teil 2: Raumluftunabhängige AnwendungenConduits de fumée - Conduits-systèmes de fumée en béton - Partie 2: Applications équilibréesChimneys - Concrete System Chimneys - Part 2: Balanced flue applications91.100.30Beton in betonski izdelkiConcrete and concrete products91.060.40Dimniki, jaški, kanaliChimneys, shafts, ductsICS:Ta slovenski standard je istoveten z:EN 16497-2:2017SIST EN 16497-2:2017en,fr,de01-maj-2017SIST EN 16497-2:2017SLOVENSKI

STANDARD
SIST EN 16497-2:2017
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16497-2
March
t r s y ICS
{ sä r x rä v r English Version
Chimneys æ Concrete System Chimneys æ Part

tã Balanced flue applications Conduits de fumée æ ConduitsæSystèmes de fumée en béton æ Partie

tã Applications équilibrées
Abgasanlagen æ SystemæAbgasanlagen aus Beton æ Teil
tã LuftæAbgasæAnlagen This European Standard was approved by CEN on
t z November
t r s xä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels

t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s x v { yæ tã t r s y ESIST EN 16497-2:2017
EN 16497-2:2017 (E) 2

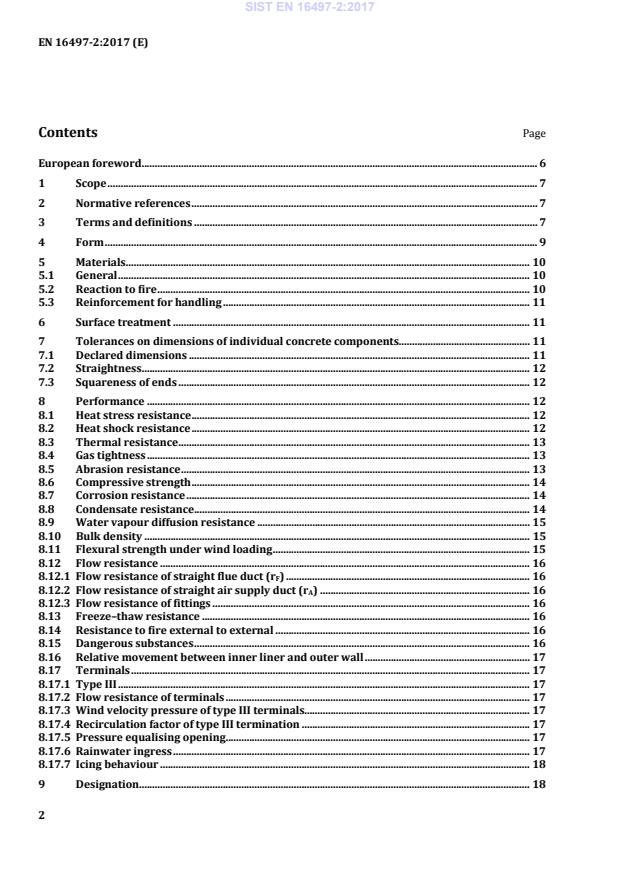

Contents Page European foreword ....................................................................................................................................................... 6 1 Scope .................................................................................................................................................................... 7 2 Normative references .................................................................................................................................... 7 3 Terms and definitions ................................................................................................................................... 7 4 Form ..................................................................................................................................................................... 9 5 Materials .......................................................................................................................................................... 10 5.1 General ............................................................................................................................................................. 10 5.2 Reaction to fire .............................................................................................................................................. 10 5.3 Reinforcement for handling ..................................................................................................................... 11 6 Surface treatment ........................................................................................................................................ 11 7 Tolerances on dimensions of individual concrete components.................................................. 11 7.1 Declared dimensions .................................................................................................................................. 11 7.2 Straightness .................................................................................................................................................... 12 7.3 Squareness of ends ...................................................................................................................................... 12 8 Performance .................................................................................................................................................. 12 8.1 Heat stress resistance ................................................................................................................................. 12 8.2 Heat shock resistance ................................................................................................................................. 12 8.3 Thermal resistance ...................................................................................................................................... 13 8.4 Gas tightness .................................................................................................................................................. 13 8.5 Abrasion resistance ..................................................................................................................................... 13 8.6 Compressive strength ................................................................................................................................. 14 8.7 Corrosion resistance ................................................................................................................................... 14 8.8 Condensate resistance ................................................................................................................................ 14 8.9 Water vapour diffusion resistance ........................................................................................................ 15 8.10 Bulk density ................................................................................................................................................... 15 8.11 Flexural strength under wind loading .................................................................................................. 15 8.12 Flow resistance ............................................................................................................................................. 16 8.12.1 Flow resistance of straight flue duct (rF) ............................................................................................. 16 8.12.2 Flow resistance of straight air supply duct (rA) ................................................................................ 16 8.12.3 Flow resistance of fittings ......................................................................................................................... 16 8.13 Freeze–thaw resistance ............................................................................................................................. 16 8.14 Resistance to fire external to external ................................................................................................. 16 8.15 Dangerous substances ................................................................................................................................ 16 8.16 Relative movement between inner liner and outer wall ............................................................... 17 8.17 Terminals ........................................................................................................................................................ 17 8.17.1 Type III ............................................................................................................................................................. 17 8.17.2 Flow resistance of terminals .................................................................................................................... 17 8.17.3 Wind velocity pressure of type III terminals...................................................................................... 17 8.17.4 Recirculation factor of type III termination ....................................................................................... 17 8.17.5 Pressure equalising opening .................................................................................................................... 17 8.17.6 Rainwater ingress ........................................................................................................................................ 17 8.17.7 Icing behaviour ............................................................................................................................................. 18 9 Designation..................................................................................................................................................... 18 SIST EN 16497-2:2017

EN 16497-2:2017 (E) 3 9.1 General ............................................................................................................................................................. 18 9.2 Temperature class ........................................................................................................................................ 18 9.3 Pressure class ................................................................................................................................................ 19 9.4 Resistance to condensate class ................................................................................................................ 19 9.5 Corrosion resistance class ......................................................................................................................... 20 9.6 Resistance to fire class ................................................................................................................................ 20 10 Marking ............................................................................................................................................................ 20 11 Product information .................................................................................................................................... 21 12 Assessment and verification of constancy of performance (AVCP) ............................................ 21 12.1 General ............................................................................................................................................................. 21 12.2 Initial type testing ........................................................................................................................................ 21 12.3 Further type tests ......................................................................................................................................... 21 12.4 Factory production control ....................................................................................................................... 22 Annex A (normative)

Test methods .................................................................................................................... 23 A.1 Squareness of ends test .............................................................................................................................. 23 A.1.1 Apparatus ........................................................................................................................................................ 23 A.1.2 First procedure .............................................................................................................................................. 25 A.1.3 Test result — first procedure ................................................................................................................... 25 A.1.4 Second procedure ......................................................................................................................................... 25 A.1.5 Test result — second procedure ............................................................................................................. 25 A.2 Straightness test ............................................................................................................................................ 25 A.2.1 Apparatus ........................................................................................................................................................ 25 A.2.2 Procedure ........................................................................................................................................................ 25 A.2.3 Test result ........................................................................................................................................................ 26 A.3 Thermal performance tests ...................................................................................................................... 26 A.4 Thermal resistance ...................................................................................................................................... 26 A.4.1 Test Method .................................................................................................................................................... 26 A.4.2 Test results ...................................................................................................................................................... 27 A.5 Gas tightness test .......................................................................................................................................... 27 A.5.1 Test Method .................................................................................................................................................... 27 A.5.2 Test result ........................................................................................................................................................ 27 A.6 Abrasion resistance test ............................................................................................................................. 27 A.6.1 Test Method .................................................................................................................................................... 27 A.6.2 Test result ........................................................................................................................................................ 27 A.7 Compressive strength test ......................................................................................................................... 27 A.7.1 Apparatus ........................................................................................................................................................ 27 A.7.2 Preparation of test sample ........................................................................................................................ 27 A.7.3 Test procedure .............................................................................................................................................. 28 A.7.4 Test result ........................................................................................................................................................ 28 SIST EN 16497-2:2017

EN 16497-2:2017 (E) 4

A.8 Corrosion and condensate resistance test .......................................................................................... 28 A.8.1 Test apparatus............................................................................................................................................... 28 A.8.2 Acid solution and test solution ................................................................................................................ 31 A.8.3 Test sample .................................................................................................................................................... 31 A.8.4 Conditioning ................................................................................................................................................... 31 A.8.5 Test procedure .............................................................................................................................................. 31 A.8.6 Test results ..................................................................................................................................................... 32 A.9 Water vapour diffusion resistance ........................................................................................................ 32 A.9.1 Test method ................................................................................................................................................... 32 A.9.2 Test results ..................................................................................................................................................... 32 A.10 Flexural strength under wind load ........................................................................................................ 32 A.10.1 Principle .......................................................................................................................................................... 32 A.10.2 Preparation of test specimen ................................................................................................................... 33 A.10.3 Test procedure .............................................................................................................................................. 33 A.10.4 Test result ....................................................................................................................................................... 33 A.11 Bulk density ................................................................................................................................................... 33 A.11.1 Apparatus ........................................................................................................................................................ 33 A.11.2 Procedure........................................................................................................................................................ 33 A.11.3 Test result ....................................................................................................................................................... 33 A.12 Ultimate compressive strength ............................................................................................................... 34 A.12.1 Test procedure .............................................................................................................................................. 34 A.12.2 Test result ....................................................................................................................................................... 34 Annex B (informative)

Examples of concrete flue block shapes .............................................................. 35 B.1 General ............................................................................................................................................................. 35 B.2 Multi-flued flue blocks ................................................................................................................................ 36 Annex C (normative)

Thermal resistance calculation method ................................................................. 37 C.1 Thermal resistance of the individual element .................................................................................. 37 C.2 Thermal resistance of the chimney and of enclosures ................................................................... 37 Annex D (normative)

Requirements of sampling plan according to ISO 2859-1:1999 at an Acceptable Quality Level (AQL) of 10 % and inspection level S2 ............................................... 38 D.1 Acceptability determination .................................................................................................................... 38 D.1.1 Single sampling ............................................................................................................................................. 38 D.1.2 Double sampling ........................................................................................................................................... 38 D.2 Normal inspection ........................................................................................................................................ 38 D.3 Reduced Inspection ..................................................................................................................................... 40 D.4 Reduced to normal inspection................................................................................................................. 41 SIST EN 16497-2:2017

EN 16497-2:2017 (E) 5 D.5 Tightened inspection ................................................................................................................................... 41 D.6 Tightened to normal inspection .............................................................................................................. 41 D.7 Discontinuation of inspection .................................................................................................................. 41 Annex E (informative)

Recommended test sequence for performance characteristics .................. 42 Annex ZA (informative)

Relationship of this European Standard with Regulation (EU) No.305/2011 .................................................................................................................................................. 43 ZA.1 Scope and relevant characteristics ........................................................................................................ 43 ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) ...................... 45 ZA.3 Assignment of AVCP tasks ......................................................................................................................... 45 Bibliography ................................................................................................................................................................. 48

SIST EN 16497-2:2017
EN 16497-2:2017 (E) 6

European foreword This document (EN 16497-2:2017) has been prepared by Technical Committee CEN/TC 166 “Chimneys”, the secretariat of which is held by ASI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by September 2017, and conflicting national standards shall be withdrawn at the latest by December 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Regulation, see informative Annex ZA, which is an integral part of this document. In this European Standard, the Annexes A, C and D are normative (not forming part of the product specification) and Annexes E and ZA are informative. This standard is one of a series of coordinated standards dealing with specification, design, and testing of chimneys, both single and multi wall. The coordinated package of standards is further divided by material of construction and this European Standard is one of a series of specifications and execution documents dealing with design and installation of concrete chimney products and systems. The standards in this series for concrete chimney products and systems are: EN 1857, Chimneys — Components — Concrete flue liners; EN 1858, Chimneys — Components — Concrete flue blocks; EN 12446, Chimneys — Components — Concrete outer wall elements. EN 16497-1-balanced flue applications EN 16497-2 According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standardã Austriaá Belgiumá Bulgariaá Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 16497-2:2017

EN 16497-2:2017 (E) 7 1 Scope This European Standard specifies the materials, dimensional and performance requirements for straight concrete system chimneys for balanced flue applications comprising a concrete flue liner and a combustion air supply duct, and a combination of compatible chimney components, which may be concrete flue blocks (see Clause 4), obtained or specified from one manufacturing source with product responsibility for the whole chimney. The European Standard does not apply to concrete system chimneys with back ventilation. This European Standard does not cover products designated wet (W) in conjunction with corrosion class 3. This European Standard also applies to concrete system chimneys constructed from storey-height elements and flue blocks reinforced for handling. This European Standard does not apply to structurally independent (free standing or self-supporting) system chimneys. NOTE Any reference to the term flue blocks implies both flue blocks and their fittings, except where otherwise indicated. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 206:2013+A1:2016, Concrete — Specification, performance, production and conformity EN 1443, Chimneys — General requirements EN 13216-1, Chimneys — Test methods for system chimneys — Part 1: General test methods EN 13384-1, Chimneys — Thermal and fluid dynamic calculation methods — Part 1: Chimneys serving one heating appliance EN 14297:2004, Chimneys — Freeze-thaw resistance test method for chimney products CEN/TS 16134:2011, Chimney terminals — General requirements and material independent test methods EN ISO 7500-1:2015, Metallic materials — Calibration and verification of static uniaxial testing machines — Part 1: Tension/compression testing machines — Calibration and verification of the force-measuring system (ISO 7500-1:2015) ISO 2859-1:1999, Sampling procedures for inspection by attributes — Part 1: Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 1443 and the following apply. 3.1 flue block fitting element fitted to the flue block such as an access opening or offset SIST EN 16497-2:2017

EN 16497-2:2017 (E) 8

3.2 hollow wall flue block flue block having vertical cavities Note 1 to entry: Cavities may pass through both ends of the block. 3.3 manufacturer's declared internal transverse dimension internal dimension of the flue block measured perpendicular to the longitudinal axis 3.4 manufacturer's declared height internal height of the flue block Note 1 to entry: Examples of measurement are shown in Figure 1.

a) with rebate b) with plain end Key H internal height Figure 1 — Manufacturer's declared height 3.5 manufacturer's declared structural height maximum constructional height of the flue blocks as declared by the manufacturer 3.6 manufacturer's declared overall wall thickness dimensions at its thinnest point, between the inside face of the flue and the outside face of the flue block, not measured at any joint feature Note 1 to entry: Examples for joint features are spigot/socket end 3.7 multi wall flue block flue block consisting of a flue liner and at least one additional wall SIST EN 16497-2:2017

EN 16497-2:2017 (E) 9 3.8 reinforced flue block flue block having reinforcement to assist handling (not for structural stability) 3.9 solid wall flue block flue block without cavities in the thickness of its walls 3.10 straight flue block flue block designed to be used in a vertical section of a chimney, without having any special characteristics and having the ends perpendicular to the axis of the flue 3.11 storey-height flue block factory made flue block having an overall height relating to the floor to floor height of a building 3.12 transfer block flue block designed to facilitate connection to another chimney product 3.13 concrete material formed by mixing cement, aggregate and water and with or without the incorporation of admixtures or additions, which develops its properties by hydration [SOURCE: EN 206:2013+A1:2016, 3.1.1.1] 3.14 precast concrete concrete that is cast in a place other than its final location of use 3.15 balanced flue chimney system System where the air entry to the combustion air supply duct is adjacent to the discharge of combustion products form the flue, the inlet and outlet being so positioned that wind effects are substantially balanced 4 Form The concrete system chimney for balanced flue applications shall comprise of flue blocks, which may be of single wall or multi wall construction, and a combustion air supply duct. In the context of this standard the term ‘flue block’ means a vertical element of a system ch

...
