FprEN 1866-3

Mobile fire extinguishers - Part 3: Additional requirements to EN 1866-1 for pressure resistance of CO2 extinguishers

This standard specifies the rules of design, assembling, testing and inspection during manufacturing of mobile CO2  fire extinguishers as far as pressure risk is concerned.
NOTE:      The classification of the different parts forming the assembly  of the mobile extinguisher is given in Annex A.

Fahrbare Feuerlöscher - Teil 3: Zusätzliche Anforderungen zu EN 1866-1 an die Druckfestigkeit von Kohlendioxid-Feuerlöschern

Diese Europäische Norm legt die Vorgaben im Hinblick auf die konstruktive Gestaltung, den Zusammenbau, die Typprüfung und die Überprüfung während der Fertigung fahrbarer Kohlendioxid Feuerlöscher fest, soweit die Gefährdung durch Druck betrachtet wird.
ANMERKUNG   Anhang A enthält die Klassifizierung der unterschiedlichen Teile des Feuerlöschers.

Extincteurs d'incendie mobiles - Partie 3: Exigences complémentaires à celles de l'EN 1866-1 sur la résistance à la pression des extincteurs au dioxyde de carbone

Prevozni gasilniki - 3. del: Dodatne zahteve k EN 1866-1 za odpornost proti tlaku za gasilnike s CO2

General Information

• Status: Not Published
• ICS: 13.220.10 - Fire-fighting
• Technical Committee: CEN/TC 70 - Manual means of fire fighting equipment
• Drafting Committee: CEN/TC 70/WG 2 - Mobile extinguishers
• Current Stage: 5098 - Decision to abandon - Formal Approval
• Start Date: 10-Dec-2009
• Completion Date: 10-Dec-2009
• Directive: 97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
• Mandate: M/071 - Mandate to CEN for standardization in the field of Pressure equipment
• Ref Project: oSIST prEN 1866-3:2007 - Mobile fire extinguishers - Part 3: Additional requirements to EN 1866-1 for pressure resistance of CO2 extinguishers

Relations

• Revises: EN 1866:2005 - Mobile fire extinguishers
• Effective Date: 18-Jan-2023

Overview

FprEN 1866-3, titled Mobile fire extinguishers - Part 3: Additional requirements to EN 1866-1 for pressure resistance of CO2 extinguishers, is a European standard developed by CEN/TC 70. This standard focuses on the design, assembly, testing, and inspection of mobile carbon dioxide (CO2) fire extinguishers, specifically addressing the critical aspect of pressure resistance during manufacturing. It supplements the general requirements outlined in EN 1866-1 with specific provisions for CO2 extinguishers, ensuring safety and reliability under pressure-related risks.

The document applies to manufacturers and testing bodies involved in producing mobile CO2 fire extinguishers, providing guidelines to meet stringent safety criteria including pressure tolerances, material requirements, and conformity with European safety directives.

Key Topics

• Scope and Purpose: Defines pressure-related design and manufacturing rules to minimize risks in CO2 extinguisher assemblies.
• Materials: Non-metallic materials are prohibited for pressure-retaining components such as cylinder bodies, valves, and hose couplings to ensure compatibility and safety.
• Cylinder Design: Requires CE or PI marking, adherence to specified filling ratios, and proper threading for secure valve connections as per Annex B.
• Cylinder Valve Requirements: Must be CE- or PI-marked, impact-tested according to EN 849, and fitted with bursting discs compliant with ISO 6718 safety standards.
• Hose Assembly: Designed to withstand operating temperature ranges; pressure tested to at least three times the maximum allowable pressure at 20 °C and twice at operating temperature extremes.
• Assembly and Marking: Manufacturers must verify thread compatibility, apply specific torque settings, ensure traceability of pressure parts, and mark components with durable identification including manufacturer, serial number, year, tare weight, filling mass, gas type, and temperature range.
• Testing Procedures: Hydrostatic pressure tests for cylinders and valves are required before assembly; hose assemblies undergo burst pressure testing per Annex C.
• Filling Mass and Ratios: Filling tolerances in line with EN 1866-1 must be respected; common filling ratios are listed with corresponding pressure limits in Annex D.
• Safety Classification: Different extinguisher components are classified according to the Pressure Equipment Directive (PED), categorizing pressure vessels, accessories, and safety devices.

Applications

This standard is crucial for:

• Fire extinguisher manufacturers producing mobile CO2 extinguishers who must ensure their products meet European safety and pressure resistance requirements.
• Quality control and testing laboratories performing pressure and material testing to verify compliance with safety standards.
• Certification bodies overseeing CE marking and regulatory conformity in line with EU Directive 97/23/EC.
• Maintenance and inspection services requiring precise knowledge of pressure ratings, component classifications, and marking requirements to ensure safe handling and refilling.
• Safety engineers and compliance officers developing fire safety protocols for industrial, commercial, and public spaces where CO2 fire extinguishers are employed.

Adopting FprEN 1866-3 guarantees enhanced safety by controlling critical pressure-related aspects of mobile CO2 fire extinguishers, helping prevent operational failures and ensuring reliable fire-fighting performance.

Related Standards

• EN 1866-1: Mobile fire extinguishers - Part 1: Characteristics, performance requirements and test methods – The base standard providing general requirements.
• EN 1866-2: Additional requirements for extinguishers with pressures up to 30 bar.
• EN 849: Impact test standards for valves used in extinguishers.
• ISO 6718: Standards for bursting discs as safety devices under overpressure conditions.
• EN ISO 15245-1 and EN 629-1: Specifications for thread types connecting valves to gas cylinders.
• EN 10204: Inspection document standards for metallic products used in extinguisher manufacturing.
• EU Directive 97/23/EC (Pressure Equipment Directive): Regulatory framework ensuring equipment safety under pressure.

Compliance with FprEN 1866-3 and related standards ensures mobile CO2 fire extinguishers meet European safety benchmarks, maintain operational integrity, and conform to legislative directives for pressure equipment.

---

This comprehensive approach to pressure resistance of CO2 extinguishers supports safety in fire protection, aligning manufacturing processes with international best practices and facilitating regulatory approvals across European markets.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2007
Prevozni gasilniki - 3. del: Dodatne zahteve k EN 1866-1 za odpornost proti tlaku za
gasilnike s CO2
Mobile fire extinguishers - Part 3: Additional requirements to EN 1866-1 for pressure
resistance of CO2 extinguishers
Fahrbare Feuerlöscher - Teil 3: Zusätzliche Anforderungen zu EN 1866-1 an die
Druckfestigkeit von Kohlendioxid-Feuerlöschern
Extincteurs d'incendie mobiles - Partie 3: Exigences complémentaires a celles de l'EN
1866-1 sur la résistance a la pression des extincteurs au dioxyde de carbone
Ta slovenski standard je istoveten z: prEN 1866-3
ICS:
13.220.10 Gašenje požara Fire-fighting
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
DRAFT
prEN 1866-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2006
ICS Will supersede EN 1866:2005
English Version
Mobile fire extinguishers - Part 3: Additional requirements to EN
1866-1 for pressure resistance of CO2 extinguishers
Extincteurs d'incendie mobiles - Partie 3: Exigences
complémentaires à celles de l'EN 1866-1 sur la résistance
à la pression des extincteurs au dioxyde de carbone
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 70.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
: This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
Warning
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1866-3:2006: E
worldwide for CEN national Members.

prEN 1866-3:2006 (E)

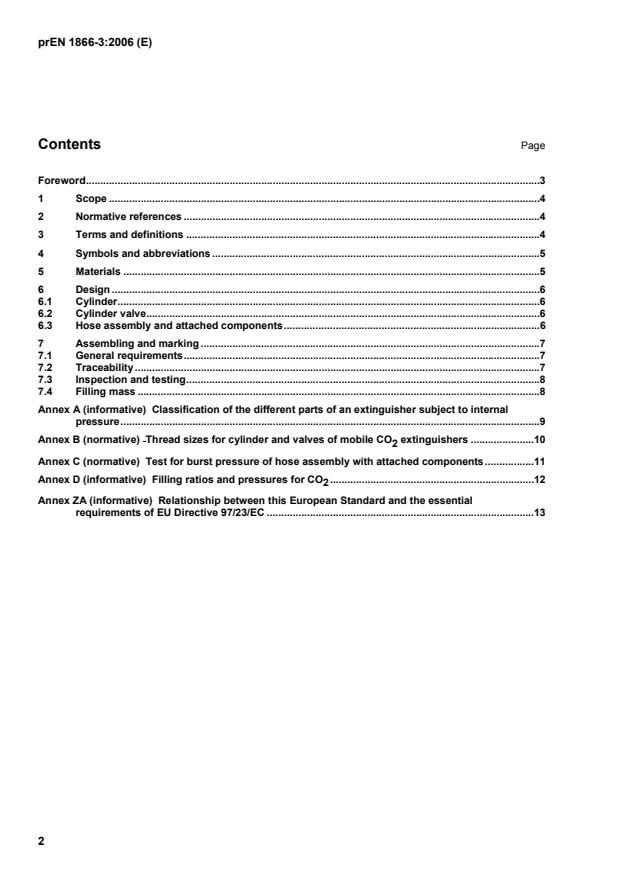

Contents Page
Foreword.3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 Symbols and abbreviations .5
5 Materials .5
6 Design .6
6.1 Cylinder.6
6.2 Cylinder valve.6
6.3 Hose assembly and attached components.6
7 Assembling and marking .7
7.1 General requirements.7
7.2 Traceability.7
7.3 Inspection and testing.8
7.4 Filling mass .8
Annex A (informative) Classification of the different parts of an extinguisher subject to internal
pressure.9
Annex B (normative) Thread sizes for cylinder and valves of mobile CO extinguishers .10
Annex C (normative) Test for burst pressure of hose assembly with attached components.11
Annex D (informative) Filling ratios and pressures for CO .12
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of EU Directive 97/23/EC .13
prEN 1866-3:2006 (E)
Foreword
This document (prEN 1866-3:2006) has been prepared by Technical Committee CEN/TC 70 “Manual means
of fire fighting equipment”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 1866:2005.
This standard EN 1866 consists of the following parts under the general title "Mobile fire extinguishers":
 Part 1: Characteristics, performance requirements and test methods
 Part 2: Additional requirements to EN 1866-1 for the construction, resistance to pressure and mechanical
tests for extinguishers with a maximum allowable pressure equal to or lower than 30 bar
 Part 3: Additional requirements to EN 1866-1 for pressure resistance of CO extinguishers
Annexes B, C, D are normative, Annexes A, D and ZA are informative.
prEN 1866-3:2006 (E)
1 Scope
This European Standard specifies the rules of design, assembling, testing and inspection during manufacturing of mobile
CO fire extinguishers as far as pressure risk is concerned.
NOTE The classification of the different parts forming the assembly is given in Annex A.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 1866, Mobile fire extinguishers – Part 1: Characteristics, performance requirements and test methods.
EN 10204, Metallic products – Types of inspection documents.
EN 629-1: Transportable gas cylinders – 25E taper thread for connection of valves to gas cylinders –
Part 1: Specification.
EN ISO 15245-1 : Gas cylinders – Parallel threads for connection of valves to gas cylinders –
Part 1: Specification.
EN ISO 10297: Transportable gas cylinders – cylinder valves – specification and type testing
(ISO 10297:2006).
ISO 6718, Bursting discs and bursting disc devices.
3 Terms and definitions
For the purposes of this European Standard, the following terms and definitions apply.
3.1
pressure at maximum operating temperature, P (Pressure experimentally measured)
Tmax
pressure measured in the extinguisher after stabilisation during at least 24 h at maximum operating
temperature T (≥ 60 °C)
max
3.2
maximum allowable pressure, PS (Maximum declared pressure)
maximum pressure for which the equipment is designed, as specified by the manufacturer and which is in any
case greater than or equal to P

Tmax
3.3
cylinder valve
component subject to the internal pressure and used to close off and seal the cylinder
3.4
fire extinguisher assembly
an assembly of the cylinder, cylinder valve, hose and discharge valve
3.5
bursting disc
safety device consisting of a metallic disc, intended to rupture in case of overpressure and release the cylinder
contents
prEN 1866-3:2006 (E)
3.6
bursting pressure Pr
maximum pressure measured during a bursting test
3.7
T
max
maximum operating temperature declared by the manufacturer
3.8
T
min
minimum operating temperature declared by the manufacturer
4 Symbols and abbreviations
For the purposes of this standard, the following symbols and abbreviations apply:
PS The maximum allowable pressure in bar
...
