EN 572-5:2012
(Main)Glass in building - Basic soda lime silicate glass products - Part 5: Patterned glass
Glass in building - Basic soda lime silicate glass products - Part 5: Patterned glass
This European Standard specifies dimensional and minimum quality requirements (in respect of visual and pattern faults) for patterned glass as defined in EN 572-1:2012, for use in building.
This European Standard applies only to patterned glass supplied in rectangular panes and in stock sizes.
EN 572-8 gives information on patterned glass in sizes other than those covered by this European Standard.
Glas im Bauwesen - Basiserzeugnisse aus Kalk-Natronsilicatglas - Teil 5: Ornamentglas
Diese Europäische Norm legt die Anforderungen an Maße und Mindestqualität (in Bezug auf sichtbare Fehler und Fehler im Dessin) für Ornamentglas für das Bauwesen, wie es in EN 572 1:2012 definiert ist, fest.
Diese Europäische Norm gilt nur für Ornamentglas, das in rechtwinkligen Scheiben und Standardab-messungen geliefert wird.
EN 572 8 informiert über Ornamentglas in anderen als in dieser Europäischen Norm aufgeführten Abmessungen.
Verre dans la construction - Produits de base: verre de silicate sodo-calcique - Partie 5: Verre imprimé
La présente Norme européenne détermine les spécifications dimensionnelles et les spécifications qualitatives minimales (concernant les défauts d'aspect et de dessin) du verre imprimé, tel que défini dans le EN 572-1:2012, pour l'utilisation dans la construction.
La présente Norme européenne ne s'applique qu'au verre imprimé fourni en feuilles rectangulaires et en dimensions standard.
L’EN 572-8 fournit des informations sur le verre imprimé dans des dimensions autres que celles couvertes par la présente Norme européenne.
Steklo v gradbeništvu - Osnovni izdelki iz natrij-kalcijevega silikatnega stekla - 5. del: Vzorčasto steklo
Ta evropski standard določa zahteve glede mer in minimalne kakovosti (v zvezi z optičnimi in vizualnimi napakami) za vzorčasto steklo, kot je določeno v standardu FprEN 572-1:2011, za uporabo v gradbeništvu. Ta evropski standard se nanaša le na vzorčasto steklo, dobavljeno kot pravokotno steklo in v velikostih na zalogi. EN 572-8 vsebuje informacije o vzorčastem steklu, razen za velikosti, vključene v tem evropskem standardu.
General Information
- Status
- Published
- Publication Date
- 17-Jul-2012
- Withdrawal Date
- 30-Jan-2013
- Technical Committee
- CEN/TC 129 - Glass in building
- Drafting Committee
- CEN/TC 129/WG 1 - Basic glass products
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 04-Mar-2018
- Completion Date
- 04-Mar-2018
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 13-Aug-2011
Overview
EN 572-5:2012 is a European standard developed by CEN that specifies the dimensional and quality requirements for patterned soda lime silicate glass used in building construction. This standard focuses on patterned glass supplied in rectangular panes and stock sizes, ensuring consistent product quality with respect to visual appearance and pattern integrity. It complements other parts of the EN 572 series which cover various types of basic soda lime silicate glass products.
Key aspects include thickness tolerances, length and width dimensions, squareness, and strict criteria for visual faults such as spot defects, linear faults, and pattern deviations. EN 572-5:2012 is essential for manufacturers, architects, and construction professionals who require reliable specification of patterned glass in architectural projects.
Key Topics
- Scope and Application: Applies exclusively to rectangular stock sizes of patterned glass used in building applications. Other sizes are covered under EN 572-8.
- Dimensional Requirements:
- Thickness measurement with a plate gauge, tolerancing ranges depending on nominal thickness.
- Length, width, and squareness tolerances ensuring pane uniformity.
- Quality and Visual Faults:
- Defines spot faults (spherical, quasi-spherical, elongated), linear/extended faults, and pattern faults.
- Specifies acceptable fault sizes, quantities, and their location limitations for aesthetic and functional quality.
- Pattern Faults Evaluation:
- Includes types: out of square, waviness, and bow.
- Maximum allowable pattern deviation is 12 mm per meter.
- Designation System:
- Standardized product description includes type, standard reference, tint, pattern, nominal thickness, and dimensions.
Applications
EN 572-5:2012 patterned glass is widely used in various building and architectural applications, including:
- Decorative facades and interior walls where patterned textures enhance aesthetics.
- Privacy panels in offices, bathrooms, and commercial spaces.
- Safety and design elements in doors and windows.
- Partitioning in retail and hospitality environments requiring both design and functional visual quality.
- Architectural features demanding reproducible high-quality patterned glass with consistent thickness and dimensional control.
This standard ensures that patterned glass meets strict quality criteria to maintain durability, appearance, and performance in all these usage scenarios.
Related Standards
- EN 572-1:2012 – Provides general definitions and mechanical properties for soda lime silicate glass products.
- EN 572-8 – Covers patterned glass in non-stock or final cut sizes, complementing the scope of EN 572-5.
- EN 572 series – The complete set of standards for basic soda lime silicate glass products, including parts on float glass (Part 2), polished wired glass (Part 3), drawn sheet glass (Part 4), wired patterned glass (Part 6), channel-shaped glass (Part 7), and conformity evaluation (Part 9).
These related standards create a comprehensive framework for specifying and evaluating soda lime silicate glass in building applications.
Keywords: EN 572-5:2012, patterned glass, soda lime silicate glass, glass in building, glass dimensions, visual quality, pattern faults, glass quality standards, architectural glass, CEN standard, glass tolerances, building materials, decorative glass, glass manufacturing standards.
Frequently Asked Questions
EN 572-5:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Glass in building - Basic soda lime silicate glass products - Part 5: Patterned glass". This standard covers: This European Standard specifies dimensional and minimum quality requirements (in respect of visual and pattern faults) for patterned glass as defined in EN 572-1:2012, for use in building. This European Standard applies only to patterned glass supplied in rectangular panes and in stock sizes. EN 572-8 gives information on patterned glass in sizes other than those covered by this European Standard.
This European Standard specifies dimensional and minimum quality requirements (in respect of visual and pattern faults) for patterned glass as defined in EN 572-1:2012, for use in building. This European Standard applies only to patterned glass supplied in rectangular panes and in stock sizes. EN 572-8 gives information on patterned glass in sizes other than those covered by this European Standard.
EN 572-5:2012 is classified under the following ICS (International Classification for Standards) categories: 81.040.20 - Glass in building. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 572-5:2012 has the following relationships with other standards: It is inter standard links to EN 572-5:2004. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 572-5:2012 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/135. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 572-5:2012 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-oktober-2012
1DGRPHãþD
SIST EN 572-5:2004
6WHNORYJUDGEHQLãWYX2VQRYQLL]GHONLL]QDWULMNDOFLMHYHJDVLOLNDWQHJDVWHNOD
GHO 9]RUþDVWRVWHNOR
Glass in building - Basic soda lime silicate glass products - Part 5: Patterned glass
Glas im Bauwesen - Basiserzeugnisse aus Kalk-Natronsilicatglas - Teil 5: Ornamentglas
Verre dans la construction - Produits de base: verre de silicate sodo-calcique - Partie 5:
Verre imprimé
Ta slovenski standard je istoveten z: EN 572-5:2012
ICS:
81.040.20 Steklo v gradbeništvu Glass in building
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 572-5
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2012
ICS 81.040.20 Supersedes EN 572-5:2004
English Version
Glass in building - Basic soda lime silicate glass products - Part
2: Patterned glass
Verre dans la construction - Produits de base: verre de Glas im Bauwesen - Basiserzeugnisse aus Kalk-
silicate sodo-calcique - Partie 5: Verre imprimé Natronsilicatglas - Teil 5: Ornamentglas
This European Standard was approved by CEN on 11 May 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 572-5:2012: E
worldwide for CEN national Members.

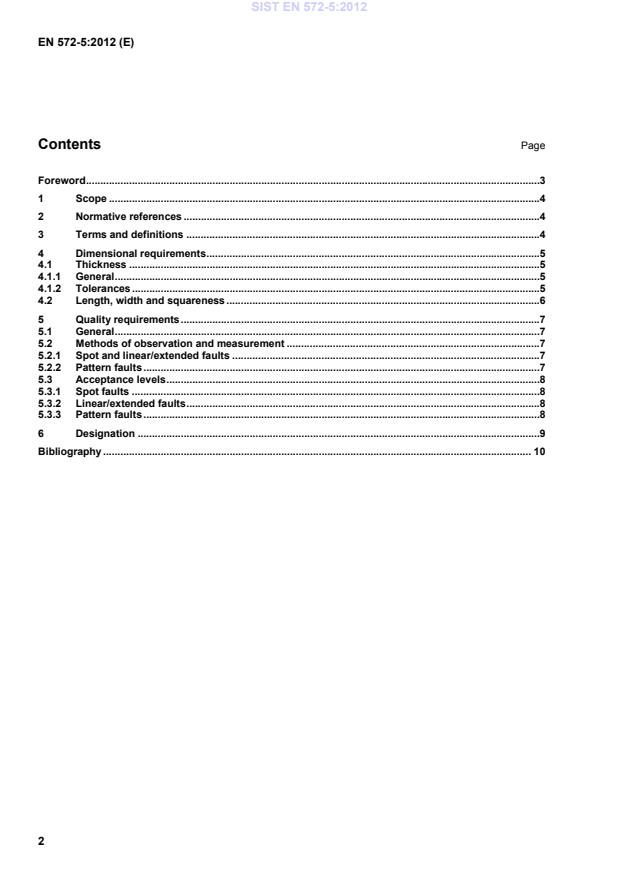

Contents Page
