CEN/TR 15235:2005

Welding - Methods for assessing imperfections in metallic structures

This Technical Report provides guidance on the selection and application of methods for assessing the significance of imperfections in all types of structures and components. The guidance is primarily tailored to welded structures and components in steel or aluminium alloys. Some of the methods may also be applied for other types of metals and for non-welded structures and components.

Schweißen - Verfahren zur Beurteilung von Unregelmäßigkeiten bei metallischen Bauteilen

Dieser Technische Bericht liefert einen Leitfaden für die Auswahl und Anwendung von Verfahren zur Beurteilung der Bedeutung vor Unregelmäßigkeiten für alle Arten von Bauwerken und -teilen. Der Leitfaden ist ursprünglich auf geschweißte Bauwerke und -teile aus Stahl- oder Aluminiumlegierungen zugeschnitten. Einige der Verfahren können auch für andere Werkstoffarten und für nicht geschweißte Bauwerke und -teile angewendet werden.

Soudage - Méthodes d'évaluation des défauts dans les constructions métalliques

Le présent Rapport technique fournit des lignes directrices pour le choix et l�application de méthodes
permettant l�évaluation de la signification des défauts dans tous les types de constructions et de composants.
Les lignes directrices sont essentiellement destinées aux constructions et composants soudés en acier et en
alliages d�aluminium. Certaines des méthodes peuvent également être appliquées à d�autres types de métaux
ainsi que pour des constructions et des composants non soudés.

Varjenje – Metode ocenjevanja nepopolnosti v strukturi kovin

General Information

• Status: Published
• Publication Date: 18-Oct-2005
• ICS: 25.160.40 - Welded joints and welds
• Technical Committee: CEN/TC 121 - Welding
• Drafting Committee: CEN/TC 121 - Welding
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 19-Oct-2005
• Completion Date: 19-Oct-2005
• Directive: 97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
• Mandate: M/071 - Mandate to CEN for standardization in the field of Pressure equipment
• Ref Project: SIST-TP CEN/TR 15235:2006 - Welding - Methods for assessing imperfections in metallic structures

Standards Content (Sample)

SLOVENSKI STANDARD
SIST-TP CEN/TR 15235:2006
01-marec-2006
Varjenje – Metode ocenjevanja nepopolnosti v strukturi kovin
Welding - Methods for assessing imperfections in metallic structures
Schweißen - Verfahren zur Beurteilung von Unregelmäßigkeiten bei metallischen
Bauteilen
Soudage - Méthodes d'évaluation des défauts dans les constructions métalliques
Ta slovenski standard je istoveten z: CEN/TR 15235:2005
ICS:
25.160.40 Varjeni spoji in vari Welded joints
SIST-TP CEN/TR 15235:2006 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST-TP CEN/TR 15235:2006

---------------------- Page: 2 ----------------------

SIST-TP CEN/TR 15235:2006
TECHNICAL REPORT
CEN/TR 15235
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
October 2005
ICS 25.160.40

English Version
Welding - Methods for assessing imperfections in metallic
structures
Soudage - Méthodes d'évaluation des défauts dans les Schweißen - Verfahren zur Beurteilung von
constructions métalliques Unregelmäßigkeiten bei metallischen Bauteilen
This Technical Report was approved by CEN on 22 September 2005. It has been drawn up by the Technical Committee CEN/TC 121.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 15235:2005: E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

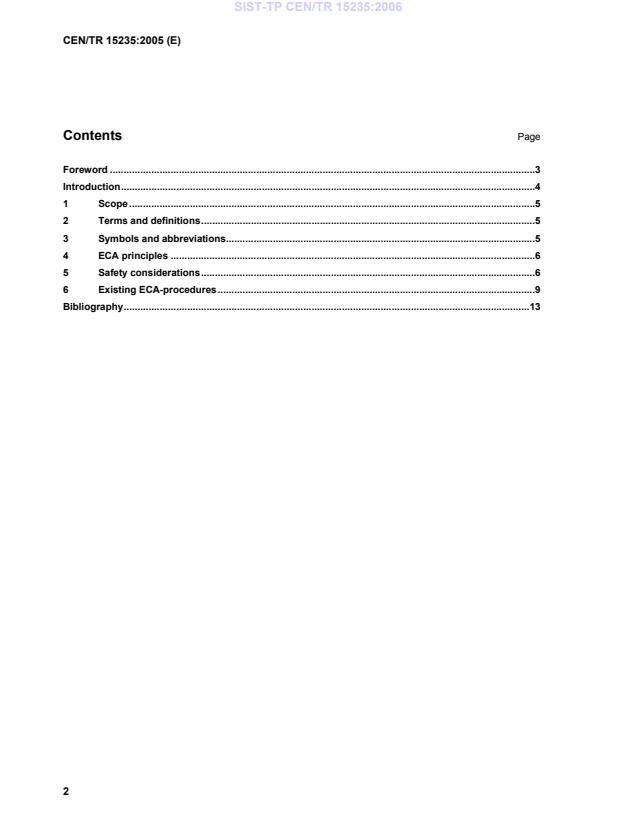

SIST-TP CEN/TR 15235:2006
