EN 17333-5:2020

Characterisation of one component foam - Part 5: Insulation

This document specifies test methods for the evaluation of the insulation properties for moisture curing, self-curing activatable or water drying foams dispensed from single pressurised foam containers.
This document does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this document to establish appropriate safety and health practices and determine the applicability of regulatory requirements prior to use.
The following test method is described:
-   Thermal conductivity: This method describes how to determine the long term thermal conductivity of a cured OCF foam, dispensed from a pressurised foam container, with a sample subjected to accelerated ageing procedure.

Charakterisierung von Einkomponentenschäumen - Teil 5: Dämmung

Dieses Dokument legt Prüfverfahren für die Beurteilung der Dämmungseigenschaften von feuchtigkeits¬härtenden, selbsthärtenden aktivierbaren oder wassertrocknenden Schäumen fest, die aus einzelnen Schaumdruckdosen abgegeben werden.
Dieses Dokument beansprucht nicht, sämtliche mit seiner Anwendung verbundenen Sicherheitsprobleme, soweit diese gegeben sind, zu behandeln. Es liegt in der Verantwortung des Anwenders dieses Dokuments, angemessene Maßnahmen in Bezug auf den Gesundheits  und Arbeitsschutz einzuleiten und die Anwendbarkeit gesetzlicher Anforderungen vor ihrer Anwendung zu ermitteln.
Das folgende Prüfverfahren wird beschrieben:
-   Wärmeleitfähigkeit: Dieses Verfahren beschreibt, wie die Langzeit-Wärmeleitfähigkeit eines ausgehärteten OCF zu bestimmen ist, der aus einer Schaumdruckdose abgegeben wird, wobei eine Probe dem Verfahren der beschleunigten Alterung unterzogen wird.

Caractérisation des mousses monocomposants - Partie 5 : Isolation

Le présent document spécifie des méthodes d’essai permettant d’évaluer les caractéristiques d’isolation des mousses durcissant à l’humidité, des mousses autopolymérisables et des mousses séchant dans l’eau, appliquées à partir de récipients individuels de mousse sous pression.
Le présent document ne prétend pas aborder la totalité des problèmes de sécurité qui pourraient découler de son utilisation. Il est de la responsabilité de l’utilisateur du présent document de respecter des pratiques de sécurité et de santé appropriées et de déterminer l’applicabilité des exigences réglementaires avant son utilisation.
La méthode d’essai suivante est décrite :
-   conductivité thermique : cette méthode permet de déterminer la conductivité thermique à long terme d’une mousse monocomposant durcie, appliquée à partir d’un récipient individuel de mousse sous pression, avec un échantillon soumis à un mode opératoire de vieillissement accéléré.

Karakterizacija enokomponentnih pen - 5. del: Izolacija

General Information

• Status: Published
• Publication Date: 17-Mar-2020
• Withdrawal Date: 29-Sep-2020
• ICS: 83.180 - Adhesives
• Technical Committee: CEN/TC 193 - Adhesives
• Drafting Committee: CEN/TC 193/WG 8 - One Component Foam (OCF)
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 02-Sep-2025
• Completion Date: 02-Sep-2025
• Ref Project: SIST EN 17333-5:2020 - Characterization of One Component Foam - Part 5: Insulation

Overview

EN 17333-5:2020 is a European standard developed by CEN that specifies standardized test methods for evaluating the insulation properties of one component foams (OCF). These foams include moisture curing, self-curing activatable, or water drying formulations dispensed from single pressurised foam containers. The primary focus of this standard is to establish reliable procedures to measure the long-term thermal conductivity of cured foam samples, ensuring consistent assessment of their insulation performance.

This part of the EN 17333 series addresses insulation characteristics, complementing other parts covering foam yield, expansion, application, and mechanical strength. It provides detailed methodology for preparing foam samples, conducting accelerated ageing, and measuring thermal conductivity, helping manufacturers, researchers, and quality control professionals to evaluate and compare foam insulation effectiveness.

Key Topics

• Scope of Application:
  EN 17333-5:2020 applies to moisture curing, self-curing, and water drying one component foams dispensed from pressurised containers. It focuses on determining the foam's insulation performance after curing.

• Thermal Conductivity Test Method:

  • Foam samples are prepared in specialized moulds composed of non-adherent plates and spacers.
  • The foam cures inside the mould, then samples are extracted and cut to specified dimensions.
  • Samples undergo accelerated ageing for 21 days at 70 ± 2 °C to simulate long-term conditions.
  • Thermal conductivity is measured using a thermal conductivity meter under standardized temperature gradients, referencing EN 12667 for test procedures.

• Sample Preparation and Conditioning:

  • Plates and spacers are conditioned at 23 ± 2 °C and 50 ± 5% relative humidity for 24 hours.
  • The inner sides of plates are moistened to ensure foam release and consistent curing.
  • The foam is applied in layers between plates and cured according to the foam type.
  • Larger or thicker samples follow modified preparation methods to prevent deformation.

• Reporting Requirements:
  Test reports must include comprehensive product information, testing conditions, measurement results, and any deviations from the procedure. This ensures traceability and reliability in thermal insulation evaluations.

Applications

• Building and Construction:
  Effectively evaluating the thermal insulation of OCF materials supports compliance with building energy efficiency regulations and enhances the performance of insulation joints, gap fillings, and structural sealing.

• Manufacturing Quality Control:
  Standardized insulation testing aids manufacturers in verifying the consistency and quality of foam formulations, ensuring products meet thermal performance claims over time.

• Research and Development:
  R&D teams can utilize the test methods to optimize foam formulations for improved insulation properties and durability under varied environmental conditions.

• Performance Certification:
  Testing as per EN 17333-5:2020 provides credible data for certifications and declarations related to insulation capacity, facilitating product acceptance in regulated markets across Europe.

Related Standards

• EN 17333 Series:

  • Part 1: Foam yield characteristics
  • Part 2: Expansion characteristics
  • Part 3: Application methods
  • Part 4: Mechanical strength

• EN 12667:2023 – Thermal performance of building materials by guarded hot plate and heat flow meter methods, referenced for measurement procedures.

• EN 923 – Adhesives: defines terms and definitions related to adhesives including foams.

• EN 14847 & EN 15006 – Specifications for pressurised aerosol containers used for foam dispensing.

---

By adhering to EN 17333-5:2020, professionals can ensure reliable and repeatable insulation property evaluations for one component foams, supporting enhanced thermal performance and regulatory compliance in relevant industries.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2020
Karakterizacija enokomponentnih pen - 5. del: Izolacija
Characterization of One Component Foam - Part 5: Insulation
Charakterisierung von Einkomponentenschäumen - Teil 5: Dämmung
Caractérisation des mousses monocomposants - Partie 5 : Isolation
Ta slovenski standard je istoveten z: EN 17333-5:2020
ICS:
83.180 Lepila Adhesives
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 17333-5
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2020
EUROPÄISCHE NORM
ICS 83.180
English Version
Characterisation of one component foam - Part 5:
Insulation
Caractérisation des mousses monocomposants - Partie Charakterisierung von Einkomponentenschäumen -
5 : Isolation Teil 5: Dämmung
This European Standard was approved by CEN on 1 December 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17333-5:2020 E
worldwide for CEN national Members.

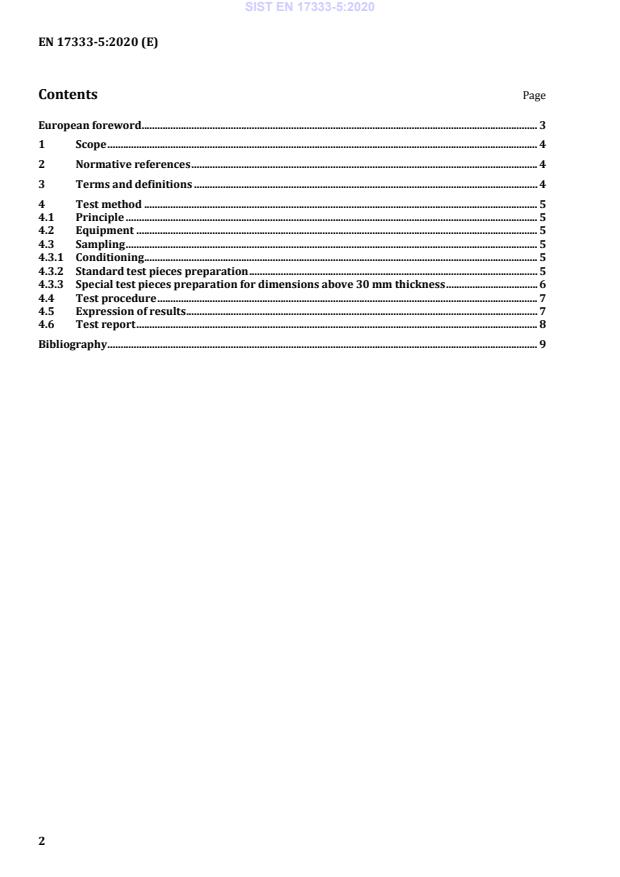

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Test method . 5
4.1 Principle . 5
4.2 Equipment . 5
4.3 Sampling . 5
4.3.1 Conditioning . 5
4.3.2 Standard test pieces preparation . 5
4.3.3 Special test pieces preparation for dimensions above 30 mm thickness . 6
4.4 Test procedure . 7
4.5 Expression of results . 7
4.6 Test report . 8
Bibliography . 9

European foreword
This document (EN 17333-5:2020) has been prepared by Technical Committee CEN/TC 193
“Adhesives”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2020, and conflicting national standards
shall be withdrawn at the latest by September 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document is one of the product European Standards within the framework series of EN 17333 on
Characterisation of one component foam, as follows:
— Part 1: Foam yield characteristics;
— Part 2: Expansion characteristics;
— Part 3: Application;
— Part 4: Mechanical strength;
— Part 5: Insulation (this document).
This document is one of a series of standards that specify test methods for determining the properties
of one component foams (OCFs).
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
1 Scope
This document specifies test methods for the evaluation of the insulation properties for moisture
curing, self-curing activatable or water drying foams dispensed from single pressurised foam
containers.
This document does not purport to address all of the safety concerns, if any, associated with its use. It is
the resp
...
