EN 60862-1:2015
(Main)Surface acoustic wave (SAW) filters of assessed quality - Part 1: Generic specification
Surface acoustic wave (SAW) filters of assessed quality - Part 1: Generic specification
IEC 60862-1:2015 specifies the methods of test and general requirements for SAW filters of assessed quality using either capability approval or qualification approval procedures. This edition includes the following significant technical changes with respect to the previous edition: - the terms and definitions from IEC 60862-2:2002 are included; - the measurement method for the balanced type filter is described; - the electrostatic discharge (ESD) sensitivity test procedure is considered.
Oberflächenwellenfilter (OFW-Filter) mit bewerteter Qualität - Teil 1: Fachgrundspezifikation
Filtres à ondes acoustiques de surface (OAS) sous assurance de la qualité - Partie 1: Spécification générique
L'IEC 60862-1:2015 spécifie les méthodes d'essai et les exigences générales pour les filtres OAS dont la qualité est garantie par les procédures d'agrément de savoir-faire ou par les procédures d'homologation. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - les "Termes et définitions" de l'IEC 60862-2:2002 sont inclus; - la méthode de mesure du filtre de type équilibré est décrite; - la procédure d'essai de la sensibilité aux décharges électrostatiques (DES) est abordée.
Filtri za površinske akustične valove (SAW) ocenjene kakovosti - 1. del: Splošna specifikacija
Ta del standarda IEC 60862 določa preskusne metode in splošne zahteve za filtre površinskih akustičnih valov (SAW) ocenjene kakovosti, ki vključujejo postopke za odobritev zmogljivosti ali kvalifikacije.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2016
1DGRPHãþD
SIST EN 60862-1:2004
)LOWUL]DSRYUãLQVNHDNXVWLþQHYDORYH 6$: RFHQMHQHNDNRYRVWLGHO 6SORãQD
VSHFLILNDFLMD
Surface acoustic wave (SAW) filters of assessed quality - Part 1: Generic specification
Filtres à ondes acoustiques de surface (OAS) sous assurance de la qualité - Partie 1:
Spécification générique
Ta slovenski standard je istoveten z: EN 60862-1:2015
ICS:
31.160 (OHNWULþQLILOWUL Electric filters
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 60862-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2015
ICS 31.140 Supersedes EN 60862-1:2003
English Version
Surface acoustic wave (SAW) filters of assessed quality - Part 1:
Generic specification
(IEC 60862-1:2015)
Filtres à ondes acoustiques de surface (OAS) sous Oberflächenwellenfilter (OFW-Filter) mit bewerteter Qualität
assurance de la qualité - Partie 1: Spécification générique - Teil 1: Fachgrundspezifikation
(IEC 60862-1:2015) (IEC 60862-1:2015)
This European Standard was approved by CENELEC on 2015-09-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60862-1:2015 E

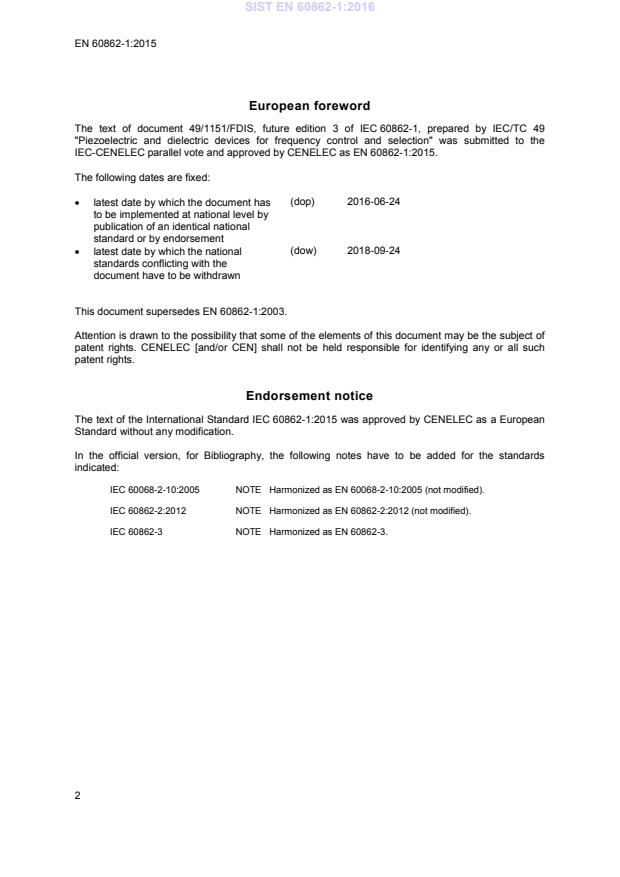

European foreword
The text of document 49/1151/FDIS, future edition 3 of IEC 60862-1, prepared by IEC/TC 49
"Piezoelectric and dielectric devices for frequency control and selection" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN 60862-1:2015.
The following dates are fixed:
• latest date by which the document has (dop) 2016-06-24
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2018-09-24
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60862-1:2003.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60862-1:2015 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60068-2-10:2005 NOTE Harmonized as EN 60068-2-10:2005 (not modified).
IEC 60862-2:2012 NOTE Harmonized as EN 60862-2:2012 (not modified).
IEC 60862-3 NOTE Harmonized as EN 60862-3.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60027 series Letter symbols to be used in electrical EN 60027 series
technology
IEC 60050 series International electrotechnical vocabulary - -
IEC 60068-1 2013 Environmental testing -- Part 1: General EN 60068-1 2014
and guidance
IEC 60068-2-1 - Environmental testing -- Part 2-1: Tests - EN 60068-2-1 -
Test A: Cold
IEC 60068-2-2 - Environmental testing -- Part 2-2: Tests - EN 60068-2-2 -
Test B: Dry heat
IEC 60068-2-6 - Environmental testing -- Part 2-6: Tests - EN 60068-2-6 -
Test Fc: Vibration (sinusoidal)
IEC 60068-2-7 - Basic environmental testing procedures - EN 60068-2-7 -
Part 2-7: Tests - Test Ga and guidance:
Acceleration, steady state
IEC 60068-2-13 - Basic environmental testing procedures - EN 60068-2-13 -
Part 2-13: Tests - Test M: Low air pressure
IEC 60068-2-14 - Environmental testing -- Part 2-14: Tests - EN 60068-2-14 -
Test N: Change of temperature
IEC 60068-2-17 1994 Basic environmental testing procedures - EN 60068-2-17 1994
Part 2-17: Tests - Test Q: Sealing
IEC 60068-2-20 - Environmental testing -- Part 2-20: Tests - EN 60068-2-20 -
Test T: Test methods for solderability and
resistance to soldering heat of devices with
leads
IEC 60068-2-21 - Environmental testing -- Part 2-21: Tests - EN 60068-2-21 -
Test U: Robustness of terminations and
integral mounting devices
IEC 60068-2-27 - Environmental testing -- Part 2-27: Tests - EN 60068-2-27 -
Test Ea and guidance: Shock
IEC 60068-2-30 - Environmental testing -- Part 2-30: Tests - EN 60068-2-30 -
Test Db: Damp heat, cyclic (12 h + 12 h
cycle)
IEC 60068-2-31 - Environmental testing -- Part 2-31: Tests - EN 60068-2-31 -
Test Ec: Rough handling shocks, primarily
for equipment-type specimens
IEC 60068-2-45 - Basic environmental testing procedures - EN 60068-2-45 -
Part 2-45: Tests - Test XA and guidance:
Immersion in cleaning solvents
IEC 60068-2-52 - Environmental testing -- Part 2-52: Tests - EN 60068-2-52 -
Test Kb: Salt mist, cyclic (sodium chloride
solution)
IEC 60068-2-58 - Environmental testing – Part 2-58: Tests – - -
Test Td: Test methods for solderability,
resistance to dissolution of metallization
and to soldering heat of surface mounting
devices (SMD)
IEC 60068-2-64 - Environmental testing -- Part 2-64: Tests - EN 60068-2-64 -
Test Fh: Vibration, broadband random and
guidance
IEC 60068-2-78 - Environmental testing -- Part 2-78: Tests - EN 60068-2-78 -
Test Cab: Damp heat, steady state
IEC 60122-1 - Quartz crystal units of assessed quality -- EN 60122-1 -
Part 1: Generic specification
IEC 60617 - Standard data element types with - -
associated classification scheme for
electric components -- Part 4: IEC
reference collection fo standard data
element types and component classes
IEC 60642 - Piezoelectric ceramic resonators and - -
resonator units for frequency control and
selection - Chapter I: Standard values and
conditions - Chapter II: Measuring and test
conditions
IEC 60695-11-5 - Fire hazard testing -- Part 11-5: Test EN 60695-11-5 -
flames - Needle-flame test method -
Apparatus, confirmatory test arrangement
and guidance
1)
IEC 60749-28 201X Semiconductor devices - Mechanical and FprEN 60749-28 201X
climatic test methods -- Part 28:
Electrostatic Discharge (ESD) Sensitivity
Testing Direct contact charged device
model (DC-CDM)
IEC 61000-4-2 - Electromagnetic compatibility (EMC) -- EN 61000-4-2 -
Part 4-2: Testing and measurement
techniques - Electrostatic discharge
immunity test
IEC 61340-3-1 - Electrostatics -- Part 3-1: Methods for EN 61340-3-1 -
simulation of electrostatic effects - Human
body model (HBM) electrostatic discharge
test waveforms
IEC 61340-3-2 - Electrostatics -- Part 3-2: Methods for EN 61340-3-2 -
simulation of electrostatic effects -
Machine model (MM) electrostatic
discharge test waveforms
IEC 80000 series Quantities and units EN 80000 series
ISO 80000 series Quantities and units EN ISO 80000 series
1)
To be published.
IEC 60862-1 ®
Edition 3.0 2015-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Surface acoustic wave (SAW) filters of assessed quality –
Part 1: Generic specification
Filtres à ondes acoustiques de surface (OAS) sous assurance de la qualité –
Partie 1: Spécification générique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.140 ISBN 978-2-8322-2863-0
– 22 – IEC 60862-1:2015 © IEC 2015
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, units and symbols . 9
3.1 Terms and definitions . 9
3.1.1 General terms . 9
3.1.2 Response characteristics related terms . 12
3.1.3 SAW filter related terms . 16
3.2 Units and symbols. 18
4 Order of precedence of documents . 18
5 Preferred values for ratings and characteristics . 19
5.1 General . 19
5.2 Nominal frequencies . 19
5.2.1 Nominal frequency bands for use in RF applications . 19
5.2.2 Nominal frequency bands for use in IF applications . 19
5.2.3 Nominal frequency values for use in broadcasting IF applications . 19
5.3 Relative attenuation values specifying pass bandwidth for IF applications . 20
5.4 TTE signal suppression . 20
5.5 Operating temperature ranges, in degrees Celsius (°C) . 20
5.6 Climatic category . 20
5.7 Bump severity . 20
5.8 Vibration severity . 21
5.9 Shock severity . 21
5.10 Fine leak rate . 21
6 Marking . 22
6.1 Filter marking . 22
6.2 Package marking . 22
7 Quality assessment procedures . 22
7.1 General . 22
7.2 Primary stage of manufacture . 22
7.3 Structurally similar components . 22
7.4 Subcontracting . 22
7.5 Incorporated components . 23
7.6 Manufacturer’s approval . 23
7.7 Approval procedures . 23
7.7.1 General . 23
7.7.2 Capability approval . 23
7.7.3 Qualification approval .
...
