EN IEC 60704-2-1:2026
(Main)Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for dry vacuum cleaners
- Abstract
Addition:
This document specifies the determination of airborne acoustical noise of mains operated and cordless dry vacuum cleaners including their accessories and docking stations for household use or under conditions similar to those in households.
For wet and dry vacuum cleaners, the dry cleaning function applies. The wet cleaning function is measured in accordance with IEC 60704-2-20.
NOTE 101 Particular requirements for floor cleaning robots are specified in IEC 60704-2-171.
This document describes the determination of the noise emission of dry vacuum cleaners under normal operating conditions on carpet and hard floor in accordance with IEC 62885-2:—,4.62.
- Status
- Published
- Publication Date
- 27-Aug-2026
- Technical Committee
- CLC/TC 59X - Consumer information related to household electrical appliances
- Current Stage
- 6060 - Document made available - Publishing
- Start Date
- 28-Aug-2026
- Due Date
- 31-Dec-2025
- Completion Date
- 28-Aug-2026
EN IEC 60704-2-1:2026 is a CENELEC European Standard for measuring airborne acoustical noise from dry vacuum cleaners. It specifies the test code for mains-operated and cordless dry vacuum cleaners, including accessories and docking stations, so results can be measured and reported in a consistent way for household and similar use.
The document is the European adoption of IEC 60704-2-1:2026 without modification. It is intended to be read together with the general requirements in EN IEC 60704-1:2021.
What does EN IEC 60704-2-1:2026 specify?
EN IEC 60704-2-1:2026 specifies how to determine the airborne acoustical noise of dry vacuum cleaners on carpet and hard floor. It covers appliances for household use or similar use, including accessories and docking stations.
The document is organized into clauses on scope, normative references, terms and definitions, measurement methods and acoustical environments, instrumentation, operation and location of the appliance under test, sound pressure level measurement, calculation of sound pressure and sound power levels, and reporting. Annex ZA gives the normative references and their European publications, and Annex A is titled Standard test table.
What are the key requirements of EN IEC 60704-2-1:2026?
EN IEC 60704-2-1:2026 sets the test conditions that make noise results comparable between laboratories. The main practical point is that the appliance, the surface, the settings, and the measurement method all have to match the document closely.
Scope and test surfaces
The standard applies to mains-operated and cordless dry vacuum cleaners, including accessories and docking stations. For wet and dry vacuum cleaners, the dry cleaning function is tested here, while the wet cleaning function is covered by IEC 60704-2-20.
Noise is measured under normal operating conditions on carpet and hard floor in line with IEC 62885-2. For a product designed for both floor types, results are determined separately for carpet and hard floor, so the report can reflect real use.
Measurement methods and environment
Clause 4 allows both direct and comparison methods, and the document points to ISO 3743-1, ISO 3743-2, and ISO 3744 as acceptable measurement environments. If the source emits audible discrete tones, extra microphone or source positions may be needed. In practice, this means the laboratory has to watch for tones that can change the measured spread of results.
If an operator is needed during the test, the operator is treated as part of the test environment. The same operator position is then used during the reverberation time or comparison measurement, which helps keep the setup repeatable.
Preparation, operation, and settings
Clause 6 requires specific pre-conditioning. New mains-operated cleaners are run with unrestricted air flow before first test, new cordless cleaners are fully charged and then discharged in the test setting, and docking stations are run through repeated cycles before noise testing.
The standard also fixes how the appliance is set up for testing. Manufacturers' instructions are followed first; if they are unclear, visible product markings are used; if the setting is still ambiguous, the manufacturer is contacted; and if that still does not resolve it, maximum continuous airflow is used. For a test lab, this means the chosen setting must be defensible and fully recorded.
Surface-specific placement
Clause 6 distinguishes carpet and hard floor placement. On carpet, the appliance is centered on a standard Wilton test carpet, with the pile direction and handle position controlled. Active nozzles are tested on glued carpet to avoid noise from carpet vibration, while passive nozzles are not glued.
On hard floor, the appliance is centered on a standard hard floor, and the document gives surface properties and alternatives such as marble or similar stone plates when needed. Docking stations are placed in the center of the test area on the standard hard floor. These rules matter because small changes in placement can change the measured noise.
Measurement, calculation, and reporting
Clause 7 uses a 30 s time-average for the A-weighted sound pressure level of a dry vacuum cleaner. For docking stations, the highest A-weighted time-averaged sound pressure level over 2.5 s is measured across operating modes.
Clause 8 states that the final results for dry vacuum cleaners are the sound power levels for carpet and hard floor, determined separately, and averaged energetically if there are multiple measurements. Clause 10 requires reporting of the cleaning head type, carpet version and batch, hard floor type, cleaning head settings, and the state of openings used to reduce suction power.
What terms does EN IEC 60704-2-1:2026 define?
EN IEC 60704-2-1:2026 defines several terms that are central to the test setup.
- Dry vacuum cleaner - an electrically operated appliance that removes dry material by air flow and returns cleaned air to the ambient air.
- Wet and dry vacuum cleaner - an appliance designed to remove liquid in addition to dry material.
- Cleaning head - the nozzle, brush, power nozzle, or similar part that contacts the surface being cleaned.
- Active nozzle - a cleaning head with a driven agitation device to help remove dirt.
- Standard Wilton test carpet - the specified carpet used when measuring on carpet.
- Standard hard floor - the hard floor used when measuring on hard floor.
- Docking station - a base unit that can charge, remove dust, process data, or provide other support functions.
Who uses EN IEC 60704-2-1:2026?
EN IEC 60704-2-1:2026 is used by appliance manufacturers, test laboratories, and certification bodies working with household and similar electrical appliances. Quality managers and buyers use it when they need a consistent noise test method for dry vacuum cleaners.
It is especially relevant to the surface-cleaning appliance sector, including products with carpet and hard floor modes, cordless products, and vacuum cleaners with docking stations. It is also useful for technical committees and national committees that need a harmonized European test code.
What changed in EN IEC 60704-2-1:2026 from the previous edition?
EN IEC 60704-2-1:2026 is the fifth edition and replaces the 2020 edition. The foreword states that it is a technical revision.
The listed significant changes are:
- alignment with IEC 60704-1:2021
- added attention to consumer-relevant testing aspects
- improved robustness of the standard and closing of potential loopholes
- enlarged scope to include noise measurement on docking stations
Which standards are used with EN IEC 60704-2-1:2026?
EN IEC 60704-2-1:2026 is used together with several referenced standards and companion parts.
- EN IEC 60704-1:2021 - the general requirements for airborne acoustical noise test code; this part modifies and supplements it.
- IEC 60704-2-20 / EN IEC 60704-2-20 - used for the wet cleaning function of wet and dry vacuum cleaners.
- IEC TS 62885-1 - provides general requirements on test material and test equipment, including the standard Wilton test carpet specification.
- IEC 62885-2 / EN IEC 62885-2 - gives performance measurement methods for dry vacuum cleaners and is used for the operating conditions and definitions.
- IEC 60704-3 - used when determining and verifying declared noise emission values.
- ISO 3743-1, ISO 3743-2, ISO 3744 - provide the measurement environment methods referenced for acoustical testing.
What does the EN IEC 60704-2-1:2026 document contain?
EN IEC 60704-2-1:2026 contains the test code structure, the required measurement environments, and the operating procedures for dry vacuum cleaners. It also includes the setup rules for carpet and hard floor testing, the treatment of cordless appliances and docking stations, and the calculation and reporting rules.
The document includes figures showing the placement of appliances with a directly connected cleaning head and with a hose and connecting tube. It also includes tables for standard deviations on carpets and hard floors, and for declaration and verification values used with noise emission reporting.
Relations
- Effective Date
- 18-Jul-2023
- Effective Date
- 07-Jul-2026
- Effective Date
- 07-Jul-2026
- Effective Date
- 01-Sep-2026
- Effective Date
- 01-Sep-2026
- Effective Date
- 01-Sep-2026
- Effective Date
- 01-Sep-2026
Get Certified
Connect with accredited certification bodies for this standard
BSMI (Bureau of Standards, Metrology and Inspection)
Taiwan's standards and inspection authority.
Sponsored listings
Frequently Asked Questions
EN IEC 60704-2-1:2026 is a standard published by CLC. Its full title is "Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for dry vacuum cleaners". This standard covers: Addition: This document specifies the determination of airborne acoustical noise of mains operated and cordless dry vacuum cleaners including their accessories and docking stations for household use or under conditions similar to those in households. For wet and dry vacuum cleaners, the dry cleaning function applies. The wet cleaning function is measured in accordance with IEC 60704-2-20. NOTE 101 Particular requirements for floor cleaning robots are specified in IEC 60704-2-171. This document describes the determination of the noise emission of dry vacuum cleaners under normal operating conditions on carpet and hard floor in accordance with IEC 62885-2:—,4.62.
Addition: This document specifies the determination of airborne acoustical noise of mains operated and cordless dry vacuum cleaners including their accessories and docking stations for household use or under conditions similar to those in households. For wet and dry vacuum cleaners, the dry cleaning function applies. The wet cleaning function is measured in accordance with IEC 60704-2-20. NOTE 101 Particular requirements for floor cleaning robots are specified in IEC 60704-2-171. This document describes the determination of the noise emission of dry vacuum cleaners under normal operating conditions on carpet and hard floor in accordance with IEC 62885-2:—,4.62.
EN IEC 60704-2-1:2026 is classified under the following ICS (International Classification for Standards) categories: 17.140.20 - Noise emitted by machines and equipment; 97.080 - Cleaning appliances. The ICS classification helps identify the subject area and facilitates finding related standards.
EN IEC 60704-2-1:2026 has the following relationships with other standards: It is inter standard links to EN IEC 60704-2-1:2020, EN IEC 60704-2-20:2026, IEC TS 62885-1:2016, EN IEC 60704-1:2021, EN 60312-1:2013, EN 60312-1:2017, EN 60704-3:2019. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN IEC 60704-2-1:2026 is associated with the following European legislation: EU Directives/Regulations: 666/2013. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN IEC 60704-2-1:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

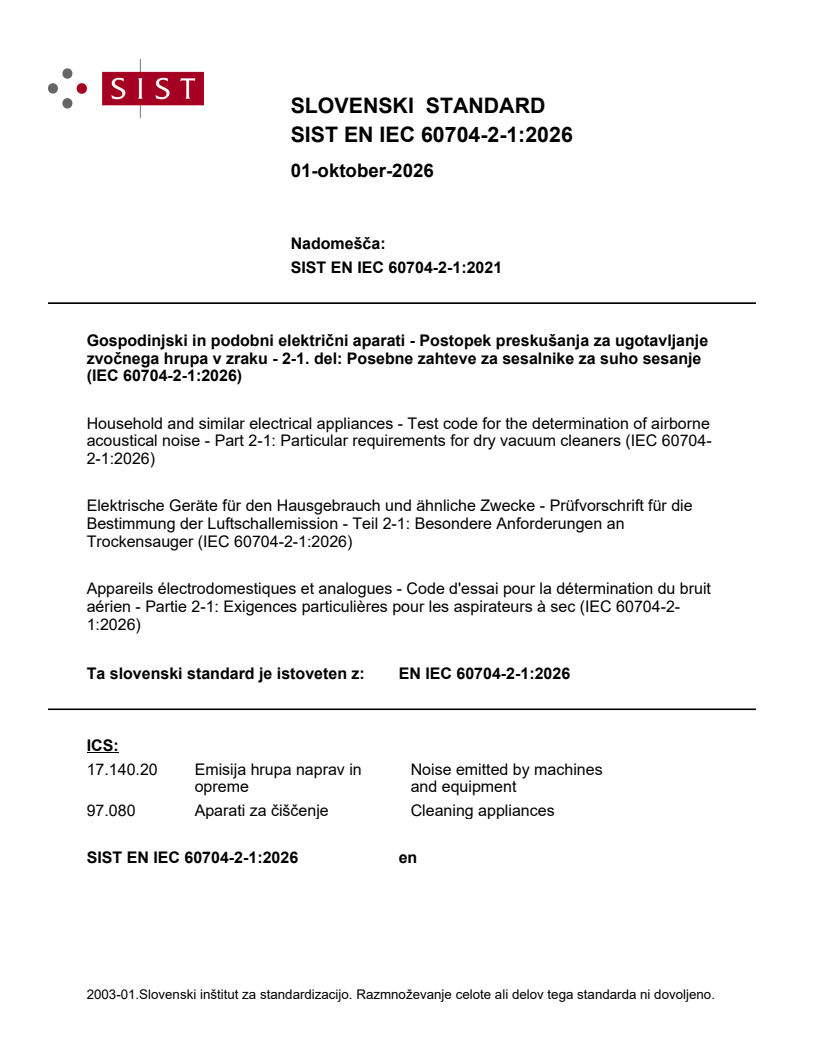

SLOVENSKI STANDARD
01-oktober-2026
Nadomešča:
SIST EN IEC 60704-2-1:2021
Gospodinjski in podobni električni aparati - Postopek preskušanja za ugotavljanje
zvočnega hrupa v zraku - 2-1. del: Posebne zahteve za sesalnike za suho sesanje
(IEC 60704-2-1:2026)
Household and similar electrical appliances - Test code for the determination of airborne
acoustical noise - Part 2-1: Particular requirements for dry vacuum cleaners (IEC 60704-
2-1:2026)
Elektrische Geräte für den Hausgebrauch und ähnliche Zwecke - Prüfvorschrift für die
Bestimmung der Luftschallemission - Teil 2-1: Besondere Anforderungen an
Trockensauger (IEC 60704-2-1:2026)
Appareils électrodomestiques et analogues - Code d'essai pour la détermination du bruit
aérien - Partie 2-1: Exigences particulières pour les aspirateurs à sec (IEC 60704-2-
1:2026)
Ta slovenski standard je istoveten z: EN IEC 60704-2-1:2026
ICS:
17.140.20 Emisija hrupa naprav in Noise emitted by machines
opreme and equipment
97.080 Aparati za čiščenje Cleaning appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

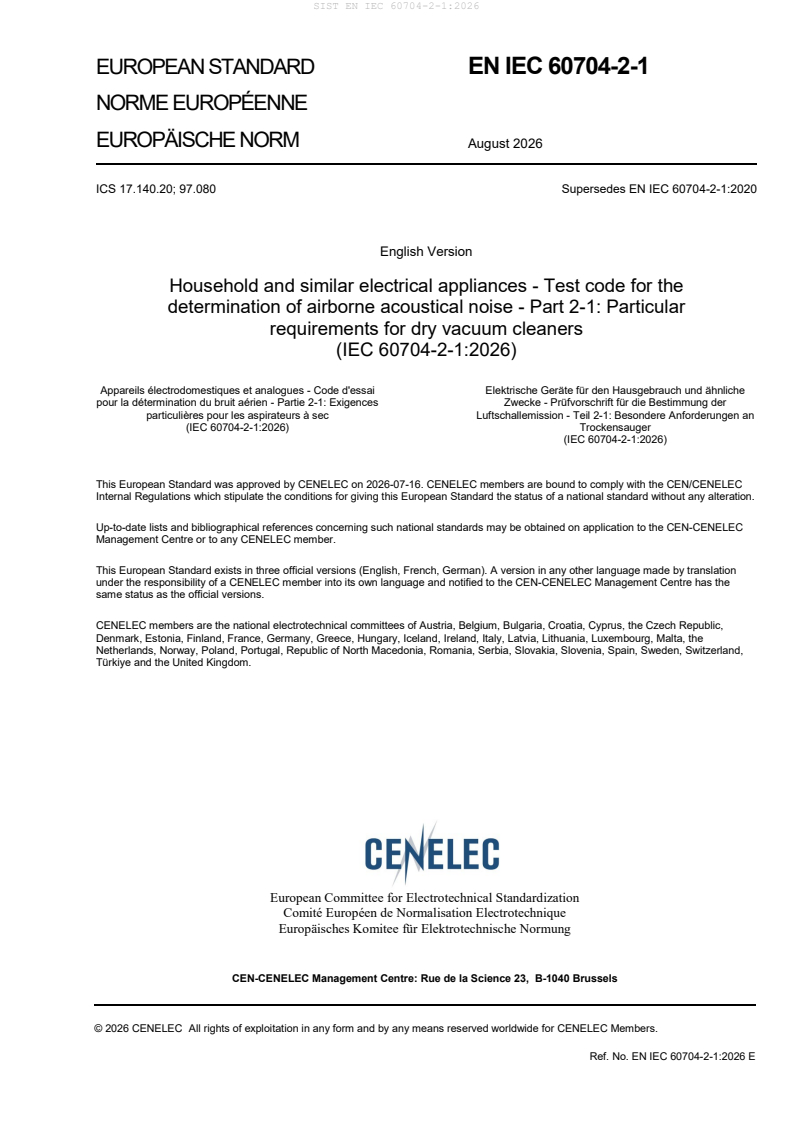

EUROPEAN STANDARD EN IEC 60704-2-1
NORME EUROPÉENNE
EUROPÄISCHE NORM August 2026
ICS 17.140.20; 97.080 Supersedes EN IEC 60704-2-1:2020
English Version
Household and similar electrical appliances - Test code for the
determination of airborne acoustical noise - Part 2-1: Particular
requirements for dry vacuum cleaners
(IEC 60704-2-1:2026)
Appareils électrodomestiques et analogues - Code d'essai Elektrische Geräte für den Hausgebrauch und ähnliche
pour la détermination du bruit aérien - Partie 2-1: Exigences Zwecke - Prüfvorschrift für die Bestimmung der
particulières pour les aspirateurs à sec Luftschallemission - Teil 2-1: Besondere Anforderungen an
(IEC 60704-2-1:2026) Trockensauger
(IEC 60704-2-1:2026)
This European Standard was approved by CENELEC on 2026-07-16. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60704-2-1:2026 E

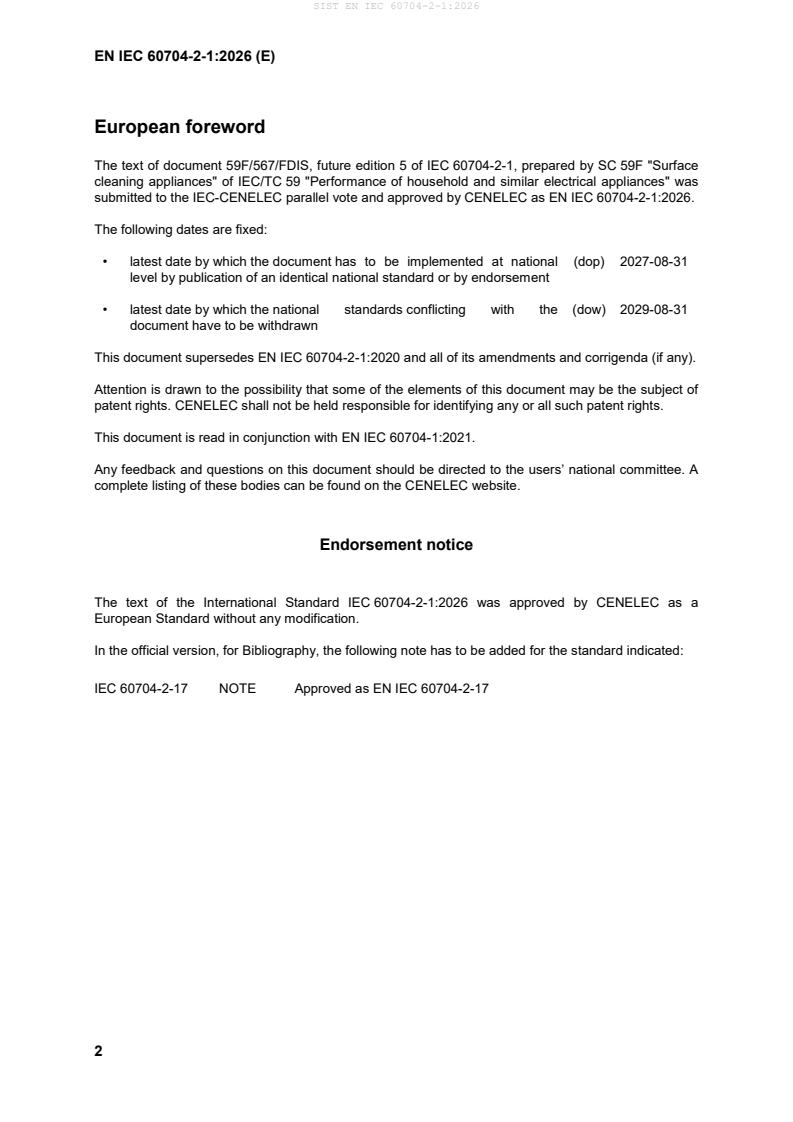

European foreword
The text of document 59F/567/FDIS, future edition 5 of IEC 60704-2-1, prepared by SC 59F "Surface
cleaning appliances" of IEC/TC 59 "Performance of household and similar electrical appliances" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 60704-2-1:2026.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2027-08-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2029-08-31
document have to be withdrawn
This document supersedes EN IEC 60704-2-1:2020 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is read in conjunction with EN IEC 60704-1:2021.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60704-2-1:2026 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60704-2-17 NOTE Approved as EN IEC 60704-2-17
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60704-2-20 - Household and similar electrical appliances EN IEC 60704-2-20 -
- Test code for the determination of
airborne acoustical noise - Part 2-20:
Particular requirements for wet hard floor
cleaning appliances
IEC/TS 62885-1 - Surface cleaning appliances - Part 1: - -
General requirements on test material and
test equipment
1 2
IEC 62885-2 — Surface cleaning appliances - Part 2: Dry EN IEC 62885-2 —
vacuum cleaners for household or similar
use - Methods for measuring the
performance
Under preparation. Stage at the date of publication: IEC/FDIS 62885-2:2026.
Under preparation. Stage at the date of publication: prEN IEC 62885-2:2026.
IEC 60704-2-1 ®
Edition 5.0 2026-06
INTERNATIONAL
STANDARD
Household and similar electrical appliances - Test code for the determination of
airborne acoustical noise -
Part 2-1: Particular requirements for dry vacuum cleaners
ICS 17.140.20; 97.080 ISBN 978-2-8327-1281-8
IEC 60704-2-1:2026-06(en)
IEC 60704-2-1:2026 © IEC 2026
CONTENTS
FOREWORD . 2
INTRODUCTION . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Measurement methods and acoustical environments . 6
4.2 Direct method . 6
4.3 Comparison method . 7
4.4 Acoustical environment . 7
4.5 Measurement uncertainties . 7
5 Instrumentation. 8
5.1 Instrumentation for measuring acoustical data . 8
6 Operation and location of appliances under test . 9
6.1 Equipping and pre-conditioning of appliances . 9
6.2 Supply of electric energy and of water or gas . 10
6.4 Loading and operating of appliances during tests . 10
6.5 Location and mounting of appliances . 12
7 Measurement of sound pressure levels . 17
8 Calculation of sound pressure and sound power levels . 17
10 Information to be reported . 17
Annex A (normative) Standard test table . 19
Bibliography . 20
Figure 101 – Appliance with cleaning head connected directly . 14
Figure 102 – Appliance with the cleaning head connected by hose and connecting tube . 15
Table 1 – Standard deviations of sound power levels determined on carpets . 7
Table 2 – Standard deviations of sound power levels determined on hard floors . 8
Table 3 – Standard deviations for declaration and verification for vacuum cleaners for
carpets . 8
Table 4 – Standard deviations for declaration and verification for vacuum cleaners for
hard floors . 8
IEC 60704-2-1:2026 © IEC 2026
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Household and similar electrical appliances -
Test code for the determination of airborne acoustical noise -
Part 2-1: Particular requirements for dry vacuum cleaners
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60704-2-1 has been prepared by subcommittee 59F: Surface cleaning appliances, of IEC
technical committee 59: Performance of household and similar electrical appliances. It is an
International Standard.
This fifth edition cancels and replaces the fourth edition published in 2020. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) alignment with IEC 60704-1:2021;
b) addressing consumer relevant testing aspects;
c) robustness of standards and closing potential loopholes
d) enlarged scope to include noise measurement on docking stations.
IEC 60704-2-1:2026 © IEC 2026
The text of this International Standard is based on the following documents:
Draft Report on voting
59F/567/FDIS 59F/573/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
This document is intended to be used in conjunction with IEC 60704-1:2021, Household and
similar electrical appliances - Test code for the determination of airborne acoustical noise -
Part 1: General requirements.
The relevant text of IEC 60704-1:2021 as amended by this document establishes the test code
for dry vacuum cleaners.
This document supplements or modifies the corresponding clauses in IEC 60704-1:2021. When
a particular subclause of IEC 60704-1:2021 is not mentioned in this document, that subclause
is applicable as far as reasonable. Where this standard states "addition", "modification" or
"replacement", the relevant requirements, test specifications or explanatory matter in Part 1
should be adapted accordingly.
Subclauses, tables, and figures that are additional to those in IEC 60704-1:2021 are numbered
starting from 101. Additional annexes are lettered AA, BB, etc.
Unless notes are in a new subclause or involve notes in IEC 60704-1:2021, they are numbered
starting from 101, including those in a replaced clause or subclause.
In this standard, the following print types are used:
– terms defined in Clause 3: bold type.
A list of all the parts in the IEC 60704 series, published under the general title Household and
similar electrical appliances - Test code for the determination of airborne acoustical noise, can
be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
IEC 60704-2-1:2026 © IEC 2026
INTRODUCTION
The measuring conditions specified in this document provide for sufficient accuracy in
determining the noise emitted and comparing the results of measurements taken by different
laboratories, whilst simulating as far as possible the practical use of dry vacuum cleaners.
It is recommended to consider the determination of noise levels as part of a comprehensive
testing procedure covering many aspects of properties and performance of household vacuum
cleaners.
NOTE As stated in the introduction to IEC 60704-1, this test code is concerned with airborne noise only.
IEC 60704-2-1:2026 © IEC 2026
1 Scope
Addition:
This document specifies the determination of airborne acoustical noise of mains operated and
cordless dry vacuum cleaners including their accessories and docking stations for household
use or under conditions similar to those in households.
For wet and dry vacuum cleaners, the dry cleaning function applies. The wet cleaning function
is measured in accordance with IEC 60704-2-20.
NOTE 101 Particular requirements for floor cleaning robots are specified in IEC 60704-2-17 .
This document describes the determination of the noise emission of dry vacuum cleaners
under normal operating conditions on carpet and hard floor in accordance with IEC 62885-2:—,
4.6 .
2 Normative references
Addition:
IEC 60704-2-20, Household and similar electrical appliances - Test code for the determination
of airborne acoustical noise - Part 2-20: Particular requirements for wet hard floor cleaning
appliances
IEC TS 62885-1, Surface cleaning appliances - Part 1: General requirements on test material
and test equipment
IEC 62885-2:—, Surface cleaning appliances - Part 2: Dry vacuum cleaners for household and
similar use - Methods for measuring the performance
3 Terms and definitions
Addition:
3.101
dry vacuum cleaner
electrically operated appliance that removes dry material (for example, dust, fibre, threads, and
debris) from the surface to be cleaned by an air flow created by a vacuum developed within the
unit, the removed material being separated in the appliance and the cleaned suction air being
returned to the ambient air
[SOURCE: IEC 62885-2: —, 3.8]
3.102
wet and dry vacuum cleaner
appliance designed to remove liquid in combination with the functionality of a dry vacuum
cleaner
___________
Under preparation. Stage at the date of publication: IEC/CDV 60704-2-17:2026.
Under preparation. Stage at the date of publication: IEC/FDIS 62885-2:2026.
IEC 60704-2-1:2026 © IEC 2026
3.103
cleaning head
plain nozzle or brush attached to a connecting tube, or a power nozzle, separate or part of the
cleaner housing, and that part of a dry vacuum cleaner which is applied to a surface to be
cleaned
[SOURCE: IEC 62885-2: —, 3.3]
3.104
active nozzle
cleaning head provided with a driven agitation device to assist dirt removal
Note 1 to entry: The agitation device can be driven by an incorporated electric motor (motorized nozzle), an
incorporated turbine powered by the air flow (air-turbine nozzle) or an incorporated friction or gear mechanism
actuated by moving the cleaning head over the surface to be cleaned (mechanical nozzle).
[SOURCE: IEC 62885-2: —, 3.2]
3.105
standard Wilton test carpet
Wilton carpet on which the dry vacuum cleaner and its cleaning head is placed for the
measurement
Note 1 to entry: The specification of the standard Wilton test carpet can be found in IEC TS 62885-1.
3.106
standard hard floor
hard floor on which the dry vacuum cleaner and its cleaning head is placed for the
measurement
3.107
docking station
base unit
unit that can provide manual or automatic battery charging facilities, dust removal from the dry
vacuum cleaner, data processing facility or other support functions
4 Measurement methods and acoustical environments
4.2 Direct method
Addition:
If audible discrete tones are present in the noise emitted by the source, the estimated standard
deviation of the measured sound pressure levels in the special reverberation room can increase.
In such cases, additional microphone positions or source positions can be necessary, as
specified in ISO 3743-2.
If an operator is necessary, it is considered as part of the test environment. Therefore, the
operator shall be present also during the reverberation time measurement with the RSS. The
position of the operator shall be approximately at the same position as in the measurement with
the test sample.
IEC 60704-2-1:2026 © IEC 2026
4.3 Comparison method
Addition:
If audible discrete tones are present in the noise emitted by the source, the estimated standard
deviation of
...
