EN 60079-6:2015

Explosive atmospheres - Part 6: Equipment protection by liquid immersion "o"

IEC 60079-6:2015 specifies the requirements for the design, construction, testing and marking of Ex Equipment and Ex Components with type of protection liquid immersion "o" intended for use in explosive gas atmospheres. Ex Equipment and Ex Components of type of protection liquid immersion "o" are either: - Level of Protection "ob" (EPL "Mb" or "Gb") or - Level of Protection "oc" (EPL "Gc"). For Level of Protection "ob", this standard applies where the rated voltage does not exceed 11 kV r.m.s. a.c. or d.c. For Level of Protection "oc", this standard applies where the rated voltage does not exceed 15 kV r.m.s. a.c. or d.c. This standard supplements and modifies the general requirements of IEC 60079-0. Where a requirement of this standard conflicts with a requirement of IEC 60079-0, the requirement of this standard takes precedence. This fourth edition cancels and replaces the third edition, published in 2007. This edition constitutes a technical revision. The significant changes with respect to the previous edition are: - Edition 4 represents a major technical revision of the requirements for oil immersion "o" and should be considered as introducing all new requirements. The normal "Table of Significant Changes" has not been included for this reason. In particular: - The requirements for oil immersion "o" have been redefined into liquid immersion, levels of protection "ob" and "oc" as recommended by the responses to 31/715/DC; - The ability to protect sparking contacts has been added to both "ob" and "oc". Additional requirements have been introduced for the protective liquid. Keywords: Ex Equipment and Ex Components with type of protection liquid immersion "o"

Explosionsgefährdete Bereiche - Teil 6: Geräteschutz durch Flüssigkeitskapselung "o"

Atmosphères explosives - Partie 6: Protection du matériel par immersion dans le liquide "o"

L'IEC 60079-6:2015 spécifie les exigences de conception, de construction, d'essais et de marquage d'un matériel Ex et de composants Ex, de mode de protection immersion dans le liquide "o", destinés à être utilisés dans des atmosphères explosives gazeuses. Un matériel Ex et des composants Ex de mode de protection immersion dans le liquide "o" peuvent être du: Niveau de Protection "ob" (EPL "Mb" ou "Gb"), ou Niveau de Protection "oc" (EPL "Gc"). Pour le Niveau de Protection "ob", la présente norme s'applique si la tension assignée est inférieure à 11 kV eff. c.a. ou c.c. Pour le Niveau de Protection "oc", la présente norme s'applique si la tension assignée est inférieure à 15 kV eff. c.a. ou c.c. La présente norme complète et modifie les exigences générales de l'IEC 60079-0. Lorsqu'une exigence de la présente norme entre en contradiction avec une exigence de l'IEC 60079-0, l'exigence de la présente norme prévaut. Cette quatrième édition annule et remplace la troisième édition parue en 2007. Cette édition constitue une révision technique. Les modifications majeures par rapport à l'édition précédente sont énumérées ci-dessous: - Cette quatrième édition introduit une révision technique majeure des exigences relatives à l'immersion dans l'huile "o", et il convient qu'elle soit considérée comme spécifiant de nouvelles exigences. Le "Tableau des modifications majeures" habituel n'a pas été inclus pour cette raison. En particulier: - Les exigences relatives à l'immersion dans l'huile "o" traitent désormais de l'immersion dans un liquide, de niveaux de protection "ob" et "oc", selon les recommandations des réponses au document 31/715/DC; - La capacité à protéger les contacts à décharge disruptive a été ajoutée aux niveaux de protection "ob" et "oc". Des exigences supplémentaires relatives au liquide de protection ont été introduites. Mots clés: matériel Ex et de composants Ex, de mode de protection immersion dans le liquide "o"

Eksplozivne atmosfere - 6. del: Zaščita opreme s potopitvijo v olje "o" (IEC 60079-6:2015)

Ta del standarda IEC 60079 določa zahteve za načrtovanje, konstrukcijo, preskušanje in označevanje opreme in komponent EX z zaščito s potopitvijo v olje »o«, ki je namenjena uporabi v eksplozivnih plinskih atmosferah.
Oprema in komponente Ex z zaščito s potopitvijo v olje »o« imajo:
• nivo zaščite »ob« (EPL »Mb« ali »Gb«)
• nivo zaščite »oc« (EPL »Gc«)
V okviru nivoja zaščite »ob« se ta standard uporablja, če efektivna izmenična ali enosmerna napetost ne presega 11 kV.
V okviru nivoja zaščite »oc« se ta standard uporablja, če efektivna izmenična ali enosmerna napetost ne presega 15 kV.
OPOMBA: Zahteve za višje napetosti so v obravnavi.
Ta standard dopolnjuje in spreminja splošne zahteve standarda IEC 60079-0. Kadar je zahteva iz tega standarda v nasprotju z zahtevo iz standarda IEC 60079-0, ima prednost zahteva iz tega standarda.

General Information

• Status: Published
• Publication Date: 10-Dec-2015
• Withdrawal Date: 26-Mar-2018
• ICS: 29.260.20 - Electrical apparatus for explosive atmospheres
• Technical Committee: CLC/TC 31 - Electrical apparatus for explosive atmospheres - General requirements
• Drafting Committee: IEC/TC 31 - Electrical apparatus for potentially explosive atmospheres
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 11-Dec-2015
• Completion Date: 11-Dec-2015
• Directive: 2014/34/EU - Directive 2014/34/EU Of The European Parliament And Of The Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to equipment and protective systems intended for use in potentially explosive atmospheres (recast)
• Directive: 94/9/EC - Directive 94/9/EC of the European Parliament and the Council of 23 March 1994 on the approximation of the laws of the Member States concerning equipment and protective systems intended for use in potentially explosive atmospheres
• Ref Project: SIST EN 60079-6:2016 - Explosive atmospheres - Part 6: Equipment protection by liquid immersion "o" (IEC 60079-6:2015)

Relations

• Replaces: EN 60079-6:2007 - Explosive atmospheres - Part 6: Equipment protection by oil immersion "o"
• Effective Date: 29-Jan-2023
• Amended By: EN 60079-6:2015/FprA1:2019 - Explosive atmospheres - Part 6: Equipment protection by liquid immersion "o"
• Effective Date: 27-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 60079-6:2016
01-april-2016
1DGRPHãþD
SIST EN 60079-6:2007
(NVSOR]LYQHDWPRVIHUHGHO=DãþLWDRSUHPHVSRWRSLWYLMRYROMHR,(&

Explosive atmospheres - Part 6: Equipment protection by liquid immersion "o" (IEC
60079-6:2015)
Explosionsgefährdete Bereiche - Teil 6: Geräteschutz durch Flüssigkeitskapselung
"o" (IEC 60079-6:2015)
Atmosphères explosives - Partie 6: Protection du matériel par immersion dans le liquide
"o" (IEC 60079-6:2015)
Ta slovenski standard je istoveten z: EN 60079-6:2015
ICS:
29.260.20 (OHNWULþQLDSDUDWL]D Electrical apparatus for
HNVSOR]LYQDR]UDþMD explosive atmospheres
SIST EN 60079-6:2016 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 60079-6:2016

---------------------- Page: 2 ----------------------

SIST EN 60079-6:2016


EUROPEAN STANDARD EN 60079-6

NORME EUROPÉENNE

EUROPÄISCHE NORM
December 2015
ICS 29.260.20 Supersedes EN 60079-6:2007
English Version
Explosive atmospheres - Part 6: Equipment protection by liquid
immersion "o"
(IEC 60079-6:2015)
Atmosphères explosives - Partie 6: Protection du matériel Explosionsgefährdete Bereiche - Teil 6: Geräteschutz durch
par immersion dans le liquide "o" Flüssigkeitskapselung "o"
(IEC 60079-6:2015) (IEC 60079-6:2015)
This European Standard was approved by CENELEC on 2015-03-27. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 60079-6:2015 E

---------------------- Page: 3 ----------------------

SIST EN 60079-6:2016
EN 60079-6:2015 (E)

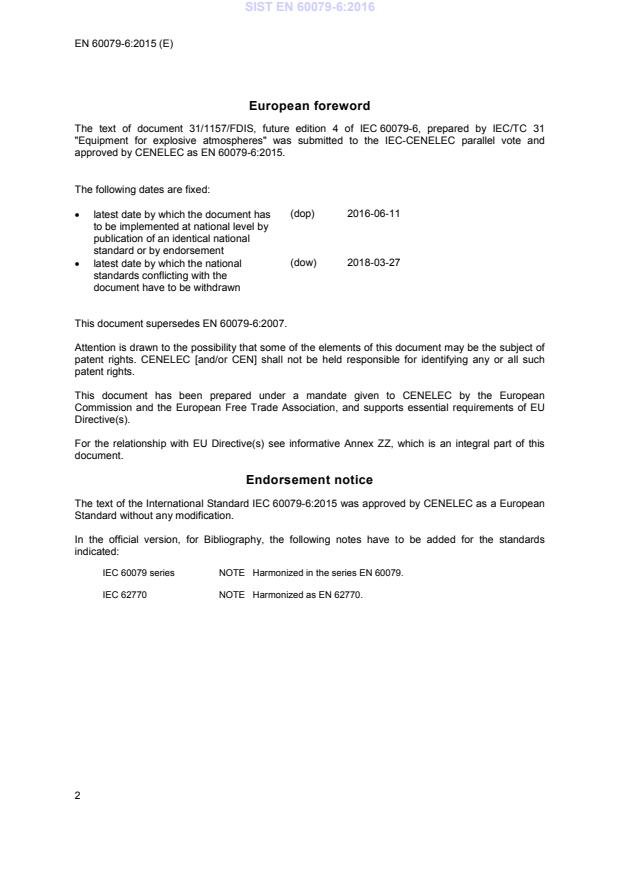

European foreword
The text of document 31/1157/FDIS, future edition 4 of IEC 60079-6, prepared by IEC/TC 31
"Equipment for explosive atmospheres" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN 60079-6:2015.

The following dates are fixed:
(dop) 2016-06-11
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2018-03-27
• latest date by which the national
standards conflicting with the
document have to be withdrawn

This document supersedes EN 60079-6:2007.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.

This document has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 60079-6:2015 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60079 series NOTE  Harmonized in the series EN 60079.
IEC 62770 NOTE  Harmonized as EN 62770.
2

---------------------- Page: 4 ----------------------

SIST EN 60079-6:2016
EN 60079-6:2015 (E)


Annex ZA
(normative)


Normative references to international publications
with their corresponding European publications


The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies.
...
