EN IEC 63171-5:2022

Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for Type 5

This part of IEC 63171 describes shielded or unshielded circular connectors with 2 ways and M8 or M12 Styles, typically used for data transmission up to 600 MHz and with current carrying capacity up to 4 A, for use in areas with harsh environmental conditions. These connectors consist of fixed and free connectors either rewirable or non-rewirable. Male connectors have square cross- section contacts, for data and power transmission. M12 describes the dimensions of the styles and thread of the screw-locking mechanism according IEC 61076-2-101 of this size of circular connectors. M8 describes the dimensions of the styles and thread of the screw-locking mechanism according IEC 61076-2-104. The use of alternative locking mechanisms according to IEC 61076-2-010 or IEC 61076-2-011 are possible. The coding provided by this standard prevents the mating of accordingly coded male or female connectors to other similarly sized interfaces covered by this or other standards. These Type 5 connectors are interoperable with Type 2 connectors according IEC 63171-2, except the locking and sealing system provided by the outer shell. The shielded and unshielded connectors are interoperable for their internal transmission performance and can be exchanged. The shielded version has improved EMC and coupling properties. This part of IEC 63171 covers Type 5 connectors. Each part of this series has the associated type number equal to the number of the part in the series. All connectors in the IEC 63171 series are deemed to provide the same functions as defined in IEC 63171:2021, using different mechanical interfaces.

Steckverbinder für elektrische und elektronische Einrichtungen - Teil 5: Einzelspezifikation für 2-polige M8- und M12-Rundsteckverbinder, geschirmt oder ungeschirmt, frei und fest - Mechanische Informationen zum Stecken, Kontaktbelegung und zusätzliche Anforderungen für Typ 5

Connecteurs pour équipements électriques et électroniques - Partie 5: Spécification particulière pour les connecteurs circulaires M8 et M12 à 2 pôles, à fiches et embases écrantées ou non écrantées - Informations d’accouplement mécanique, affectation des broches et exigences supplémentaires pour le type 5

L'IEC 63171-5:2022 fait référence aux Normes internationales pour les essais et les mesures, les essais environnementaux ainsi que les connexions sans soudure. Cette partie de l'IEC 63171 décrit les connecteurs circulaires blindés ou non blindés à 2 voies avec verrouillage IP65/IP67 M8 ou M12, généralement utilisés pour la transmission de données équilibrée à une seule paire avec des fréquences allant jusqu’à 600 MHz et avec une capacité de charge de courant allant jusqu’à 4 A, pour une utilisation dans des zones où les conditions environnementales sont difficiles. Ces connecteurs sont constitués de connecteurs fixes et libres, réengrenables ou non réenfrables. Les connecteurs mâles ont des contacts de section transversale carrée.

Konektorji za električno in elektronsko opremo - 5. del: Podrobna specifikacija za 2-redne okrogle konektorje M8 in M12, zaslonjene ali nezaslonjene, proste ali pritrjene - Informacije o mehanskih prilagoditvah, funkcije polov in dodatne zahteve za tip 5 (IEC 63171-5:2022)

General Information

• Status: Published
• Publication Date: 20-Oct-2022
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: CLC/SR 48B - Connectors
• Drafting Committee: IEC/SC 48B - IEC_SC_48B
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 21-Oct-2022
• Completion Date: 21-Oct-2022
• Ref Project: SIST EN IEC 63171-5:2022 - Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for Type 5 (IEC 63171-5:2022)

Relations

• Corrected By: EN IEC 63171-5:2022/AC:2024-11 - Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way m8 and m12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for type 5
• Effective Date: 26-Nov-2024

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2022
Konektorji za električno in elektronsko opremo - 5. del: Podrobna specifikacija za
2-redne okrogle konektorje M8 in M12, zaslonjene ali nezaslonjene, proste ali
pritrjene - Informacije o mehanskih prilagoditvah, funkcije polov in dodatne
zahteve za tip 5 (IEC 63171-5:2022)
Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way
M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical
mating information, pin assignment and additional requirements for Type 5 (IEC 63171-
5:2022)
Steckverbinder für elektrische und elektronische Einrichtungen - Produktanforderungen -
Teil 5: Bauartspezifikation für geschirmte oder ungeschirmte, freie und feste
Rundsteckverbinder mit bis zu 8 Polen: Informationen zur mechanischen Passung,
Kontaktstiftbelegung und zusätzliche Anforderungen für Typ 5 (IEC 63171-5:2022)
Connecteurs pour équipements électriques et électroniques – Partie 5: Spécification
particulière pour les connecteurs circulaires M8 et M12 à 2 pôles, à fiches et embases
écrantées ou non écrantées: informations d’accouplement mécanique, affectation des
broches et exigences supplémentaires pour le type 5 (IEC 63171-5:2022)
Ta slovenski standard je istoveten z: EN IEC 63171-5:2022
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 63171-5

NORME EUROPÉENNE
EUROPÄISCHE NORM October 2022
ICS 31.220.10
English Version
Connectors for electrical and electronic equipment - Part 5:
Detail specification for 2-way M8 and M12 circular connectors,
shielded or unshielded, free and fixed - Mechanical mating
information, pin assignment and additional requirements for
Type 5
(IEC 63171-5:2022)
Connecteurs pour équipements électriques et électroniques Steckverbinder für elektrische und elektronische
- Partie 5: Spécification particulière pour les connecteurs Einrichtungen - Produktanforderungen - Teil 5:
circulaires M8 et M12 à 2 pôles, à fiches et embases Bauartspezifikation für geschirmte oder ungeschirmte, freie
écrantées ou non écrantées - Informations d'accouplement und feste Rundsteckverbinder mit bis zu 8 Polen -
mécanique, affectation des broches et exigences Informationen zur mechanischen Passung,
supplémentaires pour le type 5 Kontaktstiftbelegung und zusätzliche Anforderungen für
(IEC 63171-5:2022) Typ 5
(IEC 63171-5:2022)
This European Standard was approved by CENELEC on 2022-10-20. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63171-5:2022 E

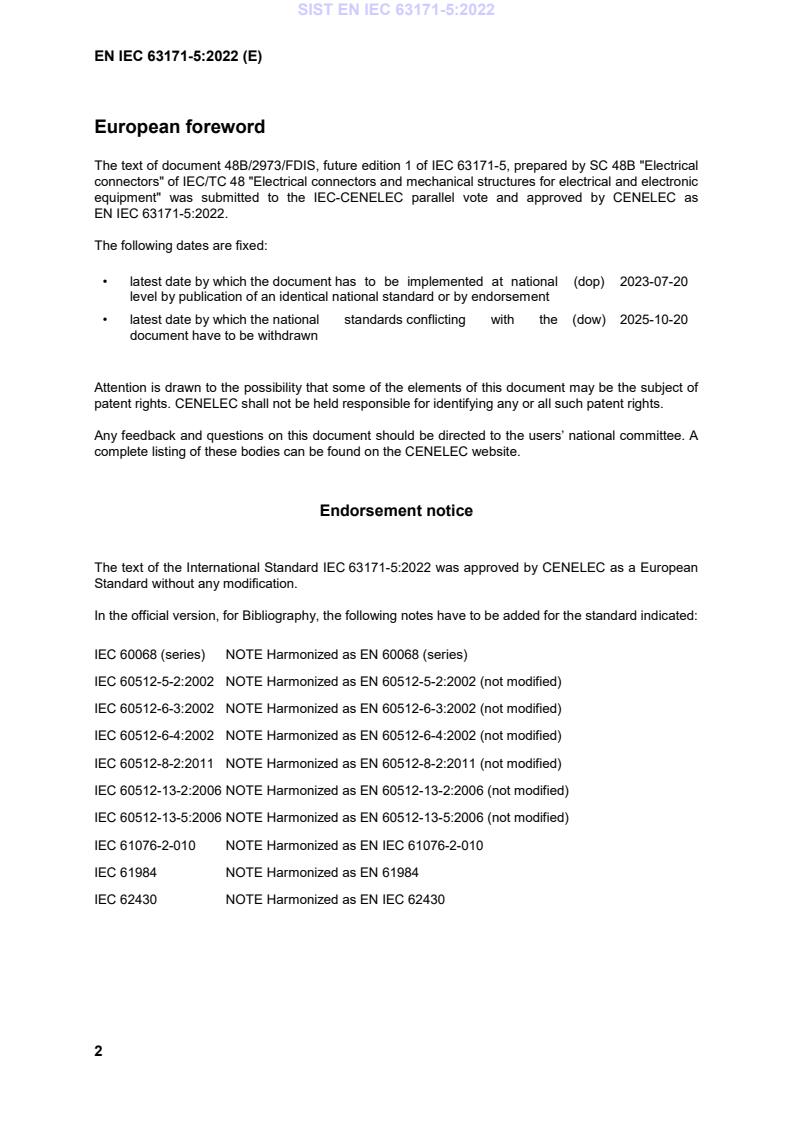

European foreword
The text of document 48B/2973/FDIS, future edition 1 of IEC 63171-5, prepared by SC 48B "Electrical
connectors" of IEC/TC 48 "Electrical connectors and mechanical structures for electrical and electronic
equipment" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-07-20
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2025-10-20
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63171-5:2022 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60068 (series) NOTE Harmonized as EN 60068 (series)
IEC 60512-5-2:2002 NOTE Harmonized as EN 60512-5-2:2002 (not modified)
IEC 60512-6-3:2002 NOTE Harmonized as EN 60512-6-3:2002 (not modified)
IEC 60512-6-4:2002 NOTE Harmonized as EN 60512-6-4:2002 (not modified)
IEC 60512-8-2:2011 NOTE Harmonized as EN 60512-8-2:2011 (not modified)
IEC 60512-13-2:2006 NOTE Harmonized as EN 60512-13-2:2006 (not modified)
IEC 60512-13-5:2006 NOTE Harmonized as EN 60512-13-5:2006 (not modified)
IEC 61076-2-010 NOTE Harmonized as EN IEC 61076-2-010
IEC 61984 NOTE Harmonized as EN 61984
IEC 62430 NOTE Harmonized as EN IEC 62430
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-581 - International Electrotechnical Vocabulary - - -
Part 581: Electromechanical components
for electronic equipment
IEC 60352 series Solderless connections EN IEC 60352 series
IEC 60512-1 - Connectors for electrical and electronic EN IEC 60512-1 -
equipment - Tests and measurements -
Part 1: Generic specification
IEC 60512-28-100 2019 Connectors for electrical and electronic EN IEC 60512-28-100 2019
equipment - Tests and measurements -
Part 28-100: Signal integrity tests up to
2 000 MHz - Tests 28a to 28g
IEC 60664-1 - Insulation coordination for equipment EN IEC 60664-1 -
within low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60999-1 - Connecting devices - Electrical copper EN 60999-1 -
conductors - Safety requirements for
screw-type and screwless-type clamping
units - Part 1: General requirements and
particular requirements for clamping units
2 2
for conductors from 0,2 mm up to 35 mm
(included)
IEC 61076-1 2006 Connectors for electronic equipment - EN 61076-1 2006
Product requirements - Part 1: Generic
specification
+ A1 2019  + A1 2019
IEC 61076-2-101 - Connectors for electronic equipment - EN 61076-2-101 -
Product requirements - Part 2-101: Circular
connectors - Detail specification for M12
connectors with screw-locking
IEC 61076-2-104 - Connectors for electronic equipment - EN 61076-2-104 -
Product requirements - Part 2-104: Circular
connectors - Detail specification for circular
connectors with M8 screw-locking or snap-
locking
IEC 61760-3 - Surface mounting technology - Part 3: EN 61760-3 -
Standard method for the specification of
components for through hole reflow (THR)
soldering
IEC/TR 63040 - Guidance on clearances and creepage - -
distances in particular for distances equal
to or less than 2 mm - Test results of
research on influencing parameters
IEC 63171 2021 Connectors for electrical and electronic EN IEC 63171 2021
equipment - Shielded or unshielded free
and fixed connectors for balanced single-
pair data transmission with current-carrying
capacity - General requirements and tests
IEC 63171-2 - Connectors for electrical and electronic EN IEC 63171-2 -
equipment - Part 2: Detail specification for
two-way, shielded or unshielded, free and
fixed connectors - Mechanical mating
information, pin assignment and additional
requirements for Type 2
ISO/IEC 11801-1 - Information technology - Generic cabling - -
for customer premises - Part 1: General
requirements
ISO 21920-1 2021 Geometrical product specifications (GPS) - EN ISO 21920-1 2022
Surface texture: Profile - Part 1: Indication
of surface texture
IEEE 802.3 - IEEE Standard for Ethernet - -

IEC 63171-5 ®
Edition 1.0 2022-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment –

Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded

or unshielded, free and fixed – Mechanical mating information, pin assignment

and additional requirements for Type 5

Connecteurs pour équipements électriques et ėlectroniques –

Partie 5: Spécification particulière pour les connecteurs circulaires M8 et M12 à

2 pôles, à fiches et embases écrantées ou non écrantées – Informations

d’accouplement mécanique, affectation des broches et exigences

supplémentaires pour le type 5

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220.10 ISBN 978-2-8322-5609-1

– 2 – IEC 63171-5:2022 © IEC 2022
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 10
4 Common features and typical connector pair . 11
4.1 Systems of levels . 11
4.1.1 Performance levels . 11
4.1.2 Compatibility levels, according to IEC 61076-1 . 11
4.2 Pin assignment . 11
4.3 Codings . 11
4.4 Classification into climatic categories . 11
4.5 Creepage and clearance distances . 11
4.6 Current-carrying capacity . 11
4.7 Marking . 11
4.8 Characteristics . 11
5 Dimensional information . 12
5.1 General . 12
5.2 Isometric view and common features . 12
5.2.1 General . 12
5.2.2 Common features . 12
5.2.3 Reference system . 12
5.3 Engagement (mating) information – Engaging (mating) direction . 12
5.4 Fixed connectors . 13
5.4.1 Overview about styles for fixed connectors . 13
5.4.2 Interface dimensions – Fixed connectors M8 . 13
5.4.3 Interface dimensions – Fixed connectors M12 . 13
5.5 Free connectors . 13
5.5.1 Overview about styles for free connectors . 13
5.5.2 Style KF .
...
