EN 61076-2-104:2014

(Main)

Connectors for electronic equipment - Product requirements - Part 2-104: Circular connectors - Detail specification for circular connectors with M8 screw-locking or snap-locking

Connectors for electronic equipment - Product requirements - Part 2-104: Circular connectors - Detail specification for circular connectors with M8 screw-locking or snap-locking

IEC 61076-2-104:2014 describes circular connectors M8 screw-locking or with nominal diameter 8 mm snap-locking, typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable. Male connectors have round contacts of diameter 0,6 mm, diameter 0,7 mm and diameter 1,0 mm. This second edition cancels and replaces the first edition published in 2008. This edition constitutes a technical revision. The main technical changes with regard to the previous edition are as follows: - three new type ways have been added to the A-coding, including new gauges and contact diameters and - the type designation has been removed. Key words: Connectors, Circular Connectors, Data transmission

Steckverbinder für elektronische Einrichtungen - Produktanforderungen - Teil 2-104: Rundsteckverbinder - Bauartspezifikation für Rundsteckverbinder M8 mit Schraub- oder Rastverriegelung

Connecteurs pour équipements électroniques - Exigences de produit - Partie 2-104: Connecteurs circulaires - Spécification particulière pour les connecteurs circulaires M8 à vis ou à encliquetage

L'IEC 61076-2-104:2014 décrit les connecteurs circulaires M8 à vis ou à encliquetage de 8 mm de diamètre nominal, généralement utilisés pour les mesures et les commandes dans les processus industriels. Ces connecteurs se composent d'embases et de fiches, démontables ou non. Les connecteurs mâles possèdent des contacts arrondis, de diamètre de 0,6 mm, de diamètre de 0,7 mm et de diamètre de 1,0 mm. Cette deuxième édition annule et remplace la première édition parue en 2008. Cette édition constitue une révision technique. Les principales modifications techniques par rapport à l'édition précédente sont: - trois nouveaux types de voies ont été ajoutés au codage-A, y compris de nouveaux calibres et diamètres de contact et - la désignation de type a été supprimée. Mots-clés: connecteurs, connecteurs circulaires, transmission de données

Konektorji za elektronsko opremo - Zahteve za izdelek - 2-104. del: Okrogli konektorji - Podrobna specifikacija za okrogle konektorje z vijačnim M8 ali zaskočnim zaklepanjem (IEC 61076-2-104:2014)

Ta del standarda IEC 61076 opisuje okrogle konektorje z vijačnim M8 zaklepanjem ali zaskočnim zaklepanjem z nominalnim premerom 8 mm, ki se običajno uporabljajo za merjenje in krmiljenje v industrijskih procesih. Ti konektorji so sestavljeni iz pritrjenih in prostih konektorjev z možnostjo ponovnega ožičenja ali brez. Moški konektorji imajo okrogle kontakte s premerom 0,6 mm, 0,7 mm in 1,0 mm.
V tej podrobni specifikaciji so mere navedene v milimetrih.
OPOMBA M8 je mera navoja mehanizma z vijačnim zaklepanjem teh okroglih konektorjev.

General Information

Status
Published
Publication Date
23-Oct-2014
Withdrawal Date
13-Oct-2017
ICS
31.220.10 - Plug-and-socket devices. Connectors
Technical Committee
CLC/SR 48B - Connectors
Drafting Committee
IEC/SC 48B - IEC_SC_48B
Current Stage
6060 - Document made available - Publishing
Start Date
24-Oct-2014
Completion Date
24-Oct-2014
Ref Project
SIST EN 61076-2-104:2014 - Connectors for electronic equipment - Product requirements -- Part 2-104: Circular connectors - Detail specification for circular connectors with M8 screw-locking or snap-locking

Relations

Replaces
EN 61076-2-104:2008 - Connectors for electronic equipment - Product requirements - Part 2-104: Circular connectors - Detail specification for circular connectors with M8 screw-locking or snap-locking
Effective Date
28-Jan-2023

Buy Standard

EN 61076-2-104:2014EN 61076-2-104:2014
PreviousNext
Standard
EN 61076-2-104:2014
English language
39 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steckverbinder für elektronische Einrichtungen - Produktanforderungen -- Teil 2-104: Rundsteckverbinder - Bauartspezifikation für Rundsteckverbinder M8 mit Schraub- oder RastverriegelungConnecteurs pour équipements électroniques - Exigences de produit -- Partie 2-104: Connecteurs circulaires - Spécification particulière pour les connecteurs circulaires M8 à vis ou à encliquetageConnectors for electronic equipment - Product requirements -- Part 2-104: Circular connectors - Detail specification for circular connectors with M8 screw-locking or snap-locking31.220.10Plug-and-socket devices. ConnectorsICS:Ta slovenski standard je istoveten z:EN 61076-2-104:2014SIST EN 61076-2-104:2014en01-december-2014SIST EN 61076-2-104:2014SLOVENSKI
STANDARDSIST EN 61076-2-104:20081DGRPHãþD



SIST EN 61076-2-104:2014



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 61076-2-104
October 2014 ICS 31.220.10
Supersedes EN 61076-2-104:2008
English Version
Connectors for electronic equipment - Product requirements - Part 2-104: Circular connectors - Detail specification for circular connectors with M8 screw-locking or snap-locking (IEC 61076-2-104:2014)
Connecteurs pour équipements électroniques - Exigences de produit - Partie 2-104: Connecteurs circulaires - Spécification particulière pour les connecteurs circulaires M8 à vis ou à encliquetage (CEI 61076-2-104:2014)
Steckverbinder für elektronische Einrichtungen - Produktanforderungen - Teil 2-104: Rundsteckverbinder - Bauartspezifikation für Rundsteckverbinder M8 mit Schraub- oder Rastverriegelung (IEC 61076-2-104:2014) This European Standard was approved by CENELEC on 2014-10-14. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Avenue Marnix 17,
B-1000 Brussels © 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61076-2-104:2014 E SIST EN 61076-2-104:2014

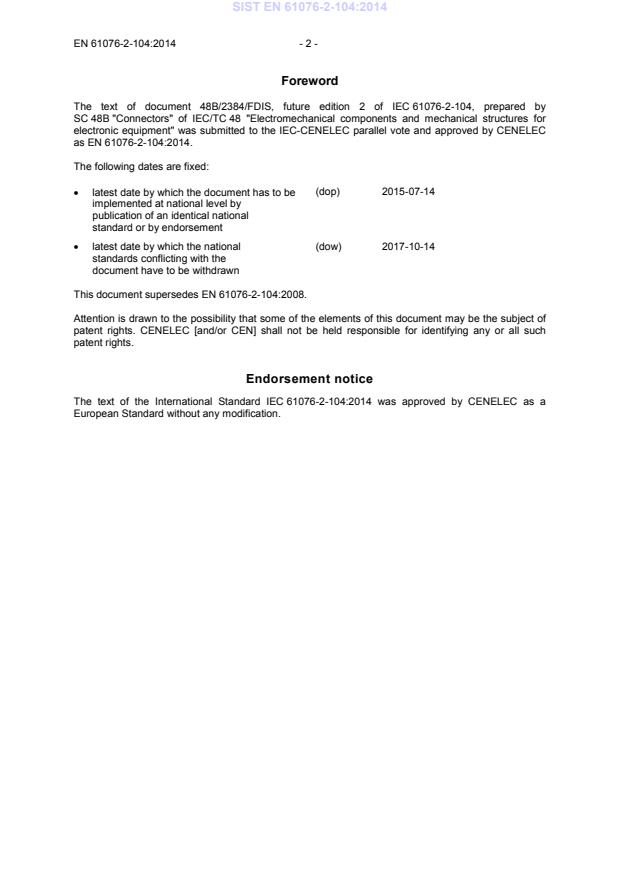

EN 61076-2-104:2014 - 2 - Foreword The text of document 48B/2384/FDIS, future edition 2 of IEC 61076-2-104, prepared by SC 48B "Connectors" of IEC/TC 48 "Electromechanical components and mechanical structures for electronic equipment" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 61076-2-104:2014.
The following dates are fixed: • latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2015-07-14 • latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2017-10-14
This document supersedes EN 61076-2-104:2008.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
Endorsement notice The text of the International Standard IEC 61076-2-104:2014 was approved by CENELEC as a European Standard without any modification. SIST EN 61076-2-104:2014



- 3 - EN 61076-2-104:2014 Annex ZA (normative)
Normative references to international publications with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is availabl
...
