EN IEC 63474:2023

Electrical and electronic household and office equipment - Measurement of networked standby power consumption of edge equipment

IEC 63474:2023 specifies methods of measurement of electrical power consumption in networked standby and the reporting of the results for edge equipment. Power consumption in standby (other than networked standby) is covered by EN 50564, including the input voltage range. This document also provides a method to test power management and to test whether it is possible to deactivate wireless network connection(s). This document does not apply to the measurement of electrical power consumption in networked standby for interconnecting equipment.

Elektrische und elektronische Haushalts- und Bürogeräte - Messung der Leistungsaufnahme im vernetzten Bereitschaftsbetrieb von Geräten am Netzwerkrand

Appareils électriques et électroniques pour application domestique et équipement de bureau - Mesurage de la consommation d'énergie en veille avec maintien de la connexion au réseau des équipements de périphérie

L'IEC 63474:2023 spécifie des méthodes de mesurage de la consommation électrique en veille avec maintien de la connexion au réseau et de consignation des résultats pour les équipements de périphérie. La consommation d'énergie en veille (autre que la veille avec maintien de la connexion au réseau) est couverte par l'EN 50564, y compris la plage de tensions d'entrée. Le présent document fournit également une méthode d'essai de la gestion de l'énergie et permet d'établir la possibilité ou non de désactiver les connexions au réseau sans fil. Le présent document ne s'applique pas au mesurage de la consommation électrique en veille avec maintien de la connexion au réseau des équipements d'interconnexion.

Električna in elektronska gospodinjska in pisarniška oprema - Merjenje porabe električne energije v stanju omrežne pripravljenosti na robu omrežja (IEC 63474:2023)

Standard IEC 63474:2023 določa metode merjenja porabe električne energije v stanju omrežne pripravljenosti in poročanje o rezultatih za opremo na robu omrežja.
Poraba energije v pripravljenosti (ki ni omrežna pripravljenost), vključno z razponom vhodne napetosti, je zajeta v standardu EN 50564.
Ta dokument zagotavlja tudi metodo za preskušanje upravljanja energije in ali je mogoče onemogočiti brezžične omrežne povezave.
Ta dokument se ne uporablja za merjenje porabe električne energije v stanju omrežne pripravljenosti za povezovalno opremo.

General Information

• Status: Published
• Publication Date: 20-Jul-2023
• ICS: 35.020 - Information technology (IT) in general
• Technical Committee: CLC/TC 100X - Audio, video and multimedia systems and equipment and related sub-systems
• Drafting Committee: IEC/TC 100 - IEC_TC_100
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 21-Jul-2023
• Completion Date: 21-Jul-2023
• Ref Project: SIST EN IEC 63474:2024 - Electrical and electronic household and office equipment - Measurement of networked standby power consumption of edge equipment (IEC 63474:2023)

Relations

• Revised: prEN IEC 63474:2025 - Electrical and electronic household and office equipment - Measurement of networked standby power of edge equipment
• Effective Date: 06-Jun-2023

Overview

EN IEC 63474:2023 (adopted by CLC/CENELEC from IEC 63474:2023) defines standardized methods to measure and report networked standby power consumption for electrical and electronic household and office edge equipment. The standard targets devices with wired or wireless network ports that can be remotely reactivated (remotely initiated triggers). It complements existing standby measurement standards (e.g., EN 50564 / IEC 62301) by focusing specifically on networked standby behaviour, power management testing, and verification of wireless connection deactivation. The standard does not apply to interconnecting equipment.

Key topics and technical requirements

• Measurement scope: Procedures for measuring electrical power consumption in networked standby for edge equipment and how to report results.
• Power management testing: Methods to exercise and measure device power management and reactivation behaviour, including reactivation triggers.
• Wireless connection management: Procedures to test whether wireless network connections can be deactivated and to verify active/inactive wireless states.
• Measurement conditions and instrumentation: Requirements for test room, power supply, power measuring instruments, measurement uncertainty, and common test conditions.
• Network configuration: Guidance on preparing and configuring network ports (wired and wireless) for tests, and test sequences for connected vs disconnected ports.
• Reporting: Required test report content, including laboratory details, product information, test parameters, network configurations, and measured data.
• Annexes and examples: Normative and informative annexes cover connection-type test conditions, equipment classification, network technology examples, user information, and a sample test report template.

Applications and who uses it

• Manufacturers of household and office electronics (smart appliances, smart speakers, printers, IoT edge devices) use the standard to characterize and optimize networked standby power.
• Test laboratories and compliance bodies adopt the measurement procedures for consistent, repeatable testing and certification.
• Product designers and energy engineers use results to improve power management, reduce standby energy use, and comply with energy labeling/regulatory requirements.
• Regulators and procurement teams reference standardized metrics when setting limits or evaluating products for energy efficiency programs.

Related standards

• EN 50564 / IEC 62301 - Measurement of low power/standby (complements EN IEC 63474 for non-networked standby).
• IEC 63474:2023 - International text adopted as EN IEC 63474:2023.

EN IEC 63474:2023 is essential for anyone needing accurate, repeatable measurement of networked standby power in edge equipment and for improving the energy profile of connected consumer and office devices.

Standards Content (Sample)

SLOVENSKI STANDARD
01-april-2024
Električna in elektronska gospodinjska in pisarniška oprema - Merjenje porabe
električne energije v stanju omrežne pripravljenosti na robu omrežja (IEC
63474:2023)
Electrical and electronic household and office equipment - Measurement of networked
standby power consumption of edge equipment (IEC 63474:2023)
Elektrische und elektronische Haushalts- und Bürogeräte - Messung der
Leistungsaufnahme im vernetzten Bereitschaftsbetrieb von Geräten am Netzwerkrand
(IEC 63474:2023)
Appareils électriques et électroniques pour application domestique et équipement de
bureau - Mesurage de la consommation d'énergie en veille avec maintien de la
connexion au réseau des équipements de périphérie (IEC 63474:2023)
Ta slovenski standard je istoveten z: EN IEC 63474:2023
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
33.160.01 Avdio, video in avdiovizualni Audio, video and audiovisual
sistemi na splošno systems in general
35.020 Informacijska tehnika in Information technology (IT) in
tehnologija na splošno general
97.030 Električni aparati za dom na Domestic electrical
splošno appliances in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 63474

NORME EUROPÉENNE
EUROPÄISCHE NORM July 2023
ICS 35.020
English Version
Electrical and electronic household and office equipment -
Measurement of networked standby power consumption of edge
equipment
(IEC 63474:2023)
Appareils électriques et électroniques pour application Elektrische und elektronische Haushalts- und Bürogeräte -
domestique et équipement de bureau - Mesurage de la Messung der Leistungsaufnahme im vernetzten
consommation d'énergie en veille avec maintien de la Bereitschaftsbetrieb von Geräten am Netzwerkrand
connexion au réseau des équipements de périphérie (IEC 63474:2023)
(IEC 63474:2023)
This European Standard was approved by CENELEC on 2023-06-27. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 63474:2023 E

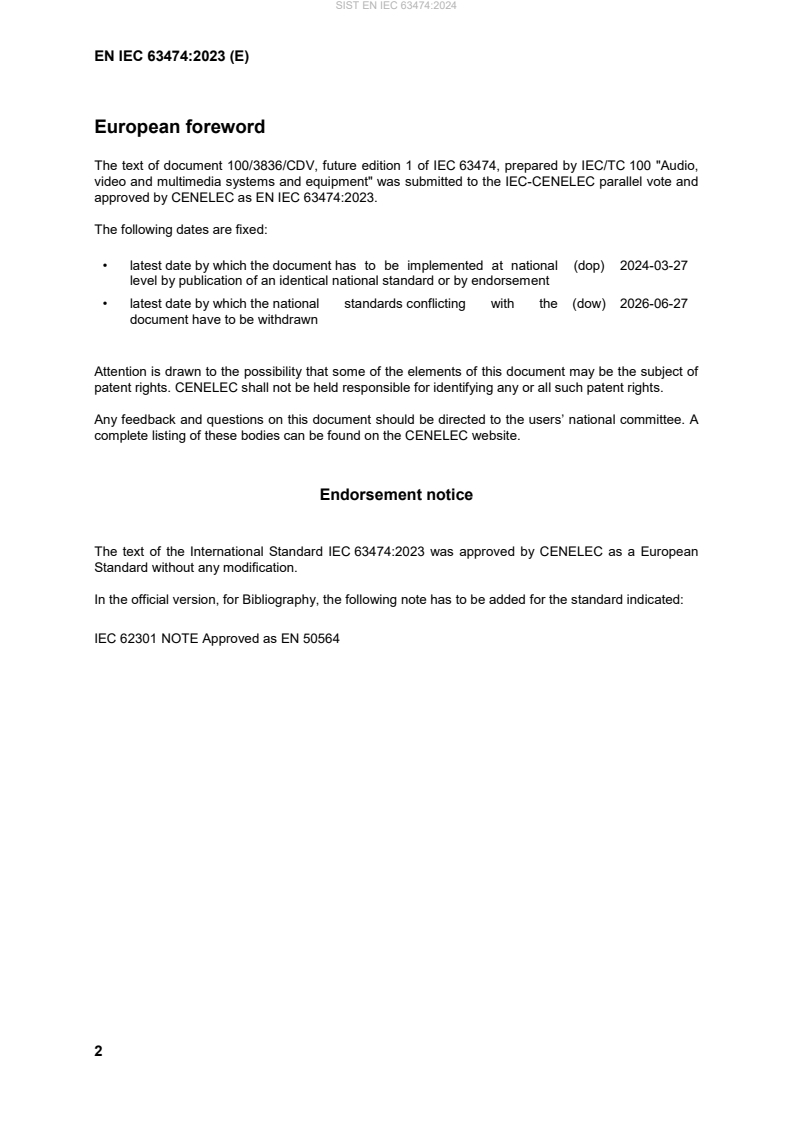

European foreword
The text of document 100/3836/CDV, future edition 1 of IEC 63474, prepared by IEC/TC 100 "Audio,
video and multimedia systems and equipment" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN IEC 63474:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-03-27
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-06-27
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63474:2023 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 62301 NOTE Approved as EN 50564
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 62301 2011 Electrical and electronic household and EN 50564 2011
office equipment - Measurement of low
power consumption
IEC 63474 ®
Edition 1.0 2023-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrical and electronic household and office equipment – Measurement of
networked standby power consumption of edge equipment
Appareils électriques et électroniques pour application domestique et
équipement de bureau – Mesurage de la consommation d'énergie en veille avec
maintien de la connexion au réseau des équipements de périphérie
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 35.020 ISBN 978-2-8322-7029-5
– 2 – IEC 63474:2023 © IEC 2023
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviations . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms . 9
4 Information required for testing purposes . 9
4.1 Information about network port(s) . 9
4.2 Power management function - periods and conditions . 10
4.3 Activation and deactivation of wireless network connections . 10
5 Measurement conditions . 10
5.1 Common requirements . 10
5.2 Test room . 11
5.3 Power supply . 11
5.4 Power measuring instruments . 11
5.5 Configuration of network ports . 11
5.6 Measurement uncertainty . 12
6 Measurement procedure . 12
6.1 General . 12
6.2 Wireless network connection management . 12
6.2.1 Test sequence . 12
6.2.2 Verifying that wireless connections are deactivated . 12
6.2.3 Verifying that a wireless network connection is active . 12
6.3 Preparation of the EUT and general testing aspects . 12
6.4 Power management, reactivation, and networked standby power
consumption . 12
6.5 Measurement of standby power consumption with all network ports
disconnected . 13
6.6 Measurement of networked standby power consumption with all network
ports connected . 14
7 Test report . 14
7.1 Test and laboratory details . 14
7.2 Details of product under test . 14
7.3 Test parameters and network configuration . 14
7.4 Measured and documented data . 15
Annex A (normative) Test conditions – Connection types and test conditions . 16
Annex B (informative) Additional scope considerations – Equipment classification and
examples . 17
Annex C (informative) General information on network technologies and network
configurations with respect to power consumption – Examples of network port
configurations . 19
Annex D (informative) Information to be provided to the user and other interested
parties . 20
D.1 Information available online . 20
D.2 Information available in the user manual . 20
Annex E (informative) Example of a test report template . 21

IEC 63474:2023 © IEC 2023 – 3 –
Bibliography . 23

Table A.1 – Test conditions by type of connection. 16
Table B.1 – Classification of networked equipment . 17
Table B.2 – Examples of equipment definition and its classification . 18
Table C.1 – Examples of technologies considered for networked standby . 19

– 4 – IEC 63474:2023 © IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICAL AND ELECTRONIC HOUSEHOLD AND OFFICE EQUIPMENT –
MEASUREMENT OF NETWORKED STANDBY POWER
CONSUMPTION OF EDGE EQUIPMENT
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 63474 has been prepared by technical area 19: Environmental and energy aspects for
multimedia systems and equipment, of IEC technical committee 100: Audio, video and
multimedia systems and equipment. It is an International Standard.
The text of this document is based on EN 50643:2018. It was submitted to the National
Committees for voting under the Fast Track Procedure.
The text of this International Standard is based on the following documents:
Draft Report on voting
100/3836/CDV 100/3898/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
IEC 63474:2023 © IEC 2023 – 5 –
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 63474:2023 © IEC 2023
INTRODUCTION
The methods defined in this document are intended to define requirements for the measurement
of the power consumed by the equipment having one or more wired or wireless network port(s)
able to resume a function by way of a remotely initiated trigger or reactivation trigger from a
network connection.
For the measurement of low power consumption, reference is made to EN 50564:2011. This
document also provides a method to test power management and whether it is possible to
deactivate wireless network connection(s).

IEC 63474:2023 © IEC 2023 – 7 –
ELECTRICAL AND ELECTRONIC HOUSEHOLD AND OFFICE EQUIPMENT –
MEASUREMENT OF NETWORKED STANDBY POWER
CONSUMPTION OF EDGE EQUIPMENT
1 Scope
This document specifies methods of measurement of electrical power consumption in networked
standby and the reporting of the results for edge equipment.
Power consumption in standby (other than networked standby) is covered by EN 50564,
including the input voltage range.
This document also provides a method to test power management and to test whether it is
possible to deactivate wireless network connection(s).
NOTE 1 This document applies to electrical products with a rated input voltage of 230 V a.c. for single phase
products and 400 V a.c. for three-phase products.
NOTE 2 The measurement of energy consumption and performance of products during intended use are generally
specified in product standards and are not covered by this document.
NOTE 3 The term "products" in this document includes household appliances or information technology products,
consumer electronics, audio, video and multimedia systems; however, the measurement methodology can be applied
to other products.
This document does not apply to the measurement of electrical power consumption in
networked standby for interconnecting equipment.
NOTE 4 Measurement of electrical power consumption in networked standby for interconnecting equipment is the
subject of ETSI standard EN 303 423.
2 Normative references
The following documents are referred to in the text in such way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
EN 50564:2011, Electrical and electronic household and office equipment – Measurement of
low power consumption
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 50564:2011 as well
as in the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/

– 8 – IEC 63474:2023 © IEC 2023
3.1.1
edge equipment
networked equipment that can be connected to a network and interact with that network or other
equipment and that does not have, as its primary function, the passing of network traffic to
provide a network
Note 1 to entry: Examples of edge equipment are given in Annex B.
3.1.2
interconnecting equipment
networked equipment that has, as its primary function, the passing of network traffic to provide
a network
Note 1 to entry: Examples of interconnecting equipment are given in Annex B.
3.1.3
network
communication infrastructure with a topology of links, an architecture, including the physical
components, organisational principles, communication procedures and formats (protocols)
3.1.4
network availability
capability of the equipment to resume functions after a remotely initiated trigger has been
detected by a network port
3.1.5
network port
wired or wireless physical interface of the network connection located on the equipment through
which the equipment can be remotely activated
Note 1 to entry: International Electrotechnical Vocabulary (IEC 60050) defines "port (of a network)" as: "a
termination through which signals can enter or leave a network".
3.1.6
networked equipment
equipment that can connect to a network and has one or more network ports
3.1.7
networked standby
condition in which the equipment is able to resume a function by way of a remotely initiated
trigger from a network connection
3.1.8
networked television set
television set that can connect to a network and has one or more network ports
3.1.9
reactivation trigger
signal that brings the EUT back to an active mode
Note 1 to entry: The reactivation is remotely initiated by a signal that comes from outside the equipment via a
network.
3.1.10
logical network port
network technology running over a physical network port

IEC 63474:2023 © IEC 2023 – 9 –
3.1.11
physical network port
physical (hardware) medium of a network port that can host two or more network technologies
Note 1 to entry: A physical network port can consist of multiple logical network ports.
3.1.12
power management
automatic control mechanism that achieves the smallest input power consistent with a
pre-determined level of functionality
[SOURCE: IEC 60050-904:2014, 904-03-01, modified – Note 1 to entry has been omitted.]
3.2 Abbreviated terms
For the purposes of this document, the following abbreviations apply.
CPU central processing unit
DOCSIS Data Over Cable Service Interface Specification
EUT equipment under test
HDMI® High-Definition Multimedia Interface
HiNA high network availability
LAN local area network
MoCA® Multimedia over Coax Alliance
PLC power line communication
USB Universal Serial Bus (IEC 62280 series)
WAN wide area network
4 Information required for testing purposes
4.1 Information about network port(s)
For each type of physical and associated logical network port, the following information shall
be provided by the manufacturer:
a) the default time after which the power management function, or a similar function,
automatically switches the equipment into networked standby, and, if available, the
procedure for:
1) setting a time other than the default time; and/or
2) manually switching the equipment into networked standby;
NOTE 1 The word "manually" in the above context refers to any user operation intervention such as pushing a
button on the EuT itself, or sending a message from another machine.
___________
The DOCSIS specifications are the result of a cooperative effort undertaken at the direction of Cable Television
Laboratories, Inc. for the benefit of the cable industry and its customers. This information is given for the
convenience of users of this document and does not constitute an endorsement by IEC of the product named.
Equivalent products may be used if they can be shown to lead to the same results.
2 ® ®
HDMI and HDMI High-Definition Multimedia Interface are registered trademarks of HDMI Licensing
Administrator, Inc. This information is given for the convenience of users of this document and does not constitute
an endorsement by IEC of the product named. Equivalent products may be used if they can be shown to lead to
the same results.
MoCA® is a global member-driven, non-profit Alliance developing multi-gigabit coax connectivity standards. This
information is given for the convenience of users of this document and does not constitute an endorsement by
IEC of the product named. Equivalent products may be used if they can be shown to lead to the same results.

– 10 – IEC 63474:2023 © IEC 2023
b) the characteristics of the reactivation trigger (message, signal…) that is used to reactivate
the equipment when in networked standby and how to remotely initiate it;
c) the maximum performance specifications, for example the maximum speed or data rate
supported by that network port;
d) the (maximum) power consumption of the equipment in a condition providing networked
standby into which power management function, or a similar function, will switch the
equipment, if only this port is used for remote activation, for example the declared power
consumption of the equipment under defined conditions for a type of port;
e) the communication protocol used by equipment, except for networked televisions;
f) the radio frequency range at which each radio wireless logical network port operates;
g) the characteristics of wireless logical network ports other than radio wireless logical network
ports.
NOTE 2 Annex D describes examples of product information for networked equipment.
4.2 Power management function - periods and conditions
The manufacturer shall provide information on:
a) whether the equipment under test provides a power management or a similar function. If the
EUT does not provide power management or a similar function, the manufacturer shall
explain why such a function would be inappropriate for the intended use;
b) the default period of time after which the power management function, or a similar function,
switches the equipment automatically into a condition providing networked standby.
NOTE 1 A maximum default period of 20 min can be given during which the equipment has not been providing its
main function.
NOTE 2 A maxim
...
