EN IEC 62384:2020

DC or AC supplied electronic controlgear for LED modules - Performance requirements

IEC 62384:2020 is available as IEC 62384:2020 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 62384:2020 specifies performance requirements for electronic controlgear for use on DC or AC supplies up to 1 000 V (alternating current at 50 Hz or 60 Hz) and with an output frequency which can deviate from the supply frequency, associated with LED modules according to IEC 62031. Controlgear for LED modules specified in this document are designed to provide constant voltage or current. Deviations from the pure voltage and current types do not exclude the gear from this document. This second edition cancels and replaces the first edition published in 2006 and Amendment 1:2009. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: - scope extension (direct current from 250 V to 1 000 V); - new specifications for measuring the power factor for controlgear with settable/non-constant output (for instance, to allow for constant light output); - deletion of audio frequency requirements; - selection of current test circuit by module capacitance (instead of selecting by having or not having logic circuitry) plus test circuit setup changes.

Gleich- oder wechselstromversorgte elektronische Betriebsgeräte für LED-Module - Anforderungen an die Arbeitsweise

Appareillages électroniques alimentés en courant continu ou alternatif pour modules de LED - Exigences de performances

IEC 62384:2020 est disponible sous forme de IEC 62384:2020 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.L'IEC 62384:2020 spécifie les exigences de performances relatives aux appareillages électroniques pour utilisation sur des alimentations en courant continu ou courant alternatif jusqu'à 1 000 V (courant alternatif à 50 Hz ou 60 Hz) et avec une fréquence de sortie qui peut différer de la fréquence d'alimentation, associés à des modules de LED conformes à l'IEC 62031. Les appareillages pour modules de LED spécifiés dans le présent document sont conçus pour délivrer une tension ou un courant constant. Le présent document couvre aussi les appareillages qui ne sont pas des générateurs purs de courant ou de tension. Cette deuxième édition annule et remplace la première édition parue en 2006 et son Amendement 1:2009. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - extension du domaine d’application (courant continu de 250 V à 1 000 V); - nouvelles spécifications pour le mesurage du facteur de puissance des appareillages avec sortie réglable/non constante (par exemple, pour permettre un flux lumineux constant); - suppression des exigences en matière de fréquence audio; - choix du circuit d’essai actuel en fonction de la capacité du module (en lieu et place d’un choix en fonction de la présence ou de l’absence de circuits logiques) et modification de la configuration du circuit d’essai.

Enosmerno ali izmenično napajane krmilne stikalne naprave za module LED - Tehnične zahteve (IEC 62384:2020)

General Information

• Status: Published
• Publication Date: 02-Jul-2020
• ICS: 29.140.99 - Other standards related to lamps
• ICS: 31.080.99 - Other semiconductor devices
• Technical Committee: CLC/TC 34 - 'Lamps and related equipment
• Drafting Committee: IEC/SC 34C - IEC_SC_34C
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 03-Jul-2020
• Completion Date: 03-Jul-2020
• Ref Project: SIST EN IEC 62384:2020 - DC or AC supplied electronic controlgear for LED modules - Performance requirements (IEC 62384:2020)

Relations

• Replaces: EN 62384:2006/A1:2009 - DC or AC supplied electronic control gear for LED modules - Performance requirements
• Effective Date: 25-Jan-2023
• Replaces: EN 62384:2006 - DC or AC supplied electronic control gear for LED modules - Performance requirements
• Effective Date: 07-Jul-2020

Overview

EN IEC 62384:2020 - DC or AC supplied electronic controlgear for LED modules – Performance requirements (CLC adoption of IEC 62384:2020) specifies type-test performance requirements for electronic controlgear (LED drivers) intended to operate LED modules (per IEC 62031) on DC or AC supplies up to 1 000 V (50 Hz or 60 Hz). This second edition (2020) replaces the 2006 edition and its 2009 amendment and introduces technical revisions including extended DC scope, new power-factor measurement rules for settable/non-constant outputs, removal of audio-frequency requirements, and revised test-circuit selection based on module capacitance.

Key topics and technical requirements

• Scope and design types
  • Applies to controlgear providing constant voltage or constant current (and deviations from pure types).
  • Intended for LED modules defined by IEC 62031.
• Voltage, current and start-up
  • Requirements for starting, connecting, and behavior during operation; expected satisfactory operation typically between 92% and 106% of rated supply voltage.
• Classification and marking
  • Classification by load, output voltage and current, with mandatory and optional marking requirements.
• Capacitive load handling
  • Test circuit selection now based on LED module input capacitance (high > ~100 nF vs low ≤ 100 nF) and includes specific tests for capacitive load current.
• Total circuit power and circuit power factor
  • Definition and measurement of total circuit power (driver + module) and circuit power factor (λ); new specifications for measuring power factor for controlgear with settable or non-constant outputs (e.g., constant light output).
• Reliability and safety tests
  • Operational tests for abnormal conditions, endurance testing, supply current measurements and test procedures (type tests only - not production tests).
• Testing guidance
  • Annexes include normative test setups and guidance on quoting product life and failure rates.

Applications and practical users

EN IEC 62384:2020 is used by:

• LED driver manufacturers for design verification and compliance testing.
• Test laboratories performing type tests, power-factor and capacitive-load measurements.
• Product compliance and certification bodies assessing conformity to European/CENELEC requirements.
• Lighting specifiers, OEMs and system integrators specifying compatible controlgear for LED modules.
• Regulatory and procurement teams referencing harmonized performance requirements.

Practical benefits include improved interoperability of LED modules and drivers, clearer test methods for high-capacitance modules, and consistent power-factor evaluation for devices with variable outputs.

Related standards

• IEC 62031 - LED modules (referenced for module requirements)
• IEC 61347-1 - Lamp controlgear - General and safety requirements
• IEC 61347-2-13 - Particular requirements for electronic controlgear for LED modules

Keywords: EN IEC 62384:2020, LED controlgear, LED driver performance, electronic controlgear, LED modules, power factor, capacitive load, IEC 62031.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2020
Nadomešča:
SIST EN 62384:2007
SIST EN 62384:2007/A1:2009
Enosmerno ali izmenično napajane krmilne stikalne naprave za module LED -
Tehnične zahteve (IEC 62384:2020)
DC or AC supplied electronic controlgear for LED modules - Performance requirements
(IEC 62384:2020)
Gleich- oder wechselstromversorgte elektronische Betriebsgeräte für LED-Module -
Anforderungen an die Arbeitsweise (IEC 62384:2020)
Appareillages électroniques alimentés en courant continu ou alternatif pour modules de
LED - Exigences de performances (IEC 62384:2020)
Ta slovenski standard je istoveten z: EN IEC 62384:2020
ICS:
29.140.99 Drugi standardi v zvezi z Other standards related to
žarnicami lamps
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62384

NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2020
ICS 29.140.99; 31.080.99 Supersedes EN 62384:2006 and all of its amendments
and corrigenda (if any)
English Version
DC or AC supplied electronic controlgear for LED modules -
Performance requirements
(IEC 62384:2020)
Appareillages électroniques alimentés en courant continu Gleich- oder wechselstromversorgte elektronische
ou alternatif pour modules de LED - Exigences de Betriebsgeräte für LED-Module - Anforderungen an die
performances Arbeitsweise
(IEC 62384:2020) (IEC 62384:2020)
This European Standard was approved by CENELEC on 2020-06-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62384:2020 E

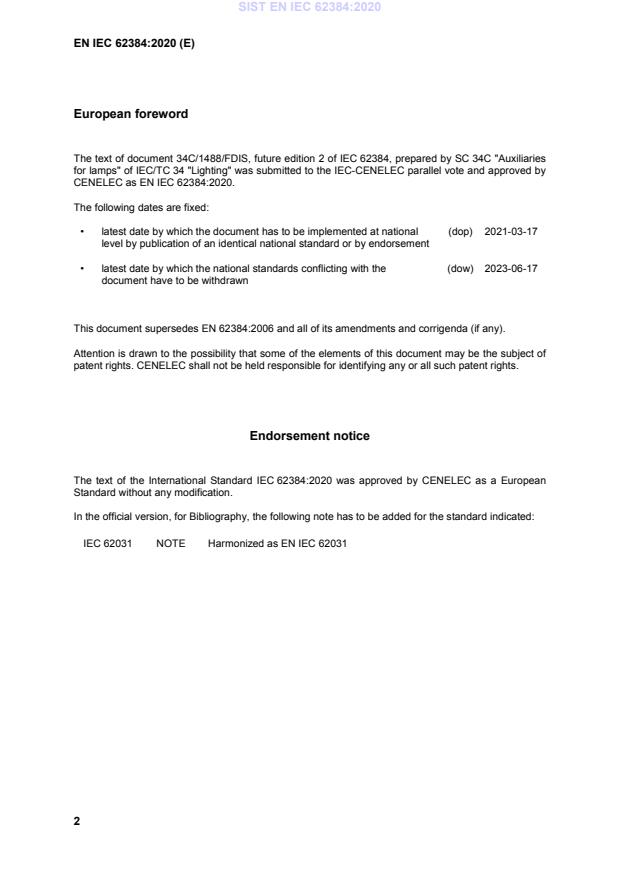

European foreword
The text of document 34C/1488/FDIS, future edition 2 of IEC 62384, prepared by SC 34C "Auxiliaries
for lamps" of IEC/TC 34 "Lighting" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62384:2020.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021-03-17
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2023-06-17
document have to be withdrawn
This document supersedes EN 62384:2006 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 62384:2020 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 62031 NOTE Harmonized as EN IEC 62031

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61347-1 - Lamp controlgear - Part 1: General and EN 61347-1 -
safety requirements
IEC 61347-2-13 - Lamp controlgear - Part 2-13: Particular EN 61347-2-13 -
requirements for d.c. or a.c. supplied
electronic controlgear for LED modules

IEC 62384 ®
Edition 2.0 2020-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
DC or AC supplied electronic controlgear for LED modules – Performance

requirements
Appareillages électroniques alimentés en courant continu ou alternatif pour

modules de LED – Exigences de performances

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99; 31.080.99 ISBN 978-2-8322-8308-0

– 2 – IEC 62384:2020  IEC 2020
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General notes on tests . 6
5 Classification . 7
5.1 Classification according to the load . 7
5.2 Classification according to the output voltage . 7
5.3 Classification according to the output current . 7
6 Marking . 7
6.1 Mandatory marking . 7
6.2 Optional marking . 7
7 Output voltage and current . 8
7.1 Starting and connecting requirements . 8
7.2 Voltage and current during operation . 8
7.3 Capacitive load requirement. 8
8 Total circuit power . 8
9 Circuit power factor . 9
10 Supply current . 9
11 Operational tests for abnormal conditions . 9
12 Endurance . 10
Annex A (normative) Tests . 11
A.1 General requirements . 11
A.1.1 General . 11
A.1.2 Ambient temperature . 11
A.1.3 Supply voltage and frequency . 11
A.1.4 Magnetic effects . 11
A.1.5 Instrument characteristics . 11
A.2 Measurement of capacitive load current . 12
Annex B (informative) Guidance on quoting product life and failure rate . 13
Bibliography . 14

Figure A.1 – Test circuit for measurement of capacitive load current . 12

IEC 62384:2020  IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DC OR AC SUPPLIED ELECTRONIC CONTROLGEAR FOR
LED MODULES – PERFORMANCE REQUIREMENTS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62384 has been prepared by subcommittee 34C: Auxiliaries for
lamps, of IEC technical committee 34: Lamps and related equipment.
This second edition cancels and replaces the first edition published in 2006 and
Amendment 1:2009. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) scope extension (direct current from 250 V to 1 000 V);
b) new specifications for measuring the power factor for controlgear with settable/non-
constant output (for instance, to allow for constant light output);
c) deletion of audio frequency requirements;
d) selection of current test circuit by module capacitance (instead of selecting by having or
not having logic circuitry) plus test circuit setup changes.

– 4 – IEC 62384:2020  IEC 2020
The text of this International Standard is based on the following documents:
FDIS Report on voting
34C/1488/FDIS 34C/1489/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This document is to be read in conjunction with IEC 61347-2-13.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this publication using a
colour printer.
IEC 62384:2020  IEC 2020 – 5 –
DC OR AC SUPPLIED ELECTRONIC CONTROLGEAR FOR
LED MODULES – PERFORMANCE REQUIREMENTS

1 Scope
This document specifies performance requirements for electronic controlgear for use on DC or
AC supplies up to 1 000 V (alternating current at 50 Hz or 60 Hz) and with an output
frequency which can deviate from the supply frequency, associated with LED modules
according to IEC 62031. Controlgear for LED modules specified in this document are
designed to provide constant voltage or current. Deviations from the pure voltage and current
types do not exclude the gear from this document.
NOTE 1 The tests in this document are type tests. Requirements for testing individual controlgear during
production are not included.
NOTE 2 Requirements for controlgear which incorporate means for varying the output power are under
consideration.
NOTE 3 It can be expected that controlgear complying with this document will ensure satisfactory operation
between 92 % and 106 % of the rated supply voltage, taking into account the specifications of the LED module
manufacturer.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 61347-1, Lamp controlgear – Part 1: General and safety requirements
IEC 61347-2-13, Lamp controlgear – Part 2-13: Particular requirements for d.c. or a.c.
supplied electronic controlgear for LED modules
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61347-1 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.e
...
