EN 61340-4-8:2015

Electrostatics - Part 4-8: Standard test methods for specific applications - Electrostatic discharge shielding - Bags

IEC 61340-4-8:2014 provides a test method for evaluating the performance of electrostatic discharge shielding bags tested according to the requirements of IEC 61340-5-3. The design voltage for the test apparatus is 1 000 V d.c. The test method presented in this standard can also be applied to packaging other than shielding bags. The purpose of this standard is to ensure that testing laboratories who use this test method to evaluate a given packaging material will obtain similar results. This standard does not address protection from electromagnetic interference (EMI), radio frequency interference (RFI), electromagnetic pulsing (EMP) nor protection against volatile materials. This edition includes the following significant technical changes with respect to the previous edition: a) modification to the title to include the word "Electrostatic" before discharge shielding"; b) removal of normative references ANSI/ESD STM5.1 and ASTM D-257-78 and replaced by normative references IEC 61340-3-1 and IEC 60093; c) new normative reference to IEC 61340-5-3 added, because the requirement for shielding bags have been included in this standard; d) imperial units have been removed.

Elektrostatik - Teil 4-8: Standard-Prüfverfahren für spezielle Anwendungen - Schirmwirkung gegen elektrostatische Entladung - Beutel

Electrostatique - Partie 4-8: Méthodes d’essai normalisées pour des applications spécifiques – Blindage contre les décharges électrostatiques – Sacs

L'IEC 61340-4-8:2014 fournit une méthode d'essai pour l'évaluation des performances des sacs de blindage contre les décharges électrostatiques lorsqu'ils sont soumis aux essais conformément aux exigences de l'IEC 61340-5-3. La tension de conception de l'appareillage d'essai est de 1 000 V en courant continu. La méthode d'essai présentée dans la présente norme peut aussi être appliquée à des emballages autres que les sacs de blindage. La présente norme est destinée à assurer que les laboratoires d'essai qui utilisent cette méthode d'essai pour évaluer un matériau d'emballage donné obtiennent des résultats similaires. La présente norme ne traite ni de la protection contre les perturbations électromagnétiques (EMI), les perturbations à radiofréquences (RFI), les impulsions électromagnétiques (EMP) ni de la protection contre les matériaux volatils. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) modification du titre; ajout du mot "électrostatiques" avant "blindage contre les décharges"; b) retrait des références normatives l'ANSI/ESD STM5.1 ainsi que l'ASTM-257-78; remplacées par les références normatives IEC 61340-3-1 et IEC 60093; c) nouvelle référence normative à l'IEC 61340-5-3 a été ajoutée, car les exigences pour les blindages des sacs sont spécifiés dans cette norme; d) les unités anglaises ont été supprimées.

Elektrostatika - 4-8. del: Standardne preskusne metode za posebno uporabo - Zaščita pred elektrostatičnimi razelektritvami - Vrečke

Ta del standarda IEC 61340 zagotavlja preskusno metodo za oceno delovanja vrečk za zaščito pred elektrostatičnimi razelektritvami, preskušenih v skladu z zahtevami iz standarda IEC 61340-5-3. Projektna napetost za preskusne naprave je 1000 V enosmerne napetosti. Preskusna metoda, predstavljena v tem standardu, se lahko uporablja tudi za drugo embalažo, ne za vrečke za zaščito. Namen tega standarda je zagotoviti, da bodo preskusni laboratoriji, ki uporabljajo to preskusno metodo za oceno določenega embalažnega materiala, prišli do podobnih rezultatov. Ta standard ne obravnava zaščite pred elektromagnetnimi motnjami (EMI), radiofrekvenčnimi motnjami (RFI), elektromagnetnimi sunki (EMP) ali zaščite pred vnetljivimi materiali.

General Information

• Status: Published
• Publication Date: 15-Jan-2015
• Withdrawal Date: 31-Dec-2017
• ICS: 17.200.99 - Other standards related to thermodynamics
• ICS: 17.220.99 - Other standards related to electricity and magnetism
• ICS: 29.020 - Electrical engineering in general
• Technical Committee: CLC/SR 101 - Electrostatics
• Drafting Committee: IEC/TC 101 - IEC_TC_101
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 16-Jan-2015
• Completion Date: 16-Jan-2015
• Ref Project: SIST EN 61340-4-8:2015 - Electrostatics - Part 4-8: Standard test methods for specific applications - Electrostatic discharge shielding - Bags

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Elektrostatik -- Teil 4-8: Standard-Prüfverfahren für spezielle Anwendungen - Schirmwirkung gegen elektrostatische Entladung - BeutelElectrostatique -- Partie 4-8: Méthodes d’essai normalisées pour des applications spécifiques – Blindage contre les décharges électrostatiques – SacsElectrostatics - Part 4-8: Standard test methods for specific applications - Electrostatic discharge shielding - Bags55.080Sacks. Bags17.220.99Drugi standardi v zvezi z elektriko in magnetizmomOther standards related to electricity and magnetismICS:Ta slovenski standard je istoveten z:EN 61340-4-8:2015SIST EN 61340-4-8:2015en01-september-2015SIST EN 61340-4-8:2015SLOVENSKI
STANDARD



SIST EN 61340-4-8:2015



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 61340-4-8
January 2015 ICS 17.200.99; 29.020
English Version
Electrostatics - Part 4-8: Standard test methods for specific applications - Electrostatic discharge shielding - Bags (IEC 61340-4-8:2014)
Electrostatique - Partie 4-8: Méthodes d'essai normalisées pour des applications spécifiques - Blindage contre les décharges électrostatiques - Sacs (IEC 61340-4-8:2014)
Elektrostatik - Teil 4-8: Standard-Prüfverfahren für spezielle Anwendungen - Schirmwirkung gegen elektrostatische Entladung - Beutel (IEC 61340-4-8:2014) This European Standard was approved by CENELEC on 2015-01-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Avenue Marnix 17,
B-1000 Brussels © 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61340-4-8:2015 E SIST EN 61340-4-8:2015

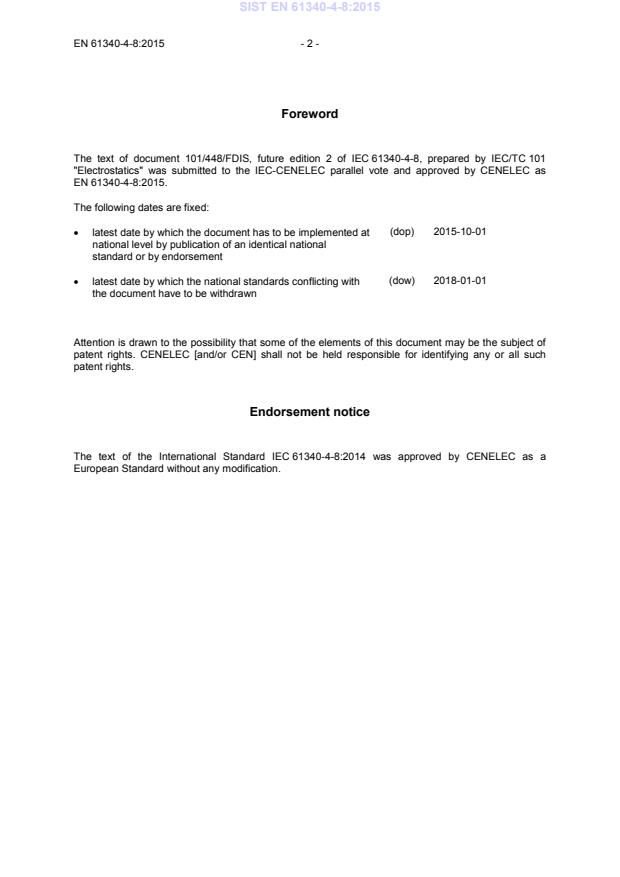

EN 61340-4-8:2015 - 2 - Foreword The text of document 101/448/FDIS, future edition 2 of IEC 61340-4-8, prepared by IEC/TC 101 "Electrostatics" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 61340-4-8:2015. The following dates are fixed: • latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2015-10-01 • latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2018-01-01
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights. Endorsement notice The text of the International Standard IEC 61340-4-8:2014 was approved by CENELEC as a European Standard without any modification. SIST EN 61340-4-8:2015



- 3 - EN 61340-4-8:2015 Annex ZA (normative)
Normative references to international publications with their corresponding European publications The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies. NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here: www.cenelec.eu.
Publication Year Title EN/HD Year IEC 60093 -
Methods of test for volume resistivity and surface resistivity of solid electrical insulating materials HD 429 S1 -
IEC 61340-3-1 -
Electrostatics - Part 3-1: Methods for simulation of electrostatic effects - Human body model (HBM) electrostatic discharge test waveforms EN 61340-3-1 -
IEC 61340-5-3 -
Electrostatics - Part 5-3: Protection of electronic devices from electrostatic pheno
...
