Railway applications - Energy measurement on board trains - Part 2: Energy measuring

This European Standard covers the requirements applicable to the Energy Measurement Function (EMF) of an Energy Measurement System (EMS) for use on board traction units for measurement of energy supplied directly from/to the Contact Line system. This European Standard also gives requirements for the Current Measurement Function (e.g. current sensor), the Voltage Measurement Function (e.g. voltage sensor) and the Energy Calculation Function (e.g. energy meter). The Conformity Assessment arrangements for the Voltage Measurement Function, Current Measurement Function, the Energy Calculation Function and a complete Energy Measurement Function are also specified in this document. The standard has been developed taking into account that in some applications the EMF can be subjected to legal metrological control. All relevant metrological aspects are covered in this part. Figure 2 shows the flow between the functional blocks of the EMF. Only connections between the functional blocks required by this standard are displayed. (...)

Bahnanwendungen - Energiemessung auf Bahnfahrzeugen - Teil 2: Energiemessung

Applications ferroviaires - Mesure d'énergie à bord des trains - Partie 2 : Mesure d'énergie

La présente Norme européenne couvre les exigences applicables à la fonction de mesure d’énergie (EMF) d’un système de mesure d’énergie (EMS) à utiliser à bord des unités de traction pour mesurer l’énergie directement récupérée au niveau du système de ligne de contact ou envoyée à ce dernier. La présente Norme européenne spécifie également les exigences pour la fonction de mesure de courant (par exemple, capteur de courant), la fonction de mesure de tension (par exemple, capteur de tension) et la fonction de calcul d'énergie (par exemple, compteur d'énergie). Les dispositions relatives à l'évaluation de la conformité pour la fonction de mesure de tension, la fonction de mesure de courant, la fonction de calcul d'énergie et l'ensemble d'une fonction de mesure d'énergie sont également spécifiées dans ce document. Cette norme a été élaborée en tenant compte du fait que, dans certaines applications, l'EMF peut être soumise à un contrôle métrologique réglementaire. Toutes les caractéristiques métrologiques pertinentes sont traitées dans la présente partie. La Figure 2 présente le flux entre les blocs fonctionnels de l'EMF. Seules les connexions entre les blocs fonctionnels requises par la présente norme sont représentées. (...)

Železniške naprave - Merjenje energije na vlaku - 2. del: Merjenje energije

Ta osnutek evropskega standarda zajema zahteve za funkcijo merjenja energije (EMF) sistema merjenja energije (EMS), ki se uporablja na vlakovnih kompozicijah za merjenje energije, dovajane neposredno iz sistema kontaktnega vodnika ali vanj.
Ta osnutek evropskega standarda določa tudi zahteve za funkcijo merjenja toka (npr. tokovni senzor), funkcijo merjenja napetosti (npr. napetostni senzor) in funkcijo izračuna energije (npr. števec energije).
V tem dokumentu so navedeni tudi načini ugotavljanja skladnosti funkcije merjenja napetosti, funkcije merjenja toka, funkcije izračuna energije in celotne funkcije merjenja energije.
Standard je bil pripravljen ob upoštevanju dejstva, da se lahko pri nekaterih načinih uporabe funkcije merjena energije izvaja zakonit metrološki nadzor. Ta del zajema vse zadevne metrološke vidike.
Slika 2 prikazuje pretok med funkcionalnimi bloki funkcije merjena energije. Prikazane so samo povezave med funkcionalnimi bloki, ki jih zahteva ta standard.

General Information

Status
Published
Publication Date
05-Oct-2017
Current Stage
9093 - Decision to confirm - Review Enquiry
Completion Date
20-Apr-2022

Relations

Buy Standard

Standard
EN 50463-2:2018 - BARVE
English language
93 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
prEN 50463-2:2016 - BARVE
English language
94 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 50463-2:2018
01-januar-2018
1DGRPHãþD
SIST EN 50463-2:2013
Železniške naprave - Merjenje energije na vlaku - 2. del: Merjenje energije

Railway applications - Energy measurement on board trains - Part 2: Energy measuring

Bahnanwendungen - Energiemessung auf Bahnfahrzeugen - Teil 2: Energiemessung

Applications ferroviaires - Mesure d'énergie à bord des trains - Partie 2 : Mesure

d'énergie
Ta slovenski standard je istoveten z: EN 50463-2:2017
ICS:
45.060.10 9OHþQDYR]LOD Tractive stock
SIST EN 50463-2:2018 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 50463-2:2018
---------------------- Page: 2 ----------------------
SIST EN 50463-2:2018
EUROPEAN STANDARD EN 50463-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2017
ICS 45.060.10 Supersedes EN 50463-2:2012
English Version
Railway applications - Energy measurement on board trains -
Part 2: Energy measuring

Applications ferroviaires - Mesure d'énergie à bord des Bahnanwendungen - Energiemessung auf Bahnfahrzeugen

trains - Partie 2 : Mesure d'énergie - Teil 2: Energiemessung

This European Standard was approved by CENELEC on 2017-05-08. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 50463-2:2017 E
---------------------- Page: 3 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)

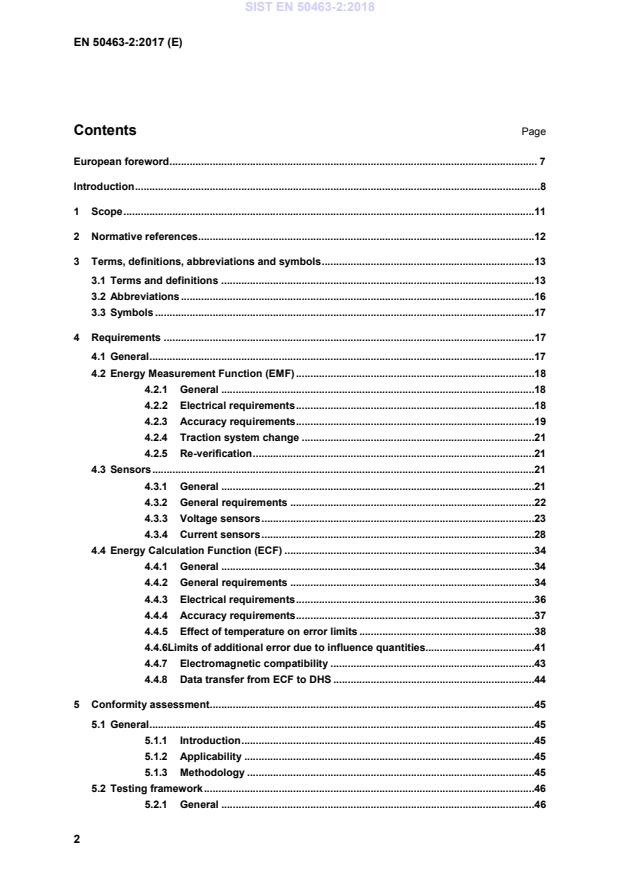

Contents Page

European foreword ................................................................................................................................ 7

Introduction ............................................................................................................................................. 8

1 Scope ...............................................................................................................................................11

2 Normative references .....................................................................................................................12

3 Terms, definitions, abbreviations and symbols ..........................................................................13

3.1 Terms and definitions .............................................................................................................13

3.2 Abbreviations ...........................................................................................................................16

3.3 Symbols ....................................................................................................................................17

4 Requirements .................................................................................................................................17

4.1 General ......................................................................................................................................17

4.2 Energy Measurement Function (EMF) ...................................................................................18

4.2.1 General .............................................................................................................18

4.2.2 Electrical requirements ...................................................................................18

4.2.3 Accuracy requirements ...................................................................................19

4.2.4 Traction system change .................................................................................21

4.2.5 Re-verification ..................................................................................................21

4.3 Sensors .....................................................................................................................................21

4.3.1 General .............................................................................................................21

4.3.2 General requirements .....................................................................................22

4.3.3 Voltage sensors ...............................................................................................23

4.3.4 Current sensors ...............................................................................................28

4.4 Energy Calculation Function (ECF) .......................................................................................34

4.4.1 General .............................................................................................................34

4.4.2 General requirements .....................................................................................34

4.4.3 Electrical requirements ...................................................................................36

4.4.4 Accuracy requirements ...................................................................................37

4.4.5 Effect of temperature on error limits .............................................................38

4.4.6Limits of additional error due to influence quantities......................................41

4.4.7 Electromagnetic compatibility .......................................................................43

4.4.8 Data transfer from ECF to DHS ......................................................................44

5 Conformity assessment .................................................................................................................45

5.1 General ......................................................................................................................................45

5.1.1 Introduction ......................................................................................................45

5.1.2 Applicability .....................................................................................................45

5.1.3 Methodology ....................................................................................................45

5.2 Testing framework ...................................................................................................................46

5.2.1 General .............................................................................................................46

---------------------- Page: 4 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)

5.2.2 Reporting ..........................................................................................................46

5.3 Design review ...........................................................................................................................47

5.3.1 General .............................................................................................................47

5.3.2 Device design review ......................................................................................47

5.3.3 EMF design review ..........................................................................................48

5.4 Type testing ..............................................................................................................................48

5.4.1 General .............................................................................................................48

5.4.2 Common type testing ......................................................................................48

5.4.3 Sensor type test ...............................................................................................52

5.4.4 ECF type test ....................................................................................................59

5.5 Routine test ..............................................................................................................................70

5.5.1 General .............................................................................................................70

5.5.2 Visual Inspection .............................................................................................70

5.5.3 Insulation test ..................................................................................................70

5.5.4 Accuracy tests .................................................................................................71

Annex A (normative) Test with magnetic induction of external origin ...........................................73

A.1 General ......................................................................................................................................73

A.2 Test method 1 ...........................................................................................................................73

A.3 Test method 2 ...........................................................................................................................73

Annex B (normative) EMF Configurations .........................................................................................75

B.1 Background ..............................................................................................................................75

B.2 General ......................................................................................................................................75

B.3 EMF with several CMF’s in parallel ........................................................................................75

B.4 EMF with several VMF’s connected to one ECF ...................................................................76

B.5 EMF with several pairs of VMF and CMF ...............................................................................76

B.6 Several EMF’s in parallel .........................................................................................................77

B.7 One VMF or CMF connected to several ECFs .......................................................................77

B.8 EMF without VMF .....................................................................................................................78

Annex C (informative) Expressing EMF accuracy .............................................................................79

C.1 Summary ...................................................................................................................................79

C.2 Error limits or uncertainty .......................................................................................................79

C.3 Presentation of error limits .....................................................................................................79

C.4 Uncertainty calculations .........................................................................................................80

C.4.1 AC active power ...............................................................................................80

C.4.2 Primary values .................................................................................................81

C.4.3 Uncertainty in the measurement of active power (Watts) ...........................81

C.4.4 Relative uncertainty ........................................................................................82

C.4.5 Uncertainty in the measurement of reactive power (var) ...........................83

C.4.6 Relative uncertainty ........................................................................................84

Annex D (informative) Recommendations for re-verification and defining of its regime ..............85

D.1 Re-verification ..........................................................................................................................85

D.1.1 Introduction and background.........................................................................85

---------------------- Page: 5 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)

D.1.2 Approaches to re-verification.........................................................................85

D.2 Recommendations for defining the re-verification regime .................................................86

D.2.1 General approach ............................................................................................86

D.2.2 Testing regime .................................................................................................87

Annex E (informative) Durability test ..................................................................................................88

E.1 General ......................................................................................................................................88

E.2 Initial measurements ...............................................................................................................88

E.3 Conditioning .............................................................................................................................88

E.4 Intermediate measurements ...................................................................................................89

E.5 Final temperature ramp ...........................................................................................................90

E.6 Final measurements and acceptance criteria .......................................................................90

E.7 Information to be given in the test report .............................................................................90

Annex ZZ (informative) Relationship between this European Standard and the Essential

Requirements of Directive 2008/57/EC ...............................................................................................92

Bibliography ......................................................................................................................................... 93

Figures

Figure 1 — EMS functional structure and dataflow diagram ...........................................................10

Figure 2 — EMF functional block diagram.........................................................................................11

Figure 3 — Example of energy index value .......................................................................................14

Figure 4 — Example of maximum percentage error for a VMF of class 0,5 R and a VMF of class

1,0 R with input signal in the range U ≤ U ≤ U ........................................................................26

min1 max2

Figure 5 — Example of maximum percentage error for a CMF class 1,0 R AC with input signals

in the range 10 % I ≤ I ≤ 120 % I , 5 % I ≤ I < 10 % I and 1 % I ≤ I < 5 % I ..................................32

n n n n n n

Figure 6 — Primary current and voltage ranges ...............................................................................38

Figure 7 — Example of maximum percentage error for an ECF of class 0,5 R and an ECF of

class 1,0 R with input signals in Area 1 and Area 2 ..........................................................................40

Figure 8 — Test point matrix for ECF accuracy tests (type test) ....................................................61

Figure 9 — Test point matrix for tests of ambient temperature variation and influence quantities62

Figure 10 — Test circuit diagram for determining the influence on accuracy of odd harmonics

or sub-harmonics in the current circuit .............................................................................................65

Figure 11 — Phase-fired waveform (shown for 50 Hz) .....................................................................65

Figure 12 — Analysis of harmonic content of phase-fired waveform (shown for 50 Hz) .............66

Figure 13 — Burst fire waveform (shown for 50 Hz) .........................................................................66

Figure 14 — Analysis of harmonics (shown for 50 Hz) ....................................................................67

Figure 15 — Test point matrix for ECF Accuracy Tests (type test) .................................................72

---------------------- Page: 6 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)

Figure A.1 — Test configuration for test method 1 ..........................................................................73

Figure A.2 — Test configuration for test method 2 ..........................................................................74

Figure B.1 — EMF with several CMF’s in parallel .............................................................................75

Figure B.2 — EMF with several VMF’s connected to one ECF ........................................................76

Figure B.3 — EMF with several pairs of VMF and CMF ....................................................................77

Figure B.4 — EMF with several ECF’s ................................................................................................77

Figure B.5 — One VMF connected to two ECF’s ...............................................................................78

Figure B.6 — EMF without VMF ..........................................................................................................78

Tables

Table 1 — Nominal traction system voltages ....................................................................................19

Table 2 — Reference conditions .........................................................................................................20

Table 3 — EMF percentage error limits ..............................................................................................21

Table 4 — Percentage error limits - VMF ...........................................................................................25

Table 5 — Maximum percentage error for a VMF including ambient temperature variation ........26

Table 6 — Temperature coefficient for VMF ......................................................................................27

Table 7 — Influence quantities for voltage sensors .........................................................................28

Table 8 — Percentage error limits — AC CMF ..................................................................................30

Table 9 — Percentage error limits – DC CMF ....................................................................................30

Table 10 — Maximum percentage error for a CMF including ambient temperature variation .....31

Table 11 — Temperature coefficient for CMF ....................................................................................32

Table 12 — Percentage error limits with harmonics — AC current sensor ...................................33

Table 13 — Influence quantities for current sensors .......................................................................33

Table 14 — Variations due to short-time overcurrents ....................................................................37

Table 15 — Variations due to self-heating .........................................................................................37

Table 16 — ECF percentage error limits for active energy ..............................................................38

Table 17 — Maximum percentage error for an ECF including ambient temperature variation ....39

Table 18 — Temperature coefficient for the ECF ..............................................................................40

Table 19 — Influence quantities for the ECF .....................................................................................42

---------------------- Page: 7 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)

Table 20 — Test current for harmonics ..............................................................................................54

Table ZZ.1 — Correspondence between this European Standard, the TSI “Locomotives and

Passenger Rolling Stock” (REGULATION (EU) No 1302/2014 of 18 November 2014) and

Directive 2008/57/EC amended by Directive 2011/18/EU ..................................................................92

---------------------- Page: 8 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)
European foreword

This document (EN 50463-2:2017) has been prepared by CLC/TC 9X “Electrical and electronic

applications for railways”.
The following dates are fixed:
• latest date by which this document has (dop) 2018-04-06
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2020-10-06
standards conflicting with this document
have to be withdrawn
This document supersedes EN 50463-2:2012.

EN 50463-2:2017 includes the following significant technical changes with respect to

EN 50463-2:2012:
— updated requirements for events, quality codes, flags and logs (Clause 4);

— updated for consistency between Table 16 and Figure 6 regarding “Area 2” (Clause 4).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CENELEC by the European Commission

and the European Free Trade Association, and supports essential requirements of EU Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this

document.

This document is Part 2 of the EN 50463 series which consists of the following parts, under the

common title Railway applications — Energy measurement on board trains:
— Part 1: General;
— Part 2: Energy measuring;
— Part 3: Data handling;
— Part 4: Communication;
— Part 5: Conformity assessment.

This series of European Standards follows the functional guidelines description in

EN ISO/IEC 17000:2004, Annex A “Principles of conformity assessment”, tailored to the Energy

Measurement System (EMS).

The requirements for Energy Measurement Systems in the relevant Technical Specifications for

Interoperability are supported by this series of European Standards.
---------------------- Page: 9 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)
Introduction

The Energy Measurement System provides measurement and data suitable for billing and may also

be used for energy management, e.g. energy saving.

This series of European Standards uses the functional approach to describe the Energy Measurement

System and on-ground Data Collecting System. These functions are implemented in one or more

physical devices. The user of this series of standards is free to choose the physical implementation

arrangements.
a) Structure and main contents of the EN 50463 series:

This series of European Standards is divided into five parts. The titles and brief descriptions of

each part are given below:
1) EN 50463-1 — General:
The scope of EN 50463-1 is the Energy Measurement System (EMS).
EN 50463-1 provides system level requirements for the complete EMS and common
requirements for all devices implementing one or more functions of the EMS.
2) EN 50463-2 — Energy measuring:
The scope of EN 50463-2 is the Energy Measurement Function (EMF).
The EMF provides measurement of the consumed and regenerated active energy of a

traction unit. If the traction unit is designed for use on AC traction systems, the EMF also

provides measurement of reactive energy. The EMF provides the measured quantities via an

interface to the Data Handling System.
The EMF consists of the three functions: Voltage Measurement Function, Current

Measurement Function and Energy Calculation Function. For each of these functions,

accuracy classes are specified and associated reference conditions are defined. This part

also defines all specific requirements for all functions of the EMF.

The Voltage Measurement Function measures the voltage of the Contact Line system and

the Current Measurement Function measures the current taken from and returned to the

Contact Line system. These functions provide signal inputs to the Energy Calculation

Function.
The Energy Calculation Function inputs the signals from the Current and Voltage

Measurement Functions and calculates a set of values representing the consumed and

regenerated energies. These values are transferred to the Data Handling System and are

used in the creation of Compiled Energy Billing Data (CEBD).

The standard has been developed taking into account that in some applications, the EMF

may be subjected to legal metrological control. All relevant metrological aspects are covered

in this part of EN 50463.
EN 50463-2 also defines the conformity assessment of the EMF.
3) EN 50463-3 — Data handling:
The scope of EN 50463-3 is the Data Handling System (DHS) and the associated
requirements of Data Collecting System (DCS).
---------------------- Page: 10 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)

The on board DHS receives, produces and stores data, ready for transmission to any

authorized receiver of data on board or on ground. The main goal of the DHS is to produce

Compiled Energy Billing Data and transfer it on an interoperable basis to an on-ground Data

Collecting System (DCS). The DHS can support other functionality on board or on-ground

with data, as long as this does not conflict with the main goal.

The DCS on-ground receives Compiled Energy Billing Data and transfer it to settlement

system.

EN 50463-3 also defines the conformity assessment of the DHS and for the transfer of CEBD

to an on-ground Data Collecting System (DCS).
4) EN 50463-4 — Communication:
The scope of EN 50463-4 is the communication services.

This part of EN 50463 gives requirements and guidance regarding the data communication

between the functions implemented within EMS as well as between such functions and other

on board units where data are exchanged using a communications protocol stack over a

dedicated physical interface or a shared network.

It includes the reference to the on board to ground communication service and covers the

requirements necessary to support data transfer between DHS and DCS including the

transfer of CEBD on an interoperable basis.

EN 50463-4 also defines the conformity assessment of the communications services.

5) EN 50463-5 — Conformity assessment:
The scope of EN 50463-5 is the conformity assessment procedures for the EMS.

EN 50463-5 also covers re-verification procedures and conformity assessment in the event of

the replacement of a device of the EMS.
b) EMS functional structure and dataflow:

Figure 1 illustrates the functional structure of the EMS, the main sub-functions and the structure of

the dataflow and is informative only. Only the main interfaces required by this standard are

displayed by arrows.

Since the communication function is distributed throughout the EMS, it has been widely omitted

for clarity, except for the train to ground communication. Not all interfaces are shown.

---------------------- Page: 11 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)
Figure 1 — EMS functional structure and dataflow diagram
---------------------- Page: 12 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)
1 Scope

This European Standard covers the requirements applicable to the Energy Measurement Function

(EMF) of an Energy Measurement System (EMS) for use on board traction units for measurement of

energy supplied directly from/to the Contact Line system.

This European Standard also gives requirements for the Current Measurement Function (e.g. current

sensor), the Voltage Measurement Function (e.g. voltage sensor) and the Energy Calculation Function

(e.g. energy meter).

The Conformity Assessment arrangements for the Voltage Measurement Function, Current

Measurement Function, the Energy Calculation Function and a complete Energy Measurement

Function are also specified in this document.

The standard has been developed taking into account that in some applications the EMF can be

subjected to legal metrological control. All relevant metrological aspects are covered in this part.

Figure 2 shows the flow between the functional blocks of the EMF. Only connections between the

functional blocks required by this standard are displayed.
Figure 2 — EMF functional block diagram
---------------------- Page: 13 ----------------------
SIST EN 50463-2:2018
EN 50463-2:2017 (E)
2 Normative references
The following documents, in whole or in part, are n
...

SLOVENSKI STANDARD
oSIST prEN 50463-2:2016
01-februar-2016
Železniške naprave - Merjenje energije na vlaku - 2. del: Merjenje energije

Railway applications - Energy measurement on board trains - Part 2: Energy measuring

Bahnanwendungen - Energiemessung auf Bahnfahrzeugen - Teil 2: Energiemessung

Applications ferroviaires - Mesure d'énergie à bord des trains - Partie 2 : Mesure

d'énergie
Ta slovenski standard je istoveten z: prEN 50463-2:2015
ICS:
45.060.10 9OHþQDYR]LOD Tractive stock
oSIST prEN 50463-2:2016 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 50463-2:2016
---------------------- Page: 2 ----------------------
oSIST prEN 50463-2:2016
EUROPEAN STANDARD DRAFT
prEN 50463-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2015
ICS 45.060.10 Will supersede EN 50463-2:2012
English Version
Railway applications - Energy measurement on board trains -
Part 2: Energy measuring

Applications ferroviaires - Mesure d'énergie à bord des Bahnanwendungen - Energiemessung auf Bahnfahrzeugen

trains - Partie 2 : Mesure d'énergie - Teil 2: Energiemessung
This draft European Standard is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2016-02-19.
It has been drawn up by CLC/TC 9X.

If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which

stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CENELEC in three official versions (English, French, German).

A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to

the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to

provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and

shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Project: 60927 Ref. No. prEN 50463-2:2015 E
---------------------- Page: 3 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015
30 Contents

31 European foreword ................................................................................................................................ 4

32 Introduction ............................................................................................................................................. 5

33 1 Scope ................................................................................................................................................. 8

34 2 Normative references ....................................................................................................................... 9

35 3 Terms, definitions, abbreviations and symbols ..........................................................................10

36 4 Requirements .................................................................................................................................14

37 5 Conformity assessment .................................................................................................................43

38 Annex A (normative) Test with magnetic induction of external origin ...........................................73

39 Annex B (normative) EMF Configurations .........................................................................................75

40 Annex C (informative) Expressing EMF accuracy .............................................................................79

41 Annex D (informative) Re-verification and defining of its regime recommendations....................86

42 Annex E (informative) Durability test ..................................................................................................89

43 Annex ZZ (informative) Coverage of Essential Requirements of EU Directives ............................93

44 Bibliography ......................................................................................................................................... 94

46 Figures

47 Figure 1 — EMS functional structure and dataflow diagram ............................................................. 7

48 Figure 2 — EMF functional block diagram........................................................................................... 8

49 Figure 3 — Example of energy index value .......................................................................................11

50 Figure 4 — Example of maximum percentage error for a VMF of class 0,5 R and a VMF of class

51 1,0 R with input signal in the range U ≤ U ≤ U ........................................................................24

min1 max2

52 Figure 5 — Example of maximum percentage error for a CMF class 1,0 R a.c. with input signals

53 in the range 10 % I ≤ I ≤ 120 % I , 5 % I ≤ I < 10 % I and 1 % I ≤ I < 5 % I ..................................29

n n n n n n

54 Figure 6 — Primary current and voltage ranges ...............................................................................36

55 Figure 7 — Example of maximum percentage error for an ECF of class 0,5 R and an ECF of

56 class 1,0 R with input signals in Area 1 and Area 2 ..........................................................................38

57 Figure 8 — Test point matrix for ECF accuracy tests (type test) ....................................................60

58 Figure 9 — Test point matrix for tests of ambient temperature variation and influence quantities61

59 Figure 10 — Test circuit diagram for determining the influence on accuracy of odd harmonics

60 or sub-harmonics in the current circuit .............................................................................................64

61 Figure 11 — Phase-fired waveform (shown for 50 Hz) .....................................................................64

62 Figure 12 — Analysis of harmonic content of phase-fired waveform (shown for 50 Hz) .............65

63 Figure 13 — Burst fire waveform (shown for 50 Hz) .........................................................................65

64 Figure 14 — Analysis of harmonics (shown for 50 Hz) ....................................................................66

65 Figure 15 — Test point matrix for ECF Accuracy Tests (type test) .................................................71

66 Figure A.1 — Test configuration for test method 1 ..........................................................................73

---------------------- Page: 4 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015

67 Figure A.2 — Test configuration for test method 2 ..........................................................................74

68 Figure B.1 — EMF with several CMF’s in parallel .............................................................................75

69 Figure B.2 — EMF with several VMF’s connected to one ECF ........................................................76

70 Figure B.3 — EMF with several pairs of VMF and CMF ....................................................................77

71 Figure B.4 — EMF with several ECF’s ................................................................................................77

72 Figure B.5 — One VMF connected to two ECF’s ...............................................................................78

73 Figure B.6 — EMF without VMF ..........................................................................................................78

74 Tables

75 Table 1 — Nominal traction system voltages ....................................................................................16

76 Table 2 — Reference conditions .........................................................................................................17

77 Table 3 — EMF percentage error limits ..............................................................................................18

78 Table 4 — Percentage error limits - VMF ...........................................................................................23

79 Table 5 — Maximum percentage error for a VMF including ambient temperature variation ........23

80 Table 6 — Temperature coefficient for VMF ......................................................................................24

81 Table 7 — Influence quantities for voltage sensors .........................................................................25

82 Table 8 — Percentage error limits — a.c. CMF ..................................................................................28

83 Table 9 — Percentage error limits – d.c. CMF ...................................................................................28

84 Table 10 — Maximum percentage error for a CMF including ambient temperature variation .....29

85 Table 11 — Temperature coefficient for CMF ....................................................................................30

86 Table 12 — Percentage error limits with harmonics — a.c. current sensor ...................................30

87 Table 13 — Influence quantities for current sensors .......................................................................31

88 Table 14 — Variations due to short-time overcurrents ....................................................................35

89 Table 15 — Variations due to self-heating .........................................................................................35

90 Table 16 — ECF percentage error limits for active energy ..............................................................36

91 Table 17 — Maximum percentage error for an ECF including ambient temperature variation ....37

92 Table 18 — Temperature coefficient for the ECF ..............................................................................38

93 Table 19 — Influence quantities for the ECF .....................................................................................39

94 Table 20 — Test current for harmonics ..............................................................................................53

---------------------- Page: 5 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015
96 European foreword

97 This document (prEN 50463-2:2015) has been prepared by CLC/TC 9X “Electrical and electronic

98 applications for railways”.
99 This document is currently submitted to the Enquiry.
100 The following dates are proposed:
• latest date by which the existence of (doa) dor + 6 months
this document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
101
102 This document will supersede EN 50463-2:2012.

103 prEN 50463-2:2015 includes the following significant technical changes with respect to EN 50463-

104 2:2012:
105 — updated requirements for events, quality codes, flags and logs (Clause 4);

106 — updated for consistency between Table 16 and Figure 6 regarding “Area 2” (Clause 4).

107 This document has been prepared under a mandate given to CENELEC by the European Commission

108 and the European Free Trade Association, and supports essential requirements of EU Directive(s).

109 For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this

110 document.

111 This document is Part 4 of the EN 50463 series which consists of the following parts, under the

112 common title Railway applications — Energy measurement on board trains:
113 — Part 1: General;
114 — Part 2: Energy measuring;
115 — Part 3: Data handling;
116 — Part 4: Communication;
117 — Part 5: Conformity assessment.

118 This series of European Standards follows the functional guidelines description in

119 EN ISO/IEC 17000:2004, Annex A “Principles of conformity assessment”, tailored to the Energy

120 Measurement System (EMS).

121 The requirements for Energy Measurement Systems in the relevant Technical Specifications for

122 Interoperability are supported by this series of European Standards.
---------------------- Page: 6 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015
123 Introduction

124 The Energy Measurement System provides measurement and data suitable for billing and may also

125 be used for energy management, e.g. energy saving.

126 This series of European Standards uses the functional approach to describe the Energy Measurement

127 System and on-ground Data Collection Service. These functions are implemented in one or more

128 physical devices. The user of this Series of standards is free to choose the physical implementation

129 arrangements.
130 — Structure and main contents of the EN 50463 series:

131 This series of European Standards is divided into five parts. The titles and brief descriptions of each

132 part are given below:
133 — EN 50463-1 — General:
134 The scope of EN 50463-1 is the Energy Measurement System (EMS)

135 EN 50463-1 provides system level requirements for the complete EMS and common requirements for

136 all devices implementing one or more functions of the EMS.
137 — prEN 50463-2 — Energy measuring:
138 The scope of prEN 50463-2 is the Energy Measurement Function (EMF).

139 The EMF provides measurement of the consumed and regenerated active energy of a traction unit. If

140 the traction unit is designed for use on a.c. traction systems, the EMF also provides measurement of

141 reactive energy. The EMF provides the measured quantities via an interface to the Data Handling

142 System.

143 The EMF consists of the three functions: Voltage Measurement Function, Current Measurement

144 Function and Energy Calculation Function. For each of these functions, accuracy classes are specified

145 and associated reference conditions are defined. This part also defines all specific requirements for all

146 functions of the EMF.

147 The Voltage Measurement Function measures the voltage of the CL system and the Current

148 Measurement Function measures the current taken from and returned to the CL system. These

149 functions provide signal inputs to the Energy Calculation Function.

150 The Energy Calculation Function inputs the signals from the Current and Voltage Measurement

151 Functions and calculates a set of values representing the consumed and regenerated energies. These

152 values are transferred to the Data Handling System and are used in the creation of Compiled Energy

153 Billing Data.

154 The standard has been developed taking into account that in some applications, the EMF may be

155 subjected to legal metrological control. All relevant metrological aspects are covered in this part of

156 EN 50463.
157 prEN 50463-2 also defines the conformity assessment of the EMF.
158 — EN 50463-3 — Data handling:

159 The scope of EN 50463-3 is the Data Handling System (DHS) and the associated requirements of

160 Data Collection Service (DCS).
---------------------- Page: 7 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015

161 The on board DHS receives, produces and stores data, ready for transmission to any authorized

162 receiver of data on board or on ground. The main goal of the DHS is to produce Compiled Energy

163 Billing Data and transfer it on an interoperable basis to an on-ground Data Collection Service (DCS).

164 The DHS can support other functionality on board or on-ground with data, as long as this does not

165 conflict with the main goal.

166 The DCS on-ground receives Compiled Energy Billing Data and transfer it to settlement system.

167 EN 50463-3 also defines the conformity assessment of the DHS and for the transfer of CEBD to an

168 on-ground Data Collection Service (DCS)
169 — EN 50463-4 — Communication:
170 The scope of EN 50463-4 is the communication services.

171 This part of EN 50463 gives requirements and guidance regarding the data communication between

172 the functions implemented within EMS as well as between such functions and other on board units

173 where data are exchanged using a communications protocol stack over a dedicated physical interface

174 or a shared network.

175 It includes the on board to ground communication service and covers the requirements necessary to

176 support data transfer between DHS and DCS including the transfer of CEBD on an interoperable

177 basis.

178 EN 50463-4 also defines the conformity assessment of the communications services.

179 — EN 50463-5 — Conformity assessment:
180 The scope of EN 50463-5 is the conformity assessment procedures for the EMS.

181 EN 50463-5 also covers re-verification procedures and conformity assessment in the event of the

182 replacement of a device of the EMS.
183 — EMS functional structure and dataflow:

184 Figure 1 illustrates the functional structure of the EMS, the main sub-functions and the structure of the

185 dataflow and is informative only. Only the main interfaces required by this standard are displayed by

186 arrows.

187 Since the communication function is distributed throughout the EMS, it has been omitted for clarity.

188 Not all interfaces are shown.
---------------------- Page: 8 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015
Time Reference Source
Settlement
Location Reference Source
System
Current Measurement Function
Voltage Measurement Function
Data
Collection
Energy Calculation Function
Data Handling System
Service
(DCS)
Energy Measurement Function Data Handling System
(EMF) (DHS)
EN 50463-2 (Energy Measuring) EN 50463-3 (Data Handling)
Energy Measurement System (EMS)

EN 50463-1 (General), EN 50463-4 (Communication), EN 50463-5 (Conformity Assessment)

On-board (Traction Unit)
On-ground
189
190 Figure 1 — EMS functional structure and dataflow diagram
---------------------- Page: 9 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015
191 1 Scope

192 This draft European Standard covers the requirements applicable to the Energy Measurement

193 Function (EMF) of an Energy Measurement System (EMS) for use on board traction units for

194 measurement of energy supplied directly from/to the Contact Line system.

195 This draft European Standard also gives requirements for the Current Measurement Function (e.g.

196 current sensor), the Voltage Measurement Function (e.g. voltage sensor) and the Energy Calculation

197 Function (e.g. energy meter).

198 The Conformity Assessment arrangements for the Voltage Measurement Function, Current

199 Measurement Function, the Energy Calculation Function and a complete Energy Measurement

200 Function are also specified in this document.

201 The standard has been developed taking into account that in some applications the EMF may be

202 subjected to legal metrological control. All relevant metrological aspects are covered in this part.

203 Figure 2 shows the flow between the functional blocks of the EMF. Only connections between the

204 functional blocks required by this standard are displayed.
205
206 Figure 2 — EMF functional block diagram
---------------------- Page: 10 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015
207 2 Normative references

208 The following documents, in whole or in part, are normatively referenced in this document and are

209 indispensable for its application. For dated references, only the edition cited applies. For undated

210 references, the latest edition of the referenced document (including any amendments) applies.

211 EN 45545-2, Railway applications — Fire protection on railway vehicles — Part 2: Requirements for

212 fire behavior of materials and components

213 EN 45545-5, Railway applications — Fire protection on railway vehicles — Part 5: Fire safety

214 requirements for electrical equipment including that of trolley buses, track guided buses and magnetic

215 levitation vehicles

216 EN 50121-1, Railway applications — Electromagnetic compatibility — Part 1: General

217 EN 50121-3-2:2006, Railway applications — Electromagnetic compatibility — Part 3-2: Rolling

218 stock — Apparatus

219 EN 50123-1:2003, Railway applications — Fixed installations — D.C. switchgear – Part 1: General

220 EN 50124-1, Railway applications — Insulation coordination — Part 1: Basic requirements —

221 Clearances and creepage distances for all electrical and electronic equipment

222 EN 50125-1, Railway applications — Environmental conditions for equipment — Part 1: Rolling stock

223 and on-board equipment

224 EN 50155:2007, Railway applications — Electronic equipment used on rolling stock

225 EN 50163:2004, Railway applications — Supply voltages of traction systems (IEC 60850:2000, not

226 equivalent)

227 EN 50388:2005, Railway applications — Power supply and rolling stock — Technical criteria for the

228 coordination between power supply (substation) and rolling stock to achieve interoperability

229 EN 50463-1:2012, Railway applications — Energy measurement on board trains — Part 1: General

230 EN 50463-3:2012, Railway applications — Energy measurement on board trains — Part 3: Data

231 handling

232 EN 50463-4:2012, Railway applications — Energy measurement on board trains — Part 4:

233 Communication

234 EN 50463-5, Railway applications — Energy measurement on board trains — Part 5: Conformity

235 assessment
236 EN 60044 (all parts), Instrument transformers (IEC 60044, all parts)

237 EN 60044-2:1999, Instrument transformers — Part 2: Inductive voltage transformers (IEC 60044

238 2:1997, modified)

239 EN 60044-8:2002, Instrument transformers — Part 8: Electronic current transformers

240 (IEC 60044-8:2002)

241 EN 60068-2-1, Environmental testing — Part 2-1: Tests — Test A: Cold (IEC 60068-2-1)

242 EN 60068-2-2:2007, Environmental testing — Part 2-2: Tests — Test B: Dry heat (IEC 60068-2-

243 2:2007)
---------------------- Page: 11 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015

244 EN 60068-2-30, Environmental testing — Part 2-30: Tests — Test Db: Damp heat, cyclic

245 (12 h + 12 h cycle) (IEC 60068-2-30)

246 EN 60077-4:2003, Railway applications — Electric equipment for rolling stock — Part 4:

247 Electrotechnical components — Rules for AC circuit-breakers (IEC 60077-4:2003)

248 EN 60085, Electrical insulation — Thermal evaluation and designation (IEC 60085)

249 EN 60529, Degrees of protection provided by enclosures (IP Code) (IEC 60529)

250 EN 61000 (all parts), Electromagnetic compatibility (EMC) (IEC 61000, all parts)

251 EN 61373:2010, Railway applications — Rolling stock equipment — Shock and vibration tests

252 (IEC 61373:2010)
253 IEC 60028, International standard of resistance for copper

254 IEC 60121, Recommendation for commercial annealed aluminium electrical conductor wire

255 3 Terms, definitions, abbreviations and symbols
256 3.1 Terms and definitions

257 For the purposes of this document, the terms and definitions given in EN 50463-1:2012 and the

258 following apply.

259 NOTE When possible, the following definitions have been taken from the relevant chapters of the

260 International Electrotechnical Vocabulary (IEV), IEC 60050–311, IEC 60050–312, IEC 60050–313, IEC 60050–

261 314, IEC 60050–321 and IEC 60050–811. In such cases, the appropriate IEV reference is given. Certain new

262 definitions or modifications of IEV definitions have been added in this standard in order to facilitate understanding.

263 Expression of the performance of electrical and electronic measuring equipment has been taken from EN 60359.

264 3.1.1
265 accuracy class

266 designation that identifies a set of error limits for measured quantities under reference conditions and

267 the additional percentage errors due to influence quantities

268 Note 1 to entry: An individual accuracy class is associated with each metrological function of the EMF.

269 Note 2 to entry: The suffix “R” is used to differentiate classes according to this standard from other technical

270 standards.
271 3.1.2
272 consumed active energy

273 active energy taken from the Contact Line by the traction unit on which the EMF is installed

274 3.1.3
275 consumed reactive energy

276 reactive energy taken from the Contact Line by the traction unit on which the EMF is installed

277 3.1.4
278 electronic sensor
279 device in which electronic circuits are used to process a measured signal

280 Note 1 to entry: Electronic circuits for processing the measurement signal include items such as analogue to

281 digital converters, signal amplifiers, etc.
---------------------- Page: 12 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015
282 3.1.5
283 energy delta value
284 energy consumed and/or regenerated during a time period
285 Note 1 to entry: See Figure 3 for example.
286 3.1.6
287 energy index value

288 total accumulated energy consumption and/or energy regeneration at the end of a time period

289 Note 1 to entry: See Figure 3 for example.
2350
energy index value: 2360 2372 2379 2393 2404
10 12 7 14 11
energy delta value:
Timeline:
10:35 10:40 10:45 10:50 10:55 11:00
290
291 Figure 3 — Example of energy index value
292 3.1.7
293 flag
294 code indicating information relevant to the functioning of the EMS
295 Note 1 to entry: Examples include operational status, etc.
296 3.1.8
297 index value overrun

298 return to zero of the index value after reaching the maximum value allowed by the register

299 3.1.9
300 influence quantity
301 external condition which affects metrological performance
302 3.1.10
303 k-factor
304 multiplicand necessary to convert a secondary value into a primary value

305 Note 1 to entry: Each Voltage Measurement Function and/or Current Measurement Function can have a

306 specific k-factor. If the k-factor is applied to Energy Data, this factor is the product of the k-factors of the Voltage

307 Measurement Function and/or Current Measurement Function used.
308 3.1.11
309 percentage error
310 value given by the following formula:
measured quantity−true quantity
311 Percentage error ×100
true quantity

312 Note 1 to entry: Since the true quantity cannot be determined, it is approximated by a quantity with a stated

313 uncertainty that can be traced to standards agreed upon between supplier and purchaser or to national standards.

---------------------- Page: 13 ----------------------
oSIST prEN 50463-2:2016
prEN 50463-2:2015
314 3.1.12
315 phase influence function

316 function of the real or apparent phase angle between a measured voltage and a measured current

317 Note 1 to entry: Phase influence function expressed as a Power Factor refers to measurements of real and

318 apparent powers and energies, while sin φ refers to reactive powers and energies.

319 Note 2 to entry: For d.c. measurements the requirements for a phase influence function of 1 need to be used.

320 3.1.13
321 Power Factor
322 PF
323 ratio of the absolute value of the active power P to the apparent power S
324 [SOURCE: IEV 131-11-46, modified]
325 3.1.14
326 primary value
327 value referred to the measuring inputs of an EMF
328 3.1.15
329 rated continuous thermal current
330 I
CMF,cth

331 value of current which can be permitted to flow continuously into the primary input of a current sensor

332 3.1.16
333 rated dynamic current
334 I
CMF,dyn

335 peak value of the primary current which a current sensor will withstand without being damaged

336 3.1.17
337 rated primary current of the EMF
338 I
n,EMF
339 value of current which is used to define the relevant performance of the EMF

340 Note 1 to entry: The term current refers to r.m.s. value for a.c. unless otherwise specified.

341 3.1.18
342 rated primary voltage of the EMF
343 U
n,EMF
344 value of voltage which is used to define the relevant performance of the EMF

345 Note 1 to entry: The term voltage refers to r.m.s. value for a.c. unless otherwise specified.

346 3.1.19
347 rated short-time thermal current
348 I
CMF,th

349 value of the primary current which a current sensor will withstand for a specified time period without

350 being damaged
351 3.1.20
352 rated traction unit current

353 maximum current that the traction unit is designed to draw from the Contact Line when operating

354 under normal conditions and with a voltage in the range from U to U according to EN 50163

min1 max2
355 3.1.21
356 reference conditions

357 set of influence quantities, with reference values and tolerances, with respect to which the error limits

358 are specified for an input quantity range
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
