SLOVENSKI STANDARD
SIST EN IEC 60810:2018/A1:2019
01-september-2019

Sijalke, viri svetlobe in okrovi svetlečih diod (LED) za cestna vozila - Tehnične

zahteve - Dopolnilo A1 (IEC 60810:2017/A1:2019)

Lamps, light sources and LED packages for road vehicles - Performance requirements

(IEC 60810:2017/A1:2019)
Lampen für Straßenfahrzeuge - Anforderungen an die Arbeitsweise (IEC
60810:2017/A1:2019)

Lampes, sources lumineuses et LED encapsulées pour véhicules routiers - Exigences

de performances (IEC 60810:2017/A1:2019)
Ta slovenski standard je istoveten z: EN IEC 60810:2018/A1:2019
ICS:
29.140.20 Žarnice z žarilno nitko Incandescent lamps
43.040.20 Naprave za osvetlitev, Lighting, signalling and
signalizacijo in opozarjanje warning devices
SIST EN IEC 60810:2018/A1:2019 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 60810:2018/A1:2019
---------------------- Page: 2 ----------------------
SIST EN IEC 60810:2018/A1:2019
EUROPEAN STANDARD EN IEC 60810:2018/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2019
ICS 29.140.99
English Version
Lamps, light sources and LED packages for road vehicles -
Performance requirements
(IEC 60810:2017/A1:2019)

Lampes, sources lumineuses et LED encapsulées pour Lampen für Straßenfahrzeuge - Anforderungen an die

véhicules routiers - Exigences de performances Arbeitsweise
(IEC 60810:2017/A1:2019) (IEC 60810:2017/A1:2019)

This amendment A1 modifies the European Standard EN IEC 60810:2018; it was approved by CENELEC on 2019-05-13. CENELEC

members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the

status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the

responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as

the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 60810:2018/A1:2019 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60810:2018/A1:2019
EN IEC 60810:2018/A1:2019 (E)

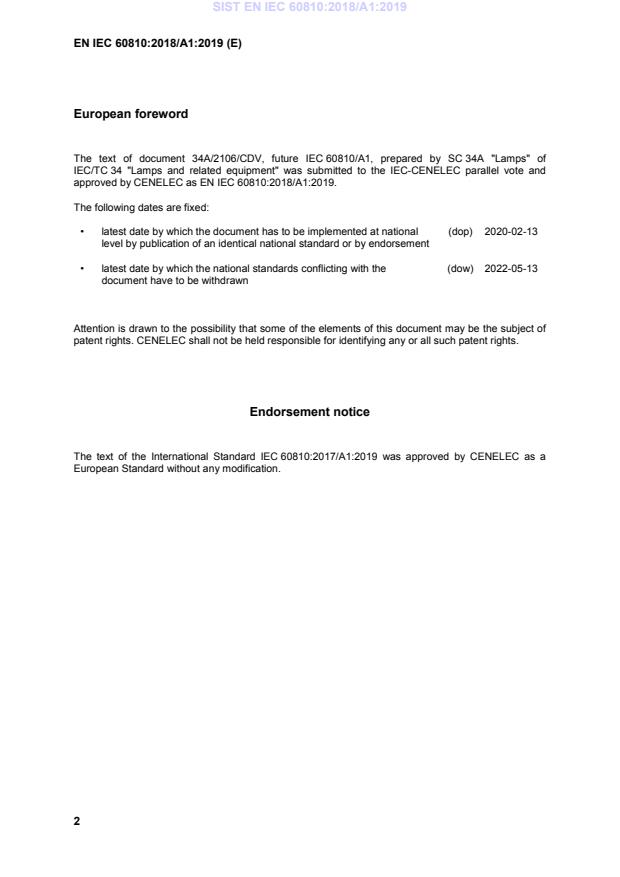

European foreword

The text of document 34A/2106/CDV, future IEC 60810/A1, prepared by SC 34A "Lamps" of

IEC/TC 34 "Lamps and related equipment" was submitted to the IEC-CENELEC parallel vote and

approved by CENELEC as EN IEC 60810:2018/A1:2019.
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2020-02-13

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2022-05-13

document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice

The text of the International Standard IEC 60810:2017/A1:2019 was approved by CENELEC as a

European Standard without any modification.
---------------------- Page: 4 ----------------------
SIST EN IEC 60810:2018/A1:2019
EN IEC 60810:2018/A1:2019 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments)

applies.

NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the relevant

EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:

www.cenelec.eu.
Replace the reference to "JESD22-A113F" with the following new reference:
Publication Year Title EN/HD Year
JESD22-A113H - Preconditioning of nonhermetic surface - -
mount devices prior to reliability testing
---------------------- Page: 5 ----------------------
SIST EN IEC 60810:2018/A1:2019
---------------------- Page: 6 ----------------------
SIST EN IEC 60810:2018/A1:2019
IEC 60810
Edition 5.0 2019-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Lamps, light sources and led packages for road vehicles –
Performance requirements
Lampes, sources lumineuses et led encapsulées pour véhicules routiers –
Exigences de performances
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-6706-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN IEC 60810:2018/A1:2019
– 2 – IEC 60810:2017/AMD1:2019
© IEC 2019
FOREWORD
This amendment has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 24: Lamps and related equipment.
The text of this amendment is based on the following documents:
CDV Report on voting
34A/2106/CDV 34A/2129/RVC

Full information on the voting for the approval of this amendment can be found in the report

on voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________

Replace, throughout the document, all instances of "JESD22-A101C" with "JESD22-A101D".

Replace, throughout the document, all instances of "JESD22-A108D" with "JESD22-A108F".

Replace, throughout the document, all instances of "JESD22-A113F" with "JESD22-A113H".

Replace, throughout the document, all instances of "JESD22-B101B" with "JESD22-B101C".

Replace, throughout the document, all instances of "JESD22-B106D" with "JESD22-B106E".

Replace, throughout the document, all instances of "JESD22-B116:1998", "JESD22-B116"

and "STD22-B116" with "JESD22-B116B".
2 Normative references
Add the following new references:
CIE 015:2018, Colorimetry

R.E.5, Consolidated Resolution on the common specification of light source categories

R.E.5 is published by UNECE under the reference ECE/TRANS/WP.29/1127 and is
---------------------- Page: 8 ----------------------
SIST EN IEC 60810:2018/A1:2019
IEC 60810:2017/AMD1:2019 – 3 –
© IEC 2019
available at the following address (website checked on 6 March 2019)
http://www.unece.org/trans/main/wp29/wp29wgs/wp29gen/wp29resolutions.html
Delete the following two references:

Addendum 36: Regulation No. 37, Uniform provisions concerning the approval of filament

lamps for use in approved lamp units of power-driven vehicles and of their trailers

Addendum 127: Regulation No. 128, Uniform provisions concerning the approval of light

emitting diode (LED) light sources for use in approved lamp units on power-driven

Replace the reference to "JESD22-A113F" with the following new reference:

JESD22-A113H, Preconditioning of nonhermetic surface mount devices prior to reliability

testing
5 Filament lamp data
Table 3 – Rated life values for continuous operation

Delete, under the "UN" column heading, all of the references to category sheet “R37”, replace

the column heading "UN" with “R.E.5”, replace footnote "a" with a new footnote "a" and delete

footnote "b", as follows:
Table 3 – Rated life values for continuous operation
Filament lamp data
Type 12 V 24 V
sheet number
IEC 60809 R.E.5 Category Test V B /h T /h Test V B /h T /h
3 c c
Lamps for front lighting applications
2310 H1 H1 13,2 150 400 28,0 90 250
2320 - H2 13,2 90 250 28,0 90 250
2330 H3 H3 13,2 150 400 28,0 90 250
2120 H4 H4 (HB/LB) 13,2 125/250 250/500 28,0 100/200 200/400
2315 H7 H7 13,2 300 500 28,0 200 400
2365 H8 H8, H8B 13,2 400 800
2370 H9 H9, H9B 13,2 250 500
2375 H10 H10 13,2 800 1 600
2380 H11 H11, H11B 13,2 350 600 28,0 300 600
2385 H12 H12 13,2 480 970
H13,H13A
- H13 13,2 170/1 200 350/2 500
(HB/LB)
H15
- H15 13,2 250/2 000 500/4 000 28,0 200/1 500 400/3 000
(HB/DRL)
- H16 H16, H16B 13,2 500 1 000
- H17 H17 13,2 100/200 200/400
- H18 H18 13,2 300 500
H19
- H19 13,2 125/250 250/500
(HB/LB)
- H20 H20 13,2 100 200
---------------------- Page: 9 ----------------------
SIST EN IEC 60810:2018/A1:2019
– 4 – IEC 60810:2017/AMD1:2019
© IEC 2019
Filament lamp data
Type 12 V 24 V
sheet number
B /h T /h B /h T /h
IEC 60809 R.E.5 Category Test V Test V 3
3 c c
H27W/1
3430 H27W 13,5 90 190
H27W/2
2325 HB3 HB3/ HB3A 13,2 250 500
2335 HB4 HB4/ HB4A 13,2 850 1 700
2420 HIR2 HIR2 13,2 300 600
HS1
2130 HS1 13,2 75/150 150/300
(HB/LB)
2340 HS2 HS2 13,2 100 250
PSX26
- PSX26W 13,2 1 000 2 000
2110 R2 13,2 30/60 90/160
(HB / LB)
2150 S1/S2 S2 13,2 50/100 100/200
Lamps for signalling applications
C5W 13,5 350 750 28,0 120 350
H6W,
3410 H6W 13,5 350 700
HY6W
- H10W H10W/1 13,5 150 400
- H10W HY10W/1 13,5 300 600
3420 H21W H21W 13,5 200 400 28,0 90 180
- HY21W HY21W 13,5 200 400 28,0 90 180
- P13W P13W 13,5 4 000 8 000
- P19W P19W 13,5 1 000 2 000
3310 P21W P21W 13,5 120 320 28,0 60 160
3120 P21/4W P21/4W 13,5 60/600 160/1 600 28,0 60/600 160/1 600
3110 P21/5W P21/5W 13,5 60/600 160/1 600 28,0 60/600 160/1 600
- P24W P24W 13,5 750 1 500
3315 P27W P27W 13,5 550 1 320
1 320/8 82
- P27/7W P27/7W 13,5 550/3 690
- PR21W PR21W 13,5 120 320 28,0 60 160
PR21/5
- PR21/5W 13,5 60/600 160/1 600
- P19W PSY19W 13,5 1 200 2 400
- P24W PSY24W 13,5 1 000 2 000
- P19W PY19W 13,5 1 200 2 400
3311 PY21W PY21W 13,5 120 320 28,0 60 160
- P24W PY24W 13,5 1 000 2 000
PY27/7 1 300/8 00
3141 PY27/7W 13,5 550/3 600
W 0
3320 R5W R5W 13,5 100 300 28,0 80 225
3330 R10W R10W 13,5 100 300 28,0 80 225
- R10W RY10W 13,5 100 300
3340 T4W T4W 13,5 300 750 28,0 120 350
4310 W3W W3W 13,5 500 1 500 28,0 400 1 100
4320 W5W W5W 13,5 200 500 28,0 120 350
---------------------- Page: 10 ----------------------
SIST EN IEC 60810:2018/A1:2019
IEC 60810:2017/AMD1:2019 – 5 –
© IEC 2019
Filament lamp data
Type 12 V 24 V
sheet number
B /h T /h B /h T /h
IEC 60809 R.E.5 Category Test V Test V 3
3 c c
4340 W16W W16W 13,5 250 700
4321 W5W WY5W 13,5 200 500
4120 C21W C21W 13,5 40 110
- WY16W WY16W 13,5 250 700
- W21W W21W 13,5 120 320
W21/5
- W21/5W 13,5 60/600 160/1 600
- WY21W WY21W 13,5 120 320
W15/5
- W15/5W 13,5 120/600 320/1 600
- W10W W10W 13,5 100 300
- WY10W WY10W 13,5 100 300

The values indicated are minimum requirements. Depending on some particular customers' specifications,

different values may be obtained, i.e. shorter life/higher luminous flux or longer life/lower luminous flux. This

shall be negotiated between filament lamp manufacturers and their customers.

If there is no direct contact between the customer and supplier, the information on deviation from recommended

life time data shall be given on the package and/or in publicly available technical documentation.

If an R.E.5 sheet number is referenced, the IEC sheet number refers to the data sheet given in withdrawn

IEC 60809:1995/AMD5:2012 and is given for information only.
Table 4 – Rated luminous flux-maintenance values for continuous operation

Delete, under the "UN" column heading, all the references to category sheet “R37”, replace

the column heading "UN" with “R.E.5”, replace footnote "e" with a new footnote "e" and delete

footnote "f", as follows:
---------------------- Page: 11 ----------------------
SIST EN IEC 60810:2018/A1:2019
– 6 – IEC 60810:2017/AMD1:2019
© IEC 2019
Table 4 – Rated luminous flux-maintenance values for continuous operation
Filament lamp data
Type 12 V 24 V
sheet number
Luminous flux Luminous flux
e maintenance maintenance
IEC 60809 R.E.5 Category Test V Test V
h % h %
Lamps for front lighting applications
c c
2110 R2 R2 13,2 55 85 28,0 55 85
d d
110 70 28,0 110 70
c c
2120 H4 H4 13,2 110 85 110 85
d d
225 85 28,0 225 85
2125 - H6 14,0 75 85 – – –
150 80
2305 H5 14,0 75 85 – – –
2310 H1 H1 13,2 170 90 28,0 170 90
2320 H2 13,2 170 90 28,0 170 90
2330 H3 H3 13,2 170 90 28,0 170 90
a a
3110 P21/5W 13,5 110 70 28,0 110 70
P21/5W
b b
750 70 750 70
a b
3120 P21/4W P21/4W 13,5 110 750 70 28,0
Under Under
consideration consideration
3310 P21W P21W 13,5 110 70 28,0 110 70
3320 R5W R5W 13,5 150 70 28,0 150 70
3330 R10W R10W 13,5 150 70 28,0 150 70
3340 T4W T4W 13,5 225 70 28,0 225 70
4110 C5W C5W 13,5 225 60 28,0 225 60
4120 C21W C21W 13,5 75 60 – – –
4310 W3W W3W 13,5 750 60 28,0 750 60
4320 W5W W5W 13,5 225 60 28,0 225 60

The values indicated are minimum requirements. Depending on some particular customers' specifications,

different values may be obtained, i.e. shorter life/higher luminous flux or longer life/lower luminous flux. This shall

be negotiated between filament lamp manufacturers and their customers.

Luminous flux-maintenance values for extended operation times are under consideration.

High-wattage filament.
Low-wattage filament.
Main or upper beam filament.
Dipped or lower beam filament.

If an R.E.5 sheet number is referenced, the IEC sheet number refers to a data sheet given in withdrawn

IEC 60809:1995/AMD5:2012 and is given for information only.
7.3 Luminous flux and colour maintenance
Replace the fifth paragraph with the following new paragraph:

For LED light sources which fulfil the requirements of the corresponding category sheet of

R.E.5 the L B values shall be not less than those specified in Table 5.
70 10
---------------------- Page: 12 ----------------------
SIST EN IEC 60810:2018/A1:2019
IEC 60810:2017/AMD1:2019 – 7 –
© IEC 2019
Table 5 – Minimum L B values for replaceable LED light sources
70 10

Replace, in the first column heading, the reference to "UN R 128" with "R.E.5" and add below

the existing row "LY5A, LY5B", a new row "L1/6A, L1/6B", as follows:
Category according to R.E.5 Minimum L B
70 10
… …
LY5A, LY5B 500
L1/6A, L1/6B 2 000
7.7 Mass
Table 9 – Maximum mass for LED light sources
Add, in the last row, "L1/6" to the category list, as follows:
LR3, LR4, LR5, LW3, LW5, LY3, LY5, L1/6 PGJ18.5 35
7.8.2 Typical circuits for LR3, LR5, LY3, LY5, LW3 and LW5 LED light sources
Replace the existing title of Subclause 7.8.2 with the following new title:

7.8.2 Typical circuits for LR3, LR5, LY3, LY5, LW3, LW5 and L1/6 LED light sources

Replace, in the first para
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
