EN IEC 60809:2021 (CLC) defines dimensional, electrical and luminous requirements for lamps and light sources used in road vehicles. It covers filament lamps, discharge lamps and LED light sources intended for vehicle lighting and signalling devices. The standard focuses on interchangeability - ensuring that replacement lamps meet consistent physical, electrical and photometric characteristics - and includes required test methods and lamp data sheets referenced or incorporated from UN Resolution R.E.5.
Key topics and technical requirements
- Scope and applicability: Applies to electric light sources for automotive applications (headlamps, signal lights, road illumination devices) and to lamp types listed in UN R.E.5.
- Interchangeability requirements: Dimensional tolerances, cap/base specifications, filament/electrode positions and mechanical fixation to ensure physical fit and correct optical performance.
- Electrical and luminous characteristics: Initial electrical parameters, voltage/wattage checks, luminous flux and normalized luminous intensity test methods.
- Photometry and colour: Colour of light, colour endurance, selective-yellow and white-light requirements, and measurement methods (normative annexes for colour measurement).
- Technology-specific sections: Separate requirements and tests for filament lamps, discharge lamps (starting, run-up, hot-restrike), and LED light sources (optical surfaces, red content, flux at elevated temperature).
- Non-replaceable and miniature lamps: Rules for fixed/non-replaceable filament lamps and references to IEC 60983 for miniature supplementary lamps.
- Test methods and annexes: Normative annexes cover filament geometry, colour measurement, electrical/luminous test conditions, and measurement of internal elements for specific lamp types.
- Performance cross-reference: Durability and mechanical performance (life, vibration, shock, torsion strength) are addressed by IEC 60810.
Practical applications and users
- Automotive OEMs - design and validate vehicle lighting systems to ensure compliance and interchangeability.
- Lamp manufacturers and suppliers - specify dimensions, base types, photometric performance and produce compliant data sheets.
- Testing and certification labs - apply the standard’s test methods for homologation, type approval and quality control.
- Regulatory bodies and homologation authorities - reference EN IEC 60809:2021 when assessing compliance with UN R.E.5 and national vehicle lighting regulations.
- Design engineers - integrate compliant lamps into luminaires, ensuring mechanical fit and intended optical performance.
Related standards
- IEC 60810 / EN IEC 60810 - performance requirements (life, mechanical resistance).
- IEC 60983 / EN 60983 - miniature lamps for supplementary purposes.
- UN Resolution R.E.5 - lamp data sheets and regulatory references.
- IEC 60061, IEC 60050-845 - lamp caps, holders and vocabulary.
EN IEC 60809:2021 is essential for anyone involved in automotive lighting design, manufacturing, testing or regulatory approval who needs consistent, interchangeable and verifiable lamp performance for road vehicles.
Frequently Asked Questions
EN IEC 60809:2021 is a standard published by CLC. Its full title is "Lamps and light sources for road vehicles - Dimensional, electrical and luminous requirements". This standard covers: This document is applicable to electric light sources (see Note 1) for use in automotive applications, for example in road illumination devices and/or light signalling devices for road vehicles. It is especially applicable to light sources listed in UN Resolution R.E.5 and light sources subject to other legislations. This document specifies the technical requirements for interchangeability for example dimensional, electrical and photometrical characteristics, and includes test methods. For the light sources listed in this document, the data sheets are contained either in this document or are included by reference to UN Resolution R.E.5. Performance requirements are specified in IEC 60810, for example life, torsion strength, resistance to vibration and shock. The requirements for miniature light sources for supplementary purposes, not subject to legislation, are specified in IEC 60983. NOTE 1 The terms "lamp" and "light source" are both used in this document to mean the same product, so the two terms are interchangeable throughout this document. NOTE 2 In various vocabularies and standards, different terms are used for "incandescent lamp" (IEC 60050845:1987, 845-07-04), "discharge lamp" (IEC 60050-845:1987, 845-07-17) and "LED lamp". In this document "filament lamp", "discharge lamp" and "LED light source" are used, however, where only "lamp" or "light source" is written, all light sources, independent of the technology used, are meant, unless the context clearly shows that it applies to one kind of technology only. In the UN Regulations, the word "light source" is used for the products specified in this document. NOTE 3 Wherever the term "device" is used, it is meant to designate equipment which is used as a luminaire. It can for instance take the form and purpose of a headlight or signal light.
This document is applicable to electric light sources (see Note 1) for use in automotive applications, for example in road illumination devices and/or light signalling devices for road vehicles. It is especially applicable to light sources listed in UN Resolution R.E.5 and light sources subject to other legislations. This document specifies the technical requirements for interchangeability for example dimensional, electrical and photometrical characteristics, and includes test methods. For the light sources listed in this document, the data sheets are contained either in this document or are included by reference to UN Resolution R.E.5. Performance requirements are specified in IEC 60810, for example life, torsion strength, resistance to vibration and shock. The requirements for miniature light sources for supplementary purposes, not subject to legislation, are specified in IEC 60983. NOTE 1 The terms "lamp" and "light source" are both used in this document to mean the same product, so the two terms are interchangeable throughout this document. NOTE 2 In various vocabularies and standards, different terms are used for "incandescent lamp" (IEC 60050845:1987, 845-07-04), "discharge lamp" (IEC 60050-845:1987, 845-07-17) and "LED lamp". In this document "filament lamp", "discharge lamp" and "LED light source" are used, however, where only "lamp" or "light source" is written, all light sources, independent of the technology used, are meant, unless the context clearly shows that it applies to one kind of technology only. In the UN Regulations, the word "light source" is used for the products specified in this document. NOTE 3 Wherever the term "device" is used, it is meant to designate equipment which is used as a luminaire. It can for instance take the form and purpose of a headlight or signal light.
EN IEC 60809:2021 is classified under the following ICS (International Classification for Standards) categories: 29.140.20 - Incandescent lamps; 43.040.20 - Lighting, signalling and warning devices. The ICS classification helps identify the subject area and facilitates finding related standards.
EN IEC 60809:2021 has the following relationships with other standards: It is inter standard links to EN 60809:2015, EN 60809:2015/A3:2019, EN IEC 60809:2015/A2:2018, EN 60809:2015/A1:2017, EN IEC 60809:2021/A1:2023. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN IEC 60809:2021 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
Standards Content (Sample)

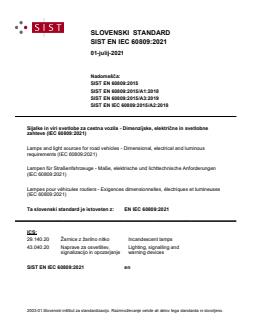

SLOVENSKI STANDARD
01-julij-2021
Nadomešča:
SIST EN 60809:2015
SIST EN 60809:2015/A1:2018
SIST EN 60809:2015/A3:2019
SIST EN IEC 60809:2015/A2:2018
Sijalke in viri svetlobe za cestna vozila - Dimenzijske, električne in svetlobne
zahteve (IEC 60809:2021)
Lamps and light sources for road vehicles - Dimensional, electrical and luminous
requirements (IEC 60809:2021)
Lampen für Straßenfahrzeuge - Maße, elektrische und lichttechnische Anforderungen
(IEC 60809:2021)
Lampes pour véhicules routiers - Exigences dimensionnelles, électriques et lumineuses
(IEC 60809:2021)
Ta slovenski standard je istoveten z: EN IEC 60809:2021
ICS:
29.140.20 Žarnice z žarilno nitko Incandescent lamps
43.040.20 Naprave za osvetlitev, Lighting, signalling and
signalizacijo in opozarjanje warning devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 60809
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2021
ICS 43.040.20; 29.140.20 Supersedes EN 60809:2015 and all of its amendments
and corrigenda (if any)
English Version
Lamps and light sources for road vehicles - Dimensional,
electrical and luminous requirements
(IEC 60809:2021)
Lampes et sources lumineuses pour véhicules routiers - Lampen und Lichtquellen für Straßenfahrzeuge - Maße,
Exigences dimensionnelles, électriques et lumineuses elektrische und lichttechnische Anforderungen
(IEC 60809:2021) (IEC 60809:2021)
This European Standard was approved by CENELEC on 2021-05-12. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60809:2021 E

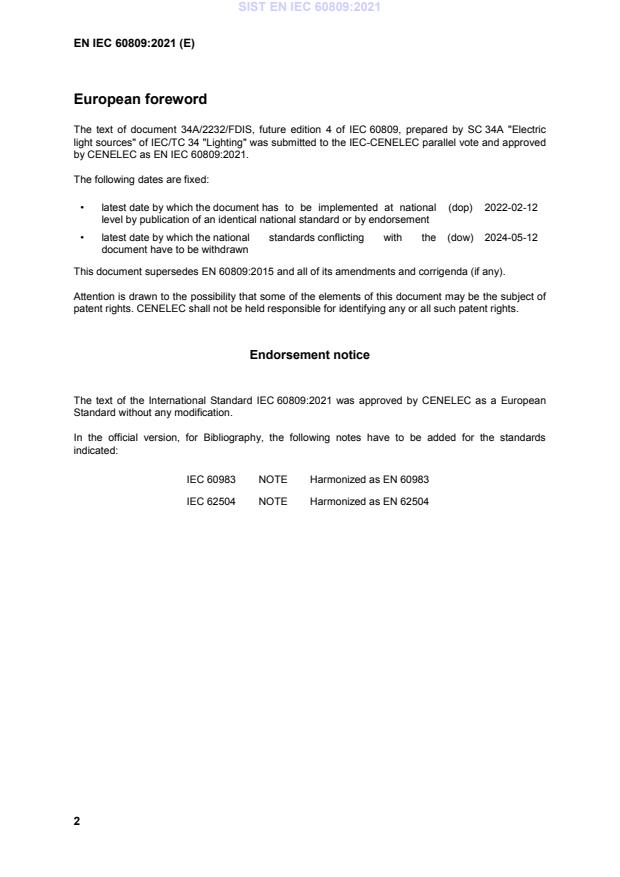

European foreword
