EN 60966-3:2009

Radio frequency and coaxial cable assemblies - Part 3: Sectional specification for semi-flexible coaxial cable assemblies

IEC 60966-3:2008(E) is a sectional specification that relates to semi-flexible coaxial cable assemblies operating in the transverse electromagnetic mode (TEM). It establishes uniform requirements for testing the electrical, mechanical and climatic properties of flexible cable assemblies composed of flexible coaxial cables and coaxial connectors. The major change with respect to the second edition is a better definition of the tests to be performed.

Konfektionierte Koaxial- und Hochfrequenzkabel - Teil 3: Rahmenspezifikation für halbflexible konfektionierte Koaxialkabel

Ensembles de cordons coaxiaux et de cordons pour fréquences radioélectriques - Partie 3: Spécification intermédiaire pour cordons coaxiaux semi-flexibles

La CEI 60966-3:2008 est une spécification intermédiaire qui concerne les cordons coaxiaux semi-flexibles fonctionnant dans le mode électromagnétique transversal (TEM). Elle établit des exigences uniformes pour l'essai des propriétés électriques, mécaniques et climatiques de cordons flexibles composés de câbles coaxiaux flexibles et de connecteurs coaxiaux. La présente spécification intermédiaire doit être lue conjointement avec la deuxième édition de la CEI 60966-1 (1999). Elle contient les mêmes articles que la CEI 60966-1 et les complète ou les modifie lorsque cela est nécessaire. Lorsqu'un article de la CEI 60966-1 n'apparaît pas dans la présente norme, elle s'applique telle quelle dans la CEI 60966-1. Lorsque la présente norme indique un "ajout", une "modification" ou un "remplacement", le texte correspondant de la première partie doit être adapté en conséquence. Cette publication doit être lue conjointement avec la CEI 60966-1:1999

Radijska frekvenca in sestavi koaksialnih kablov - 3. del: Področna specifikacija za sestave polzvijavih koaksialnih kablov (IEC 60966-3:2008)

General Information

• Status: Published
• Publication Date: 15-Apr-2009
• Withdrawal Date: 31-Mar-2012
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: CLC/TC 46X - Communication cables
• Drafting Committee: CLC/SC 46XA - Coaxial cables
• Parallel Committee: IEC/TC 46 - IEC_TC_46
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 16-Apr-2009
• Completion Date: 16-Apr-2009
• Ref Project: SIST EN 60966-3:2009 - Radio frequency and coaxial cable assemblies - Part 3: Sectional specification for semi-flexible coaxial cable assemblies (IEC 60966-3:2008)

Relations

• Replaces: EN 60966-3:2003 - Radio frequency and coaxial cable assemblies - Part 3: Sectional specification for semi-flexible coaxial cable assemblies
• Effective Date: 29-Jan-2023
• Replaced By: EN IEC 60966-3:2023 - Radio frequency and coaxial cable assemblies - Part 3: Sectional specification for semi-flexible coaxial cable assemblies
• Effective Date: 09-Nov-2021

Overview

EN 60966-3:2009 (adoption of IEC 60966-3:2008) is a sectional specification for semi-flexible coaxial cable assemblies used in radio frequency (RF) applications operating in the transverse electromagnetic (TEM) mode. Published by CLC/CENELEC in 2009, it defines uniform requirements and test methods for finished, assembled coaxial cable assemblies made of flexible coaxial cable and RF/coaxial connectors. The third edition improves and clarifies the definition of tests to be performed compared with the previous edition.

Key topics and technical requirements

• Scope and intent: Applies to finished cable assemblies (integral units); detail specifications may supplement or limit required tests for specific applications.
• Operating mode: Designed for assemblies operating in the TEM mode (typical for coaxial RF connections).
• Design and materials:
  • Cables should conform to IEC 60096-2 or IEC 61196 unless otherwise specified.
  • Connectors should conform to IEC 61169; deviations must meet detail-specification requirements.
• Dimensions and length:
  • Length is measured between connector reference planes; for right-angle connectors the axis is used.
  • Default length tolerance: ±1% for lengths ≥ 300 mm, ±3 mm for lengths < 300 mm (unless detail specification states otherwise).
• Tests and properties:
  • Establishes uniform methods for electrical, mechanical and climatic testing of assemblies.
  • Test categories include electrical tests, mechanical robustness (e.g., flexing, connector torque), environmental/climatic tests, vibration (referenced to IEC 60068‑2‑6), and specialized tests.
  • Contains test schedules, grouping of tests and quality assessment requirements.
• Workmanship, marking & packaging: Requirements for identification, end caps and optional markers as part of the finished assembly.

Applications and who uses this standard

EN 60966-3:2009 is practical for:

• Cable assembly manufacturers developing semi-flexible RF coaxial assemblies.
• Test laboratories and quality assurance teams establishing inspection and acceptance procedures.
• Design and procurement engineers specifying cable assemblies for RF systems.
• Industries that rely on reliable RF interconnects (telecommunications, broadcast, instrumentation and other electronic equipment) will use EN 60966-3 as part of product specifications and conformity assessment.

Related standards

Key normative references and related standards to consult:

• IEC/EN 60966-1:1999 (generic specification and test methods)
• IEC 61169 series (radio-frequency connectors)
• IEC 61196 series / IEC 60096‑2 (coaxial cable specifications)
• IEC 60068‑2‑6 (vibration testing)
• IEC 60410, IEC QC 001002, ISO 9000 (quality and sampling)

EN 60966-3:2009 provides a clear, test-focused framework for the specification and verification of semi-flexible coaxial cable assemblies, helping ensure consistent performance and interchangeability in RF systems.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2009
1DGRPHãþD
SIST EN 60966-3:2004
5DGLMVNDIUHNYHQFDLQVHVWDYLNRDNVLDOQLKNDEORYGHO3RGURþQDVSHFLILNDFLMD]D
VHVWDYHSRO]YLMDYLKNRDNVLDOQLKNDEORY,(&
Radio frequency and coaxial cable assemblies - Part 3: Sectional specification for semi-
flexible coaxial cable assemblies (IEC 60966-3:2008)
Konfektionierte Koaxial- und Hochfrequenzkabel - Teil 3: Rahmenspezifikation für
halbflexible konfektionierte Koaxialkabel (IEC 60966-3:2008)
Ensembles de cordons coaxiaux et de cordons pour fréquences radioélectriques - Partie
3: Spécification intermédiaire pour cordons coaxiaux semi-flexibles (CEI 60966-3:2008)
Ta slovenski standard je istoveten z: EN 60966-3:2009
ICS:
33.120.10 Koaksialni kabli. Valovodi Coaxial cables. Waveguides
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60966-3
NORME EUROPÉENNE
April 2009
EUROPÄISCHE NORM
ICS 33.120.10 Supersedes EN 60966-3:2003

English version
Radio frequency and coaxial cable assemblies -
Part 3: Sectional specification for semi-flexible coaxial cable assemblies
(IEC 60966-3:2008)
Ensembles de cordons coaxiaux  Konfektionierte Koaxial-
et de cordons pour fréquences und Hochfrequenzkabel -
radioélectriques - Teil 3: Rahmenspezifikation
Partie 3: Spécification intermédiaire für halbflexible konfektionierte
pour cordons coaxiaux semi-flexibles Koaxialkabel
(CEI 60966-3:2008) (IEC 60966-3:2008)

This European Standard was approved by CENELEC on 2009-04-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60966-3:2009 E

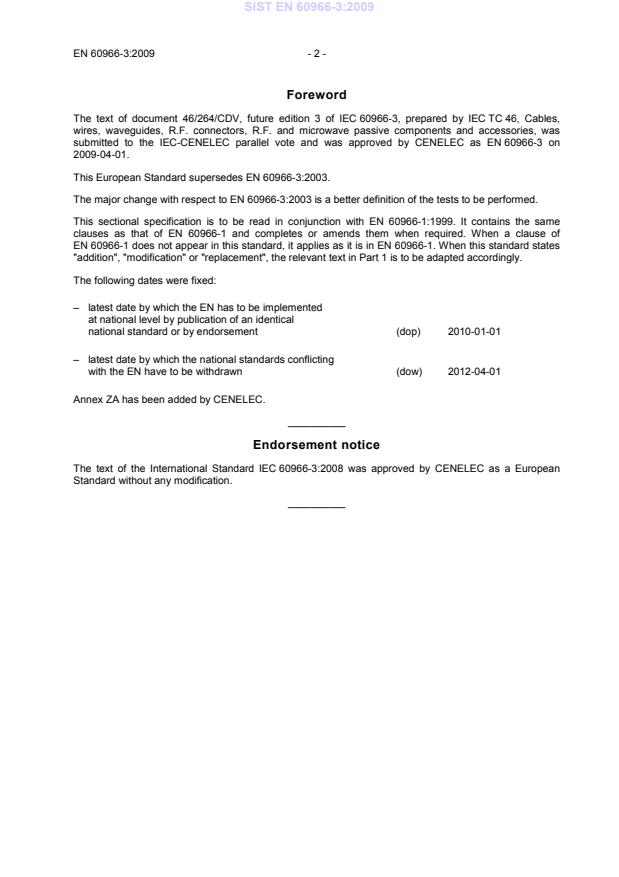

Foreword
